SHINING 3D · Authorized US Partner
Handheld
Metrology Scanners
Metrology-grade accuracy on the shop floor. Wireless, portable, and fast — from quality inspection to large-scale reverse engineering.
Up to 0.005mm accuracy
Wireless operation
VDI/VDE certified
In-person demo available
0.005mm
Best-in-class accuracy
OptimScan Q12 series
13+
Models in catalog
Handheld to automated
100%
Wireless options
Cable-free scanning
1 day
Quote turnaround
Complete proposal
Full Catalog
Metrology Scanner Lineup
Every scanner in the SHINING 3D metrology catalog — from entry handheld to automated tracking systems. All priced on application; we build a complete proposal within 1 business day.
$11,999
SHINING 3D · Laser Handheld
FreeScan Combo
Dual light source — blue laser + infrared VCSEL. Compact at 620g. Four scanning modes. Ideal entry-level metrology.
0.02mm accuracy
26 laser lines
620g
$14,999
SHINING 3D · Laser Handheld
FreeScan Combo+
50 blue laser lines — nearly double the speed of the original Combo. Up to 3.6M points/sec. Same compact 620g form factor.
0.02mm accuracy
50 laser lines
3.6M pts/sec
Contact for Quote
SHINING 3D · Laser Handheld

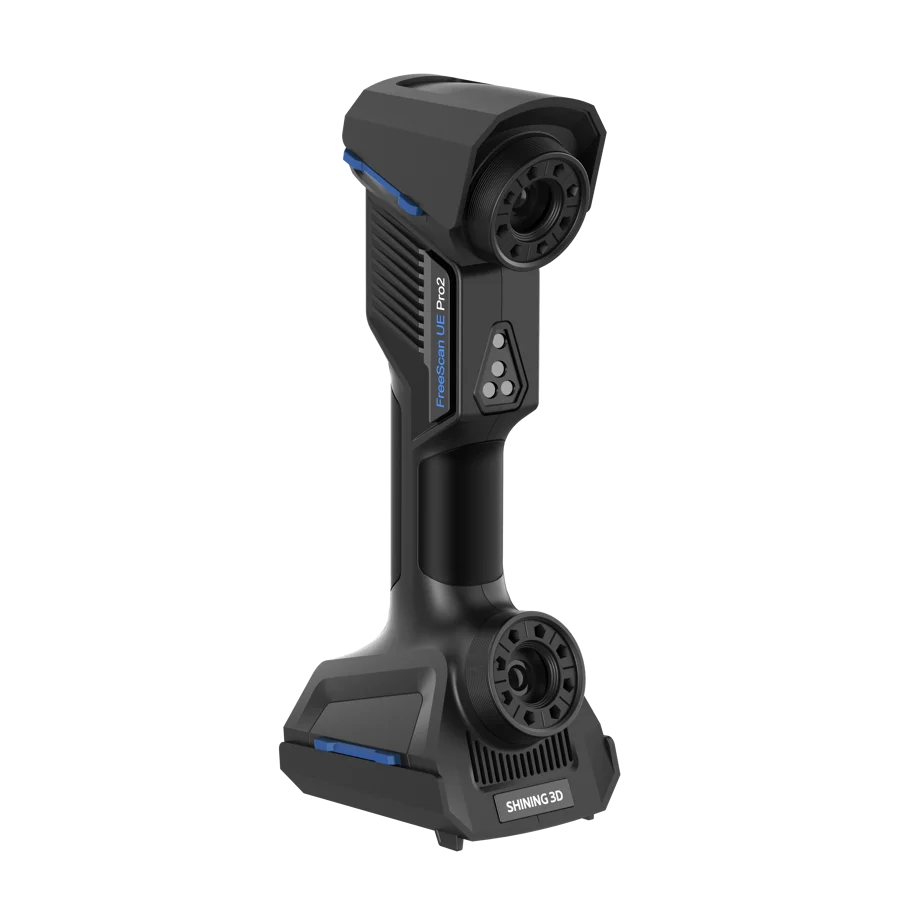

FreeScan UE Pro2
Wireless multi-functional laser scanner. 3,460,000 pts/sec. Patented VPG — no coded markers. On-site inspection module built in.
0.02mm accuracy
50 laser lines
Wireless
VPG
New
Contact for Quote
SHINING 3D · Laser Handheld
FreeScan UE Nova
Extra-large 2.6 × 2.2m field of view. 50 laser lines. Wireless. Built for large-object scanning — turbines, aircraft, infrastructure.
2.6×2.2m FOV
50 laser lines
Wireless
Contact for Quote
SHINING 3D · Laser Handheld

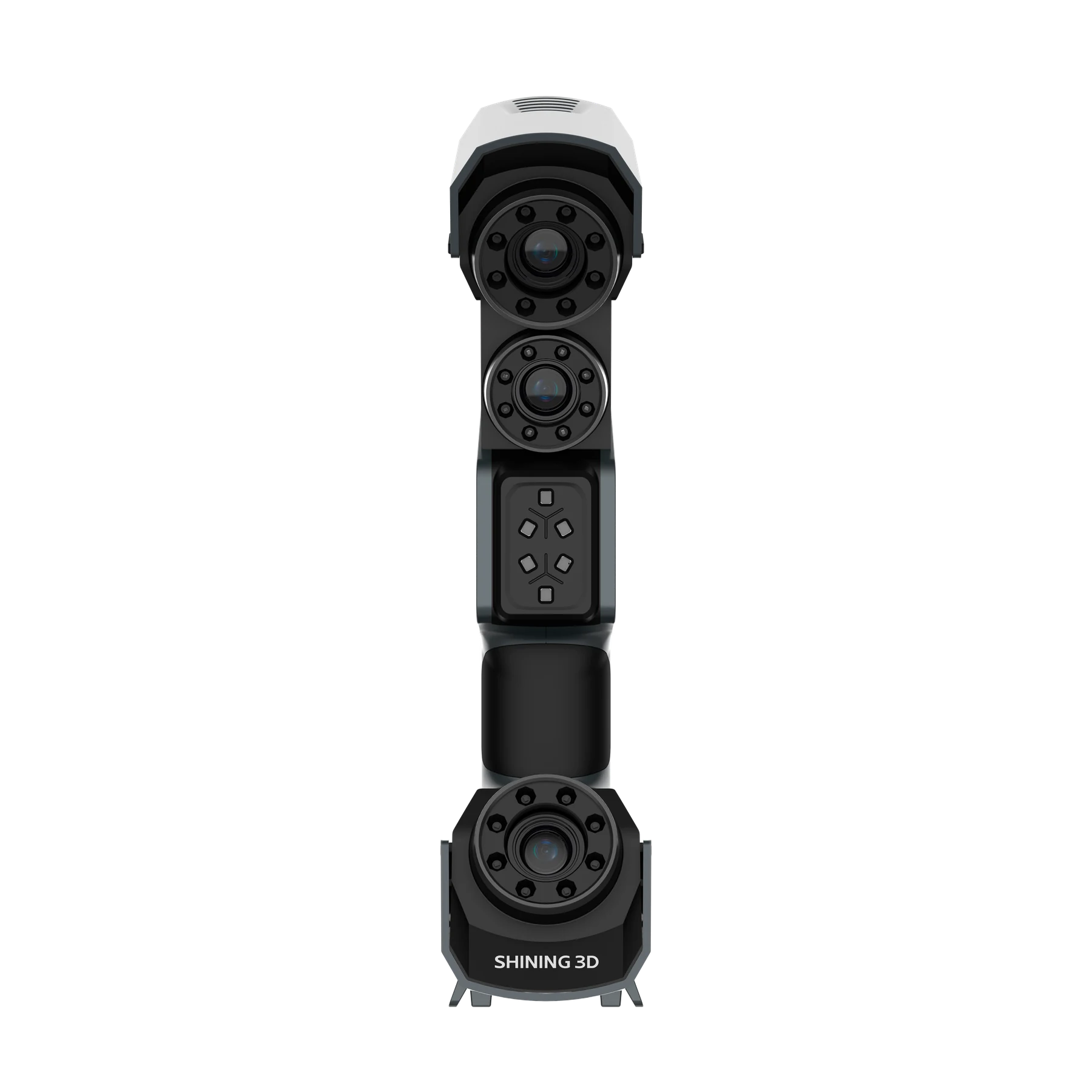

FreeScan Trio
Three scanner modes in one device — blue laser, infrared, and photogrammetry. The most versatile single-unit metrology scanner.
0.02mm accuracy
3-in-1 modes
Wireless
Contact for Quote
SHINING 3D · Optical Tracking System

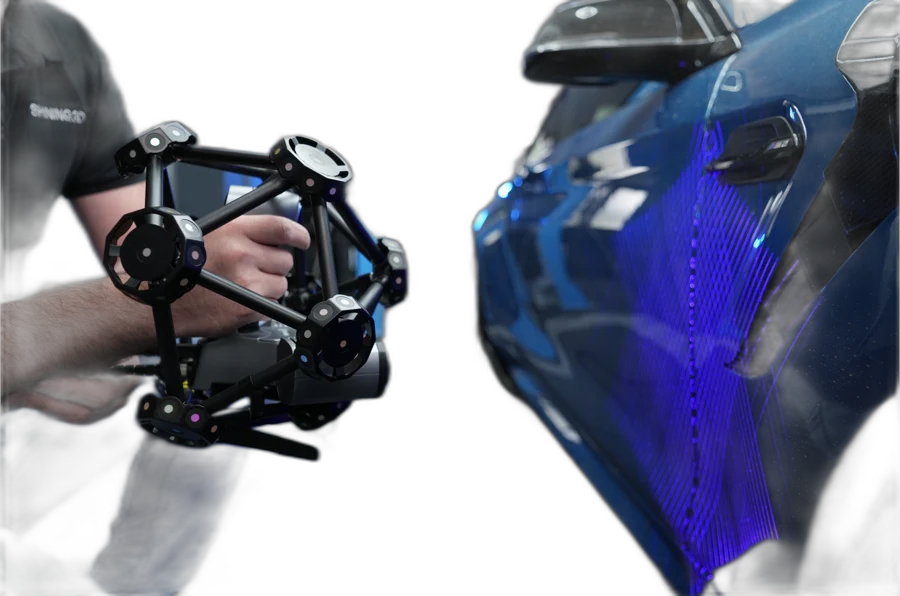

FreeScan Trak Pro2
Optical tracking + TE25 handheld laser scanner + optional FreeProbe CMM. Dynamic referencing — move freely around large workpieces without markers.
Dynamic tracking
5MP cameras
CMM-ready
New
Contact for Quote
SHINING 3D · Optical Tracking System

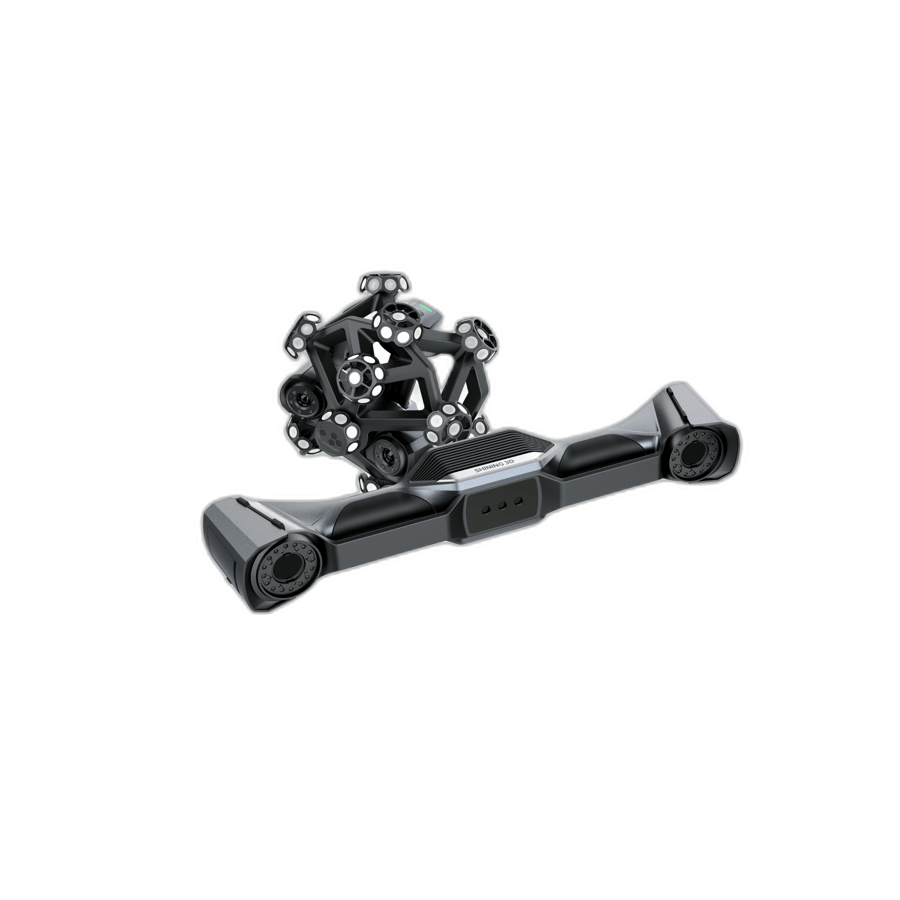

FreeScan Trak Nova
Detachable UE Nova handheld scanner + dynamic tracking. The largest FOV tracking system on the market. Wireless throughout.
2.6×2.2m FOV
Detachable
Wireless
New
Contact for Quote
SHINING 3D · Optical Tracking System
FreeScan Trak ProW
Fully wireless tracking system. Extended-range coverage. Built for large-scale industrial inspection and aerospace applications.
Full wireless
Extended range
Industrial
New
Contact for Quote
SHINING 3D · Standalone Inspection
FreeScan Omni
Standalone inspection-ready scanner with built-in touchscreen, PTB-certified software, and hot-swap batteries. No laptop required.
0.02mm accuracy
Standalone
No laptop needed
Contact for Quote
SHINING 3D · High-Precision Inspection

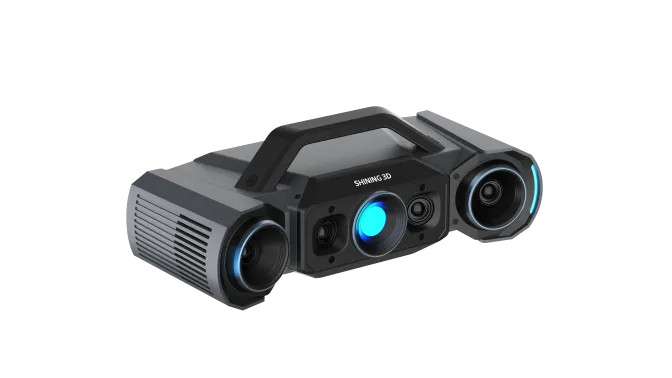

OptimScan Q12
Four-camera structured light scanner. Up to 0.005mm accuracy. 12M data points per scan in under one second. MSF for complex surfaces.
0.005mm accuracy
12M pts/scan
<1 sec scan
Contact for Quote
SHINING 3D · High-Precision Inspection
OptimScan Q9
High-precision structured light inspection scanner. Tripod, turntable, or robot-mountable. Flexible resolution across large and small areas.
High precision
Multi-mount
MSF technology
$9,999
SHINING 3D · High-Precision Inspection

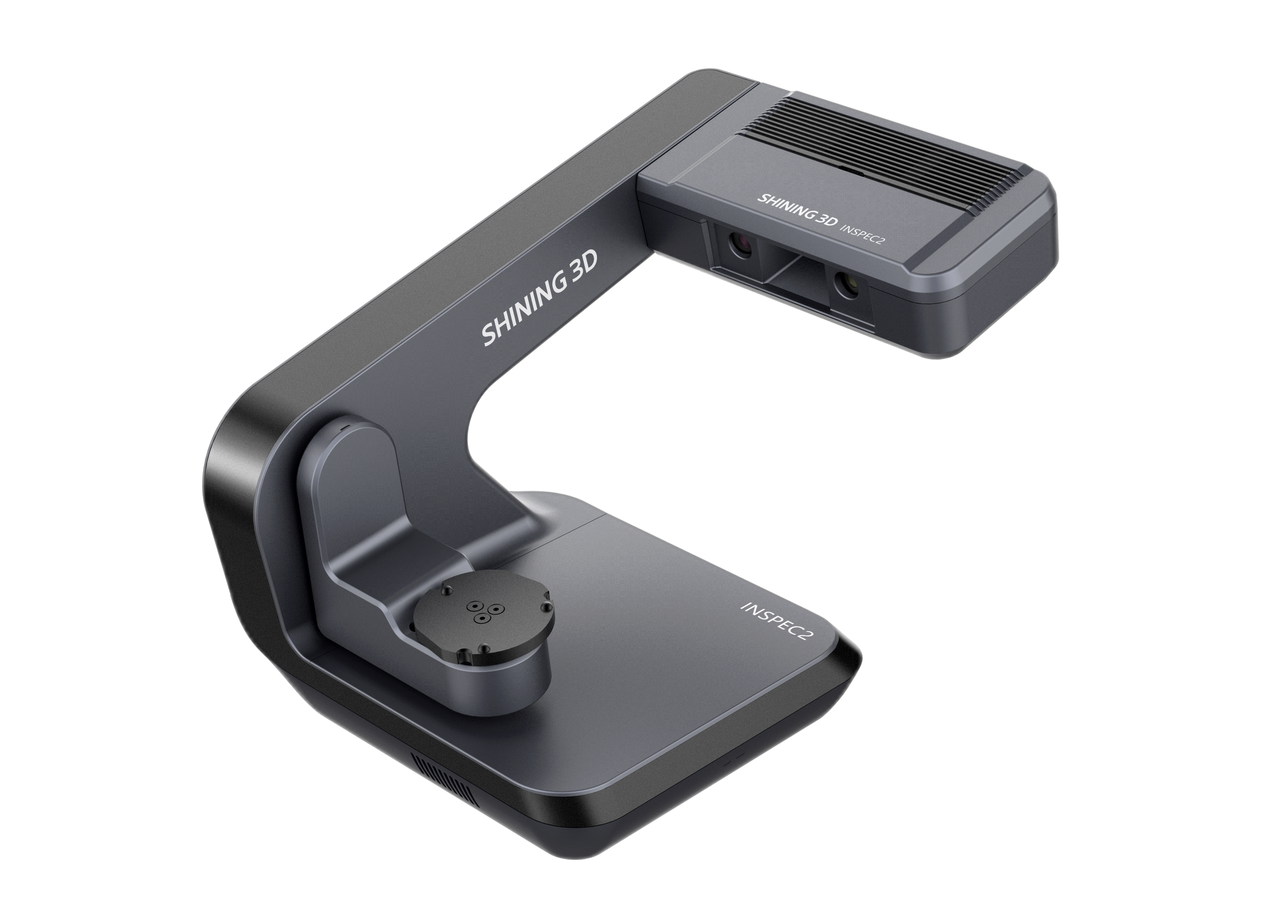

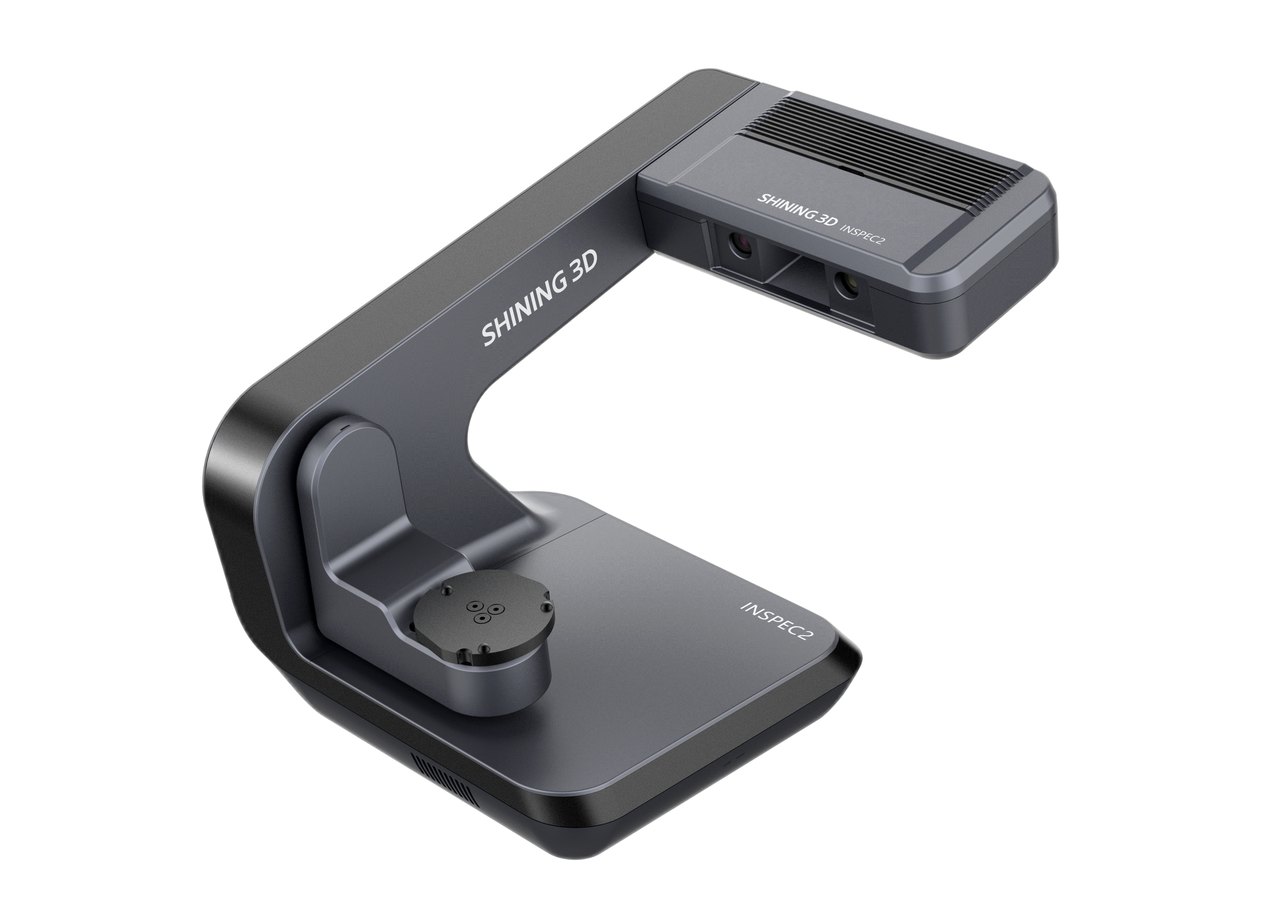

AutoScan Inspec2
Desktop automated inspection system. 140×90×80mm FOV. Multi-object mode scans 8 parts simultaneously. Ideal for jewelry, dental, and small-part QC.
Automated
8-part mode
Color texture
Side by Side
Quick Comparison
Key specifications across our most popular handheld metrology scanners. Contact us for a complete specification sheet on any model.
Laser Handheld 3D Scanners
| Spec | Combo | Combo+ | UE Pro2 | UE Nova | Trio |
|---|---|---|---|---|---|
| Accuracy | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Laser lines | 26 | 50 | 50 | 50 | Multi-mode |
| Scan speed | 1.86M pts/s | 3.6M pts/s | 3.46M pts/s | 3.46M pts/s | 3.46M pts/s |
| Wireless | ✓ | ✓ | ✓ Integrated | ✓ Integrated | ✓ |
| VPG | — | — | ✓ Binocular | ✓ Built-in | ✓ |
| On-site inspection | — | — | ✓ | — | ✓ |
| Weight | 620g | 620g | 950g | 1.6kg | ~900g |
| Price | $11,999 | $14,999 | Quote | Quote | Quote |
Optical Tracking Systems
| Spec | Trak Pro2 | Trak Nova | Trak ProW |
|---|---|---|---|
| Wireless | Wired | ✓ Wireless | ✓ Full wireless |
| Handheld scanner | TE25 (5MP) | UE Nova (detachable) | TE Nova |
| FOV coverage | Standard range | 2.6 × 2.2m | Extended range |
| VPG | — | ✓ Built-in | ✓ Built-in |
| FreeProbe CMM | ✓ Optional | — | — |
| Best for | Medium parts, CMM workflows | Large-scale wireless | Aerospace, heavy industry |
| Price | Quote | Quote | Quote |
High-Precision Inspection Systems
| Spec | AutoScan Inspec2 | OptimScan Q9 | OptimScan Q12 |
|---|---|---|---|
| Accuracy | Metrology-grade | 0.005mm | 0.005mm |
| Cameras | Structured light | 4 × 9MP | 4 × 12.3MP |
| Scan area | 140 × 90mm (fixed) | Large + small range | Large + small range |
| Points per scan | — | 9M pts | 12M pts |
| Shot speed | 60s cycle | <1 sec/shot | <1 sec/shot |
| Multi-object | ✓ Up to 8 parts | — | — |
| Robot-mountable | — | ✓ | ✓ |
| Price | $9,999 | Quote | Quote |
Why Metrology Grade
Not just 3D scanning — certified measurement

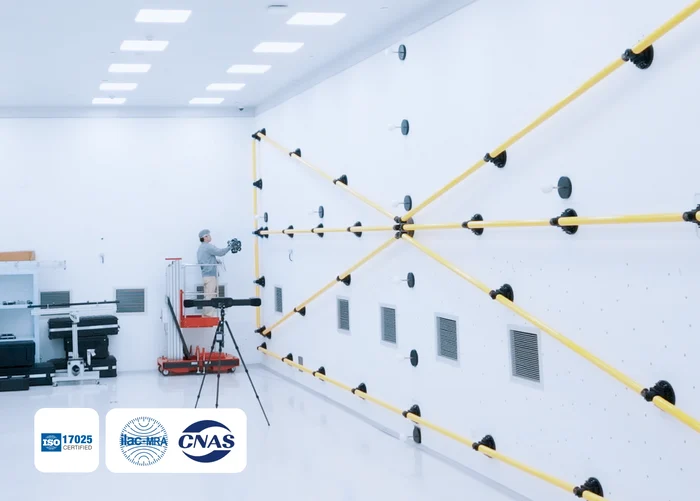

VDI/VDE & ISO Certified
Accuracy you can take to the quality lab
Every SHINING 3D metrology scanner in this catalog is VDI/VDE 2634 and ISO 10360 certified. That means the accuracy specifications aren't marketing — they're independently verified by accredited labs. When your customer requires a dimensional report, the data from these scanners holds up.
VDI/VDE 2634 certified
ISO 10360 certified
SGS lab calibration

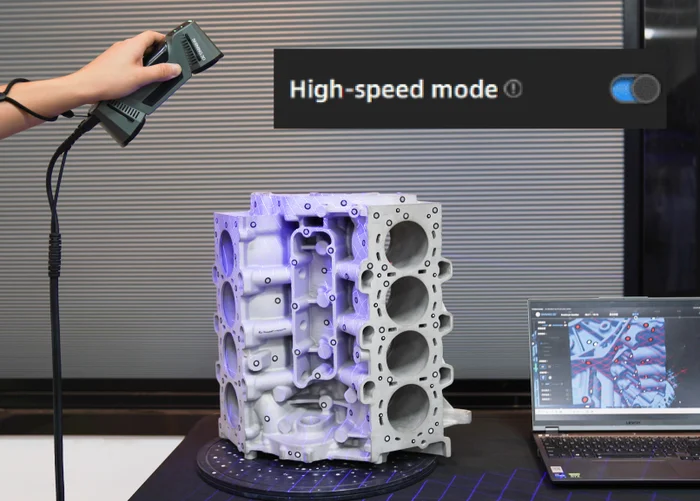

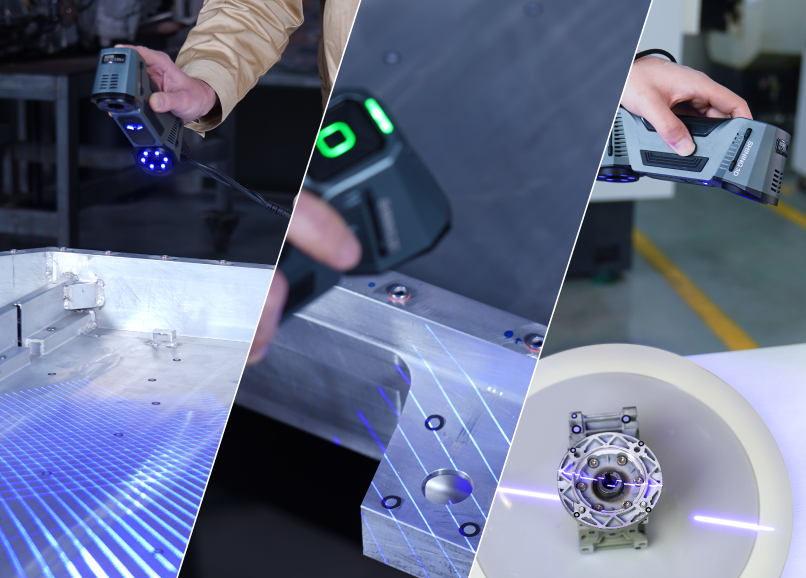

Shop Floor Ready
Metrology out of the lab, into the workflow
Traditional CMMs are fixed, slow, and expensive to operate. SHINING 3D's handheld metrology scanners bring the same accuracy directly to the part — on the production floor, outdoors, or inside a machine cavity. Wireless operation means no cable management around large workpieces.
No fixed setup
Outdoor capable
Cable-free
Applications
Built for demanding industries
Automotive
Body panels & powertrain inspection
Sheet metal deviation analysis, hole positioning, surface quality checks on stamped and cast parts. FreeScan UE Pro2 and Combo series are the standard in North American automotive Tier 1 suppliers.
Aerospace
Large component measurement
Fuselage sections, turbine blades, and structural assemblies. Trak series dynamic tracking handles the scale; VPG handles the accuracy on parts you can't move markers on.
Manufacturing QC
In-line & final inspection
Compare scan data to CAD tolerances and generate pass/fail reports in minutes. AutoScan Inspec2 handles small-part batch inspection; OptimScan Q12 handles precision mold and tooling verification.
Reverse Engineering
Scan to CAD in hours
No drawings? Scan the part, process in Geomagic Design X or EXModel, and have a parametric CAD model ready for modification. Combo series is ideal for this workflow — fast, accurate, compact.
Common Questions
Metrology scanner FAQ
What is a handheld metrology 3D scanner?
A handheld metrology 3D scanner is a portable device that captures the precise geometry of physical objects with certified accuracy — typically to within 0.02mm or better. Unlike general-purpose 3D scanners, metrology-grade scanners are independently verified against standards like VDI/VDE 2634 and ISO 10360, making their measurements legally defensible for quality control and inspection reports.
What is VPG (Video Photogrammetry) in SHINING 3D scanners?
VPG (Video Photogrammetry) is SHINING 3D's patented technology that eliminates the need for coded reference markers when scanning large objects. The scanner uses a built-in camera to automatically recognize and verify reference points in real time, maintaining high volumetric accuracy across large parts without pre-placement of targets.
What is the difference between the FreeScan Combo and FreeScan UE Pro2?
The FreeScan Combo ($11,999) is the entry-level metrology scanner — compact at 620g with dual blue laser and infrared light sources, ideal for general inspection and reverse engineering. The FreeScan UE Pro2 is a higher-tier wireless scanner with 50 laser lines, 3,460,000 points per second, integrated VPG, and a built-in on-site inspection module. Contact Rev1 for UE Pro2 pricing.
What industries use handheld metrology 3D scanners?
Handheld metrology 3D scanners are used primarily in automotive (body panel deviation analysis, sheet metal inspection), aerospace (large component measurement, turbine blade scanning), general manufacturing (in-line and final part inspection, mold and tooling verification), and reverse engineering (scan-to-CAD workflows for legacy parts with no drawings).
Can I get a demo of a SHINING 3D metrology scanner?
Yes. Rev1 Technologies is an authorized SHINING 3D partner in the US and offers free in-person demos at your facility or ours in Sterling Heights, Michigan. We can also scan a sample part and send you the data before you commit. Contact us to book a demo →
