SHINING 3D FreeScan Trio First Marker-Free Blue-Laser Metrology · Triple 5 MP Camera · 0.02 mm · VDI/VDE 2634

A Paper Trail QA Can Defend — Not Just a Datasheet

A scanner’s headline number is a single-point figure at the calibration plate. What an inspection workflow actually needs is volumetric accuracy across the working volume, repeatability across operators, and traceability to a recognized standard. The FreeScan Trio holds 0.02 mm single-point accuracy and 0.02 + 0.015 mm/m volumetric accuracy with built-in Video Photogrammetry engaged, validated to VDI/VDE 2634 Part 3 and ISO 10360 in SHINING 3D’s ISO/IEC 17025 accredited Accuracy Lab — the same family of standards used to qualify CMMs and laser trackers, with documentation Rev1 supplies for audit and regulated workflows on request.

26 Crossed Blue-Laser Lines — 3.01M pts/s

The high-speed mode runs 26 crossed blue-laser lines to acquire up to 3,010,000 points per second for fast area capture — the right mode for production QA, large castings, automotive bodies, and any inspection where scan time is the binding constraint. Blue-laser light has low sensitivity to ambient light and surface reflectivity, so the Trio stays stable on machined, polished, dark, and reflective surfaces that trip up structured-light systems, with point distance adjustable from 0.01–3 mm to match part detail.

One Trigger Pull, the Right Laser Pattern

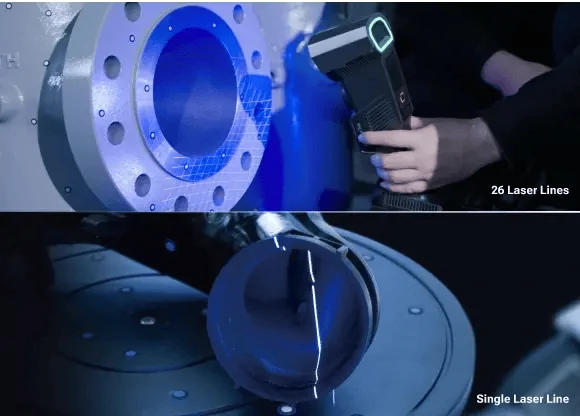

The same hand-held projects 26 crossed lines across a flanged bore face for fast area coverage, then drops to a single laser line that reaches down a deep cavity wall where wide patterns lose line-of-sight. Switching pattern in FreeScan — not swapping hardware — means a single Trio handles the open face and the buried feature in one inspection sitting, with blue-laser light holding stable on the machined and reflective surfaces typical of cast and machined tooling.

Finish the Inspection in a Pass, Not a Shift

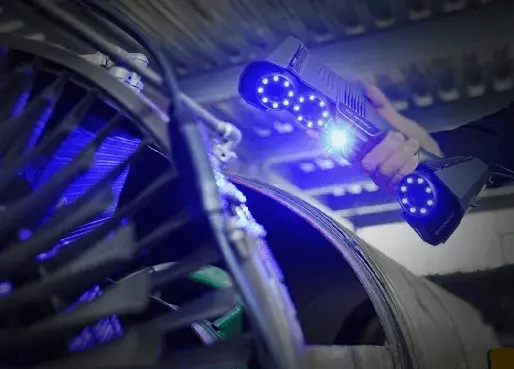

The high-speed mode acquires up to 3,010,000 points per second across three 5 MP cameras and a wide 650 × 580 mm field of view — so a part is digitized quickly with fewer overlapping captures, fewer alignment seams, and less operator fatigue. On audit-grade work, throughput is what decides whether first-article inspection and large-asset digitization keep pace with the line. The Trio carries that point rate without trading away the 0.02 mm accuracy class.

USB 3.0 Tethered, IP50 Body, Single-Operator Balance

The FreeScan Trio is a tethered handheld: it connects over USB 3.0 to a Windows workstation running FreeScan for capture, alignment, and mesh reconstruction. A 331 × 120 × 76 mm chassis at 985 g is balanced for single-operator use at a workstation, on an inspection fixture, or in field use around large assemblies, and an IP50, 0 to 40 °C rating keeps it at home on the plant floor. The triple-camera tracking eliminates trigger drift on shiny, dark, and machined surfaces across the full working range.

Tethered, not standalone: there is no wireless or PC-free mode — a Windows workstation running FreeScan stays in the workflow. If an untethered field-metrology workflow is the binding requirement, look at the wireless FreeScan Trak Pro2 tracking system. For bench and floor inspection where a workstation connection is available, the Trio is the right pick at this accuracy class.

A Kit Configured to Your Parts, Not a Generic Box

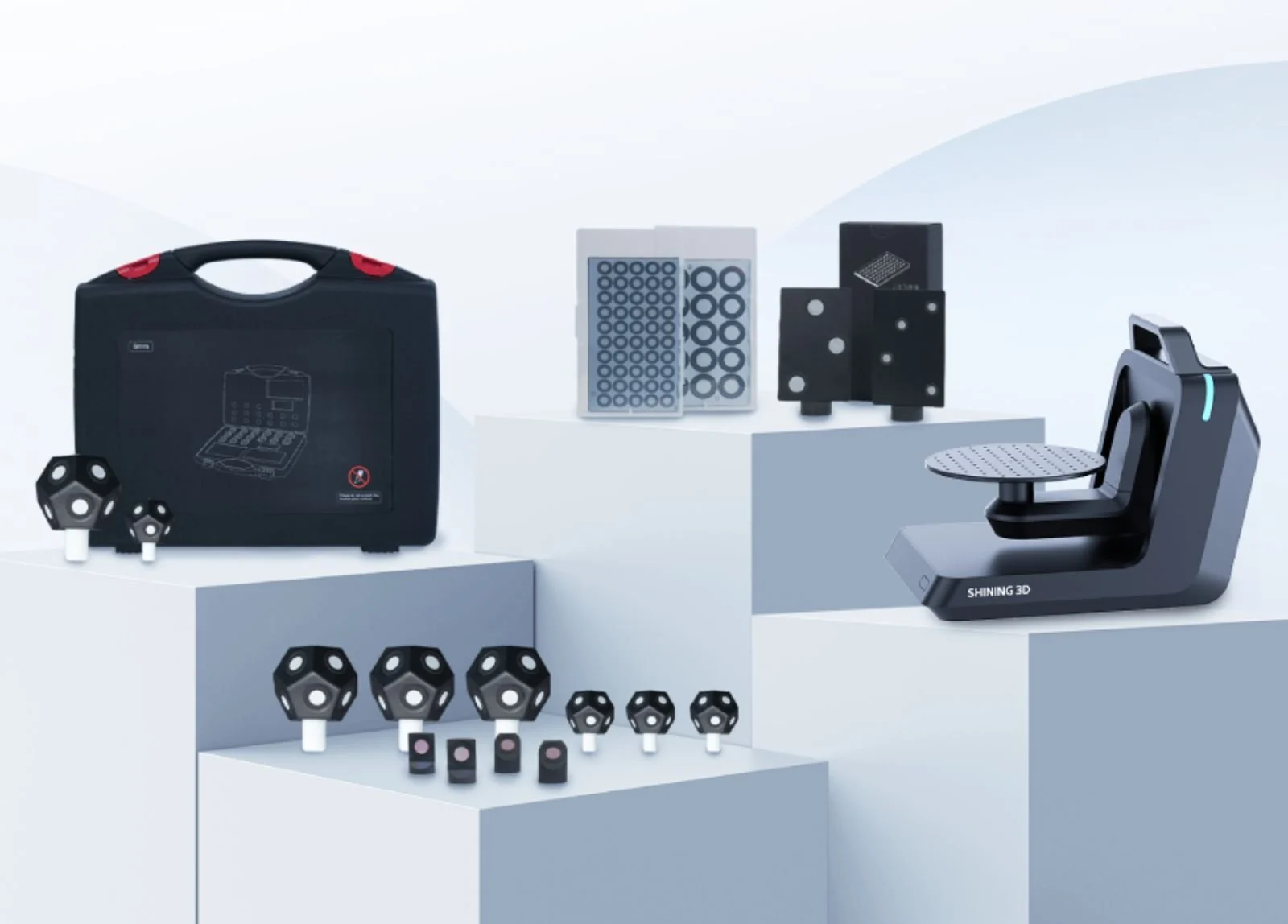

Marker-free daily capture does not mean no accessories: the metrology kit adds coded-target reference spheres and scale bars for the largest assemblies, calibration plates for acceptance verification, and a 2-axis turntable for hands-free capture of bench parts. Rev1 specs which pieces your workflow actually needs — spheres and a turntable for QA-cell repeatability, or just the scanner and spray for field work — during application review, so the kit that ships matches the parts you measure.

It Starts With a Certified Scan of the Real Part

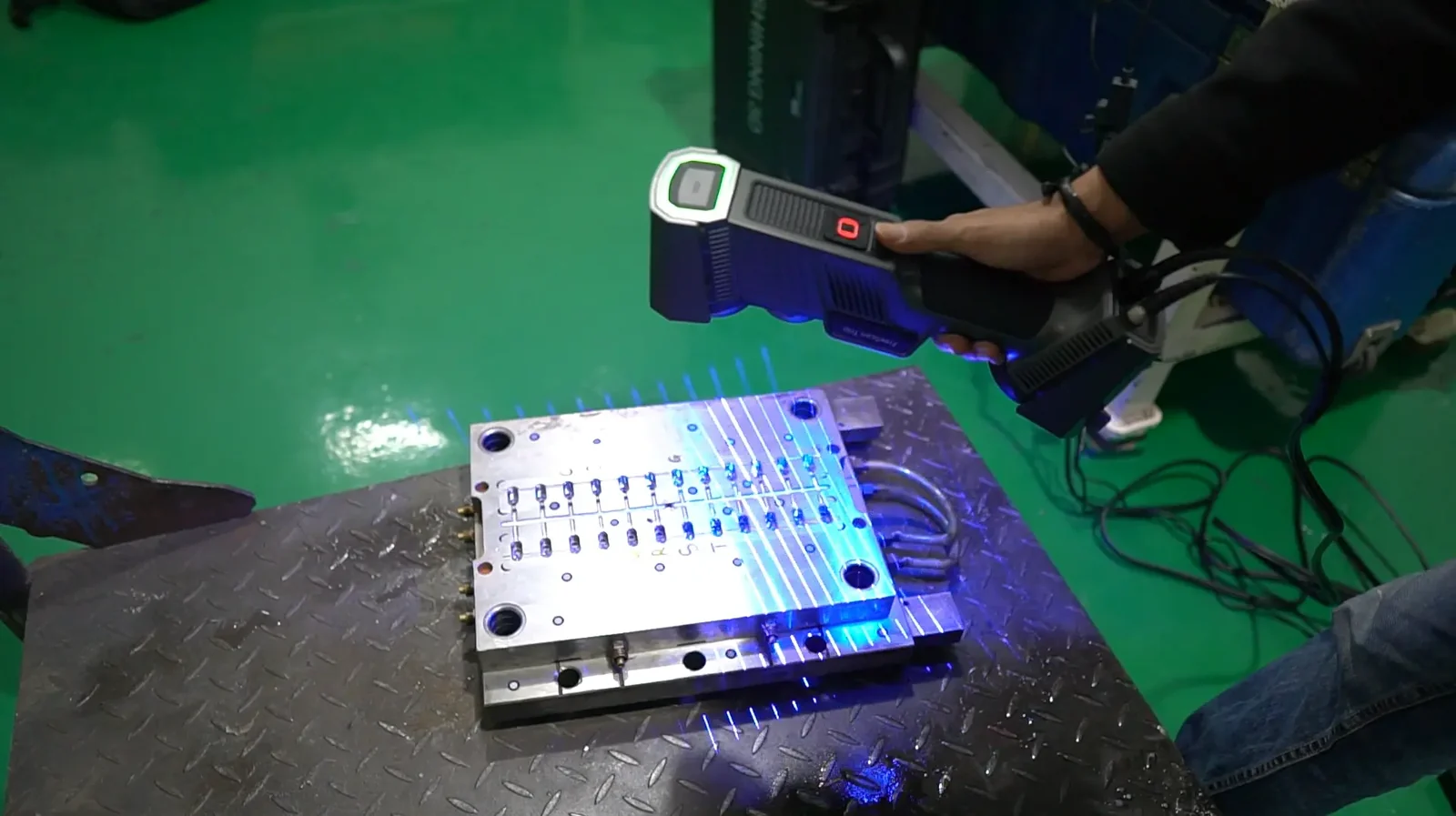

Part-to-CAD inspection is only as trustworthy as the mesh it runs on. The Trio captures a machined mold plate — bores, cooling channels, parting-line features — at 0.02 mm directly off the shop floor, blue-laser stable on the bare machined steel without spray. That certified mesh is what moves downstream: align it to the CAD model, map deviation, call out GD&T, and the inspection report references geometry an auditor can trace back to the acceptance certificate — not a hand-measured approximation.

Proven FreeScan Lineage, First-of-Its-Kind Marker-Free Engine

The Trio sits on the same field-validated FreeScan software that has shipped in volume to automotive OEMs, aerospace MROs, foundries, mold shops, and research labs worldwide. The generational step is the triple-camera, marker-free 98-line engine — the first FreeScan to drop the coded-target ritual from daily capture — not a learning curve on an unproven sensor. Inspection teams already running a prior FreeScan transfer over without retraining the operator or the QA owner.

One FreeScan Family, US Support Behind It

The Trio shares its FreeScan software with the rest of the family — sideways-shop the precision wireless FreeScan Trak Pro2 or step into the optical tracking FreeScan Trak Nova without retraining. Pre-sale application review, calibration verification, software integration, and operator training are delivered from Auburn Hills, Michigan by a factory-trained team — warranty service routes through authorized channels, never a grey-market importer.
