Large-Format Industrial SLA 3D Printer — Metre Class

Kings SLA 1000 Pro Large-Format Industrial SLA 3D Printer — 1000 × 1000 × 600 mm

1000 × 1000 × 600 mm

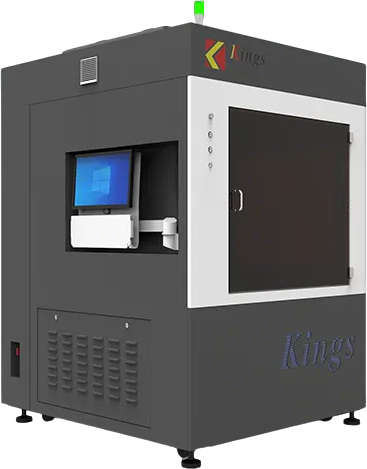

Kings SLA 1000 Pro industrial SLA 3D printer

The largest of the Kings industrial SLA Pro models: a full 1000 × 1000 × 600 mm envelope for large, high-precision parts. Kings 3D positions it for industrial prototyping, dental and engineering, and its metre-class platform lets one-piece prototypes and patterns replace sectioned and bonded builds. Full marble frame, 355 nm Nd:YVO₄ laser and Variable Beam optics, on a 1.8 KVA supply.

0.0005 mmVertical Resolution
±0.1 mmAccuracy ≤100 mm
15 m/sScan Speed
Engineering
Full Marble Frame Nd:YVO₄ 355 nm Variable Beam 0.08–0.8 mm Scanlab Closed-Loop Galvo
Support
Authorized Kings 3D Partner US Support — Auburn Hills, MI Quote in 1 Business Day Install + Training Available
Kings SLA 1000 Pro industrial SLA 3D printer — front view
Rev1 Technologies · USA Customers · Service & Support

Your Authorized Kings 3D Partner in the USA.

Rev1 Technologies is your authorized Kings 3D reseller and US support partner. Application consultation, installation, operator training, spare parts, and engineering guidance — delivered from Auburn Hills, Michigan.

US Phone & Video SupportInstallation & Operator TrainingParts & Engineering Guidance
Kings 3D
Your Rev1 Partner
Is the 1000 Pro the Right Size?

The Metre-Class Kings SLA: One-Piece Parts up to 1 m

Choose the 1000 Pro when your parts approach a metre and you want them in one piece. Kings 3D positions it as a large-format, high-precision industrial SLA for industrial prototyping, dental and engineering. It is the largest, heaviest and most resin-hungry of the three industrial models, so site planning matters most here. Parts under 800 mm fit the smaller Kings SLA 800 Pro (800 × 800 × 500 mm, 1,370 kg). Parts over a metre move to the Kings large-format SLA range (1200 Pro to the 2700 Pro). Or compare Kings industrial SLA printer sizes side by side.

1000 × 1000 × 600
Build Envelope
Maximum printing size 1000 × 1000 × 600 mm. Usable size for a given part depends on its orientation and support structures, so send us the CAD for a fit check before you size the machine.
Best fit
Who the 1000 Pro Is For
Large-format, high-precision industrial SLA; Kings 3D names industrial prototyping, dental and engineering.
1,630 kg
Machine Footprint & Weight
The 1000 Pro measures 160 × 170 × 243 cm (W × D × H) and weighs 1,630 kg. Plan doorway access, clearance and a floor-load assessment before delivery.
1.8 KVA
Power & Environment
Rated 1.8 KVA on 200–240 VAC, 50/60 Hz, single-phase, 10 A. Kings 3D specifies a 20–26 °C room at under 40% relative humidity, non-condensing.
±0.1 mm
Accuracy
±0.1 mm for features up to 100 mm and ±0.1% of length beyond that, with 0.0005 mm vertical resolution and ±0.01 mm repeat positioning (Kings 3D figures).
0.08–0.8 mm
Variable Beam Optics
A 355 nm solid-state Nd:YVO₄ laser with a variable beam from 0.08 to 0.8 mm and a closed-loop galvo scanning at up to 15 m/s, on a full marble frame.
Rev1 Technologies
Machine Architecture

Full Marble Frame — Micron-Grade Stability for Precision SLA

Marble eliminates vibration and thermal drift. The 1000 Pro holds accuracy across long, unattended precision runs.

Kings SLA 1000 Pro — marble frame construction, front three-quarter view
Marble Construction
Granite-Hard Stability. Zero Thermal Drift.

Kings replaces steel with a full marble recoater frame, marble elevator holder, and marble scanning system base — a thermally stable, rigid structure that maintains positional repeatability across thousands of cycles. Ball screw rails with closed-loop servo control deliver ±0.01 mm repeat positioning regardless of part weight or ambient temperature variation. The Scanlab GmbH galvanometer scanner — sourced from the world leader in scan head precision — maintains consistent beam positioning at 15 m/s across the full build area, eliminating stitch errors on fine-featured parts.

Recoater FrameMarble — thermally stable structural element, minimal expansion
Elevator HolderMarble — maintains perpendicularity and repeatability over Z travel
Scanning BaseMarble — isolates the Scanlab galvo optics from machine vibration
Repeat Positioning±0.01 mm — closed-loop servo on ball screw rails
Marble Recoater
Marble Elevator
Marble Scan Base
Scanlab Galvo
Thermal Stable
Vibration Damped
Full Marble — All Three Structural Elements
Recoater frame, elevator holder, and scanning base are all marble — eliminating differential thermal expansion between elements, a root cause of dimensional drift in conventional SLA systems and a limiter on fine-feature repeatability.
Scanlab Galvo — German Precision
The galvanometer scanner is sourced from Scanlab GmbH, Germany — the global leader in laser scan head precision. Closed-loop galvo control maintains consistent beam positioning at 15 m/s, eliminating stitch error and beam deviation across the full build area.
Variable Beam — Variable Spot, Maximum Speed
Variable Beam technology dynamically adjusts beam diameter from 0.08 mm for fine detail to 0.8 mm for bulk infill in real time. A small spot resolves fine detail and a large spot fills bulk areas, on the same machine and in the same build.
Rev1 Technologies
Industrial Applications

Built for the Work That Demands Fine Detail and Repeatable Precision

Architecture and large models, furniture and consumer products, large tooling and sculpture — wherever a large-format build envelope meets fine detail and repeatable accuracy, the 1000 Pro delivers. Choosing a size? Compare the Kings SLA 600 Pro and Kings SLA 800 Pro side by side: compare Kings industrial SLA printer sizes.

Architecture & Large Models
Large-Scale Architectural Models and Presentation Pieces

Architecture and design studios use the Kings SLA 1000 Pro’s 1000 × 1000 × 600 mm envelope to print large building models, facade studies, and urban massing in one piece — capturing fine mullions, railings, and surface texture that assembled foam or FDM parts can’t hold. Smooth SLA surfaces take paint and finishing for client presentations straight off the platform. For the very largest work, step up to the Kings SLA 2700 Pro large-format system.

Building Models Facade Studies Urban Massing
Kings SLA 1000 Pro industrial SLA 3D printer — large architectural model application
Kings SLA 1000 Pro industrial SLA 3D printer — full-scale furniture prototype application
Furniture & Home Products
Full-Scale Furniture and Consumer-Product Prototypes

Product and furniture designers build full-scale chairs, lighting, appliance housings, and consumer-product prototypes as single parts instead of sectioning and bonding. The 1000 × 1000 × 600 mm envelope holds 0.0005 mm vertical resolution and ±0.1 mm accuracy across large geometry, while the marble frame and closed-loop motion keep long, thin features true across the whole build — so a 1:1 prototype looks and fits like the final product.

Furniture Lighting Appliance Housings
Architecture
Architectural firms print detailed scale models, structural detail mockups, and site layouts with crisp SLA surface quality. The 1000 mm envelope suits single-building and district models at presentation-grade detail.
Automotive & Industrial
Automotive and industrial teams produce precision components — connectors, brackets, lamp housings, and intricate functional prototypes — with fine feature detail and fit-check-ready accuracy straight off the platform.
Footwear & Consumer
Footwear and consumer-product designers use the 1000 Pro for shoe molds, midsole patterns, and home-appliance and furniture prototypes where surface finish and fine detail drive the design review.
Rev1 Technologies — Authorized Kings 3D Partner
Technical Specifications

Kings SLA 1000 Pro — Complete Parameter Sheet

Kings 3D’s published figures for the 1000 Pro, including the facility numbers you need for site planning: machine size, weight, power and the first resin fill. Kings 3D lists 850 kg on both its product page and its technical data sheet.

Max Printing Size
1000 × 1000 × 600 mm
Accuracy
±0.1 mm (L ≤ 100 mm); ±0.1% × L (L > 100 mm)
Layer Thickness
0.05–0.2 mm
Beam Size
0.08–0.8 mm (Variable Beam)
Max Scanning Speed
15.0 m/s
Laser Type
Solid-state Nd:YVO₄ frequency-tripled
Wavelength
355 nm
Laser Power
≥ 300 mW at resin surface
Vertical Resolution
0.0005 mm
Repeat Positioning
±0.01 mm
Machine Size
160 × 170 × 243 cm (W × D × H)
Machine Weight
1,630 kg
Rated Power
1.8 KVA
Electrical
200–240 VAC · 50/60 Hz · Single-phase · 10 A
First Tank Resin
850 kg
Galvo System
Closed-loop galvo
Frame Structure
Full marble — recoater, elevator, scan base
Coating Mode
Intelligent position vacuum recoating
Software & Files
KINGS 3D control software · Windows 10 · STL · SLC
Ambient
20–26 °C (68–79 °F) · <40% RH, non-condensing
Warranty
2 years, including the laser (Kings 3D)
Rev1 Technologies
Alternative Industrial SLA Systems

Kings SLA 1000 Pro and the 3D Systems ProX 950

Buyers evaluating the 1000 Pro often look at the 3D Systems ProX 950, a long-established industrial SLA system. They are alternatives rather than size-for-size equivalents: The ProX 950 envelope is 500 mm longer in X; the 1000 Pro is 250 mm deeper in Y and 50 mm taller in Z. The two makers also state accuracy in different ways, so the figures below are not a like-for-like test result. Send us your part and we will compare the two on your geometry.

Specification Kings SLA 1000 Pro 3D Systems ProX 950
Build Envelope
Maximum build envelope 1000 × 1000 × 600 mm 1500 × 750 × 550 mm
Published Accuracy
Accuracy statement ±0.1 mm (L ≤ 100 mm); ±0.1% × L (L > 100 mm) 0.025–0.05 mm per 25.4 mm of part dimension
Buying & Support
Pricing Quote from Rev1 Technologies Quote from 3D Systems or its resellers
US support Rev1 Technologies · Auburn Hills, MI 3D Systems service network

Kings SLA 1000 Pro figures from Kings 3D; ProX 950 figures from 3D Systems’ published specifications. Accuracy is stated differently by each manufacturer and depends on part geometry, orientation, resin and post-processing, so it is not directly comparable without a matched measurement protocol.

Rev1 Technologies
Buying Questions

Kings SLA 1000 Pro — Questions Before You Buy

Will my part fit in the Kings SLA 1000 Pro?
The maximum printing size is 1000 × 1000 × 600 mm. The usable size for a particular part is usually smaller, because SLA parts are oriented and supported to print accurately, so a part close to the limit may need a different orientation or a larger machine. Send Rev1 the CAD or STL and our application engineers will check fit and orientation before you commit. We do not quote how many parts fit per build until we have run a nesting and orientation check on your actual parts.
What does my site need for the 1000 Pro?
The 1000 Pro measures 160 × 170 × 243 cm (W × D × H) and weighs 1,630 kg, so plan doorway and route access, working clearance around the machine and a floor-load assessment. It is rated 1.8 KVA on a 200–240 VAC, 50/60 Hz, single-phase, 10 A supply, and Kings 3D specifies a 20–26 °C room at under 40% relative humidity. Rev1 runs a facility readiness review before delivery.
How much resin do I need to get started?
The first tank fill for the 1000 Pro is 850 kg. Kings 3D lists 850 kg on both its product page and its technical data sheet. Budget ongoing resin inventory on top of that for your expected build volume; Rev1 supplies Kings resin and advises on material selection for your application.
What post-processing equipment do I need?
Industrial SLA parts are washed to remove uncured resin, have their supports removed and are UV post-cured. Size your wash and post-cure equipment to the largest part you plan to print, and allow space for resin handling. Rev1 includes post-processing guidance in the installation and training plan for the 1000 Pro.
When should I choose the large-format range instead?
Step up to the Kings SLA large-format range (1200 Pro to 2700 Pro) when your parts are longer than a metre. If your parts fit inside 800 × 800 × 500 mm, the 800 Pro is lighter (1,370 kg), runs on 1.5 KVA and needs a smaller first resin fill. Not sure? Compare Kings industrial SLA printer sizes or send us the part.
How accurate is the 1000 Pro?
Kings 3D states ±0.1 mm for features up to 100 mm and ±0.1% of length beyond 100 mm, with 0.0005 mm vertical resolution and ±0.01 mm repeat positioning. Achieved accuracy depends on part geometry, orientation, resin and post-processing, so Rev1 can run a sample on your part to confirm it.
Rev1 Technologies
Your Authorized Partner

Why Buy the Kings 1000 Pro Through Rev1 Technologies

Your Rev1 Partner
Rev1 Technologies
Authorized Kings 3D Reseller
Kings 3D

Rev1 Technologies is the authorized Kings 3D partner for North America, serving automotive OEMs, aerospace suppliers, architectural firms, footwear manufacturers, dental and jewelry studios, and industrial prototyping shops. Buying a Kings 1000 Pro is a high-stakes capital purchase — we deliver it as a managed program, not a shipment.

01
Pre-Delivery Application Review

Our engineers review your intended parts — geometry, surface requirements, resin selection, production volume — and confirm the 1000 Pro is the right machine in the Kings lineup for your workload before you commit to a quote.

02
Site Review & Installation Planning

As a 1630 kg industrial machine (160 × 170 × 243 cm), the 1000 Pro is not plug-and-play. Rev1 conducts a pre-delivery facility review, confirms floor load, power service (1.8 KVA, single-phase), and HVAC, and coordinates freight routing to your location.

03
DDP Shipping Included

Your Rev1 quote includes DDP shipping from the Kings factory to your facility — insurance and US import tariff bundled. No separate freight broker, no surprise customs bills, no shipping coordination burden on your purchasing team.

04
Installation & First-Print Commissioning

Rev1 coordinates installation and first-print commissioning. Factory engineer on-site support is available per Kings's after-sales terms for additional travel and accommodation expense. Your operators are trained to productive use before we hand over the keys.

05
Operator Training & Workflow Support

Kings slicer and control software training, resin handling and post-processing best practices, and workflow integration with your CAD and metrology tools. Delivered by a Rev1 application engineer — not a phone tree.

06
Ongoing US-Based Technical Support

Direct phone and email access to Rev1's technical team. (248) 707-2950 connects you to the engineers who know your installation. Proactive maintenance planning, consumable replenishment, and firmware update coordination for the life of the machine.

Rev1 Technologies

READY TO ORDER

Get the Kings SLA 1000 Pro From an Authorized Reseller

Free consultation — no purchase required. Rev1 validates your application, then provides pricing and lead time within one business day.

Reply within 1 business dayWe validate fit — not just take ordersAuthorized Kings 3D reseller in the USAUS stock, parts & support
