Industrial SLA 3D Printer — Mid-Size 800 mm Class

Kings SLA 800 Pro Industrial SLA 3D Printer — 800 × 800 × 500 mm

800 × 800 × 500 mm

Kings SLA 800 Pro industrial SLA 3D printer

The mid-size Kings SLA Pro: an 800 × 800 × 500 mm envelope for medium and large models. Kings 3D builds it for high precision in dental and industrial work, naming dentistry, jewelry and engineering, and it is sized for panels, housings and fit-check parts printed in one piece. Same full marble frame, 355 nm Nd:YVO₄ laser and Variable Beam optics as the rest of the range, on the same 1.5 KVA supply as the 600 Pro.

0.0005 mmVertical Resolution
±0.1 mmAccuracy ≤100 mm
15 m/sScan Speed
Engineering
Full Marble Frame Nd:YVO₄ 355 nm Variable Beam 0.08–0.8 mm Scanlab Closed-Loop Galvo
Support
Authorized Kings 3D Partner US Support — Auburn Hills, MI Quote in 1 Business Day Install + Training Available

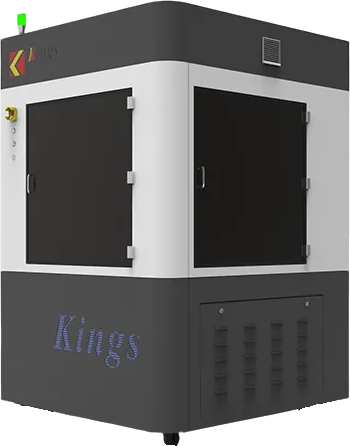

Kings SLA 800 Pro industrial SLA 3D printer — front view
Rev1 Technologies · USA Customers · Service & Support

Your Authorized Kings 3D Partner in the USA.

Rev1 Technologies is your authorized Kings 3D reseller and US support partner. Application consultation, installation, operator training, spare parts, and engineering guidance — delivered from Auburn Hills, Michigan.

US Phone & Video SupportInstallation & Operator TrainingParts & Engineering Guidance
Kings 3D
Your Rev1 Partner
Is the 800 Pro the Right Size?

The Mid-Size Kings SLA: Medium and Large Parts in One Piece

Choose the 800 Pro when your parts outgrow 600 mm but stay within 800 × 800 × 500 mm. Kings 3D positions it for medium and large models, including detailed dental models, and for dentistry, jewelry and engineering; in practice that means panels, housings and fit-check parts that would otherwise be split and bonded on a compact machine. Smaller parts are better served by the Kings SLA 600 Pro (600 × 600 × 400 mm, 990 kg); parts longer than 800 mm or taller than 500 mm need the Kings SLA 1000 Pro (1000 × 1000 × 600 mm). Or compare Kings industrial SLA printer sizes side by side.

800 × 800 × 500
Build Envelope
Maximum printing size 800 × 800 × 500 mm. Usable size for a given part depends on its orientation and support structures, so send us the CAD for a fit check before you size the machine.
Best fit
Who the 800 Pro Is For
Medium and large models; Kings 3D names dentistry, jewelry and engineering, and builds the 800 Pro for high precision in dental and industrial work.
1,370 kg
Machine Footprint & Weight
The 800 Pro measures 140 × 149 × 243 cm (W × D × H) and weighs 1,370 kg. Plan doorway access, clearance and a floor-load assessment before delivery.
1.5 KVA
Power & Environment
Rated 1.5 KVA on 200–240 VAC, 50/60 Hz, single-phase, 10 A. Kings 3D specifies a 20–26 °C room at under 40% relative humidity, non-condensing.
±0.1 mm
Accuracy
±0.1 mm for features up to 100 mm and ±0.1% of length beyond that, with 0.0005 mm vertical resolution and ±0.01 mm repeat positioning (Kings 3D figures).
0.08–0.8 mm
Variable Beam Optics
A 355 nm solid-state Nd:YVO₄ laser with a variable beam from 0.08 to 0.8 mm and a closed-loop galvo scanning at up to 15 m/s, on a full marble frame.
Rev1 Technologies
Machine Architecture

Full Marble Frame — Micron-Grade Stability for Precision SLA

Marble eliminates vibration and thermal drift. The 800 Pro holds accuracy across long, unattended precision runs.

Kings SLA 800 Pro — marble frame construction, front three-quarter view
Marble Construction
Granite-Hard Stability. Zero Thermal Drift.

Kings replaces steel with a full marble recoater frame, marble elevator holder, and marble scanning system base — a thermally stable, rigid structure that maintains positional repeatability across thousands of cycles. Ball screw rails with closed-loop servo control deliver ±0.01 mm repeat positioning regardless of part weight or ambient temperature variation. The Scanlab GmbH galvanometer scanner — sourced from the world leader in scan head precision — maintains consistent beam positioning at 15 m/s across the full build area, eliminating stitch errors on fine-featured parts.

Recoater FrameMarble — thermally stable structural element, minimal expansion
Elevator HolderMarble — maintains perpendicularity and repeatability over Z travel
Scanning BaseMarble — isolates the Scanlab galvo optics from machine vibration
Repeat Positioning±0.01 mm — closed-loop servo on ball screw rails
Marble Recoater
Marble Elevator
Marble Scan Base
Scanlab Galvo
Thermal Stable
Vibration Damped
Full Marble — All Three Structural Elements
Recoater frame, elevator holder, and scanning base are all marble — eliminating differential thermal expansion between elements, a root cause of dimensional drift in conventional SLA systems and a limiter on fine-feature repeatability.
Scanlab Galvo — German Precision
The galvanometer scanner is sourced from Scanlab GmbH, Germany — the global leader in laser scan head precision. Closed-loop galvo control maintains consistent beam positioning at 15 m/s, eliminating stitch error and beam deviation across the full build area.
Variable Beam — Variable Spot, Maximum Speed
Variable Beam technology dynamically adjusts beam diameter from 0.08 mm for fine detail to 0.8 mm for bulk infill in real time. A small spot resolves fine detail and a large spot fills bulk areas, on the same machine and in the same build.
Rev1 Technologies
Industrial Applications

Built for the Work That Demands Fine Detail and Repeatable Precision

Automotive and transportation, aerospace, large tooling and molds, architectural models — wherever a bigger build envelope meets fine detail and repeatable accuracy, the 800 Pro delivers. Choosing a size? Compare the Kings SLA 600 Pro and Kings SLA 1000 Pro side by side: compare Kings industrial SLA printer sizes.

Automotive & Transportation
Full-Size Automotive and Transportation Components

Automotive and transportation teams use the Kings SLA 800 Pro’s 800 × 800 × 500 mm envelope to print large body panels, bumpers, lamp housings, intake manifolds, and interior trim as one-piece master patterns and fit-check parts — directly from CAD. SLA surface quality feeds straight into vacuum-forming and casting workflows, and the larger build volume prints components that would need sectioning on a compact machine. For even larger parts, compare the Kings SLA 2700 Pro large-format system.

Body Panels Lamp Housings Fit-Check Parts

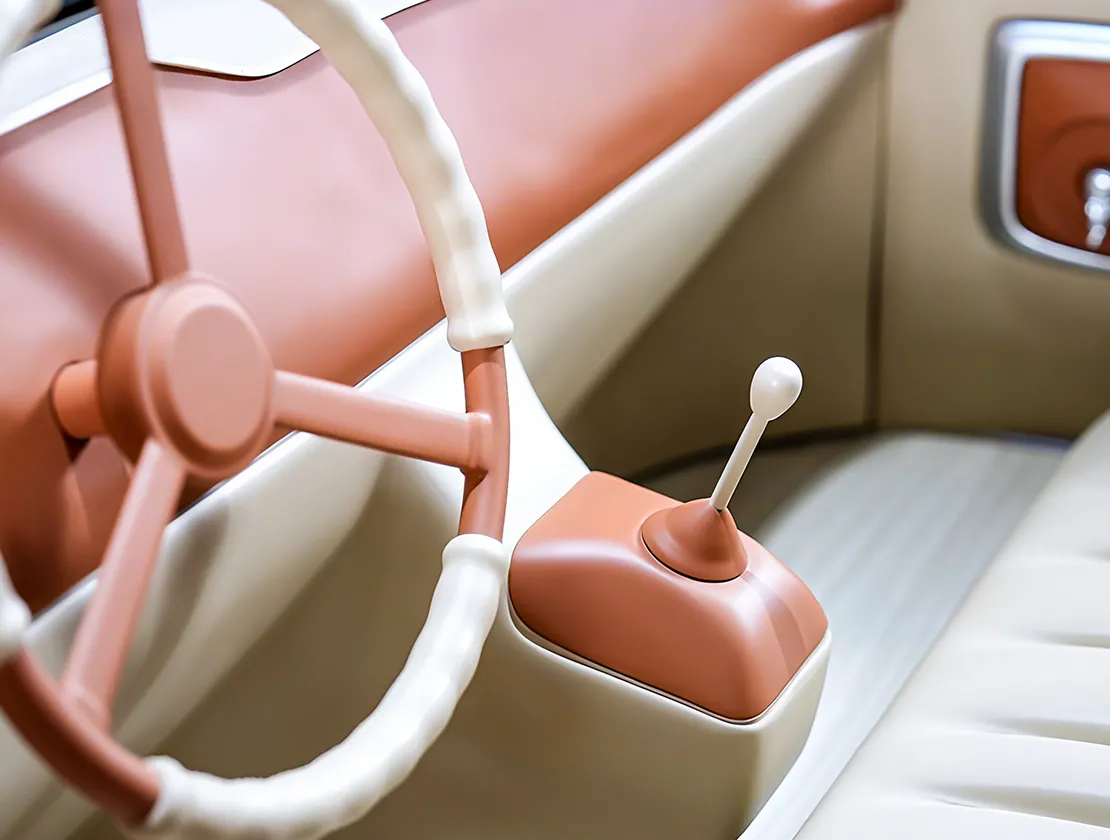

Kings SLA 800 Pro industrial SLA 3D printer — automotive component and body-panel application

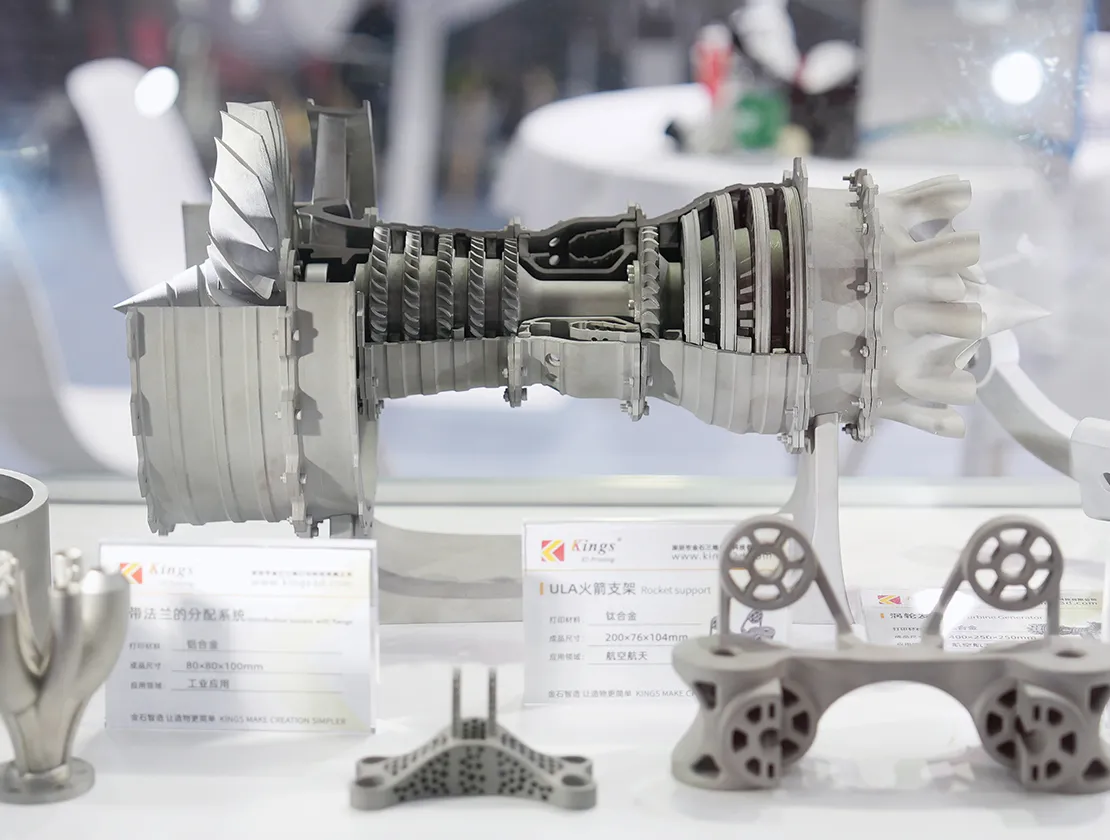

Kings SLA 800 Pro industrial SLA 3D printer — aerospace precision-engineering application
Aerospace & Precision Engineering
Large Aerospace Structures and Precision Assemblies

Aerospace and precision-engineering programs use the 800 Pro to build large brackets, ducting, turbine and engine demonstrators, and complex lattice structures at full scale. The 800 × 800 × 500 mm envelope holds 0.0005 mm vertical resolution and ±0.1 mm accuracy across bigger parts, while marble-based vibration isolation and closed-loop servo motion keep thin walls and intricate geometry in tolerance layer after layer — for parts that demand both size and fidelity.

Brackets & Ducting Engine Demonstrators Lattice Structures
Architecture
Architectural firms print detailed scale models, structural detail mockups, and site layouts with crisp SLA surface quality. The 800 mm envelope suits single-building and district models at presentation-grade detail.
Automotive & Industrial
Automotive and industrial teams produce precision components — connectors, brackets, lamp housings, and intricate functional prototypes — with fine feature detail and fit-check-ready accuracy straight off the platform.
Footwear & Consumer
Footwear and consumer-product designers use the 800 Pro for shoe molds, midsole patterns, and home-appliance and furniture prototypes where surface finish and fine detail drive the design review.
Rev1 Technologies — Authorized Kings 3D Partner
Technical Specifications

Kings SLA 800 Pro — Complete Parameter Sheet

Kings 3D’s published figures for the 800 Pro, including the facility numbers you need for site planning: machine size, weight, power and the first resin fill. Kings 3D publishes 500 kg on its product page and 475 kg on its technical data sheet; Rev1 confirms the figure for your configuration at quote.

Max Printing Size
800 × 800 × 500 mm
Accuracy
±0.1 mm (L ≤ 100 mm); ±0.1% × L (L > 100 mm)
Layer Thickness
0.05–0.2 mm
Beam Size
0.08–0.8 mm (Variable Beam)
Max Scanning Speed
15.0 m/s
Laser Type
Solid-state Nd:YVO₄ frequency-tripled
Wavelength
355 nm
Laser Power
≥ 300 mW at resin surface
Vertical Resolution
0.0005 mm
Repeat Positioning
±0.01 mm
Machine Size
140 × 149 × 243 cm (W × D × H)
Machine Weight
1,370 kg
Rated Power
1.5 KVA
Electrical
200–240 VAC · 50/60 Hz · Single-phase · 10 A
First Tank Resin
475–500 kg
Galvo System
Closed-loop galvo
Frame Structure
Full marble — recoater, elevator, scan base
Coating Mode
Intelligent position vacuum recoating
Software & Files
KINGS 3D control software · Windows 10 · STL · SLC
Ambient
20–26 °C (68–79 °F) · <40% RH, non-condensing
Warranty
2 years, including the laser (Kings 3D)
Rev1 Technologies
Alternative Industrial SLA Systems

Kings SLA 800 Pro and the 3D Systems ProX 800

Buyers evaluating the 800 Pro often look at the 3D Systems ProX 800, a long-established industrial SLA system. They are alternatives rather than size-for-size equivalents: The 800 Pro envelope is larger in X (+150 mm) and Y (+50 mm) than the ProX 800; the ProX 800 is 50 mm taller in Z. The two makers also state accuracy in different ways, so the figures below are not a like-for-like test result. Send us your part and we will compare the two on your geometry.

Specification Kings SLA 800 Pro 3D Systems ProX 800
Build Envelope
Maximum build envelope 800 × 800 × 500 mm 650 × 750 × 550 mm
Published Accuracy
Accuracy statement ±0.1 mm (L ≤ 100 mm); ±0.1% × L (L > 100 mm) 0.025–0.05 mm per 25.4 mm of part dimension
Buying & Support
Pricing Quote from Rev1 Technologies Quote from 3D Systems or its resellers
US support Rev1 Technologies · Auburn Hills, MI 3D Systems service network

Kings SLA 800 Pro figures from Kings 3D; ProX 800 figures from 3D Systems’ published specifications. Accuracy is stated differently by each manufacturer and depends on part geometry, orientation, resin and post-processing, so it is not directly comparable without a matched measurement protocol.

Rev1 Technologies
Buying Questions

Kings SLA 800 Pro — Questions Before You Buy

Will my part fit in the Kings SLA 800 Pro?
The maximum printing size is 800 × 800 × 500 mm. The usable size for a particular part is usually smaller, because SLA parts are oriented and supported to print accurately, so a part close to the limit may need a different orientation or a larger machine. Send Rev1 the CAD or STL and our application engineers will check fit and orientation before you commit. We do not quote how many parts fit per build until we have run a nesting and orientation check on your actual parts.
What does my site need for the 800 Pro?
The 800 Pro measures 140 × 149 × 243 cm (W × D × H) and weighs 1,370 kg, so plan doorway and route access, working clearance around the machine and a floor-load assessment. It is rated 1.5 KVA on a 200–240 VAC, 50/60 Hz, single-phase, 10 A supply, and Kings 3D specifies a 20–26 °C room at under 40% relative humidity. Rev1 runs a facility readiness review before delivery.
How much resin do I need to get started?
The first tank fill for the 800 Pro is 475–500 kg. Kings 3D publishes 500 kg on its product page and 475 kg on its technical data sheet; Rev1 confirms the figure for your configuration at quote. Budget ongoing resin inventory on top of that for your expected build volume; Rev1 supplies Kings resin and advises on material selection for your application.
What post-processing equipment do I need?
Industrial SLA parts are washed to remove uncured resin, have their supports removed and are UV post-cured. Size your wash and post-cure equipment to the largest part you plan to print, and allow space for resin handling. Rev1 includes post-processing guidance in the installation and training plan for the 800 Pro.
When should I choose the 1000 Pro instead?
Step up to the Kings SLA 1000 Pro (1000 × 1000 × 600 mm) when your parts are longer than 800 mm or taller than 500 mm, or you need metre-class one-piece prototypes. If most of your parts fit inside 600 × 600 × 400 mm, the 600 Pro needs less floor space (990 kg) and a smaller first resin fill. Not sure? Compare Kings industrial SLA printer sizes or send us the part.
How accurate is the 800 Pro?
Kings 3D states ±0.1 mm for features up to 100 mm and ±0.1% of length beyond 100 mm, with 0.0005 mm vertical resolution and ±0.01 mm repeat positioning. Achieved accuracy depends on part geometry, orientation, resin and post-processing, so Rev1 can run a sample on your part to confirm it.
Rev1 Technologies
Your Authorized Partner

Why Buy the Kings 800 Pro Through Rev1 Technologies

Your Rev1 Partner
Rev1 Technologies
Authorized Kings 3D Reseller
Kings 3D

Rev1 Technologies is the authorized Kings 3D partner for North America, serving automotive OEMs, aerospace suppliers, architectural firms, footwear manufacturers, dental and jewelry studios, and industrial prototyping shops. Buying a Kings 800 Pro is a high-stakes capital purchase — we deliver it as a managed program, not a shipment.

01
Pre-Delivery Application Review

Our engineers review your intended parts — geometry, surface requirements, resin selection, production volume — and confirm the 800 Pro is the right machine in the Kings lineup for your workload before you commit to a quote.

02
Site Review & Installation Planning

As a 1370 kg industrial machine (140 × 149 × 243 cm), the 800 Pro is not plug-and-play. Rev1 conducts a pre-delivery facility review, confirms floor load, power service (1.5 KVA, single-phase), and HVAC, and coordinates freight routing to your location.

03
DDP Shipping Included

Your Rev1 quote includes DDP shipping from the Kings factory to your facility — insurance and US import tariff bundled. No separate freight broker, no surprise customs bills, no shipping coordination burden on your purchasing team.

04
Installation & First-Print Commissioning

Rev1 coordinates installation and first-print commissioning. Factory engineer on-site support is available per Kings's after-sales terms for additional travel and accommodation expense. Your operators are trained to productive use before we hand over the keys.

05
Operator Training & Workflow Support

Kings slicer and control software training, resin handling and post-processing best practices, and workflow integration with your CAD and metrology tools. Delivered by a Rev1 application engineer — not a phone tree.

06
Ongoing US-Based Technical Support

Direct phone and email access to Rev1's technical team. (248) 707-2950 connects you to the engineers who know your installation. Proactive maintenance planning, consumable replenishment, and firmware update coordination for the life of the machine.

Rev1 Technologies

READY TO ORDER

Get the Kings SLA 800 Pro From an Authorized Reseller

Free consultation — no purchase required. Rev1 validates your application, then provides pricing and lead time within one business day.

Reply within 1 business dayWe validate fit — not just take ordersAuthorized Kings 3D reseller in the USAUS stock, parts & support
