Industrial SLA 3D Printer — Compact 600 mm Class

Kings SLA 600 Pro Industrial SLA 3D Printer — 600 × 600 × 400 mm

600 × 600 × 400 mm

Kings SLA 600 Pro industrial SLA 3D printer

The compact member of the Kings SLA Pro range, building parts up to 600 × 600 × 400 mm. Kings 3D positions it for small and medium-sized detailed models, prototypes and functional parts in automotive, aerospace and engineering. It shares the range’s full marble frame, 355 nm Nd:YVO₄ laser and Variable Beam optics, in the smallest footprint and lightest machine of the three.

0.0005 mmVertical Resolution
±0.1 mmAccuracy ≤100 mm
15 m/sScan Speed
Engineering
Full Marble Frame Nd:YVO₄ 355 nm Variable Beam 0.08–0.8 mm Scanlab Closed-Loop Galvo
Support
Authorized Kings 3D Partner US Support — Auburn Hills, MI Quote in 1 Business Day Install + Training Available

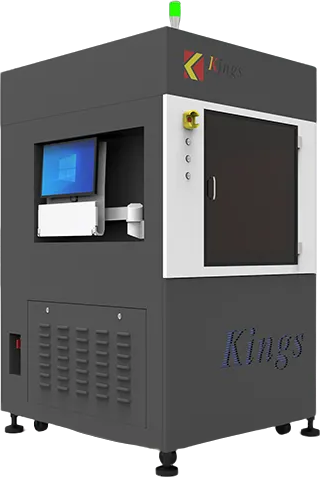

Kings SLA 600 Pro industrial SLA 3D printer — front view
Rev1 Technologies · USA Customers · Service & Support

Your Authorized Kings 3D Partner in the USA.

Rev1 Technologies is your authorized Kings 3D reseller and US support partner. Application consultation, installation, operator training, spare parts, and engineering guidance — delivered from Auburn Hills, Michigan.

US Phone & Video SupportInstallation & Operator TrainingParts & Engineering Guidance
Kings 3D
Your Rev1 Partner
Is the 600 Pro the Right Size?

The Compact Kings SLA: Detailed Parts up to 600 mm

Choose the 600 Pro when your largest part fits inside 600 × 600 × 400 mm and detail matters more than sheer size. It is the entry point to the Kings SLA Pro range for automotive, aerospace and engineering teams producing detailed models, prototypes and functional parts, and it needs the least floor space, weight capacity and resin of the three industrial models. Parts longer than 600 mm or taller than 400 mm need a bigger envelope: the Kings SLA 800 Pro (800 × 800 × 500 mm) or the Kings SLA 1000 Pro (1000 × 1000 × 600 mm). Or compare Kings industrial SLA printer sizes side by side.

600 × 600 × 400
Build Envelope
Maximum printing size 600 × 600 × 400 mm. Usable size for a given part depends on its orientation and support structures, so send us the CAD for a fit check before you size the machine.
Best fit
Who the 600 Pro Is For
Small and medium-sized detailed models, prototypes and functional parts for automotive, aerospace and engineering, as Kings 3D positions it.
990 kg
Machine Footprint & Weight
The 600 Pro measures 118 × 129 × 217 cm (W × D × H) and weighs 990 kg. Plan doorway access, clearance and a floor-load assessment before delivery.
1.5 KVA
Power & Environment
Rated 1.5 KVA on 200–240 VAC, 50/60 Hz, single-phase, 10 A. Kings 3D specifies a 20–26 °C room at under 40% relative humidity, non-condensing.
±0.1 mm
Accuracy
±0.1 mm for features up to 100 mm and ±0.1% of length beyond that, with 0.0005 mm vertical resolution and ±0.01 mm repeat positioning (Kings 3D figures).
0.08–0.8 mm
Variable Beam Optics
A 355 nm solid-state Nd:YVO₄ laser with a variable beam from 0.08 to 0.8 mm and a closed-loop galvo scanning at up to 15 m/s, on a full marble frame.
Rev1 Technologies
Machine Architecture

Full Marble Frame — Micron-Grade Stability for Precision SLA

Marble eliminates vibration and thermal drift. The 600 Pro holds accuracy across long, unattended precision runs.

Kings SLA 600 Pro — marble frame construction, front three-quarter view
Marble Construction
Granite-Hard Stability. Zero Thermal Drift.

Kings replaces steel with a full marble recoater frame, marble elevator holder, and marble scanning system base — a thermally stable, rigid structure that maintains positional repeatability across thousands of cycles. Ball screw rails with closed-loop servo control deliver ±0.01 mm repeat positioning regardless of part weight or ambient temperature variation. The Scanlab GmbH galvanometer scanner — sourced from the world leader in scan head precision — maintains consistent beam positioning at 15 m/s across the full build area, eliminating stitch errors on fine-featured parts.

Recoater FrameMarble — thermally stable structural element, minimal expansion
Elevator HolderMarble — maintains perpendicularity and repeatability over Z travel
Scanning BaseMarble — isolates the Scanlab galvo optics from machine vibration
Repeat Positioning±0.01 mm — closed-loop servo on ball screw rails
Marble Recoater
Marble Elevator
Marble Scan Base
Scanlab Galvo
Thermal Stable
Vibration Damped
Full Marble — All Three Structural Elements
Recoater frame, elevator holder, and scanning base are all marble — eliminating differential thermal expansion between elements, a root cause of dimensional drift in conventional SLA systems and a limiter on fine-feature repeatability.
Scanlab Galvo — German Precision
The galvanometer scanner is sourced from Scanlab GmbH, Germany — the global leader in laser scan head precision. Closed-loop galvo control maintains consistent beam positioning at 15 m/s, eliminating stitch error and beam deviation across the full build area.
Variable Beam — Variable Spot, Maximum Speed
Variable Beam technology dynamically adjusts beam diameter from 0.08 mm for fine detail to 0.8 mm for bulk infill in real time. A small spot resolves fine detail and a large spot fills bulk areas, on the same machine and in the same build.
Rev1 Technologies
Industrial Applications

Built for the Work That Demands Fine Detail and Repeatable Precision

Molds and tooling, dental and jewelry, footwear, functional parts — wherever fine detail and repeatable accuracy matter, the 600 Pro delivers. Choosing a size? Compare the Kings SLA 800 Pro and Kings SLA 1000 Pro side by side: compare Kings industrial SLA printer sizes.

Molds & Tooling
Master Patterns, Molds, and High-Detail Tooling

Tooling and production teams use the Kings SLA 600 Pro to produce master patterns for polyurethane, silicone, and vacuum-forming tooling, along with molds, jigs, and fixtures — directly from CAD. The 600 × 600 × 400 mm envelope suits small-to-medium parts where surface detail and tight tolerance matter more than raw scale. SLA surface quality reduces hand-finishing before mold production, and dimensionally accurate output feeds directly into fit-check and casting workflows. For larger parts, compare the Kings SLA 2700 Pro large-format system.

Master Patterns Molds & Tooling Casting Workflows

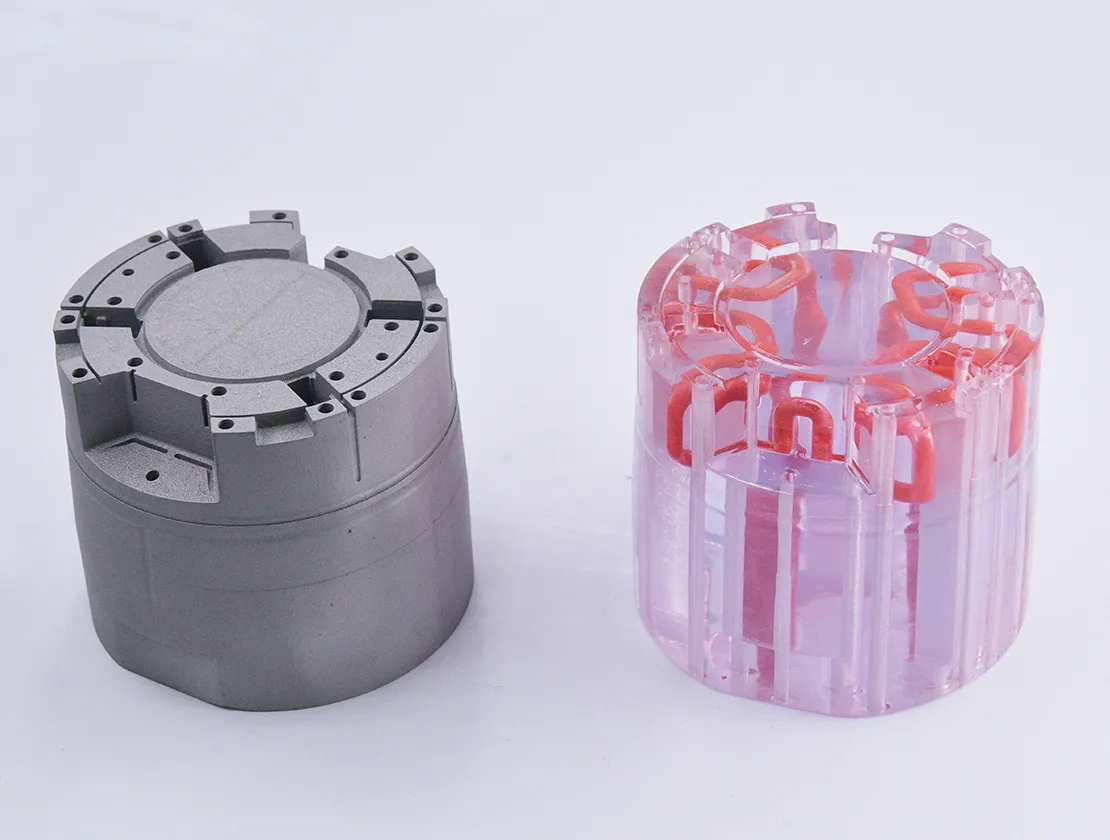

Kings SLA 600 Pro industrial SLA 3D printer — molds and tooling master-pattern application
Kings SLA 600 Pro industrial SLA 3D printer — dental, jewelry and precision parts application
Dental, Jewelry & Precision
Micron-Grade Detail for Dental, Jewelry, and Functional Parts

Dental, jewelry, and precision-engineering applications demand fine feature resolution and repeatable accuracy. The Kings SLA 600 Pro resolves thin walls, sharp edges, and intricate geometry at ±0.1 mm accuracy and 0.0005 mm vertical resolution. Marble-based vibration isolation maintains print quality in plant environments where floor vibration and temperature variation would otherwise introduce error. Closed-loop servo motion repositions the platform to ±0.01 mm on every layer — critical when fine features must stay in tolerance across the whole build.

Dental Models Jewelry Patterns Functional Parts
Architecture
Architectural firms print detailed scale models, structural detail mockups, and site layouts with crisp SLA surface quality. The 600 mm envelope suits single-building and district models at presentation-grade detail.
Automotive & Industrial
Automotive and industrial teams produce precision components — connectors, brackets, lamp housings, and intricate functional prototypes — with fine feature detail and fit-check-ready accuracy straight off the platform.
Footwear & Consumer
Footwear and consumer-product designers use the 600 Pro for shoe molds, midsole patterns, and home-appliance and furniture prototypes where surface finish and fine detail drive the design review.
Rev1 Technologies — Authorized Kings 3D Partner
Technical Specifications

Kings SLA 600 Pro — Complete Parameter Sheet

Kings 3D’s published figures for the 600 Pro, including the facility numbers you need for site planning: machine size, weight, power and the first resin fill. Kings 3D publishes 240 kg on its product page and 225 kg on its technical data sheet; Rev1 confirms the figure for your configuration at quote.

Max Printing Size
600 × 600 × 400 mm
Accuracy
±0.1 mm (L ≤ 100 mm); ±0.1% × L (L > 100 mm)
Layer Thickness
0.05–0.2 mm
Beam Size
0.08–0.8 mm (Variable Beam)
Max Scanning Speed
15.0 m/s
Laser Type
Solid-state Nd:YVO₄ frequency-tripled
Wavelength
355 nm
Laser Power
≥ 300 mW at resin surface
Vertical Resolution
0.0005 mm
Repeat Positioning
±0.01 mm
Machine Size
118 × 129 × 217 cm (W × D × H)
Machine Weight
990 kg
Rated Power
1.5 KVA
Electrical
200–240 VAC · 50/60 Hz · Single-phase · 10 A
First Tank Resin
225–240 kg
Galvo System
Closed-loop galvo
Frame Structure
Full marble — recoater, elevator, scan base
Coating Mode
Intelligent position vacuum recoating
Software & Files
KINGS 3D control software · Windows 10 · STL · SLC
Ambient
20–26 °C (68–79 °F) · <40% RH, non-condensing
Warranty
Confirmed at quote
Rev1 Technologies
Alternative Industrial SLA Systems

Kings SLA 600 Pro and the 3D Systems ProX 800

Buyers evaluating the 600 Pro often look at the 3D Systems ProX 800, a long-established industrial SLA system. They are alternatives rather than size-for-size equivalents: The ProX 800 envelope is larger than the 600 Pro on every axis (by 50 mm in X, 150 mm in Y and 150 mm in Z). The two makers also state accuracy in different ways, so the figures below are not a like-for-like test result. Send us your part and we will compare the two on your geometry.

Specification Kings SLA 600 Pro 3D Systems ProX 800
Build Envelope
Maximum build envelope 600 × 600 × 400 mm 650 × 750 × 550 mm
Published Accuracy
Accuracy statement ±0.1 mm (L ≤ 100 mm); ±0.1% × L (L > 100 mm) 0.025–0.05 mm per 25.4 mm of part dimension
Buying & Support
Pricing Quote from Rev1 Technologies Quote from 3D Systems or its resellers
US support Rev1 Technologies · Auburn Hills, MI 3D Systems service network

Kings SLA 600 Pro figures from Kings 3D; ProX 800 figures from 3D Systems’ published specifications. Accuracy is stated differently by each manufacturer and depends on part geometry, orientation, resin and post-processing, so it is not directly comparable without a matched measurement protocol.

Rev1 Technologies
Buying Questions

Kings SLA 600 Pro — Questions Before You Buy

Will my part fit in the Kings SLA 600 Pro?
The maximum printing size is 600 × 600 × 400 mm. The usable size for a particular part is usually smaller, because SLA parts are oriented and supported to print accurately, so a part close to the limit may need a different orientation or a larger machine. Send Rev1 the CAD or STL and our application engineers will check fit and orientation before you commit. We do not quote how many parts fit per build until we have run a nesting and orientation check on your actual parts.
What does my site need for the 600 Pro?
The 600 Pro measures 118 × 129 × 217 cm (W × D × H) and weighs 990 kg, so plan doorway and route access, working clearance around the machine and a floor-load assessment. It is rated 1.5 KVA on a 200–240 VAC, 50/60 Hz, single-phase, 10 A supply, and Kings 3D specifies a 20–26 °C room at under 40% relative humidity. Rev1 runs a facility readiness review before delivery.
How much resin do I need to get started?
The first tank fill for the 600 Pro is 225–240 kg. Kings 3D publishes 240 kg on its product page and 225 kg on its technical data sheet; Rev1 confirms the figure for your configuration at quote. Budget ongoing resin inventory on top of that for your expected build volume; Rev1 supplies Kings resin and advises on material selection for your application.
What post-processing equipment do I need?
Industrial SLA parts are washed to remove uncured resin, have their supports removed and are UV post-cured. Size your wash and post-cure equipment to the largest part you plan to print, and allow space for resin handling. Rev1 includes post-processing guidance in the installation and training plan for the 600 Pro.
When should I choose the 800 Pro instead?
Step up to the Kings SLA 800 Pro (800 × 800 × 500 mm) when your largest part is longer than 600 mm or taller than 400 mm, or you want to print several medium parts per build. Not sure? Compare Kings industrial SLA printer sizes or send us the part.
How accurate is the 600 Pro?
Kings 3D states ±0.1 mm for features up to 100 mm and ±0.1% of length beyond 100 mm, with 0.0005 mm vertical resolution and ±0.01 mm repeat positioning. Achieved accuracy depends on part geometry, orientation, resin and post-processing, so Rev1 can run a sample on your part to confirm it.
Rev1 Technologies
Your Authorized Partner

Why Buy the Kings 600 Pro Through Rev1 Technologies

Your Rev1 Partner
Rev1 Technologies
Authorized Kings 3D Reseller
Kings 3D

Rev1 Technologies is the authorized Kings 3D partner for North America, serving automotive OEMs, aerospace suppliers, architectural firms, footwear manufacturers, dental and jewelry studios, and industrial prototyping shops. Buying a Kings 600 Pro is a high-stakes capital purchase — we deliver it as a managed program, not a shipment.

01
Pre-Delivery Application Review

Our engineers review your intended parts — geometry, surface requirements, resin selection, production volume — and confirm the 600 Pro is the right machine in the Kings lineup for your workload before you commit to a quote.

02
Site Review & Installation Planning

As a 990 kg industrial machine (118 × 129 × 217 cm), the 600 Pro is not plug-and-play. Rev1 conducts a pre-delivery facility review, confirms floor load, power service (1.5 KVA, single-phase), and HVAC, and coordinates freight routing to your location.

03
DDP Shipping Included

Your Rev1 quote includes DDP shipping from the Kings factory to your facility — insurance and US import tariff bundled. No separate freight broker, no surprise customs bills, no shipping coordination burden on your purchasing team.

04
Installation & First-Print Commissioning

Rev1 coordinates installation and first-print commissioning. Factory engineer on-site support is available per Kings's after-sales terms for additional travel and accommodation expense. Your operators are trained to productive use before we hand over the keys.

05
Operator Training & Workflow Support

Kings slicer and control software training, resin handling and post-processing best practices, and workflow integration with your CAD and metrology tools. Delivered by a Rev1 application engineer — not a phone tree.

06
Ongoing US-Based Technical Support

Direct phone and email access to Rev1's technical team. (248) 707-2950 connects you to the engineers who know your installation. Proactive maintenance planning, consumable replenishment, and firmware update coordination for the life of the machine.

Rev1 Technologies

READY TO ORDER

Get the Kings SLA 600 Pro From an Authorized Reseller

Free consultation — no purchase required. Rev1 validates your application, then provides pricing and lead time within one business day.
