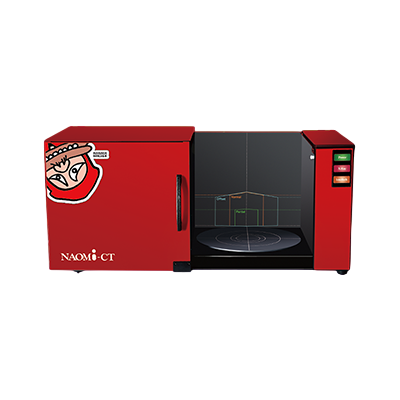

RF System Lab NAOMi-CT — Industrial X-Ray CT Scanners
The NAOMi-CT line is self-shielded micro-focus industrial X-ray computed tomography — non-destructive internal inspection that runs on your shop floor, with no separate X-ray room. You see inside a part without cutting it: voids, porosity, cracks, assembly defects and internal geometry. The 3D-L handles larger, heavier parts with an 11.4 MP flat-panel detector; the 3D-M targets smaller parts with the finest 80 µm voxel resolution. Both share the same sealed 100 kV micro-focus source. This page compares the two so you can match the system to your parts.
- Self-shielded cabinet
- From 80 µm voxel
- Non-destructive inspection
- US reseller & support
Choosing a RF System Lab naomi-ct machine
The decisions that actually matter for this class of machine — size them to your parts, not to a spec sheet.
Part size vs resolution
The 3D-L takes larger samples (up to Φ300 mm, 320 mm tall, ~20 kg); the 3D-M takes smaller parts (up to Φ250 mm, ~10 kg) but reaches a finer 80 µm minimum voxel — smaller parts scan at higher magnification and detail.
Detector
The 3D-L uses an 11.4 MP (3792 × 3024) 16-bit flat-panel detector over a 288 × 230 mm area; the 3D-M a 2.0 MP (1440 × 1440) 14-bit panel over 141 × 141 mm — the larger panel on the 3D-L suits bigger fields of view.
Shared X-ray source
Both run a sealed micro-focus tube at 50–100 kV, up to 10 mA and 500 W, with a 0.5 mm focal spot and oil-and-air cooling — reliable, low-maintenance capture for a shop-floor system.
Self-shielded
Both cabinets are self-shielded, so a NAOMi-CT system means inspection happens on your floor — no dedicated radiation room, no outside lab, faster turnaround on first-article and failure analysis.
Compare the naomi-ct lineup
| Specification | NAOMi-CT 3D-L | NAOMi-CT 3D-M |
|---|---|---|
| Best for | Larger parts · bigger detector | Smaller parts · finest voxel |
| Technology | Self-shielded micro-focus X-ray CT | Self-shielded micro-focus X-ray CT |
| X-ray tube | Sealed micro-focus, 50–100 kV | Sealed micro-focus, 50–100 kV |
| Max power | 500 W (10 mA) | 500 W (10 mA) |
| Focal spot | 0.5 mm | 0.5 mm |
| Detector | Amorphous-Si FPD · 11.4 MP (3792×3024) | Amorphous-Si FPD · 2.0 MP (1440×1440) |
| Pixel pitch | 76 µm | 98 µm |
| Detector area | 288 × 230 mm | 141 × 141 mm |
| Dynamic range | 16-bit | 14-bit |
| Min voxel | 95 µm | 80 µm |
| Max sample | Φ300 mm · 320 mm · ~20 kg | Φ250 mm · 230 mm · ~10 kg |
| Price | Request a quote | Request a quote |
Specs as published on each Rev1 product page. Both are self-shielded micro-focus industrial X-ray CT systems; contact Rev1 for the current datasheet and configuration.
RF System Lab NAOMi-CT printers we sell & support
Built for the work you already do
Frequently asked questions
NAOMi-CT 3D-L or 3D-M — which should I choose?
Choose the 3D-L for larger, heavier parts (up to Φ300 mm and ~20 kg) and its bigger 11.4 MP detector; choose the 3D-M for smaller parts that need the finest resolution — it reaches an 80 µm minimum voxel. Tell us your part size and the defects you need to see and we will match it.
What is industrial X-ray CT?
Computed tomography takes hundreds of X-ray views as the part rotates and reconstructs a full 3D volume, so you can see inside a part non-destructively — voids, porosity, cracks, internal geometry and assembly defects — without cutting it open.
Do I need a separate X-ray room?
No — both NAOMi-CT systems are self-shielded cabinets, so inspection happens on your shop floor without a dedicated radiation room or an outside lab, which means faster first-article and failure-analysis turnaround.
What support comes with a NAOMi-CT from Rev1?
Rev1 is an authorized RF System Lab / NAOMi-CT reseller in the USA — US-based application support, sample CT scans, installation, training and financing. Call (248) 707-2950 or request a quote.
