Bambu Lab H-Series — H2D, H2C & H2S Large-Format 3D Printers
The H-Series is Bambu Lab’s large-format, high-flow production platform — a 325 mm class enclosed CoreXY with 350 °C hotends and a 65 °C actively heated chamber for PPS, PA and carbon-reinforced engineering materials, plus multi-material to 24 filaments. The H2D is a dual-nozzle machine with an optional laser and digital cutter; the H2C adds Vortek — seven hotends for zero-purge multi-material; the H2S is the single-nozzle production model for maximum throughput. This page compares all three so you can match capability to the parts you make.
- 325 mm class
- 65 °C chamber · 350 °C
- Up to 24 filaments
- US stock & support
Choosing a Bambu Lab h-series machine
The decisions that actually matter for this class of machine — size them to your parts, not to a spec sheet.
Why the H-Series
Bigger parts and real engineering materials. The 325 mm class envelope, 350 °C hotends and 65 °C heated chamber run PPS, PA and CF/GF grades at high flow — well beyond what the A- and P-Series are built for.
H2D — dual-nozzle + laser
Two hardened-steel hotends (true dual-material / fast two-color) plus an optional 10 W or 40 W laser and a digital cutter/plotter. The most versatile H-Series — printing, laser engraving/cutting and cutting in one enclosed machine.
H2C — Vortek zero-purge multi-material
Seven hotends (six induction + one standard) and up to 24 filaments in parallel with near-zero purge waste — the pick when color/material count and material efficiency matter most.

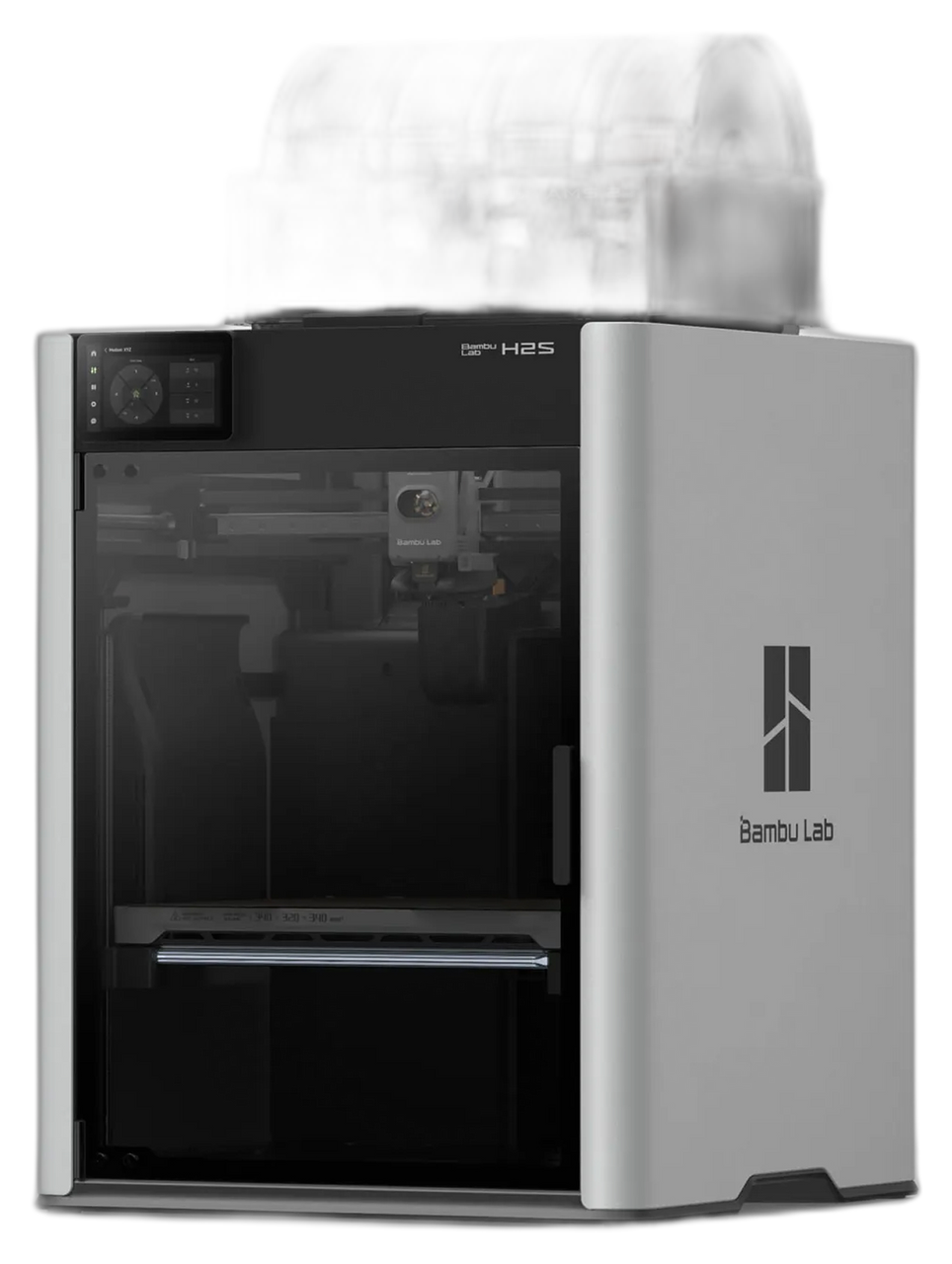

H2S — single-nozzle production
A single hardened all-metal nozzle tuned for throughput: 340 × 320 × 340 mm, up to 1,000 mm/s, built-in filament cutter, up to 24 filaments via dual AMS. The value entry into the H-Series, quoted to your configuration.
Compare the h-series lineup
| Specification | H2D | H2C | H2S |
|---|---|---|---|
| Best for | Dual-nozzle + laser / cutting | Zero-purge multi-material (Vortek) | Single-nozzle production speed |
| Printing technology | Enclosed CoreXY, dual nozzle | Enclosed CoreXY, Vortek 7-hotend | Enclosed CoreXY, single nozzle |
| Build volume | 325 × 320 × 325 mm (300 dual) | 325 × 320 × 320 mm (300 dual) | 340 × 320 × 340 mm |
| Max nozzle temp | 350 °C (dual) | 350 °C (7 hotends) | 350 °C |
| Nozzle material | Hardened steel | Hardened steel (Vortek + std) | Hardened steel, all-metal |
| Heated chamber | Actively heated, up to 65 °C | 65 °C + adaptive airflow | 65 °C + adaptive airflow |
| Max speed | 1,000 mm/s (toolhead) | PMSM servo, high-speed | 1,000 mm/s |
| Max filaments / colors | AMS 2 Pro + AMS HT · 16 colors | Up to 24 (AMS 2 Pro + AMS HT) | Up to 24 (AMS 2 Pro + AMS HT) |
| Laser & cutting | 10 W / 40 W laser + cutter/plotter | Laser Edition option | 10 W laser only |
| Materials | PLA → PPS, CF / GF | PLA → PPS, CF / GF | PLA → PPS, CF / GF |
| Price | $2,199 | $2,649 | Contact for Quote |
Specs as published on each Rev1 product page. Laser, AMS and bundle configurations quoted on request.
Bambu Lab H-Series printers we sell & support
Built for the work you already do
Frequently asked questions
H2D, H2C or H2S — which do I need?
Choose the H2D for dual-nozzle printing plus laser engraving/cutting; the H2C (Vortek) for the most colors/materials with near-zero purge waste; and the H2S for single-nozzle production speed at the lowest H-Series entry. All three share the 325 mm class envelope, 350 °C hotends and 65 °C heated chamber.
What large or high-temp materials can the H-Series run?
With 350 °C hotends and a 65 °C actively heated chamber, the H-Series runs PLA through PPS, PA, PC and carbon- and glass-fiber reinforced grades — the high-flow, high-temperature end of Bambu’s range.
How does the H2D laser and cutter work?
The H2D accepts an optional 10 W (cuts ~5 mm) or 40 W (cuts ~15 mm) 455 nm laser module plus a digital cutter/plotter for vinyl, paper and leather — so one enclosed machine prints, engraves, cuts and plots. We can quote the right laser and bundle.
How are up to 24 filaments possible?
By running AMS 2 Pro and AMS HT units in parallel. The AMS 2 Pro actively dries filament and the AMS HT dries to 85 °C with a bypass for fiber-reinforced material. We quote the AMS configuration with the machine.
What support and financing come with the H-Series?
Genuine Bambu Lab hardware with US warehouse stock, fully-assembled delivery, financing, and setup, material and laser-safety guidance from our US team. Call (248) 707-2950.
