SHINING 3D EXMeasure PTB-Certified · One-Click Best Fit · Full-Field Comparison · Essential GD&T
A streamlined 3D dimensional-inspection platform — import, align, compare, and report in one focused workflow, with PTB-certified measurement tools in a clear, tile-based workspace.
SHINING 3D EXMeasure is the essential tier of SHINING 3D dimensional-inspection software — one focused path from scan data to report: Import & Manage, Align, Compare & Measure, and Report. A tile-based interface keeps core functions visible for routine measurement in fewer steps, precise measurement and GD&T inspection renders color deviation maps against a reference or CAD model, and PTB-certified tools give the measurement an independent traceability chain. Full specifications →
Rev1 confirms scanner pairing, activation, and report templates before you license — authorized SHINING 3D software reseller and US support partner. Questions? Call (248) 707-2950.
Authorized SHINING 3D Software Reseller in the USA.
SHINING 3D EXMeasure is built by SHINING 3D — 20 years in 3D metrology with 300 authorized patents — and equipped with PTB-certified measurement tools for traceable inspection. Rev1 Technologies is your authorized SHINING 3D reseller and US application-support partner, Auburn Hills, Michigan.
The Essential Path From Scan Data to Inspection Report.
SHINING 3D EXMeasure is a streamlined 3D dimensional-inspection application for quality control across precision manufacturing. It is the essential tier of SHINING 3D inspection software, built around four headline pillars — one-click best fit, full-field 3D comparison, essential GD&T evaluation, and precise measurement — delivered in a clear, tile-based workspace with PTB-certified measurement tools.
See Every Deviation. Color Maps, Tolerance Bands, Pass/Fail.
Measured Data vs Reference, Across the Whole Surface

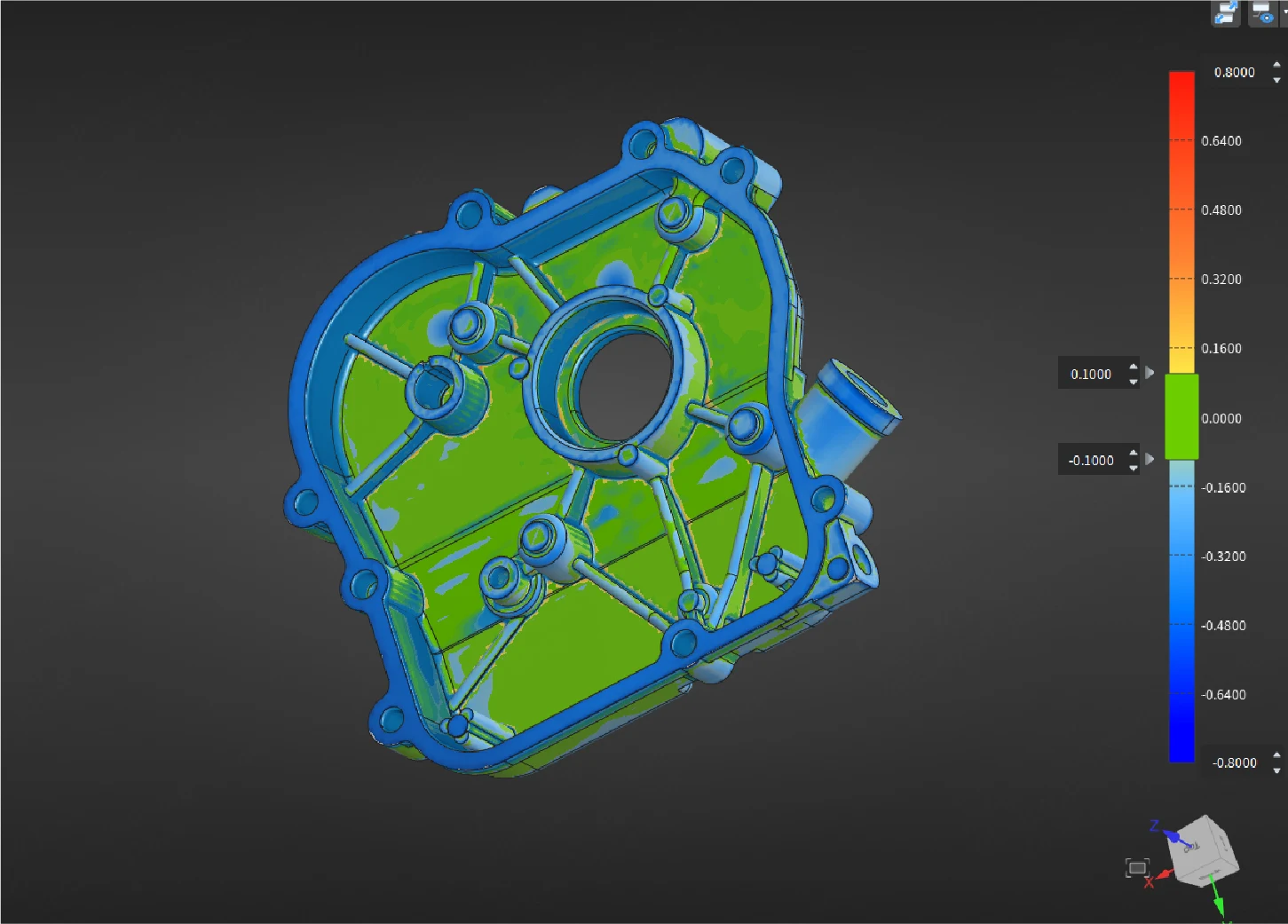

EXMeasure performs a full-field comparison between measured scan data and a reference or CAD model, producing a 3D color deviation map that makes out-of-tolerance regions obvious at a glance. Customizable tolerance bands let you tune the color scale to the job, and the comparison returns an immediate pass/fail read — the fastest way to confirm whether a part is within spec.
Set Datums. Inspect Form & Orientation. Read the Result.
The Core GD&T Controls, In a Focused Workflow

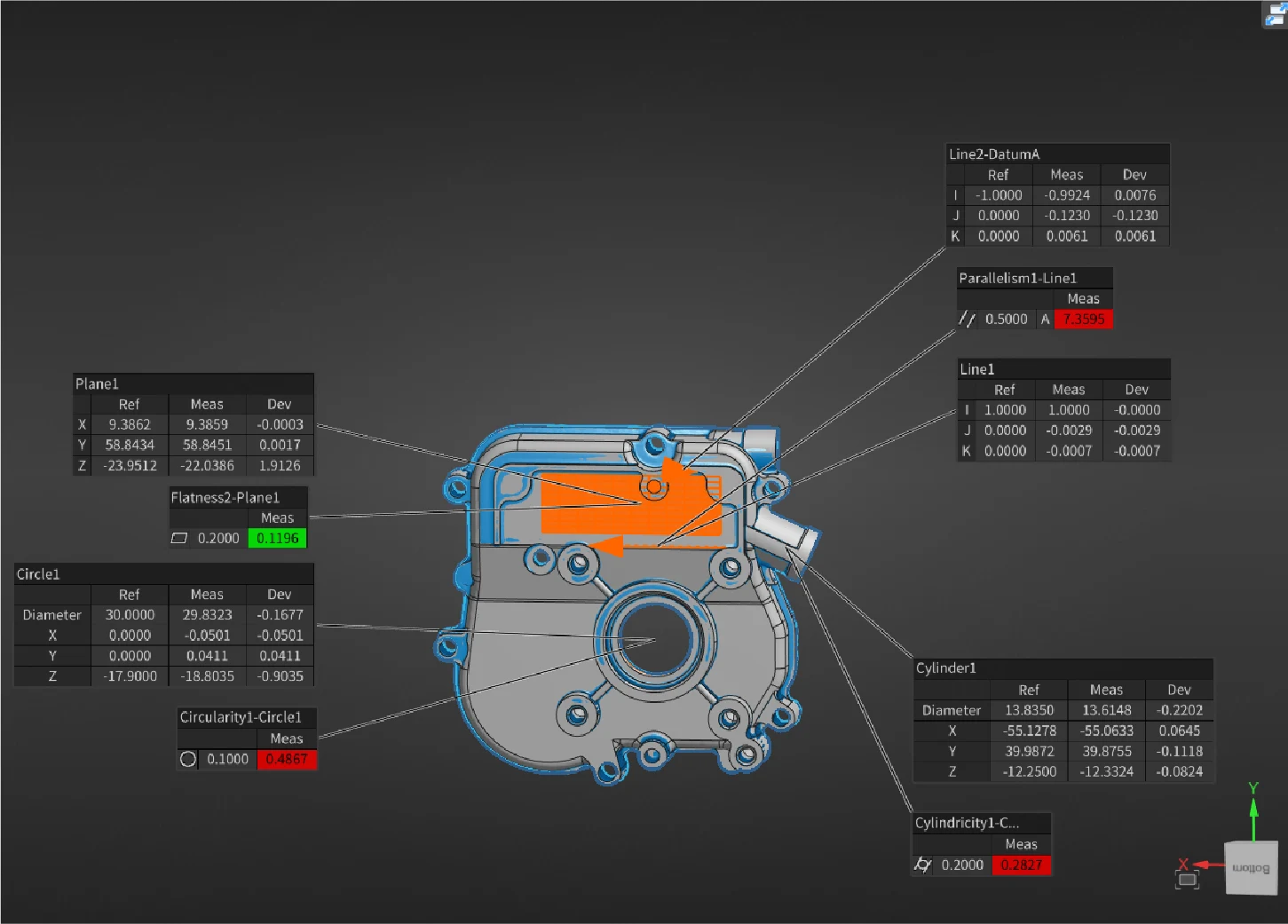

EXMeasure covers the GD&T evaluation most inspection jobs need: establish datums, then inspect straightness, flatness, circularity, cylindricity, parallelism, and perpendicularity. Each characteristic returns a clear in-tolerance or out-of-tolerance result, and the whole evaluation sits inside one continuous Import → Align → Compare & Measure → Report flow — no hand-offs between tools.
A Tile-Based Workspace. Fewer Steps to a Measurement.
Core Functions Stay Visible, So Routine Jobs Fly

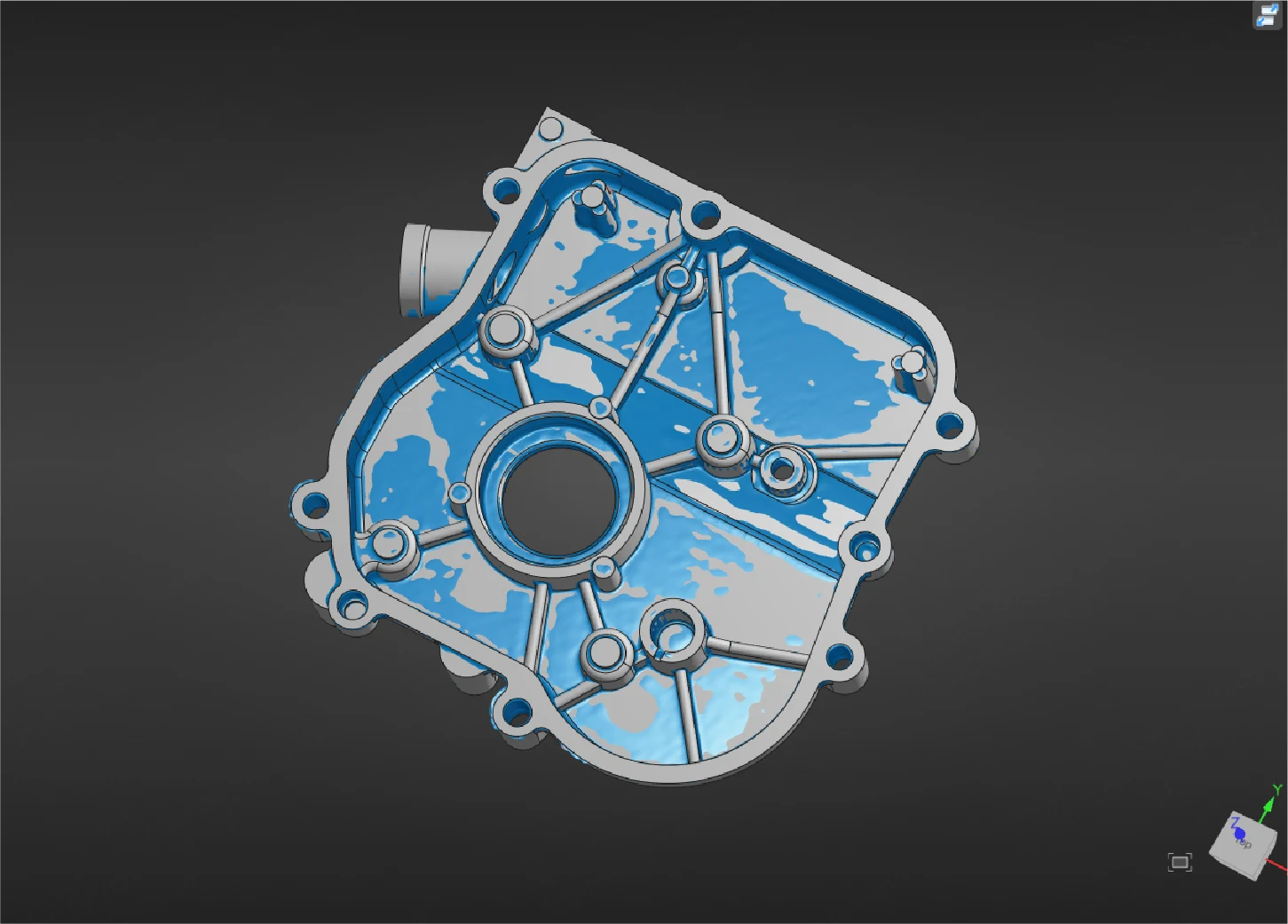

EXMeasure wraps alignment in a tile-based interface that keeps the core functions on screen, so a routine measurement takes fewer steps than a full metrology suite. Align the way the part demands — best-fit for free-form registration, transformation and manual for guided placement, or a defined coordinate-system alignment when a datum frame is required.
Build the Geometry Your Inspection Needs.
Points, Lines, Planes — and the Primitives Beyond

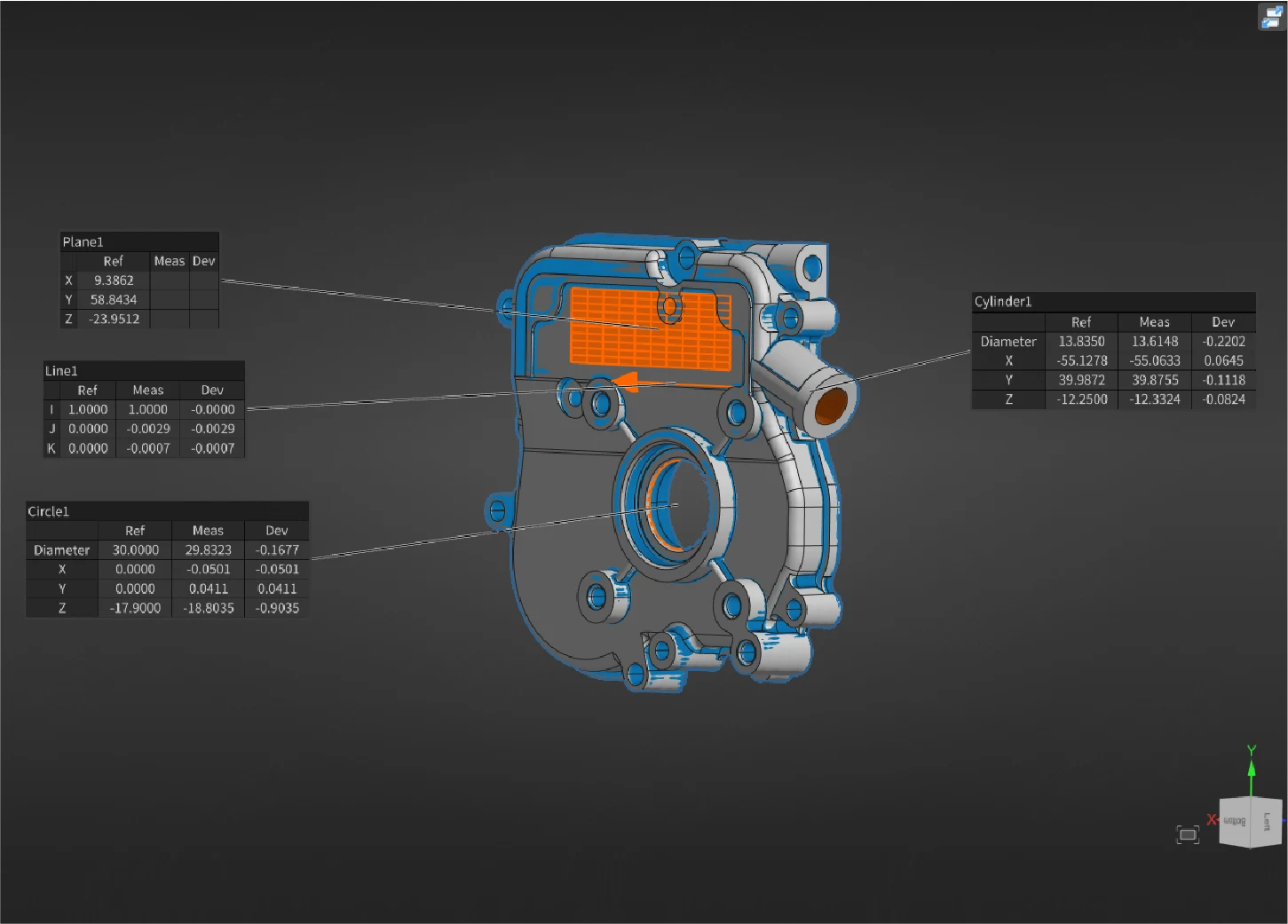

EXMeasure constructs the geometric features an inspection depends on: points, lines, planes, circles, spheres, cones, and cylinders. Build them from a CAD selection, fit them to measured data, or anchor a construction to existing references — then feed those features straight into GD&T evaluation and precise measurement without leaving the workspace.
Virtual Caliper for Diameters, Distances, and Angles.
Direct, Repeatable Dimensional Readings

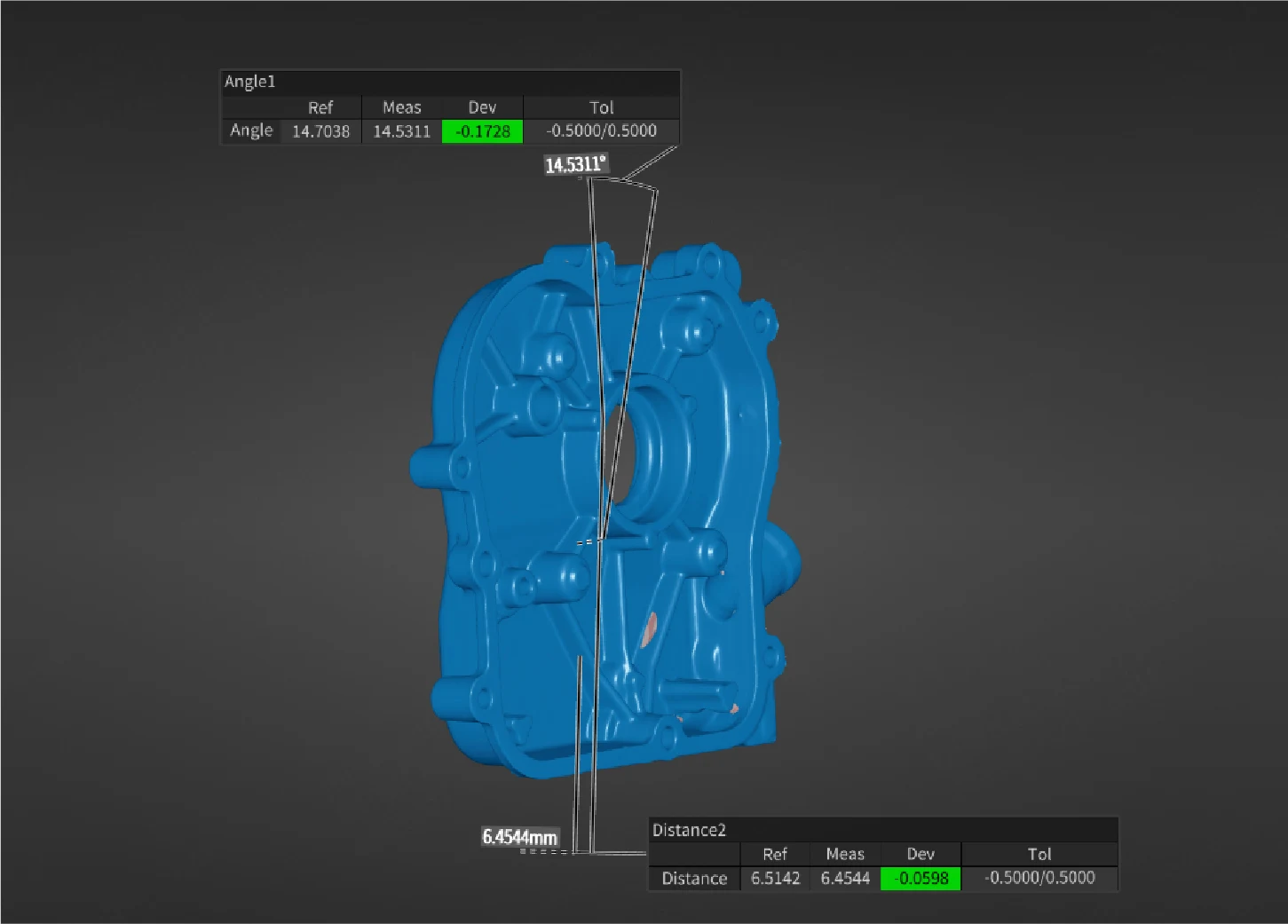

EXMeasure includes a virtual caliper for internal and external diameters, plus direct measurement of distances and angles between points, lines, and planes. Combined with the constructed features and the full-field comparison, it covers the everyday dimensional checks an inspection team runs most — and every reading drops into the report with full traceability back to the measurement.
Essential Dimensional Inspection Across Precision Manufacturing.
Where a clear, repeatable inspection workflow and PTB-certified measurement matter most. Pair EXMeasure with the right SHINING 3D scanner and book a live inspection demo on your own parts.
The Right Tool When You Need Inspection, Not a Full Metrology Suite
EXMeasure is purpose-built for teams that need dependable dimensional inspection without the depth — or the overhead — of a full metrology platform. Import scan data, best-fit align, run a full-field comparison and essential GD&T, take precise caliper measurements, and export a clean report. When a job grows into direct scanning, probing, or advanced comparison, SHINING 3D Inspect is the step up.
SHINING 3D EXMeasure — Free With EinScan Trak, or License Separately.
EXMeasure is the essential dimensional-inspection tier. It comes free for one year with an EinScan Trak purchase — auto-installed with the EXScan Trak package — or you can license it on its own through Rev1. Activation uses a SnLock license code; there is no free trial.
SHINING 3D EXMeasure vs. SHINING 3D Inspect
EXMeasure is the essential, streamlined tier; SHINING 3D Inspect is the full metrology step-up. Here is how the capability set splits, so you license the right one for your parts.
| Capability | EXMeasure (Essential) | SHINING 3D Inspect (Step-Up) |
|---|---|---|
| Data input | Import & manage scan data | Direct scanning with a 3D scanner + scan mesh |
| Alignment | Best-fit, transformation, manual, coordinate-system | Full alignment set |
| Comparison | Full-field 3D (scan vs CAD) | Adds 3D local comparison + 2D comparison |
| GD&T evaluation | Essential (form & orientation) | Metrology inspection, broader GD&T |
| Feature construction | Points, lines, planes, circles, spheres, cones, cylinders | Adds slot / polygon / rectangle / plate / surface / polyline + create-from-CAD |
| Measurement | Virtual caliper, distances, angles | Adds probing + section creation |
| Report export | Snapshots, 3D views, tables, PDF | Adds CSV export |
| Best for | Streamlined, essential inspection | Full metrology, probing & automation |
Capability split is based on SHINING 3D's own published EXMeasure and Inspect specifications and is provided by Rev1 Technologies for general orientation; exact features vary by version. EXMeasure is the value entry point for teams that need dependable dimensional inspection in fewer steps. Need direct scanning, probing, 2D/local comparison, section creation, CAD-based features, or CSV export? Step up to SHINING 3D Inspect. Rev1 can scope either tier against your parts and workflow.
