AESUB White
Permanent 3D Scanning Spray for Unlimited Scan Time
AESUB White is a permanent 3D scanning spray for unlimited scan time — TiO2-free, with a uniform 7 µm matte layer that stays put until you wipe it off. The right pick when you need a coating that won't sublimate during long campaigns or batch QA, with a soft-brush + damp-cloth removal step at the end. Full specifications →
Single cans ship same day from Auburn Hills, MI. Volume orders priced within 1 business day.
(248) 707-2950 · Talk to a scanning specialist
Why AESUB White
Is the Industry Standard
AESUB White is a vanishing 3D scanning spray for industrial optical scanners that sublimates completely within approximately 4 hours, eliminating the cleanup step that conventional pigment-based sprays require. Traditional scanning sprays leave a mess requiring cleaning after every session. AESUB White sublimates completely within approximately 4 hours — no wiping, no solvents, no wasted time. Apply it on the spot, scan, and move on.
Conventional sprays contain pigments that settle on scanners, lenses, and air filters. AESUB White is entirely pigment-free — spray it directly next to your scanner without any contamination risk to your lab or production environment.
At 8–15 microns, AESUB White lays down a thin, homogeneous matte layer that creates ideal contrast for structured light and laser scanners. Controlled layer thickness keeps measurements accurate.
Three Steps to
Perfect Scan Conditions

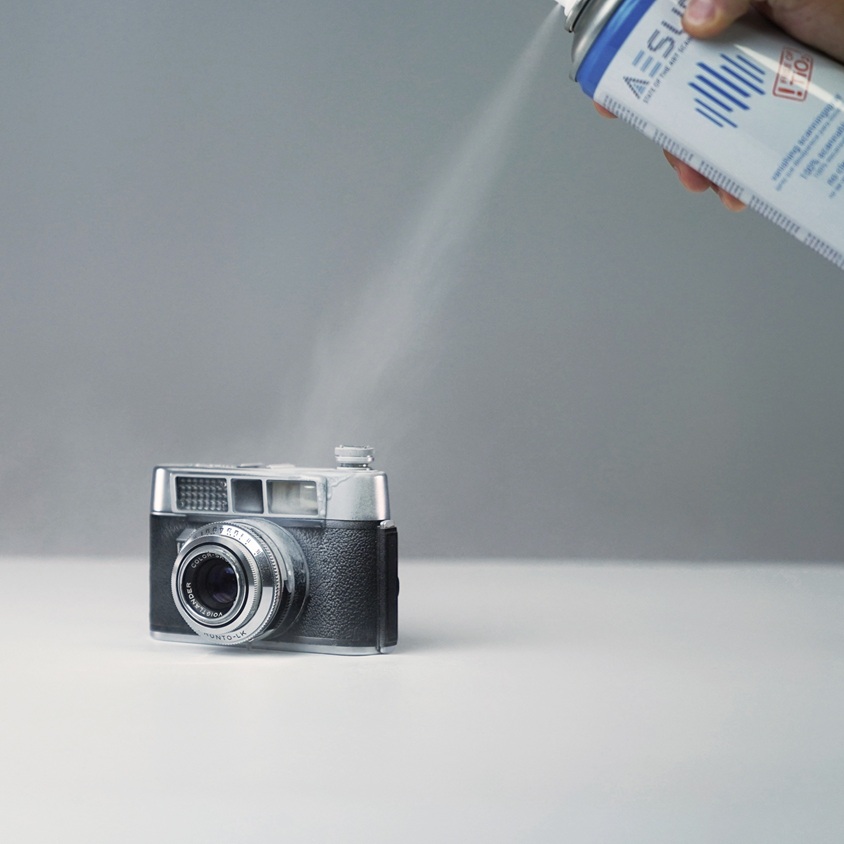

Hold the can 15–20 cm from the surface. Apply an even coat with smooth back-and-forth strokes. Avoid wagging — one consistent pass is all you need.
Begin scanning once the coating is stable and dry to the touch. Reference targets adhere cleanly to the coated surface. Re-spray areas as needed to extend the scan window.
The coating sublimates completely — no cleaning required. Parts are reusable with zero residue. Higher temperatures accelerate sublimation; cooler environments extend it.
Scan What Was
Previously Unscannable
Optical 3D scanners struggle with three surface types: shiny metals that scatter structured light, transparent parts that let light pass through, and dark surfaces that absorb it. AESUB White creates a uniform matte white layer across all three — giving your scanner the contrast it needs to capture accurate data on every pass.
AESUB White —
Full Spec Sheet
| Product Type | Vanishing / Sublimating Aerosol Spray |
| Volume | 400ml per can |
| Layer Thickness | 8–15 µm |
| Scan Time (usable) | Approx. 1–2 hours at 21°C |
| Sublimation Time | Approx. 4 hours at 21°C |
| Application Distance | 15–20 cm from surface |
| Pigments | None — pigment-free |
| Titanium Dioxide (TiO2) | None — TiO2-free |
| Residue After Sublimation | None — certified residue-free |
| Shelf Life | 3 years |
| Storage | Dry, 18–21°C optimal, protect from sunlight, max 50°C |
| Origin | Made in Germany |
| Price | $17.50 per can | Volume pricing available |
Which AESUB Spray
Is Right for You?
| Spray | Type | Scan Time | Vanishes In | Layer | Best For |
|---|---|---|---|---|---|
| AESUB Blue | Vanishing | 1–2 hr | ~4 hr | 8–15 µm | Everyday scanning, small–medium parts |
| AESUB Violet | Vanishing | 2–6 hr | ~24 hr | 4–8 µm | Precision metrology, extended sessions |
| AESUB Orange | Vanishing | 4–8 hr | ~24 hr | 2–6 µm | Large parts, all-day scanning sessions |
| AESUB Diamond | Vanishing | ~10 min | 10–30 min | 2 µm | Jewellery, tiny precision parts |
| AESUB Transparent | Vanishing | 1–2 hr | ~4 hr | 15–20 µm | Color/texture scanning, photogrammetry |
| AESUB White ← You Are Here | Permanent | Unlimited | Manual clean | 7 µm | When permanent coating is acceptable |
Not sure which spray fits your workflow? Contact our scanning team — we'll match you to the right product based on your scanner type, part size, and environment.
You're Not Just Buying a Spray.
You're Getting a Scanning Partner.
Sold and supported by Rev1 Technologies. Made in Germany by AESUB.
Most online spray vendors just ship a box. Rev1 is an authorized AESUB dealer based in Auburn Hills, Michigan — we carry the full AESUB lineup, stock it locally, and answer real questions about which spray works for your scanner, your surfaces, and your production environment. We use AESUB in our own scanning lab.
Anywhere in the U.S. — authorized to sell the full AESUB product line, with verified factory-fresh stock.
We use AESUB in our own scanning lab. Real advice from real scanning experience — not a call center reading a spec sheet.
Stocked in Auburn Hills, Michigan. Order before 2pm ET and it ships today, anywhere in the U.S.
Case and pallet pricing available. Pair with an EinScan or Shining3D scanner from Rev1 for preferred AESUB pricing.
Works Best With
These Products
Frequently Asked —
AESUB White
Does AESUB White really disappear on its own?
Yes. AESUB White sublimates — it transitions from solid coating to vapor without leaving any residue. At 21°C it's fully gone within approximately 4 hours. Independent lab testing confirms zero residue. You do not need to wipe, wash, or clean anything.
How long do I have to scan after spraying?
Approximately 1–2 hours at 21°C. Higher temperatures shorten the usable window; cooler environments extend it. Re-spray individual areas as needed — there's no penalty for additional coats.
Is AESUB White safe to use around my scanner?
Yes. Because it's completely pigment-free, there's no risk of contaminating your scanner's lenses, projectors, or air filters. You can spray it directly at the scanning location without removing or covering equipment.
What scanners and surfaces does it work with?
AESUB White works with structured-light, laser, photogrammetry, and LiDAR scanners including EinScan, Shining3D, GOM, ZEISS, Creaform, Hexagon, and Artec. Effective on reflective metals, chrome, transparent plastics, glass, dark parts, and deep pockets.
How does AESUB White compare to vanishing AESUB sprays?
White is permanent — the matte coating stays on the part until you wipe it off with a soft brush and damp cloth. Vanishing sprays (Blue, Violet, Orange) self-sublimate within 4–24 hours and leave zero residue. Pick White when you need unlimited scan time (overnight CT, batch QA across days) and don't mind the cleanup step. Pick a vanishing spray when speed and zero-cleanup matter more than scan duration.
How does AESUB White compare to titanium-dioxide sprays?
Conventional TiO2 / talc-based sprays leave a permanent pigment layer that contaminates scanners, lenses, and air filters and requires solvent cleaning of every part. AESUB White is pigment-free and TiO2-free — it sublimates completely with zero residue, so there's nothing to clean and nothing to contaminate.
How should I store AESUB White?
Dry, between 18–21°C optimal, protected from sunlight, max 50°C. Shelf life is 3 years from manufacture. Standard aerosol storage rules apply.
Can I buy AESUB White by the case?
Yes. 12-can cases are $13.90 per can ($166.80 total). 96-can pallets are $11.90 per can ($1,142.40). White is the most affordable AESUB spray by a wide margin. Contact Rev1 at (248) 707-2950 or (248) 707-2950 for case and pallet pricing.
