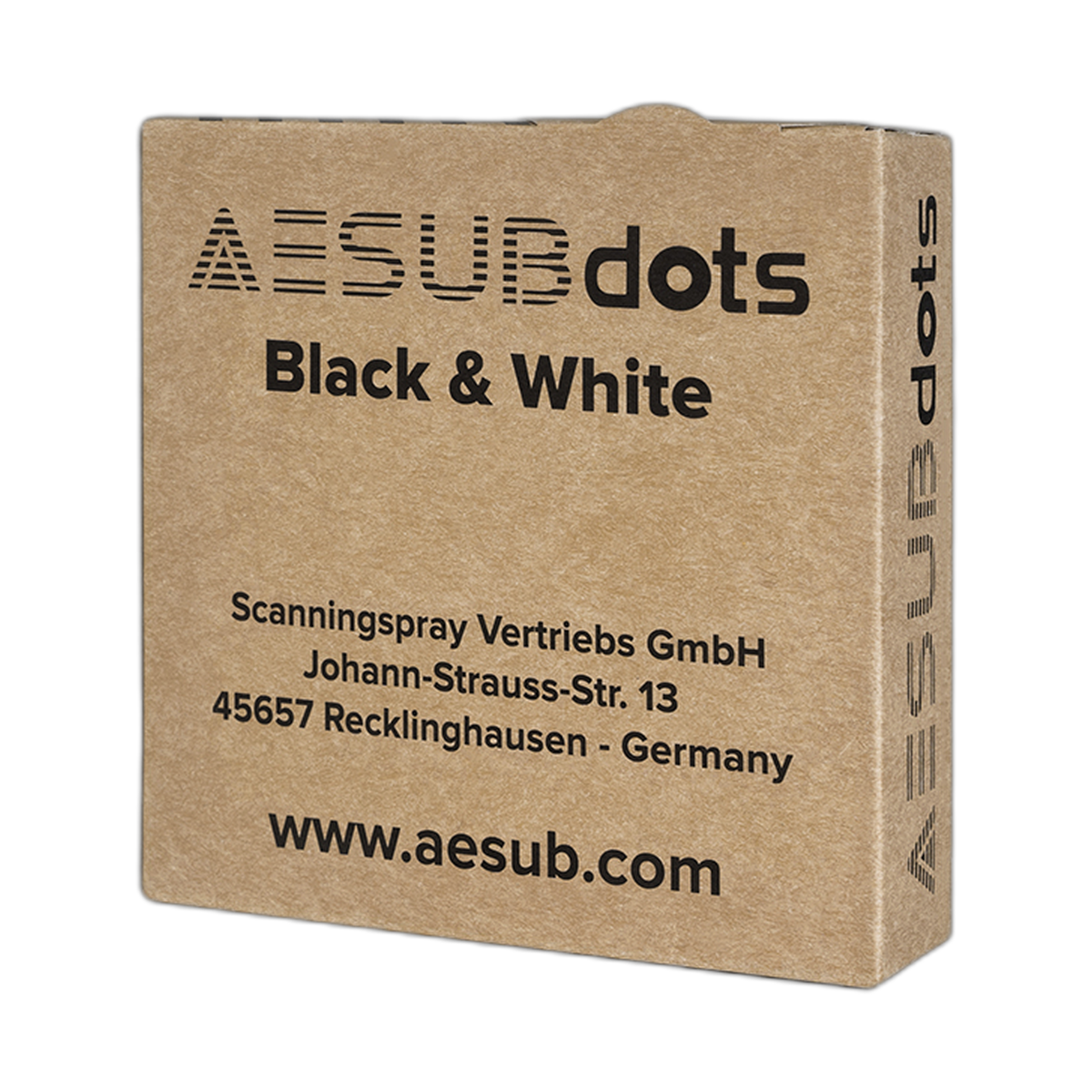

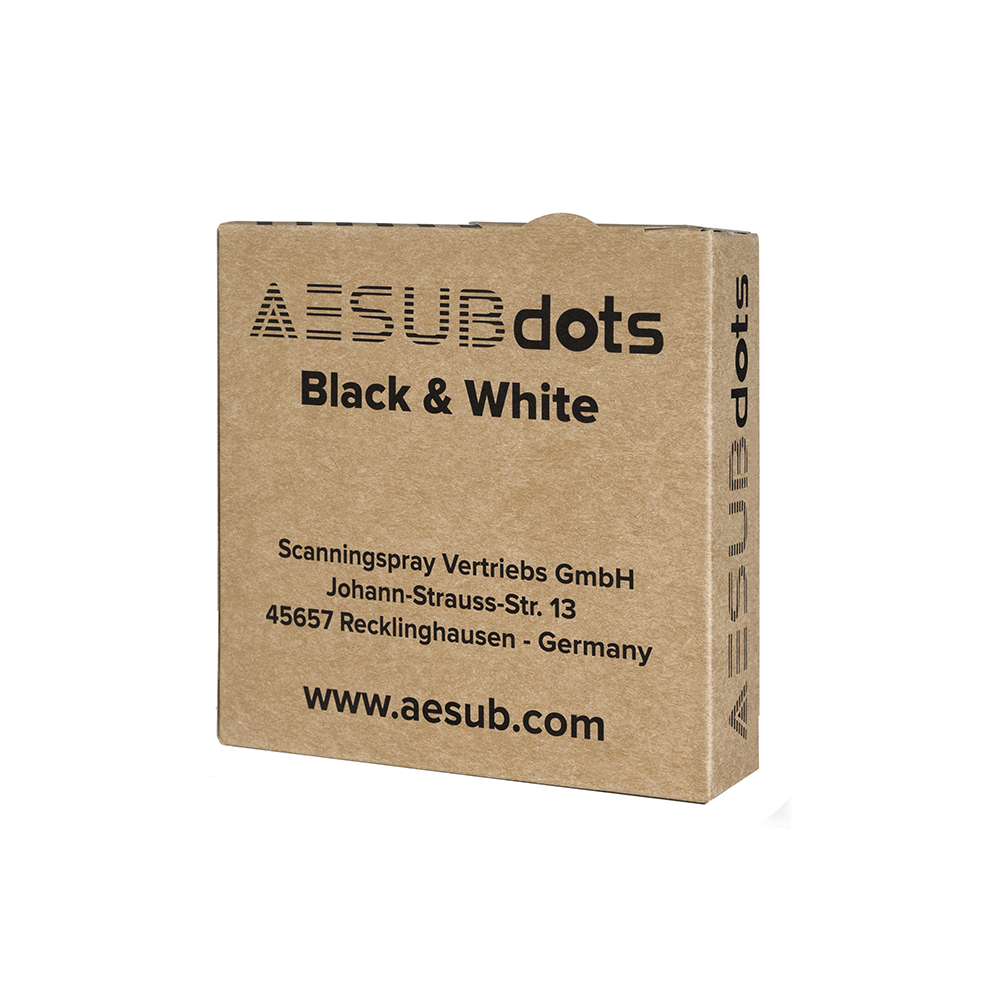

AESUB AESUBdots B&W 6mm
Black & White Reference Targets for Structured-Light Scanners

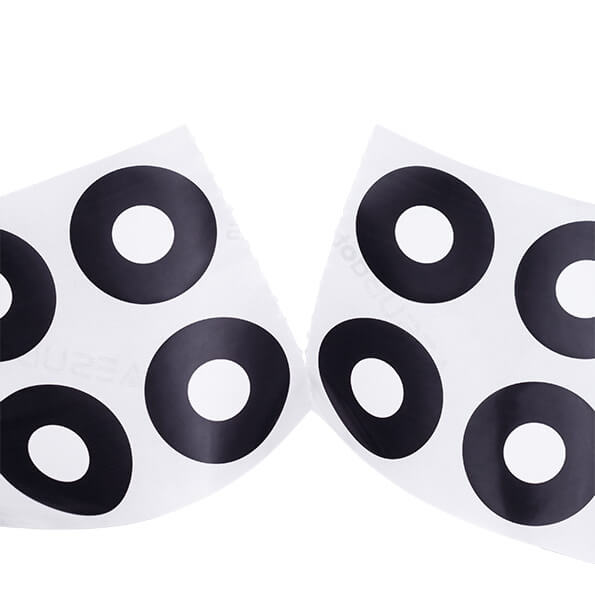

AESUBdots Black & White 6mm are 3D scanning reference targets for structured-light scanners — 3,000 dots per roll, 6 mm in diameter, with high-contrast black-and-white pattern optimized for structured-light pattern recognition, and a permanent adhesive. Coiled on roll for fast manual deployment or via the AESUBdots Applicator Gun. Compatible with all vanishing AESUB sprays. Full specifications →
Single cans ship same day from Auburn Hills, MI. Volume orders priced within 1 business day.
(248) 707-2950 · Talk to a scanning specialist
Why AESUBdots B&W 6mm
For Structured Light
High-contrast black-and-white pattern with strong adhesive bond — ideal for structured-light scanners like Shining3D, Artec, EinScan, and GOM systems. The adhesive holds firm through repeated scans without lifting or shifting.

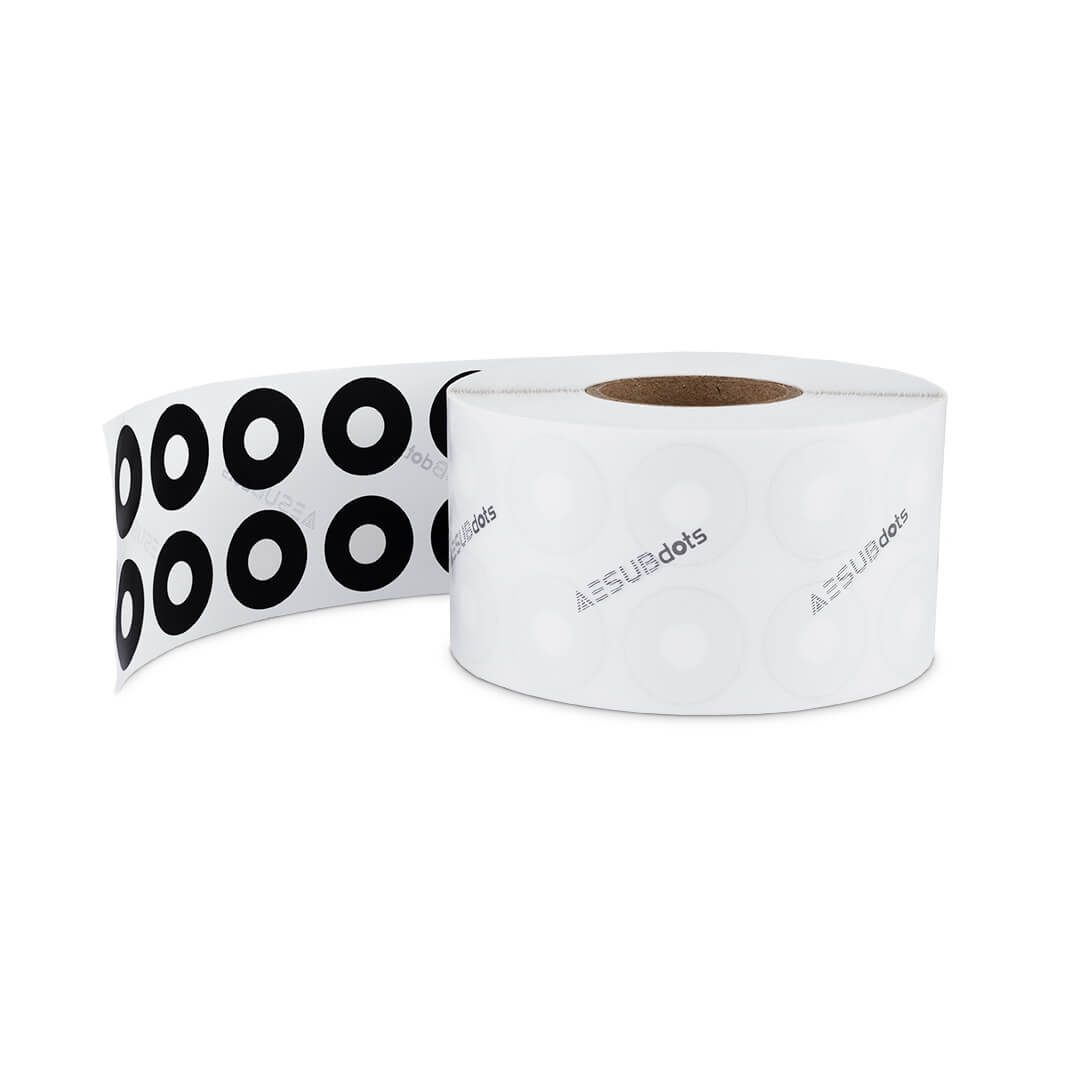

A single roll covers a large industrial part or several smaller scans. The continuous coiled format lets you peel one dot at a time by hand, or load the entire roll into the AESUBdots Applicator Gun for rapid deployment across hundreds of dots in minutes.
Permanent adhesive holds the dots in place through repeated scans, part movement, and rotation — without lifting, drifting, or losing position between captures. Use the Easy Remove variant if you need to lift them after the scan; use Permanent when the dots stay.
Production-Grade
Structured-Light Reference Dots
Each roll holds 3,000 high-contrast dots ready to peel and place. The permanent adhesive holds dots in place through scans, part movement, and rotation without drift. For high-volume production scanning, pair with the AESUBdots Applicator Gun to deploy hundreds of dots per minute on flat or gently curved surfaces.
AESUBdots Black & White 6mm —
Full Spec Sheet
| Product Type | Black & white high-contrast reference targets, coiled on roll |
| Diameter | 6 mm |
| Dots per Roll | 3,000 |
| Adhesive Type | Permanent |
| Surface | High-contrast black & white |
| Compatible Scanners | Structured-Light Scanners |
| AESUB Spray Compatibility | All vanishing AESUB sprays (Blue, Violet, Orange, Transparent, Diamond) |
| Application Method | Manual peel-and-stick or AESUBdots Applicator Gun |
| Other Diameters Available | 3 mm, 12 mm |
| Origin | Made in Germany |
| Price | $85.90 / roll (1) | $75.90 / roll (5+) | $65.90 / roll (10+) |
You're Not Just Buying AESUBdots B&W 6mm.
You're Getting a Scanning Partner.
Sold and supported by Rev1 Technologies. Made in Germany by AESUB.
Most online accessory vendors just ship a box. Rev1 is an authorized AESUB dealer based in Auburn Hills, Michigan — we carry the full AESUB lineup including sprays, dots, dice, and bulk solutions. Real answers about which AESUB product fits your scanner, your surfaces, and your production environment. We use AESUB in our own scanning lab.
Anywhere in the U.S. — authorized to sell the full AESUB product line, with verified factory-fresh stock.
We use AESUB in our own scanning lab. Real advice from real scanning experience — not a call center reading a spec sheet.
Stocked in Auburn Hills, Michigan. Order before 2pm ET and it ships today, anywhere in the U.S.
Case and pallet pricing available. Pair with an EinScan or Shining3D scanner from Rev1 for preferred AESUB pricing.
Works Best With
These Products
Frequently Asked —
AESUBdots Black & White 6mm
What scanners do AESUBdots B&W 6mm work with?
Designed for structured-light scanners — Shining3D, EinScan, Artec, GOM, and most other structured-light projector-based scanning systems. The strong B&W contrast pattern is what the structured-light algorithm reads. For laser scanners, the AESUBdots Retro variants are the better choice.
Permanent vs Easy Remove — which should I order?
Permanent adhesive holds dots in place through scans, part movement, and rotation without drift — use this when the dots stay on the part after the scan or when adhesion needs to survive a workflow. Easy Remove (also same diameter, separate SKU) peels off cleanly post-scan without residue — use this when you need to remove every dot after the scan.
How fast can I apply 3,000 dots?
By hand: realistically 5–10 minutes per 100 dots once you have a rhythm. With the AESUBdots Applicator Gun: load the roll, click-click-click — hundreds of dots per minute on a flat or gently curved surface. For large industrial parts (yacht hulls, car bodies, machine frames), the gun is the only practical method.
Can I use these with AESUB scanning sprays?
Yes — all AESUBdots variants are compatible with every vanishing AESUB spray (Blue, Violet, Orange, Transparent, Diamond). Apply the spray first to matte the surface, then place the dots on top. The adhesive holds through the matte coating.
What other diameters are available?
Black & White rolls come in 1.5 mm, 3 mm, 5 mm, 6 mm, 8 mm, 10 mm, and 12 mm. 6 mm is the most-used size and the industry standard. Smaller sizes (1.5–5 mm) for tight detail, larger sizes (8–12 mm) for very large parts. Same pricing tier across diameters.
Volume pricing for production scanning?
Standard tier: $85.90 / roll (1+), $75.90 / roll (5+), $65.90 / roll (10+). For high-volume production scanning operations, contact Rev1 at (248) 707-2950 or (248) 707-2950 for custom pricing on cases of 50 or 100 rolls.
