SHINING 3D FreeScan Combo+ Wireless Go wireless. Inspect boundless. · Wi-Fi 7 · Hybrid Laser + IR · 0.02 mm Lab-Certified
Wireless Hybrid Light Source Metrology Handheld 3D Scanner — the compact Combo design and hybrid light source, now with no cable.
The compact Combo design and hybrid light source, now with no cable. Wi-Fi 7 carries the data, a swappable battery runs up to 2 hours, and 93 laser lines scan at up to 9,106,000 points per second. Built-in video photogrammetry keeps large parts accurate. Full specifications →
Authorized SHINING 3D reseller and factory-trained FreeScan support partner in the USA — Rev1 validates application fit, accuracy class, and software-stack integration before you commit. Questions? Call (248) 707-2950.
Certified Accuracy. Internationally Traceable.
Every FreeScan Combo+ Wireless is acceptance-tested to ISO 10360 in SHINING 3D’s ISO/IEC 17025 accredited Accuracy Lab, with traceability to recognized national standards. Rev1 Technologies — your SHINING 3D metrology partner in the USA — is your authorized reseller and factory-trained support partner in Auburn Hills, Michigan, not a grey-market importer.
The Compact Combo Design and Hybrid Light Source — Now With No Cable.
Built for Inspection, QC and Reverse Engineering

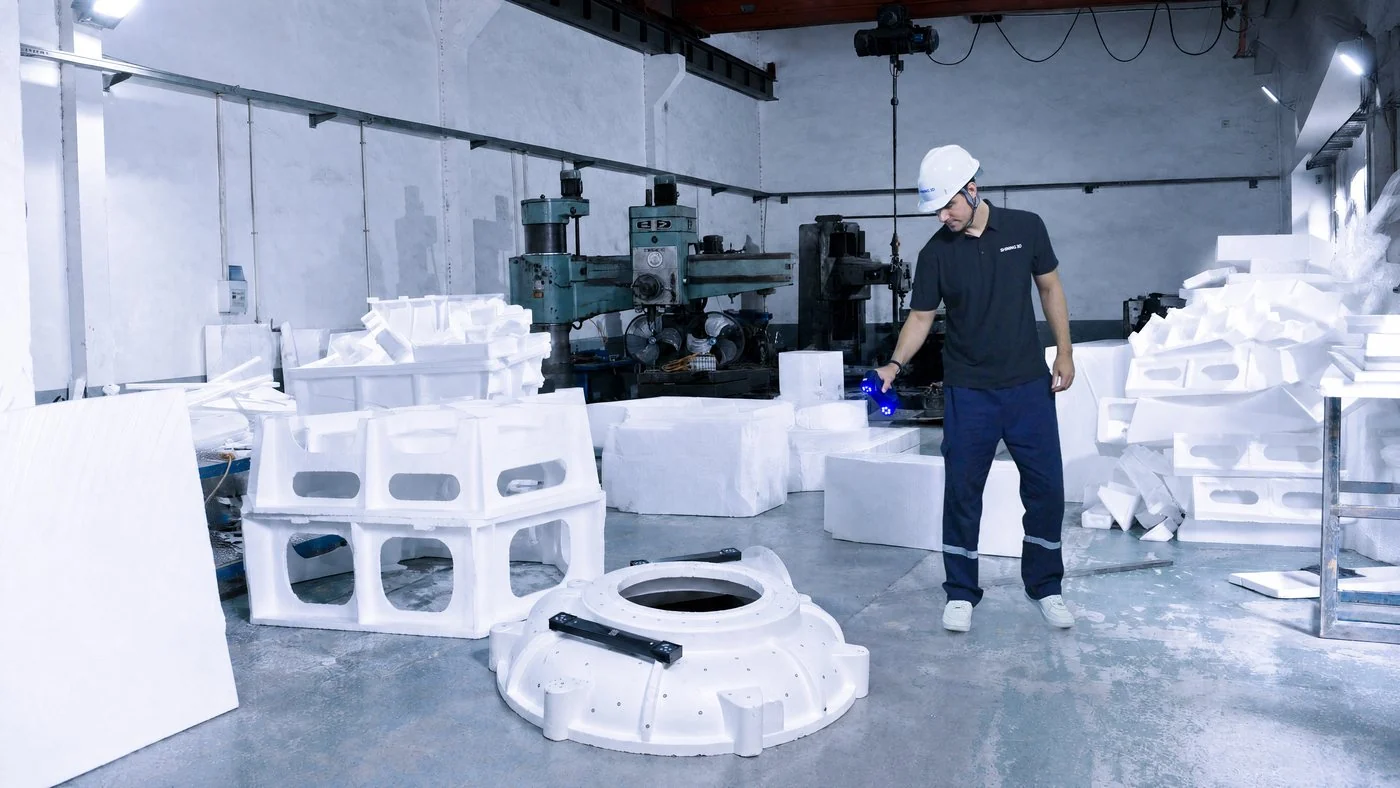

FreeScan Combo+ Wireless keeps the compact body and hybrid light source of the FreeScan Combo Series and drops the cable completely. It is built for inspection, quality control and reverse engineering in automotive, heavy industry, transportation and energy. Scanning a large casting pattern in a foundry pattern shop, no cable runs back to a PC — so the operator walks the part freely.
Wireless Transmission. Work Weightless. Minimized Downtime.
Wi-Fi 7, Designed for Mobility

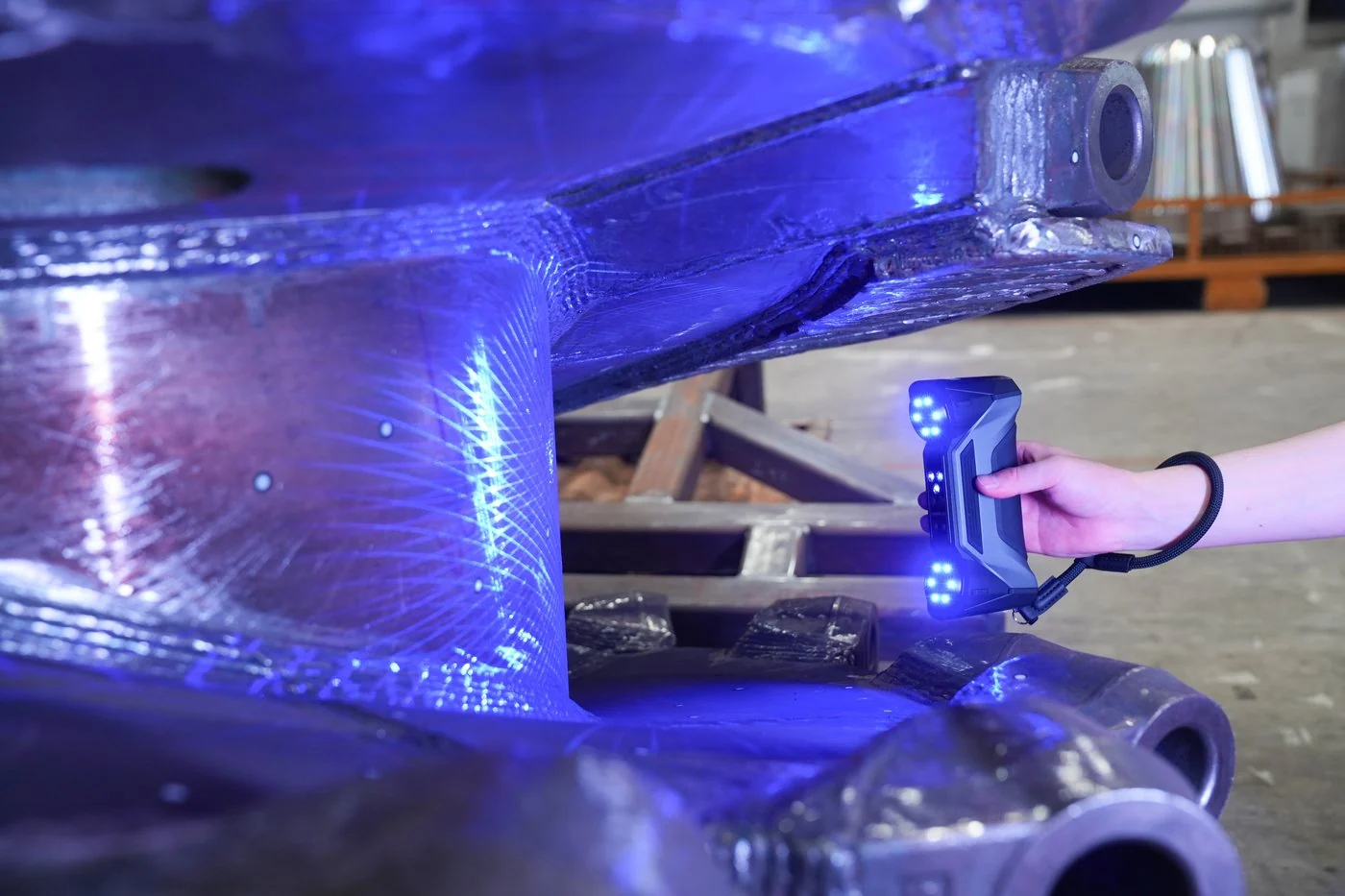

Working under a welded steel frame, with no cable to snag, the scanner reaches into tight corners of the structure. Wi-Fi 7 and anti-interference technology keep data flowing on busy factory floors and outdoors, and at 550 g the compact design reaches confined spaces and stays easy to hold.
Minimized Downtime

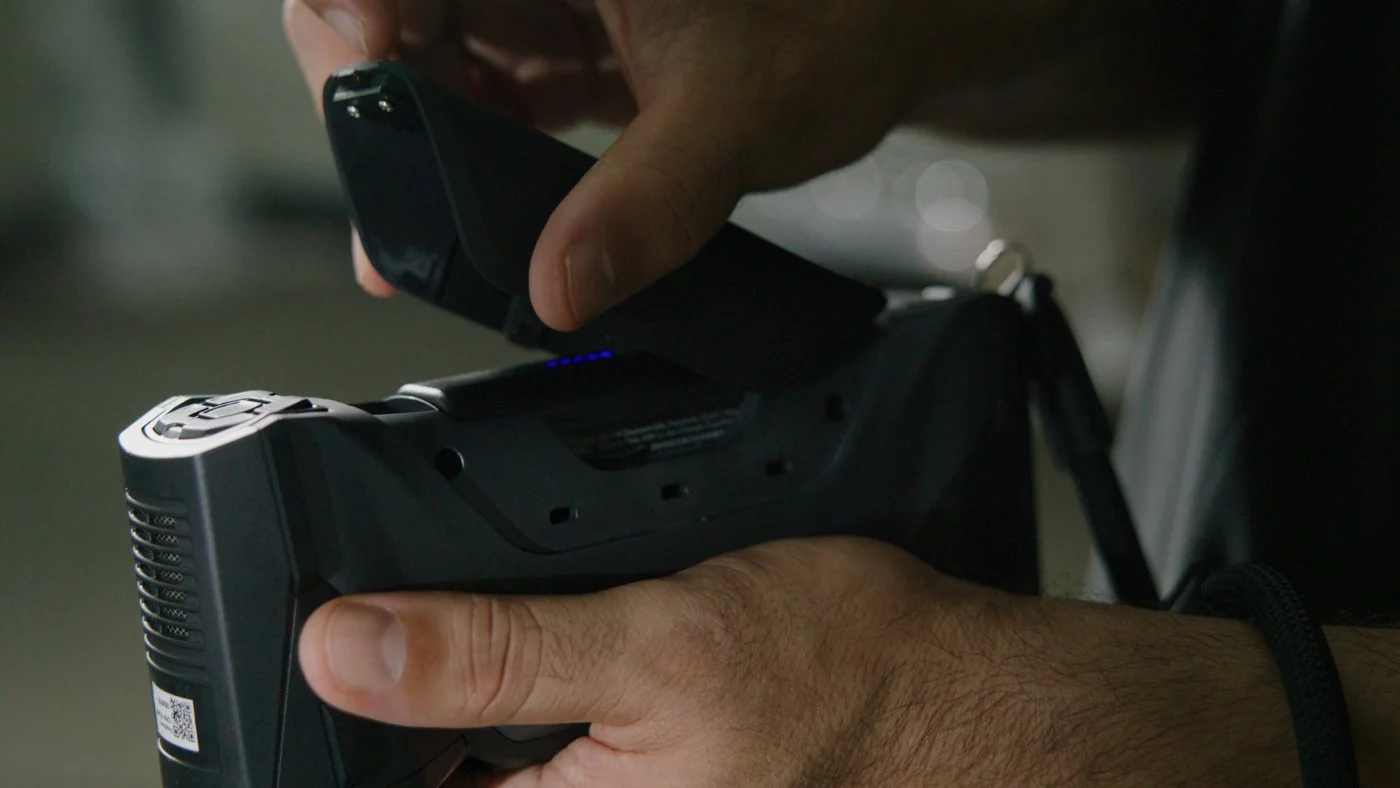

Built for long shifts. The high-capacity battery supports up to 2 hours of continuous scanning. Sliding a charged battery into the grip takes seconds, so scanning picks up where it left off — keep a spare charging on the rapid-charging dock, swap it in and keep running.
Certified Accuracy: ISO/IEC 17025 Laboratory.

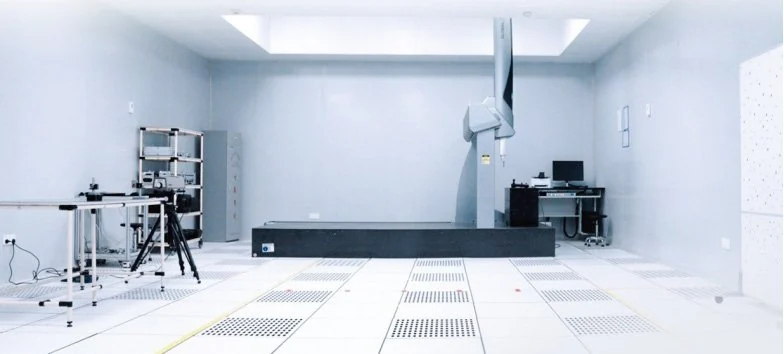

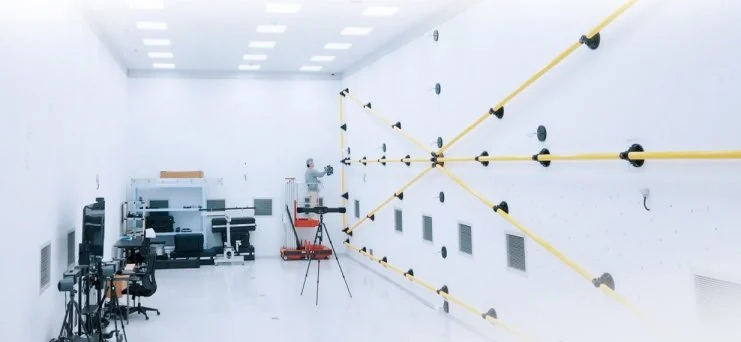

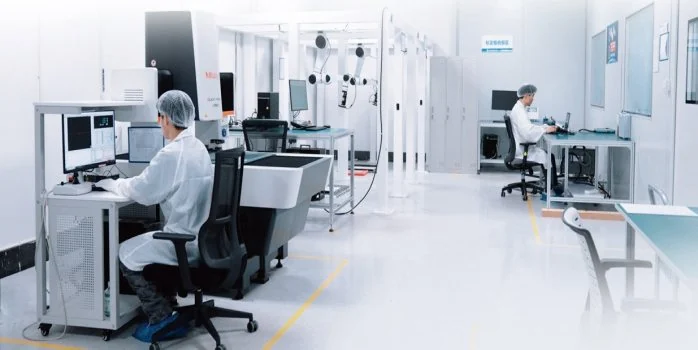

Accuracy claims on this page are not marketing numbers. The SHINING 3D Accuracy Lab is accredited to ISO/IEC 17025 by CNAS, and its calibration procedures strictly follow ISO 10360. Every FreeScan Combo+ Wireless is acceptance tested there to ISO 10360 — that is the document your quality manager, and your customer’s auditor, will ask to see.
Every unit is acceptance tested to ISO 10360 — the standard the metrology industry uses to qualify CMMs and laser trackers.
The SHINING 3D Accuracy Lab is accredited to ISO/IEC 17025 by CNAS, with traceability to recognized national standards.
Data moves into PTB-certified SHINING3D Inspect for dimensional analysis, GD&T, color maps and reports.
Certification paperwork for first-article inspection and regulated workflows — defensible in a QA audit.
Built-in Video Photogrammetry Holds Accuracy Across Large Components.
Secured Accuracy at Scale

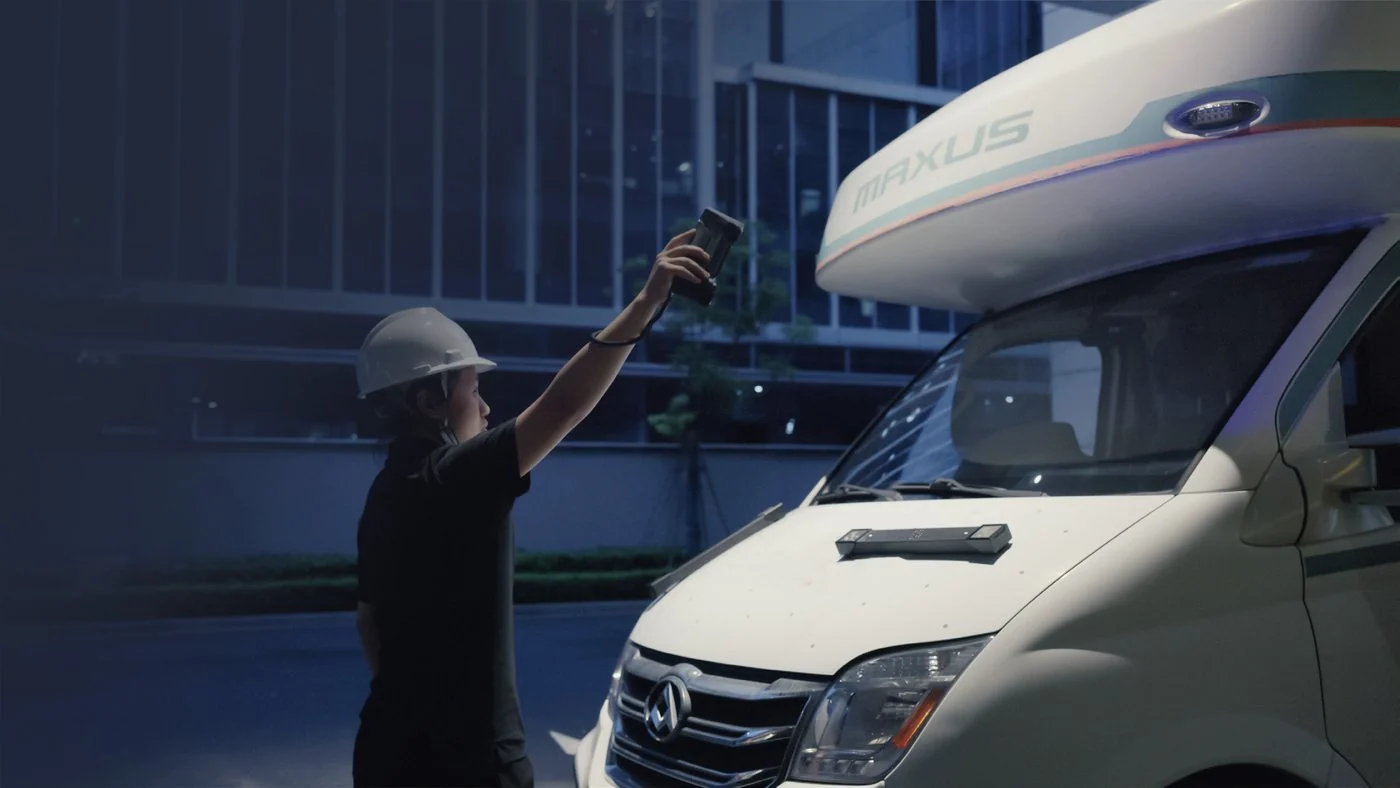

SHINING 3D’s patented video photogrammetry (VPG) keeps refining the position of reference markers as you scan. It cuts cumulative error over long distances, so accuracy holds across large components. Built-in VPG on a camper van — scale bars on the hood set the reference while the scanner builds the frame.
93 Laser Lines. 180 Frames per Second. Higher Performance.
More Laser Lines, Faster Speed

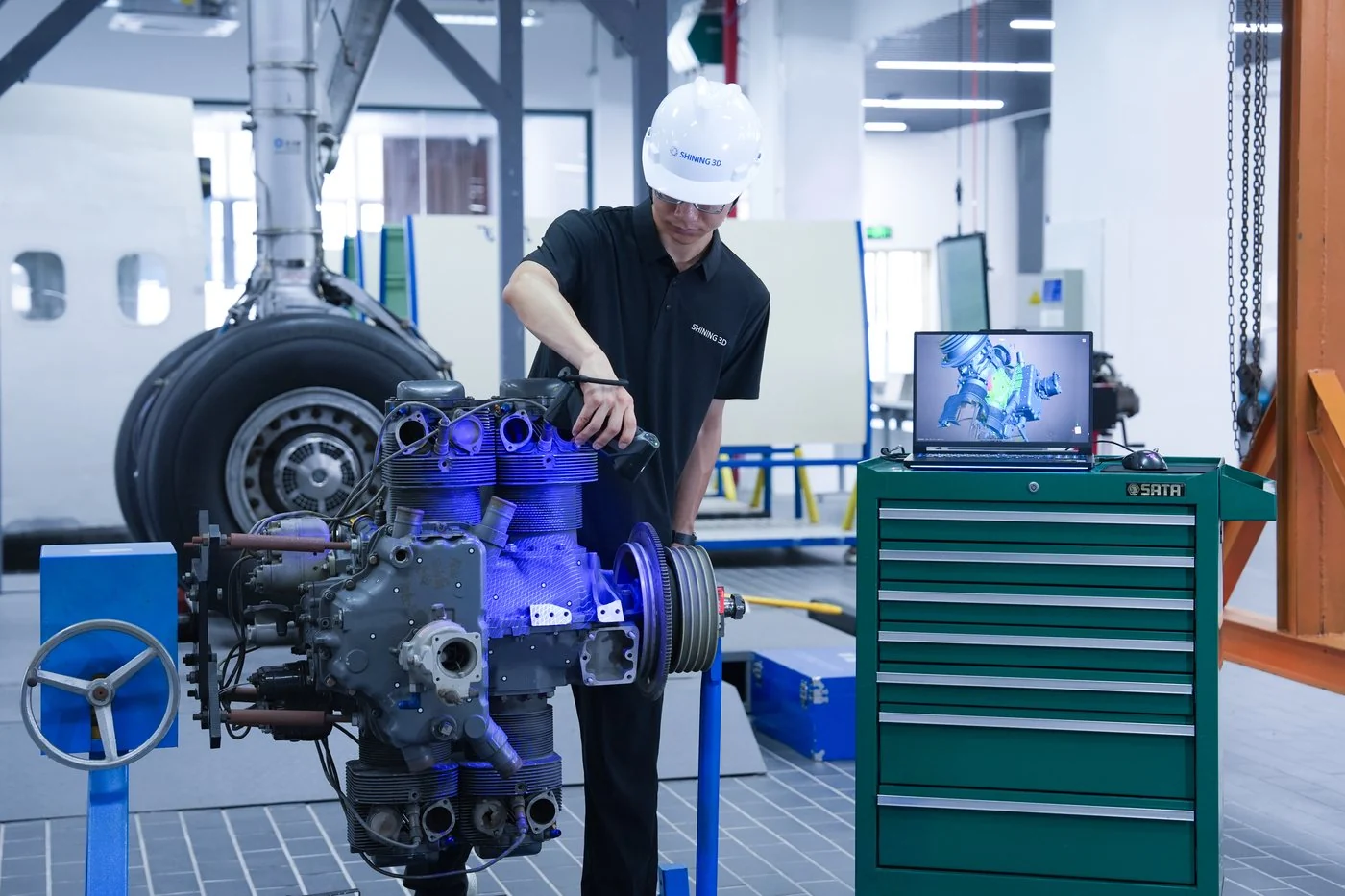

93 laser lines capture more surface per pass, and 180 frames per second keep tracking stable during fast moves. Complex surfaces, deep holes and narrow slots scan efficiently. An aircraft piston engine scanned on its stand — the mesh builds on the laptop in real time.
Multi Scan Modes for Different Usage — Up to 9,106,000 Points per Second.
Five Scan Modes

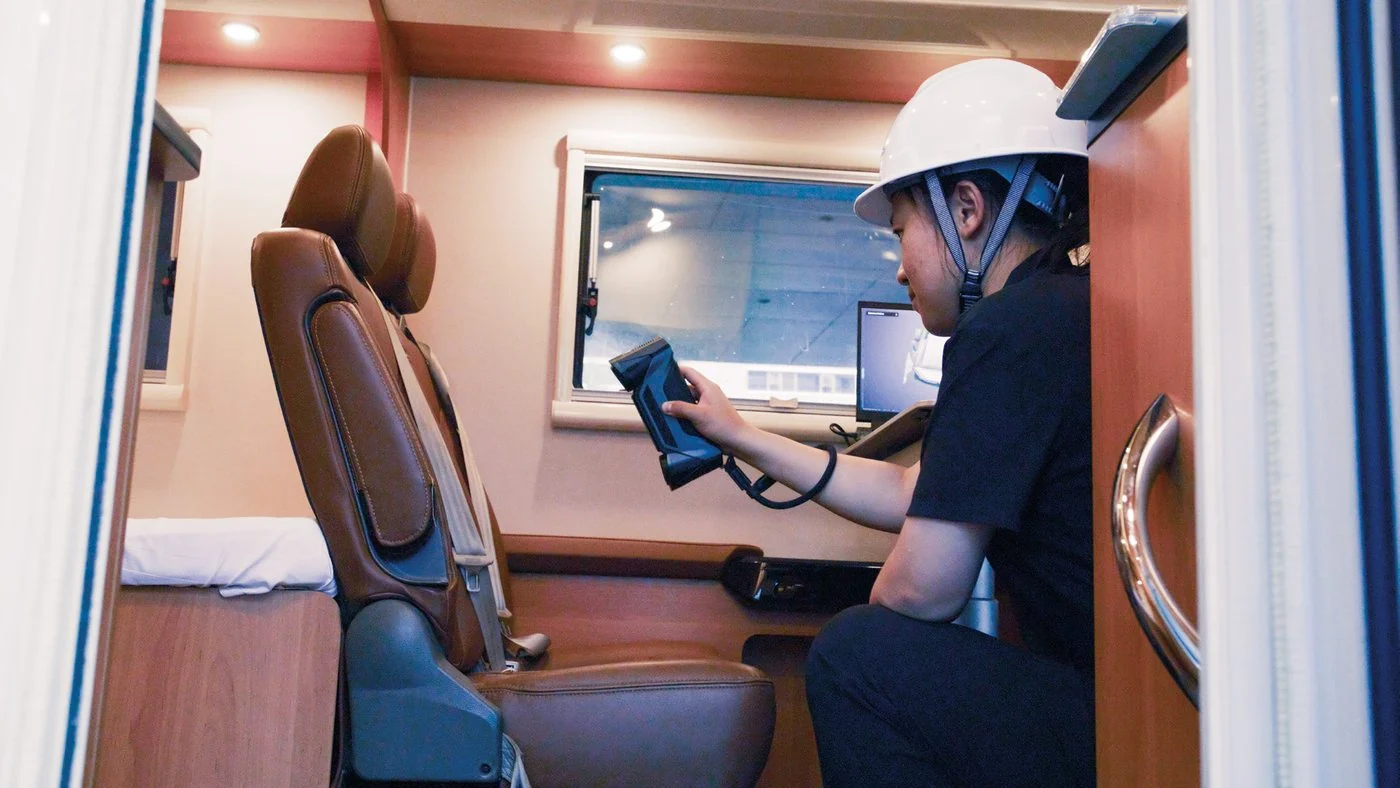

Up to 9,106,000 points per second. Blue laser modes handle speed, fine detail and deep pockets. IR rapid scan covers quick jobs without markers, and VPG scan mode handles large components. IR rapid scan inside a camper van — seats and cabinetry are captured quickly with no markers.
Quality Starts at Capture. One Click to the Next Step.
From Capture to Report

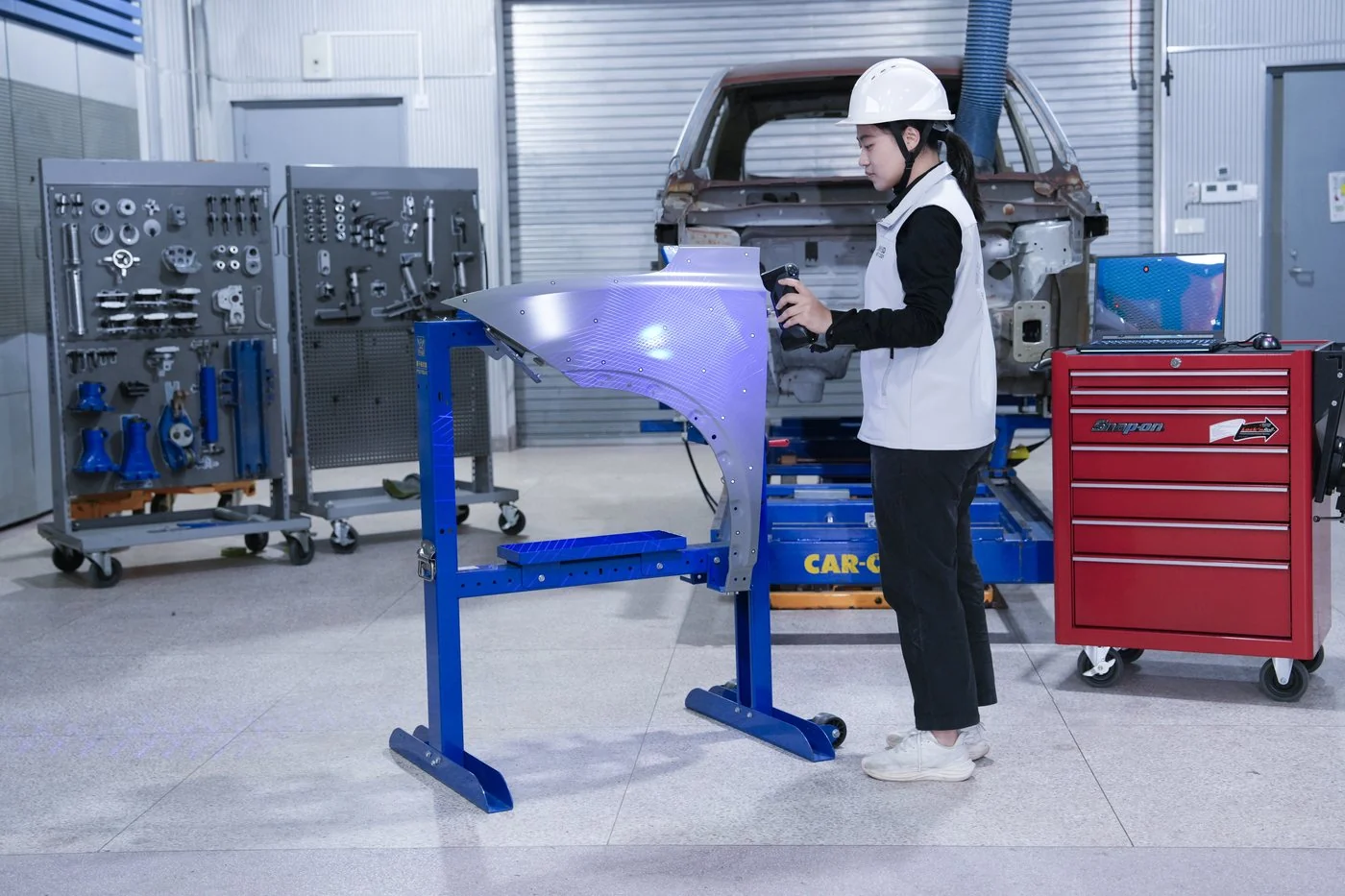

A car fender scanned in its fixture — the data goes straight into SHINING3D Inspect for a color map and report. Real-time mesh display, intelligent resolution and AI feature recognition keep quality high from the first pass.
Capture in FreeScan. Inspect in SHINING3D Inspect. Finish Anywhere.
Capture and process wirelessly, then connect natively to PTB-certified SHINING3D Inspect for GD&T inspection and EXModel for scan-to-CAD. Open exports flow into Geomagic Design X, Geomagic Control X, PolyWorks Inspector, SolidWorks and CATIA — no proprietary lock-in. Rev1 confirms software fit and seat-licensing during application review.
Where Cable-Free Scanning Pays Off.

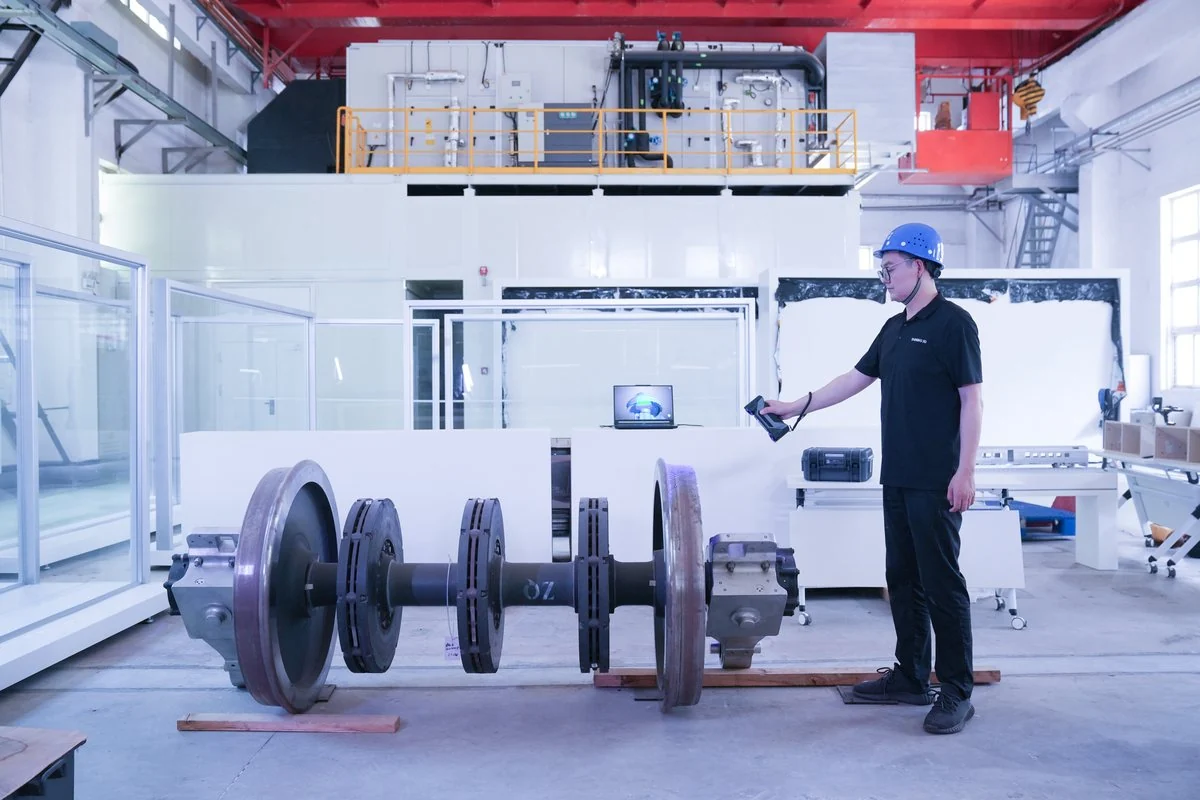

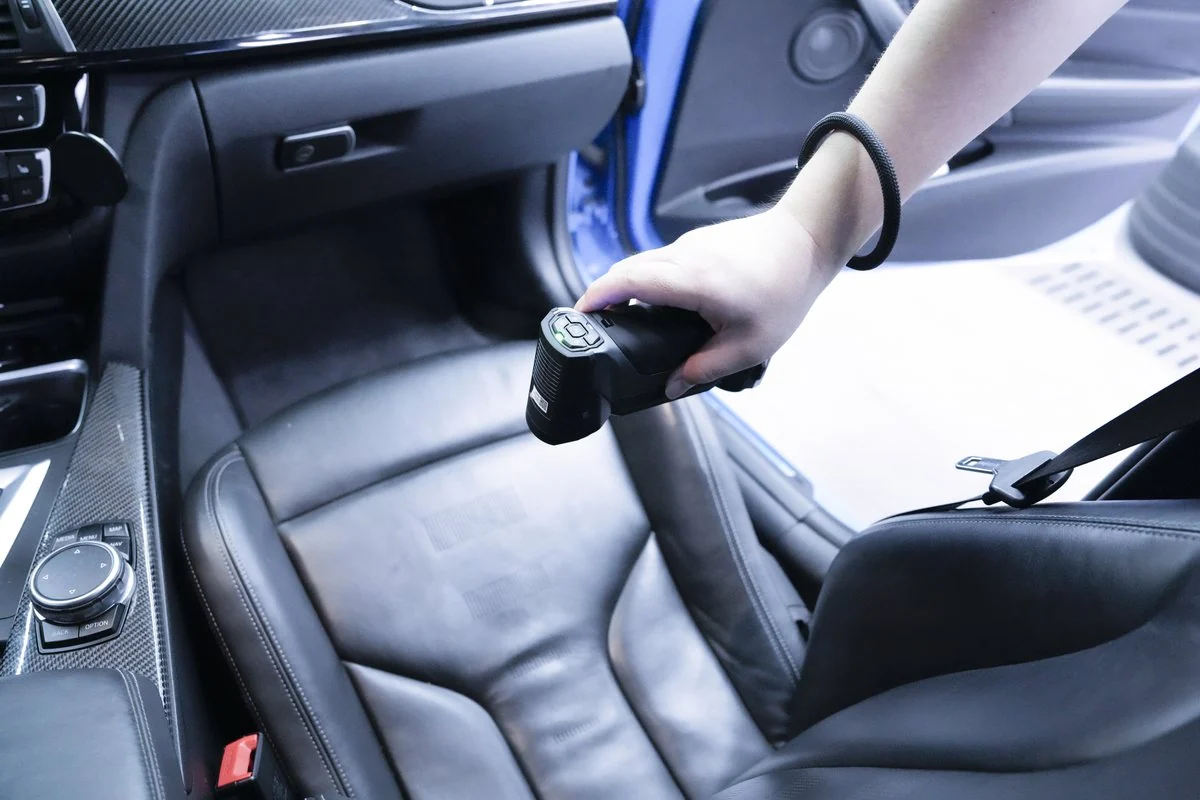

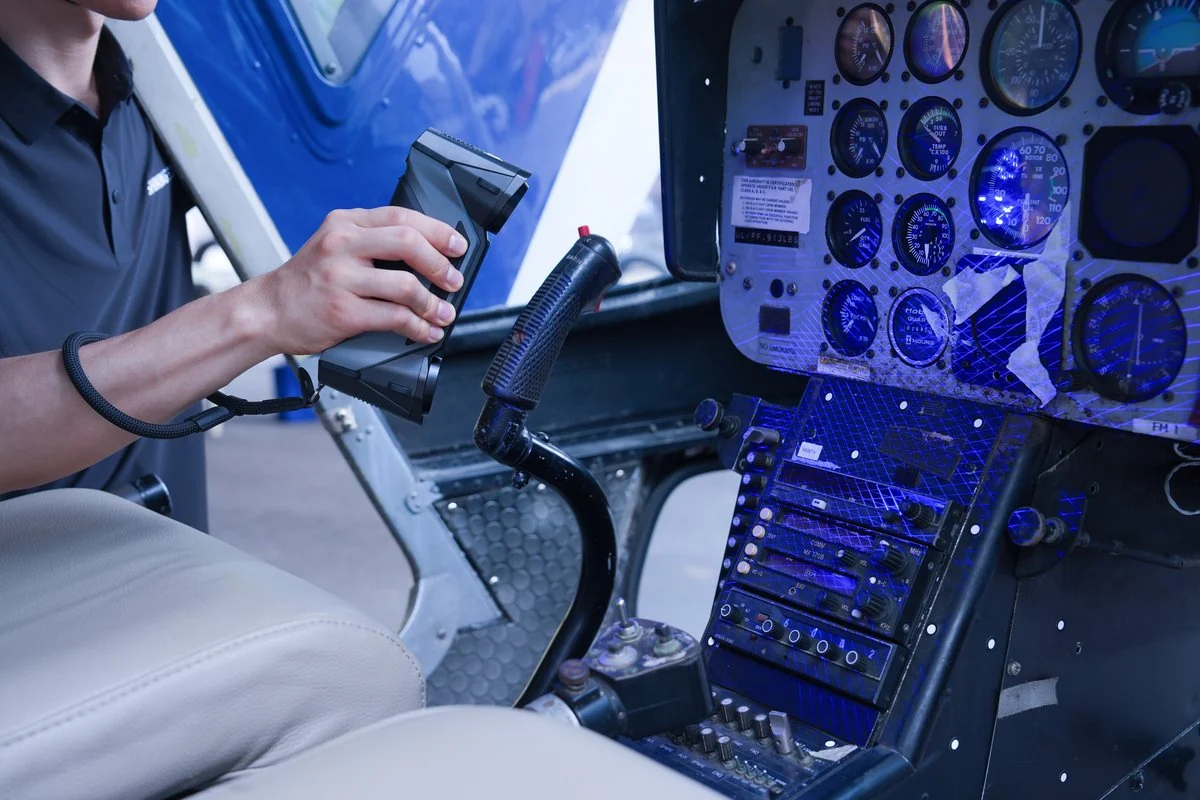

Inside vehicles, around big parts and anywhere a cable would get in the way — automotive interiors, rail, heavy industry and aviation.
A Field-Validated FreeScan Engine. US Support Behind It.
The FreeScan Combo+ Wireless carries the hybrid optical engine and FreeScan software stack proven across the Combo Series — not a v1 platform to debug — now cable-free. Each scanner is acceptance-tested in SHINING 3D’s ISO/IEC 17025 accredited lab before it ships, and Rev1 supports it for its working life from Auburn Hills, Michigan.
The same hybrid laser + IR engine and FreeScan software proven across the Combo Series — wireless now, without a new platform to learn.
Every unit is acceptance-tested to ISO 10360 in the ISO/IEC 17025 accredited lab before it leaves the factory.
Application review, calibration verification, operator training and authorized warranty routing from Auburn Hills, Michigan — never grey-market.
FreeScan Combo+ Wireless vs. the Wireless Metrology Field
How the Combo+ Wireless compares against the recognized handheld metrology laser scanners — all priced at or above it — on the capabilities that decide a wireless inspection purchase.
| Capability | FreeScan Combo+ Wireless | Creaform HandySCAN BLACK | Elite | Peel 3 | Artec Leo |
|---|---|---|---|---|
| Single-point accuracy | Up to 0.02 mm | 0.025 mm | 0.100 mm | ~0.05 mm (point) |
| Wireless / untethered | Yes — Wi-Fi 7 | No — tethered | No — tethered | Yes — wireless |
| Light source | Hybrid laser + IR | Blue laser (11 crosses) | Blue LED / structured | Structured (VCSEL) light |
| Marker-free capture | Yes — IR rapid mode | No — targets required | Yes (textured surfaces) | Yes — markerless |
| Lab certification | ISO 10360 (ISO/IEC 17025 lab) | VDI/VDE 2634 Pt 3 | Not a certified metrology class | Not a certified metrology class |
| Net weight | 550 g | ~570 g | ~950 g | ~2.6 kg (standalone) |
| Price (est. street) | Request quote | ~$30,000+ (quote) | ~$14,000+ | ~$25,000+ |
Competitor figures are approximate, from publicly available manufacturer information, and vary by configuration; Creaform is quote-only, so prices are analyst estimates, not list prices. The Combo+ Wireless delivers lab-certified 0.02 mm hybrid metrology, cable-free, at a fraction of the cost of a comparable-accuracy tethered enterprise scanner. Cross-shopping a tethered station or a different SHINING 3D scanner? Compare the wired FreeScan Combo Series — Rev1 walks the cross-shop during application review.
SHINING 3D FreeScan Combo+ Wireless Technical Data
| Specification | FreeScan Combo+ Wireless | FreeScan Combo Wireless |
|---|---|---|
| Accuracy | 0.02 mm (0.0008 in) | |
| Volumetric accuracy | 0.02 mm + 0.03 mm/m (0.0008 in + 0.00036 in/ft) | |
| Volumetric accuracy with VPG | 0.02 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) | |
| Scan speed | Up to 9,106,000 points/s | Up to 7,344,000 points/s |
| Max. FOV | Laser: 580 × 650 mm; IR: 830 × 700 mm (Laser: 22.8 × 25.6 in; IR: 32.7 × 27.6 in) | |
| High-speed scan | Included (93 laser lines) | VCSEL | Included (50 laser lines) | VCSEL |
| Detailed scan | Included (25 parallel laser lines) | Included (25 parallel laser lines) |
| Deep pockets scan | Included (1 laser line) | Included (1 laser line) |
| Working distance | 300 mm (11.81 in) | |
| Connection standard | Wi-Fi 7 / USB 3.0 | |
| Dimensions | 189 × 81 × 53 mm (7.44 × 3.19 × 2.09 in) | |
| Net weight | 550 g (1.212 lb) | |
| Working temperature | −10 – 40 °C (14 – 104 °F) | |
| Working humidity | 10 – 90% | |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX | |
| Acceptance test | ISO 10360 certified (tested in the ISO/IEC 17025 accredited accuracy lab) | |
| Recommended PC | Win 10/11 Pro · Core Ultra 9 275HX · RTX 5080 Laptop · 12G VRAM · 64G RAM | Win 10/11 Pro · Core Ultra 9 275HX · RTX 4070 Laptop · 12G VRAM · 64G RAM |
RESOURCES
Downloads & Technical Support
Documentation, software, and Rev1 support for the FreeScan Combo+ Wireless. Explore all Rev1 3D software, or book a live scan demo.
WHY REV1 TECH
Authorized SHINING 3D Reseller. Metrology & RE Specialists.
Rev1 Technologies is an authorized SHINING 3D FreeScan partner headquartered in Auburn Hills, MI, with direct expertise in 3D scanning, reverse engineering, and dimensional inspection workflows.
Rev1 serves manufacturers, QA labs, fabricators, and research programs across the USA. We don’t just ship boxes — we validate the application, set up the software stack, train operators, and support the scanner for its working life.
FreeScan Combo+ Wireless — questions buyers ask before ordering.
