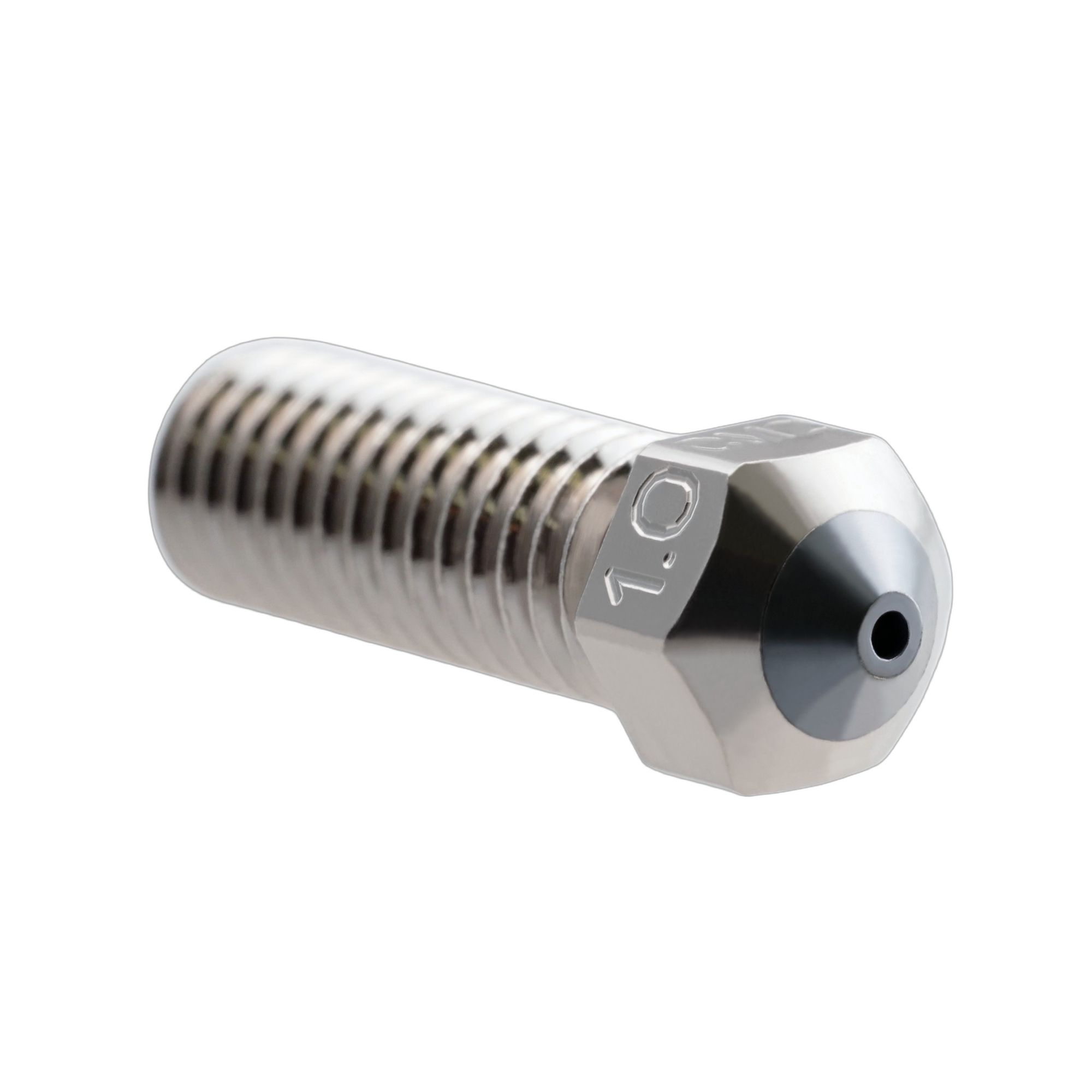

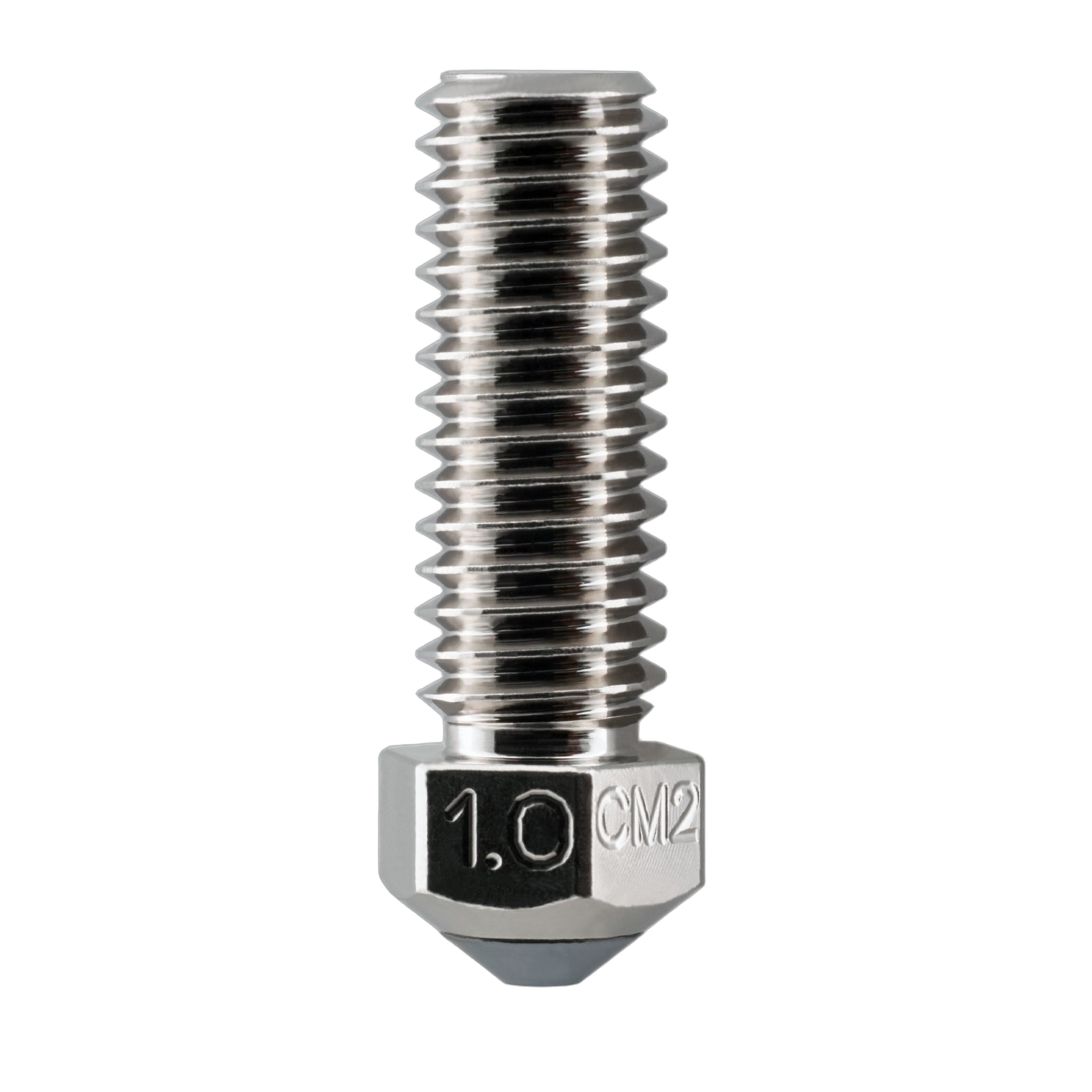

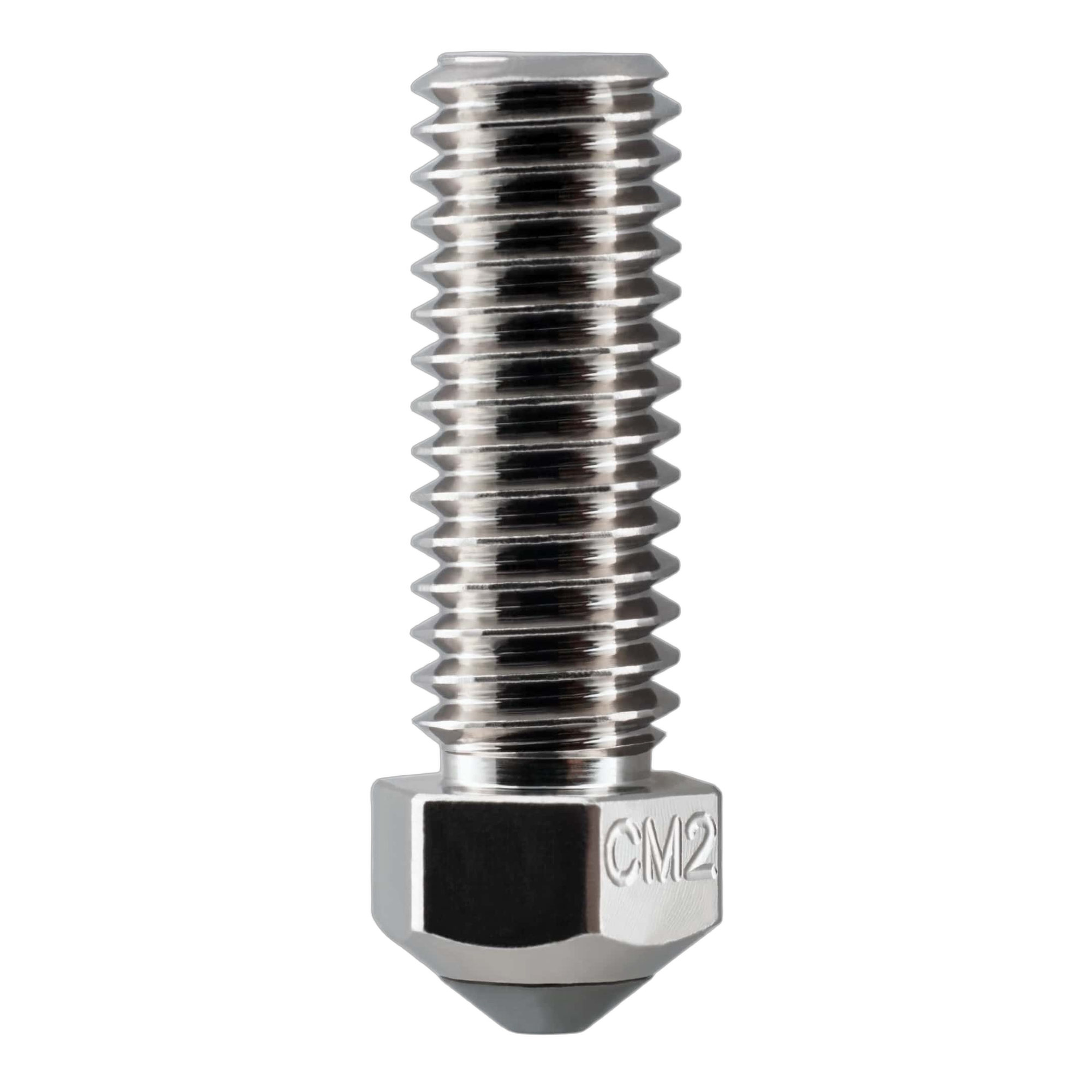

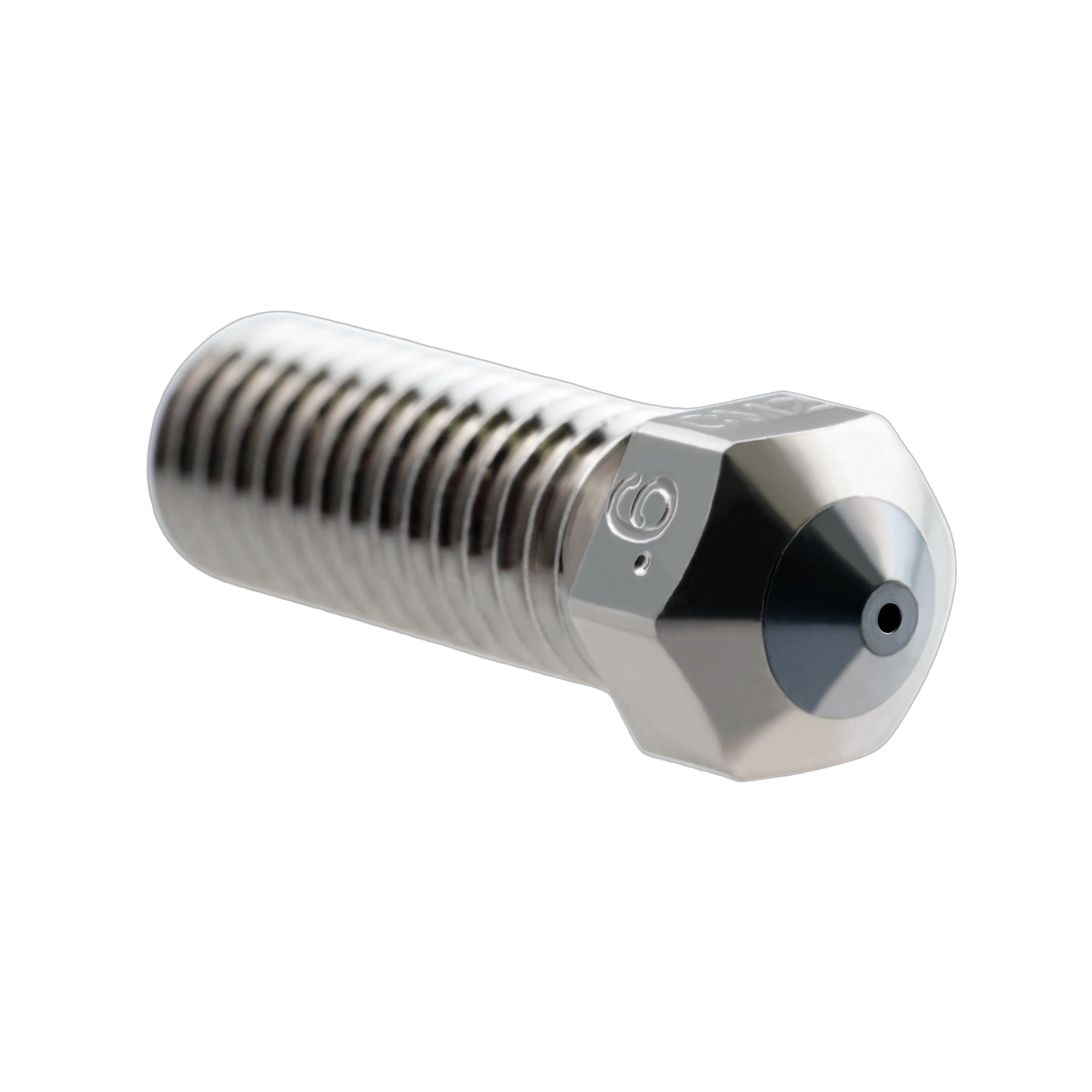

Micro Swiss CM2 Nozzle — E3D Volcano (1.75mm) Copper Core · M2 Tip · Volcano High-Flow
CM2 copper-core Volcano nozzle with a hardened M2 tip for maximum flow on 1.75mm hotends
The Micro Swiss CM2 Volcano pairs the CM2 copper core and M2 hardened-steel tip with the Volcano’s long melt zone — the highest-flow CM2 nozzle, built for fast, large, abrasive-filament prints on E3D Volcano 1.75 mm hotends. Full specifications →
Fits E3D Volcano and compatible high-flow hotends for 1.75 mm filament. Not sure? Call (248) 707-2950.
Authentic Micro Swiss nozzles, made in the USA
Every nozzle is a genuine Micro Swiss part — a CuCrZr copper core with an M2 hardened-steel tip, WS2-coated in Micro Swiss’s own US facility. Rev1 Technologies is your authorized Micro Swiss reseller and US support partner, Auburn Hills, Michigan.
Copper thermal conductivity for high-flow printing.
A high-temperature Copper Chromium Zirconium core, electroless-nickel plated.
The CM2 core is machined from Copper Chromium Zirconium — it moves heat far faster than brass or steel, so the melt zone recovers quickly and feeds high flow rates. An electroless-nickel plating protects it against wear and corrosion.
A hardened tip that survives abrasives.
The tip is M2 high-speed steel, hardened to 68 HRC and WS2-coated.
Where the nozzle meets the filament, CM2 uses an M2 hardened-steel tip — hardened to 68 HRC and finished with a WS2 (tungsten disulfide) non-stick coating. It holds its orifice size against carbon-fiber, metal-filled and other abrasive filaments, up to 450°C.
Multiple orifice sizes — detail to high-flow.
Same copper core, nickel plating and M2 tip in every size.
Choose a larger orifice for faster, stronger functional prints, or a smaller one for finer detail — the CM2 copper core keeps flow consistent across the range.
Built for E3D Volcano hotends (1.75mm).
Built for E3D Volcano hotends (1.75mm).
A true drop-in for your hotend.
Fits your hotend with no adapters. Not sure? Call us with your printer model and we’ll confirm before you buy.
CM2 Volcano Nozzle Specifications
WHY REV1 TECH
Authorized Micro Swiss Reseller. Additive & Maker-Supply Specialists.
Rev1 Technologies is an authorized Micro Swiss reseller headquartered in Auburn Hills, MI, with hands-on expertise in industrial FFF, resin, scanning, and the supplies that keep them running.
FAQ
CM2 Nozzle — E3D Volcano (1.75mm) — Questions
What makes the CM2 Volcano special?
It combines the CM2 copper core (fast heat transfer) and M2 hardened tip (abrasion resistance) with the Volcano’s extended melt zone — the highest sustained flow of any CM2 nozzle, ideal for fast, big prints.
Does it fit my Volcano hotend?
It fits the E3D Volcano and compatible high-flow hotends for 1.75 mm filament. Not sure? Call us and we’ll confirm before you buy.
Can it print abrasive filaments?
Yes — the M2 hardened-steel tip (68 HRC, WS2-coated) handles carbon-fiber, glass-fiber and metal-filled filaments at high flow and up to 450°C.
