CreatBotTMC5160 Stepper DriverGenuine CreatBot Replacement Part
TMC5160 Stepper Driver for D600 Pro2, D1000, F430 and PEEK-300 3D Printers

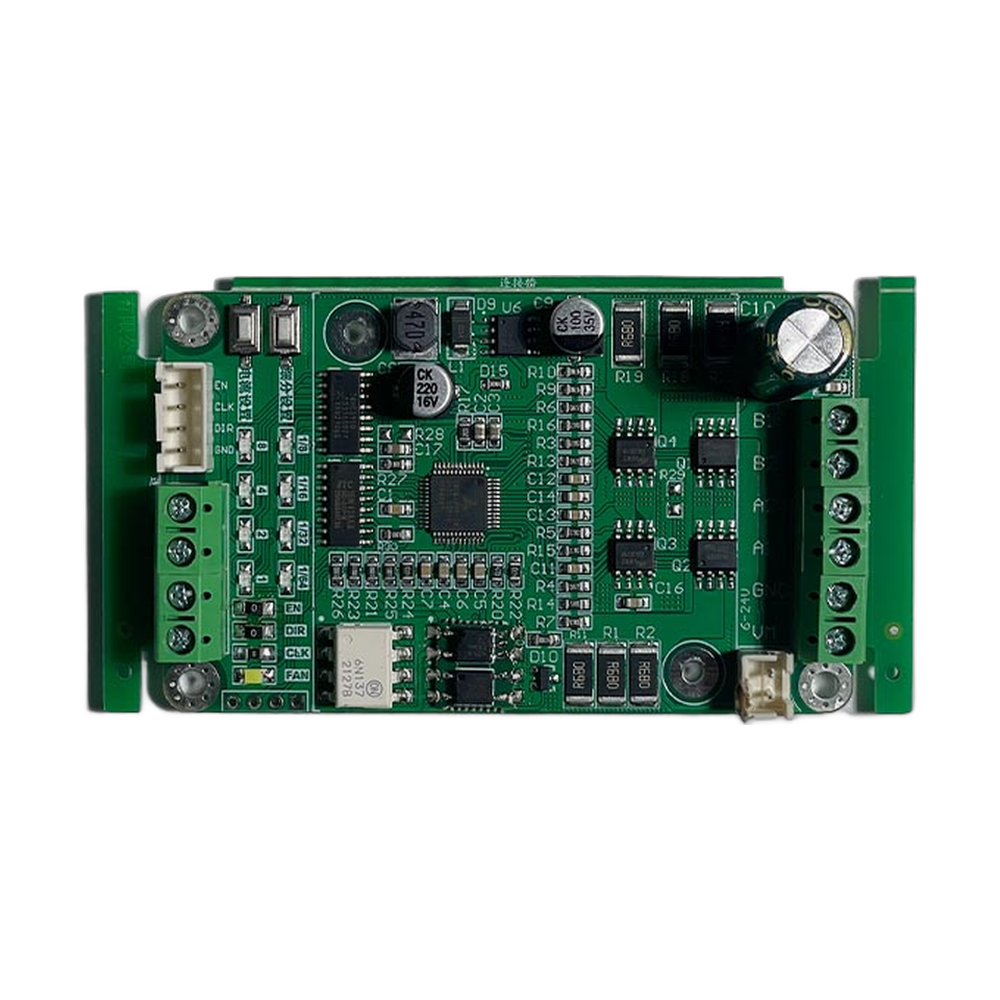

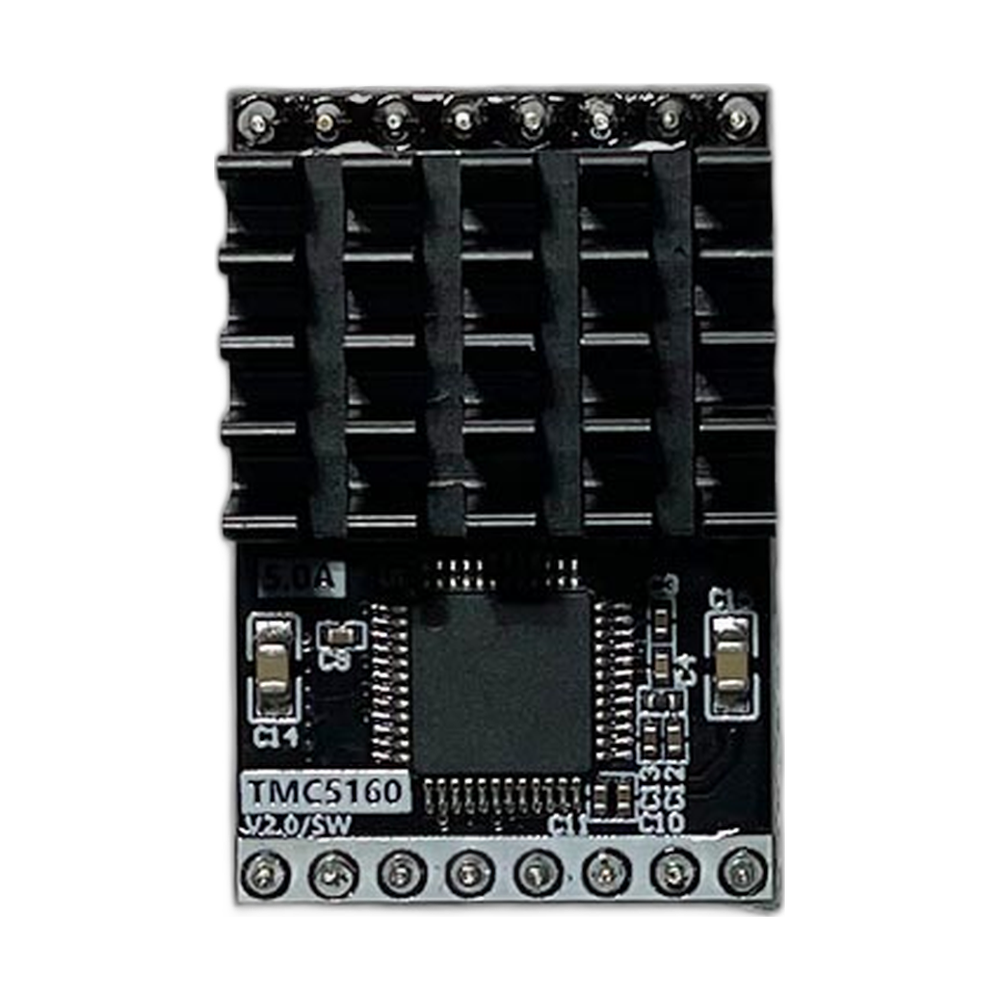

The CreatBot TMC5160 drive is an OEM stepper motor driver module named for the TMC5160 driver chip. Like any stepper driver, it takes step and direction commands from the printer's main control board and supplies the current that turns a motor, on a motion axis or an extruder. CreatBot offers it in two versions, V1 and V2, and each version is listed for a different set of printers. Picking the right version is the main thing to get right when you order. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot TMC5160 Stepper Driver, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs a TMC5160 driver may need replacing
Layer shifts or missed steps on one axis with belts, pulleys and lead screws in good order.
A motor that hums, stutters or will not turn, while the other axes work.
Under-extrusion when the driver runs an extruder and the filament path is clear.
The fault follows the driver when it is swapped with a known good one.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| V1 | 115017 | D600 Pro2, D1000, F430 |
| V2 | 115018 | D600 Pro2 HS, D1000 HS, F430, PEEK-300 |
Compatible CreatBot 3D printers
Fit differs by version: V1 is listed for the D600 Pro2, D1000 and F430, while V2 is listed for the HS models, the F430 and the PEEK-300.
V1 or V2: how to choose
Start with your printer model. A D600 Pro2 HS, D1000 HS or PEEK-300 takes V2. A D600 Pro2 or D1000 without the HS designation takes V1. The F430 appears on both lists, so on an F430 match the version marked on the driver you are replacing, or send Rev1 a photo of the fitted module. Replace like with like: the printer's firmware is set up for the driver fitted in each position.
CreatBot also uses part number 115018 for other driver listings, including the extruder motor driver for its newer HS and Ultra printers. When you order V2, tell us your printer model so the right module ships.
Installation tips
Turn the printer off and unplug it before opening the electronics bay. Photograph the existing driver to record its orientation, since a reversed driver can be damaged on power-up. Seat the new module fully, reconnect the motor and test the axis before a full print.
CreatBot TMC5160 Stepper Driver Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot TMC5160 Stepper Driver — Questions
Which version do I need?
HS models and the PEEK-300 use V2 (115018). The D600 Pro2 and D1000 use V1 (115017). On an F430, match the driver already fitted.
Can I mix TMC5160 with other driver types?
Replace each driver with the same type. These printers also use drivers such as the TMC2209 (115014) and TB5128 (115015).
Is this a genuine CreatBot part?
Yes. Both versions are genuine CreatBot parts, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
