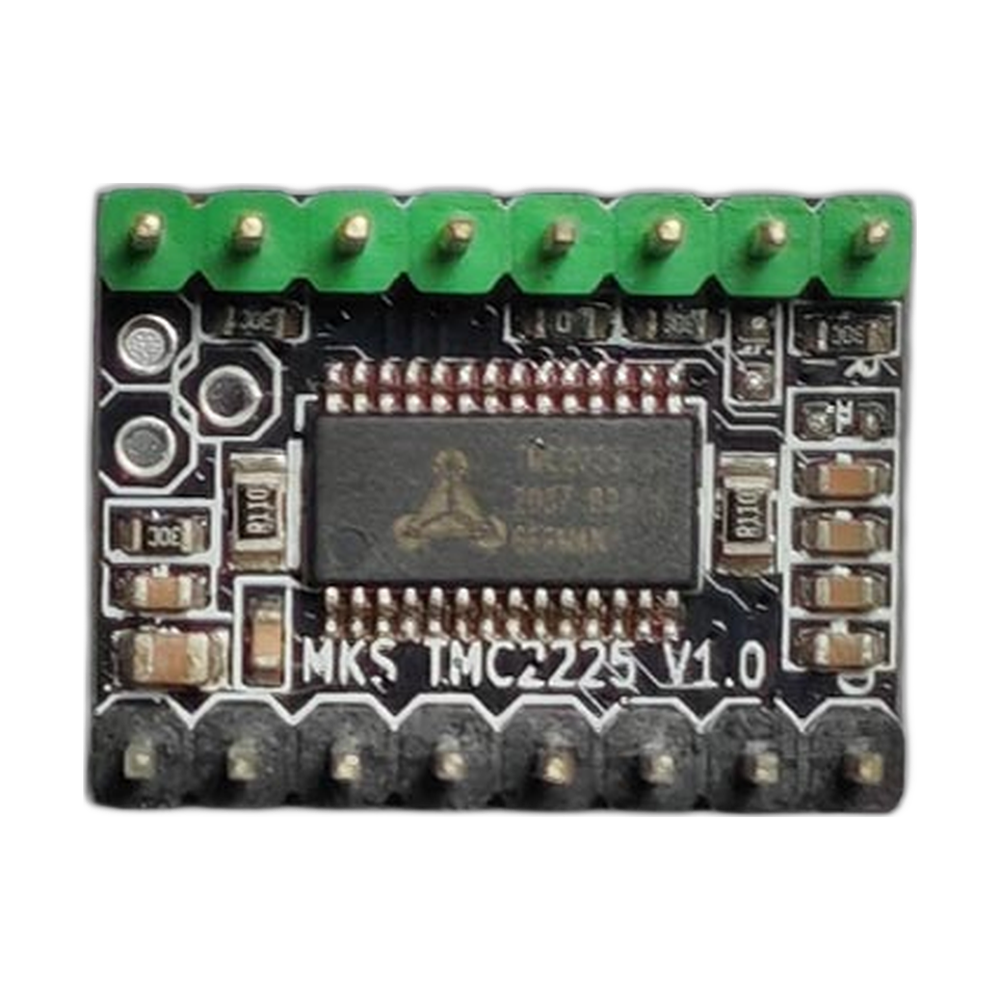

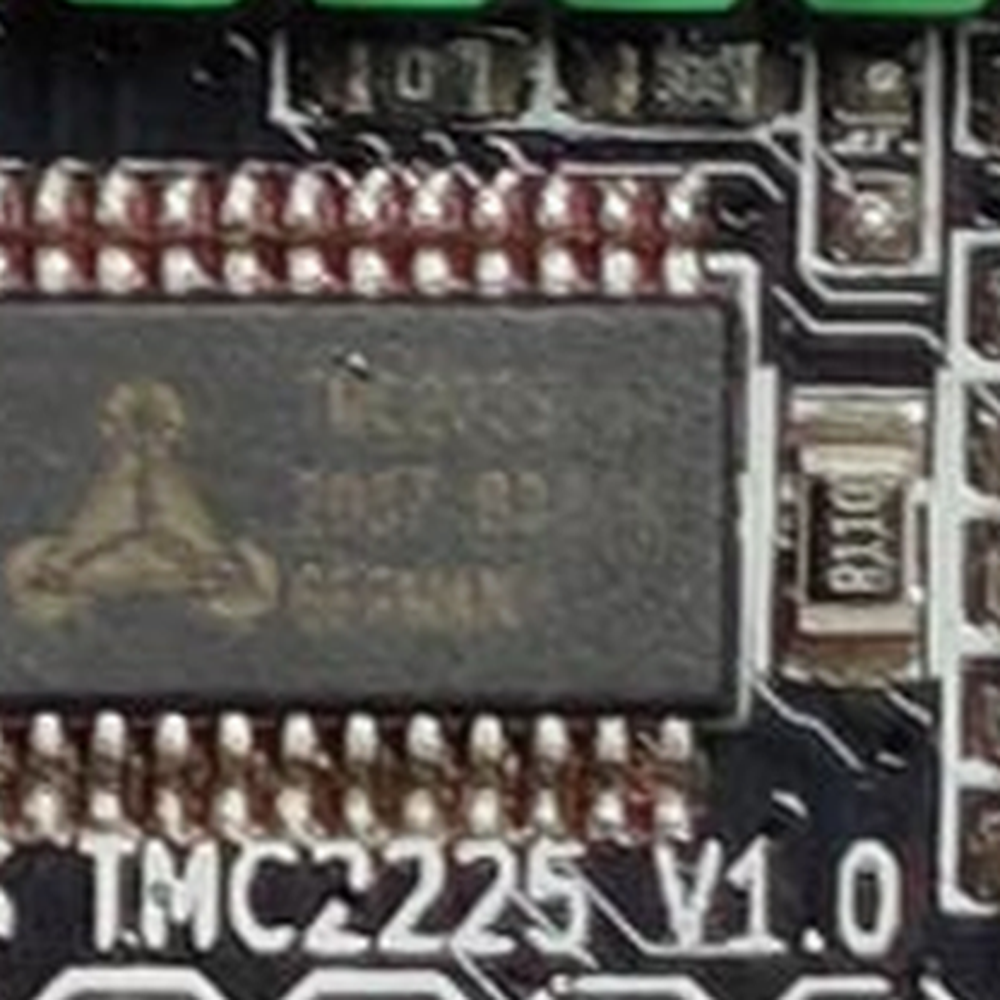

CreatBotTMC2225 Stepper DriverGenuine CreatBot Replacement Part
TMC2225 Stepper Driver for D600 Pro2, D1000, F430 and PEEK-300
The CreatBot TMC2225 drive (part 115013) is an OEM stepper motor driver module named for the TMC2225 driver chip. It takes the step and direction signals from the main control board and supplies the current that drives one motor, whether that is a motion axis or an extruder. TMC drivers are a common choice in 3D printers for their quiet, smooth operation. CreatBot lists this module for the D600 Pro2, D1000, F430 and PEEK-300. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot TMC2225 Stepper Driver, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with a genuine TMC2225
Your printer's firmware is set up for the driver fitted in each position, so a like for like swap keeps motion behaving as before.
Drops into the existing position without rewiring.
A failed driver is one of the simpler electronics repairs on a CreatBot printer.
Signs a TMC2225 driver may need replacing
Layer shifts or missed steps on one axis with good belts and pulleys.
A motor that hums, stutters or will not move.
The fault follows the driver when it is swapped into another position.
Compatible CreatBot 3D printers
Installation tips
Power the printer off and unplug it. Read the marking on the failed module to confirm it is a TMC2225, and photograph its orientation. Fit the new driver the same way round, seat it fully and reconnect the motor. Home the printer and test the axis before running a full job.
CreatBot TMC2225 Stepper Driver Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot TMC2225 Stepper Driver — Questions
How do I know my printer uses the TMC2225?
Check the marking on the driver you are replacing. These printers also use other types such as the TMC2209 (115014) and TB5128 (115015). Rev1 can identify it from a photo.
Can I fit a TMC2209 instead?
Replace like with like. Different driver types need different firmware settings.
Is this a genuine CreatBot part?
Yes, CreatBot part 115013, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
