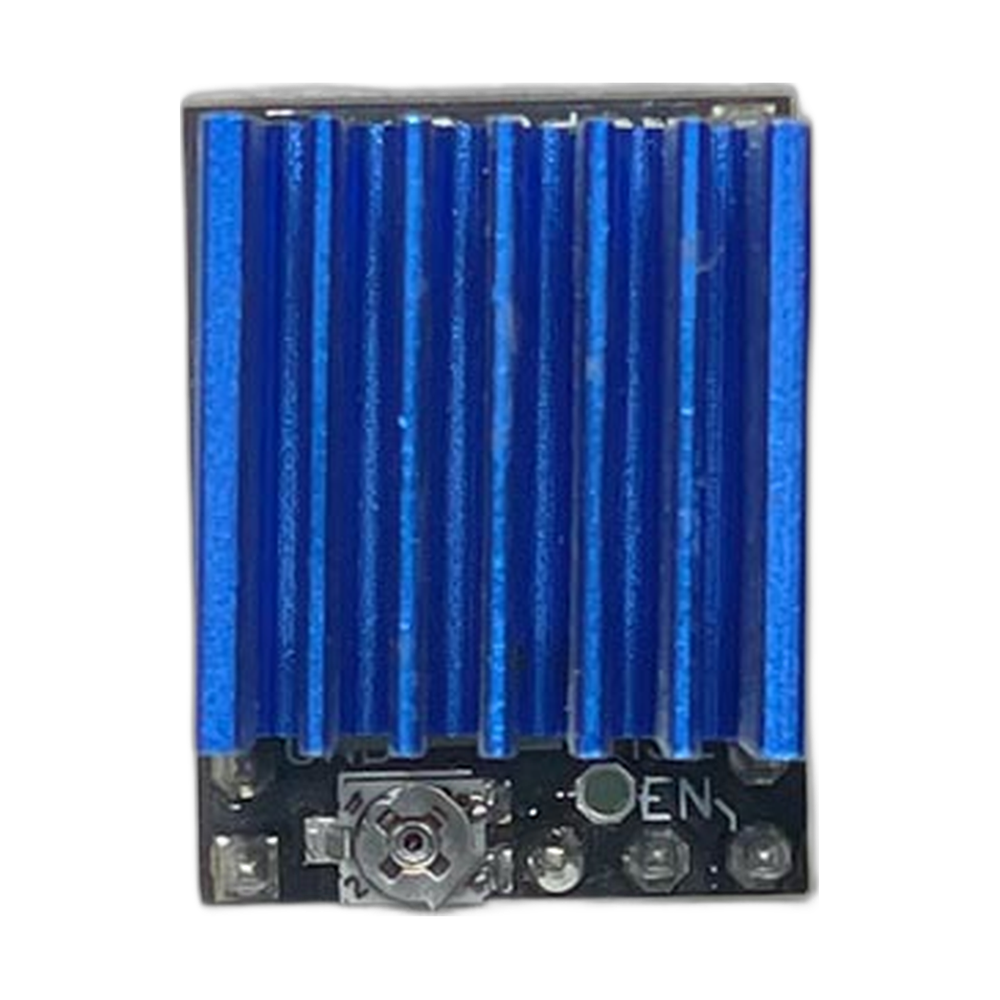

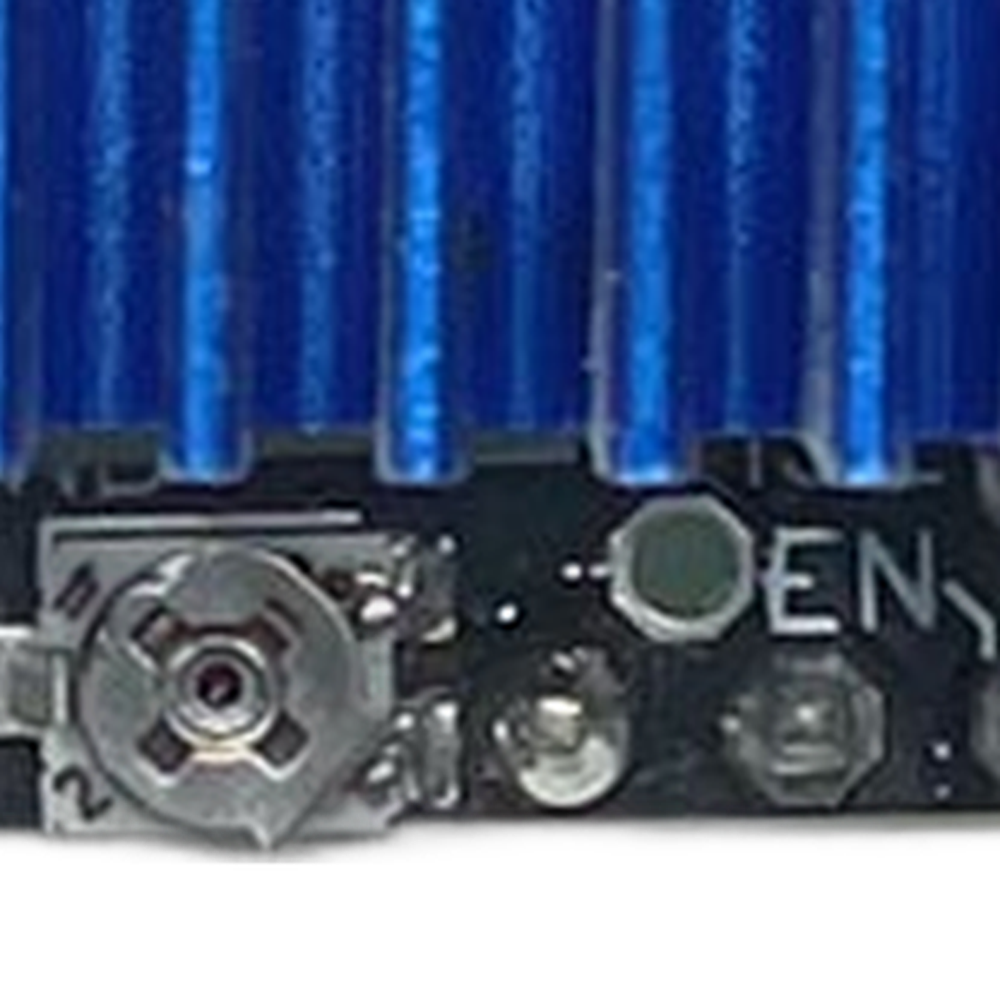

CreatBotTMC2209 Stepper DriverGenuine CreatBot Replacement Part
TMC2209 Stepper Driver for D600, D1000, F430 and PEEK-300 3D Printers
The CreatBot TMC2209 drive (part 115014) is an OEM stepper motor driver module named for the TMC2209 driver chip. TMC series drivers are widely used in 3D printers and are known for quiet, smooth motor control. The module takes step and direction commands from the main control board and delivers the current that moves a motor. CreatBot lists this driver across its D600 and D1000 machines, the F430 and the PEEK-300. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot TMC2209 Stepper Driver, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs a TMC2209 driver may need replacing
One axis skips steps, shifts layers or will not home, with the mechanics in good order.
A motor buzzes or stutters instead of turning cleanly.
Under-extrusion when the driver runs an extruder and the filament path is clear.
The fault moves to a different axis when the driver is swapped with a known good one.
Compatible CreatBot 3D printers
Match the driver type
Several driver types appear on these printers, including the TMC2225 (115013), TB5128 (115015) and TMC5160 (115017). They are not interchangeable without firmware changes, because the printer is configured for the driver in each position. Check the marking on the failed module: if it reads TMC2209, this is the right replacement. Rev1 can identify it from a photo if you are unsure.
Installation tips
Turn the printer off and unplug it, and wait a moment before handling the electronics. Note the orientation of the old module, since a reversed driver can be damaged on power-up. Seat the new module fully, reconnect the motor and test the axis with a few manual moves before printing.
CreatBot TMC2209 Stepper Driver Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot TMC2209 Stepper Driver — Questions
Is the TMC2209 the same as the TMC2225?
No. They are different driver types with separate part numbers: TMC2209 is 115014 and TMC2225 is 115013.
Does it fit the PEEK-300?
Yes. The PEEK-300 is on CreatBot's fit list for part 115014.
Is this a genuine CreatBot part?
Yes, CreatBot part 115014, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
