CreatBotTB5128 Stepper DriverGenuine CreatBot Replacement Part
TB5128 Stepper Driver for D600, D1000, F430, F1000 and PEEK-300 3D Printers

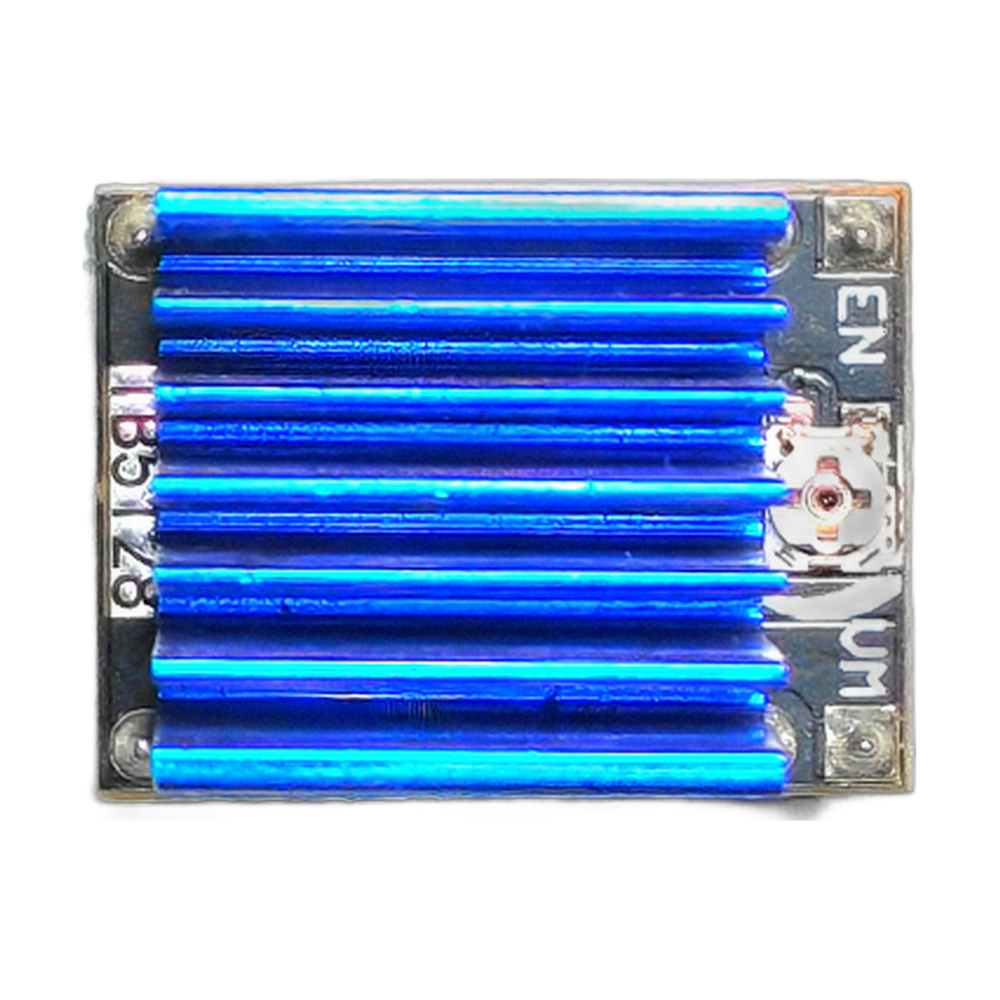

The CreatBot TB5128 drive (part 115015) is an OEM stepper motor driver module named for the TB5128 driver chip. A stepper driver takes step and direction commands from the printer's main control board and supplies the current that moves a motor. CreatBot lists this module across a wide range of its printers, from the D600 family to the F1000 and PEEK-300, which makes it one of the more widely used driver parts in the lineup. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot TB5128 Stepper Driver, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs a TB5128 driver may need replacing
Layer shifts or lost steps on one axis with belts, pulleys and lead screws in good order.
A motor that hums, stutters or will not turn, while the others work normally.
Under-extrusion when the driver runs an extruder and the filament path is clear.
The fault follows the driver when it is swapped with a known good one.
Compatible CreatBot 3D printers
Replace like with like
CreatBot printers use several driver types: TB5128, TB6600 (115016), TMC2209 (115014), TMC2225 (115013) and TMC5160 (115017, 115018). Printer firmware is set up for the driver type fitted in each position, so replace a TB5128 with a TB5128. If you are not sure which type is in your printer, read the marking on the fitted module or send Rev1 a photo.
Installation tips
Switch the printer off and unplug it. Photograph the driver in place, since fitting a driver the wrong way round can damage it. Seat the new module fully in the same orientation, reconnect the motor and test that axis before a full print.
CreatBot TB5128 Stepper Driver Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot TB5128 Stepper Driver — Questions
Does it fit the F1000?
Yes. The F1000 is on CreatBot's fit list for part 115015, along with the D600, D600 Pro, D600 Pro2, D1000, F430 and PEEK-300.
Can I swap a TMC driver for this one?
Use the same driver type as the one you are replacing, because the firmware expects it.
Is this a genuine CreatBot part?
Yes, CreatBot part 115015, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
