CreatBotSTM32 Core BoardGenuine CreatBot Replacement Part
STM32 Core Board for D Series, D Series HS, Ultra, F and PEEK Series 3D Printers

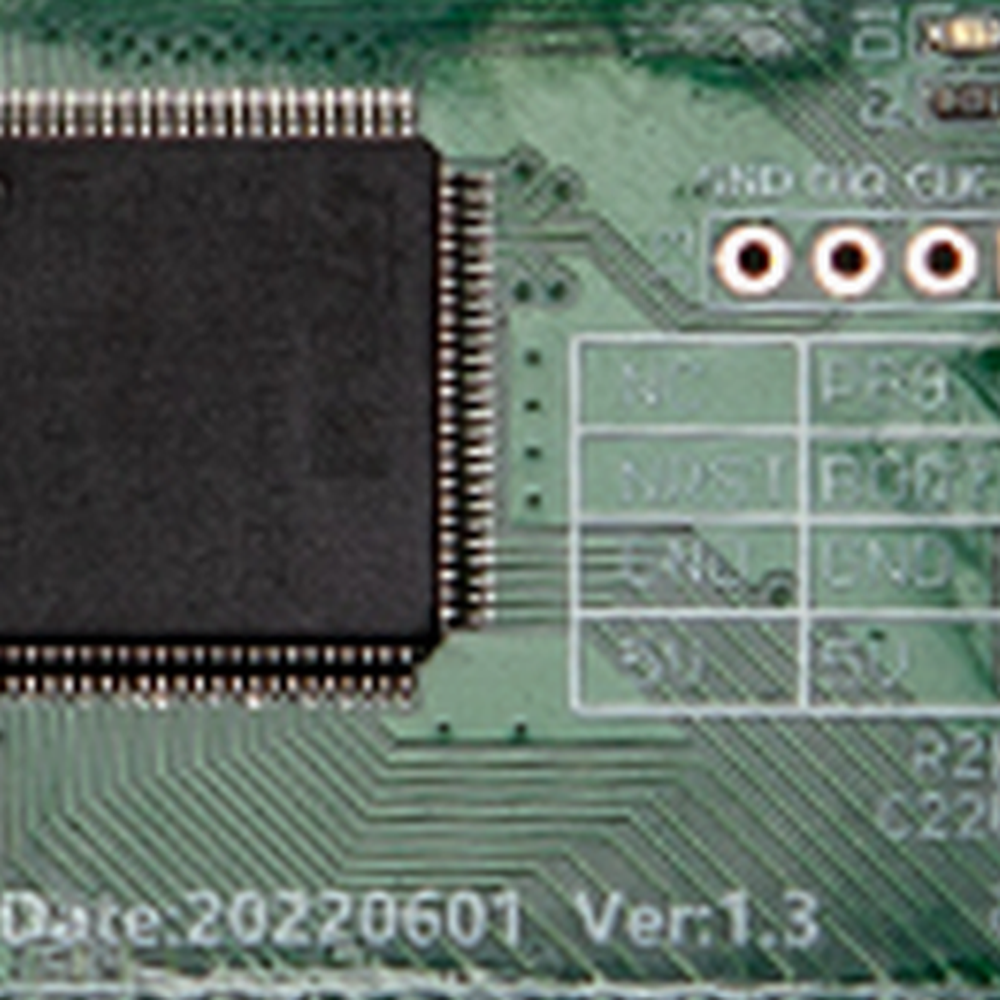

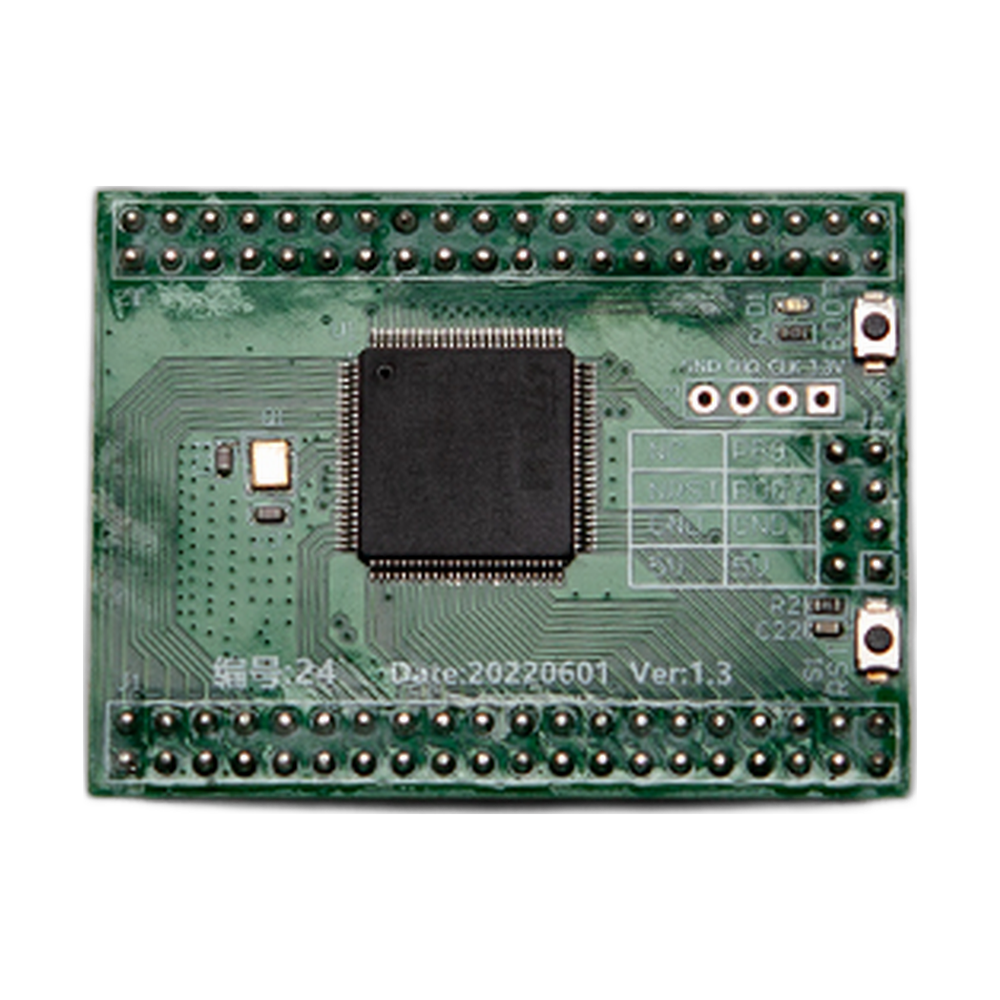

The CreatBot STM32 core board (part 111024) is a compact processor module built around an STM32 microcontroller. STM32 chips are widely used in 3D printer electronics to run the real-time control firmware, and a core board packages the chip and its supporting parts on a small board that connects to the printer's control electronics. CreatBot uses this module across a wide range of its printers, which makes it a useful spare for shops that run several CreatBot models. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot STM32 Core Board, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the core board may need replacing
The printer powers up but the control electronics never start, or the screen cannot connect to the controller.
Firmware will not load or the controller resets during operation.
Visible damage on the module, such as a burnt component or bent or broken pins.
These symptoms can also come from a motherboard, power supply or cable fault. Contact Rev1 support before ordering and we will help you find the cause.
Compatible CreatBot 3D printers
Core board or motherboard?
The core board is a smaller module than the main control board. If diagnosis points at the processor rather than the power stages, connectors or drivers, replacing the core board can be all that is needed. If the motherboard itself is damaged, you need the motherboard for your model instead, for example part 111020 for the D600 Pro3 HS or part 111021 for the D1000 Pro HS. Rev1 support can tell you which one your fault calls for.
Installation tips
Power the printer off and unplug it before opening the electronics bay. Use anti-static precautions, and note the orientation of the existing module before removing it so the new one seats the same way, with every pin aligned. After installation, confirm the firmware with Rev1 support and run the printer through a short test.
CreatBot STM32 Core Board Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot STM32 Core Board — Questions
Does one core board fit all my CreatBot printers?
It fits every model listed above, from the D400 HS to the PEEK-300.
Will I need to load firmware after replacing it?
Possibly. Check with Rev1 support before the first print and we will confirm what your model needs.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 111024, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
