CreatBotQuick-Remove HotendGenuine CreatBot Replacement Part
Quick-Remove Hotend for D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra

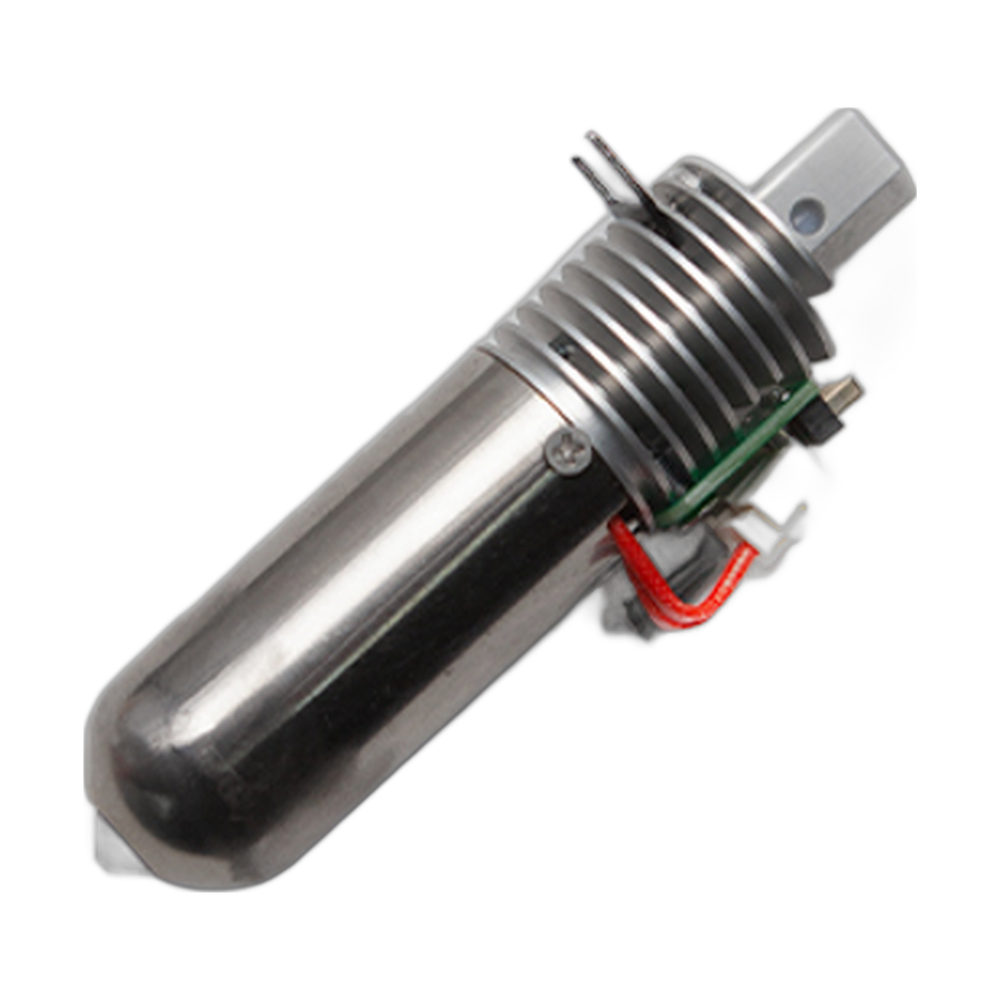

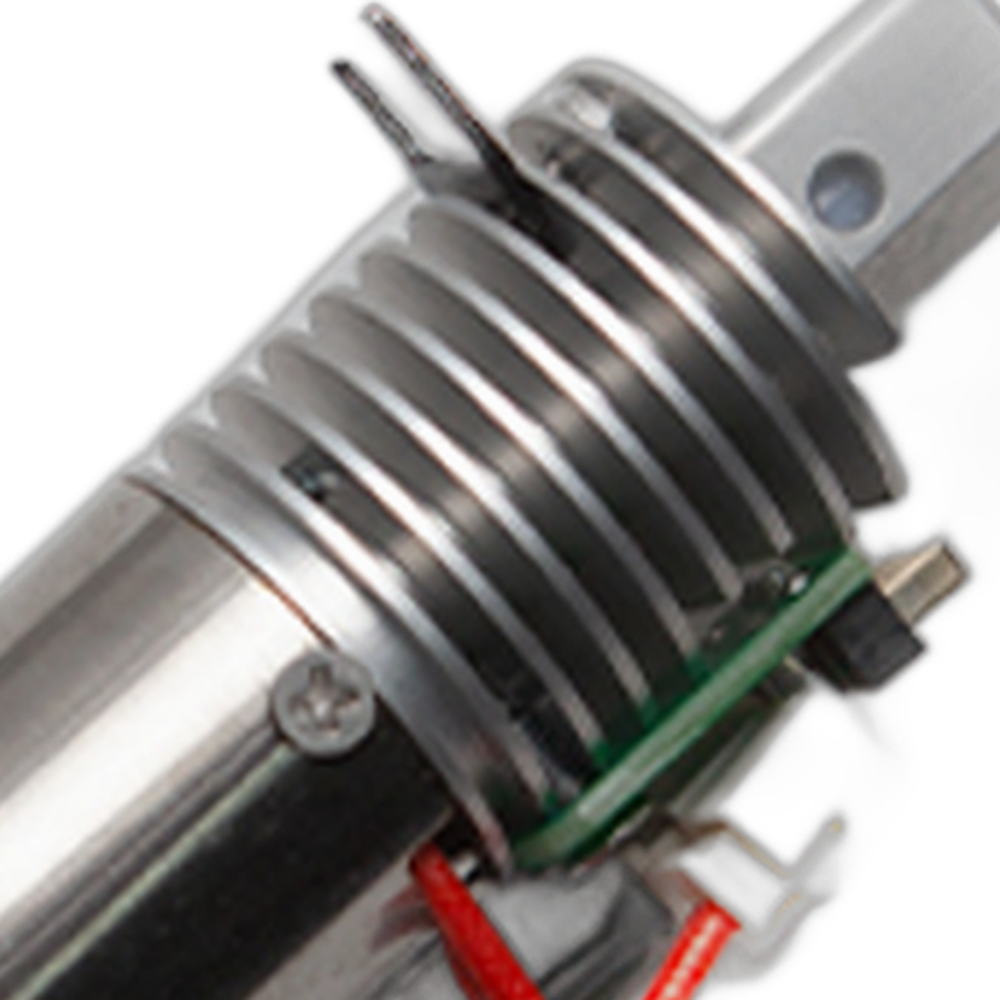

The CreatBot quick-remove hotend is a complete OEM hotend built to be taken off and refitted quickly on CreatBot's newer HS and Ultra printers: the D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra. It turns a nozzle size change or a jam into a short hotend swap rather than a repair on the printer. Five sizes are available from 0.3 mm to 1.0 mm (parts 104025 to 104029). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Quick-Remove Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why use quick-remove hotends
Keep a hotend for each size you use and swap the whole unit between jobs.
Fit a spare and clear the blocked hotend later on the bench.
Dedicate one hotend to abrasive filled filaments and keep another clean for standard work.
That fits the Pro HS and Ultra print heads.
Choose your size
| Size | Part number | Fits |
|---|---|---|
| 0.3 mm | 104025 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 0.4 mm | 104026 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 0.6 mm | 104027 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 0.8 mm | 104028 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 1.0 mm | 104029 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
Compatible CreatBot 3D printers
Every size, including 1.0 mm, fits all five printers.
Building a hotend set
Most shops start with 0.4 mm as the everyday hotend. Add 0.6 mm or 0.8 mm for production runs and large parts, where wider lines cut print time and improve layer strength. 1.0 mm is for the biggest, fastest parts on the D1000 Pro HS and the Ultra machines. 0.3 mm covers small, detailed parts. Because each size is a complete hotend, switching is a matter of swapping the unit and selecting the matching slicer profile.
The Pro-HS hotend (parts 104020 to 104024) fits the same printers. Contact Rev1 if you are unsure which design your print head uses.
Installation tips
Let the hotend cool and power the printer down before removing it. Release the installed hotend, seat the replacement fully in the same orientation and reconnect it. Heat up, load filament and run the nozzle height or leveling routine so the new nozzle starts at the right height.
CreatBot Quick-Remove Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Quick-Remove Hotend — Questions
Which size do I need?
Start with 0.4 mm. Add 0.6 or 0.8 mm for speed, 1.0 mm for very large parts, and 0.3 mm for fine detail.
Will it fit the D600 Pro2 HS or D1000 HS?
No. Those printers use their own quick-remove hotends (104003 and 104006 for the D600 Pro2 HS, 104004 and 104007 for the D1000 HS).
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
