CreatBotNozzle Shutter BaffleGenuine CreatBot Replacement Part
Nozzle Shutter Baffle for D400 HS, D600 Pro3 HS and D1000 Pro HS 3D Printers

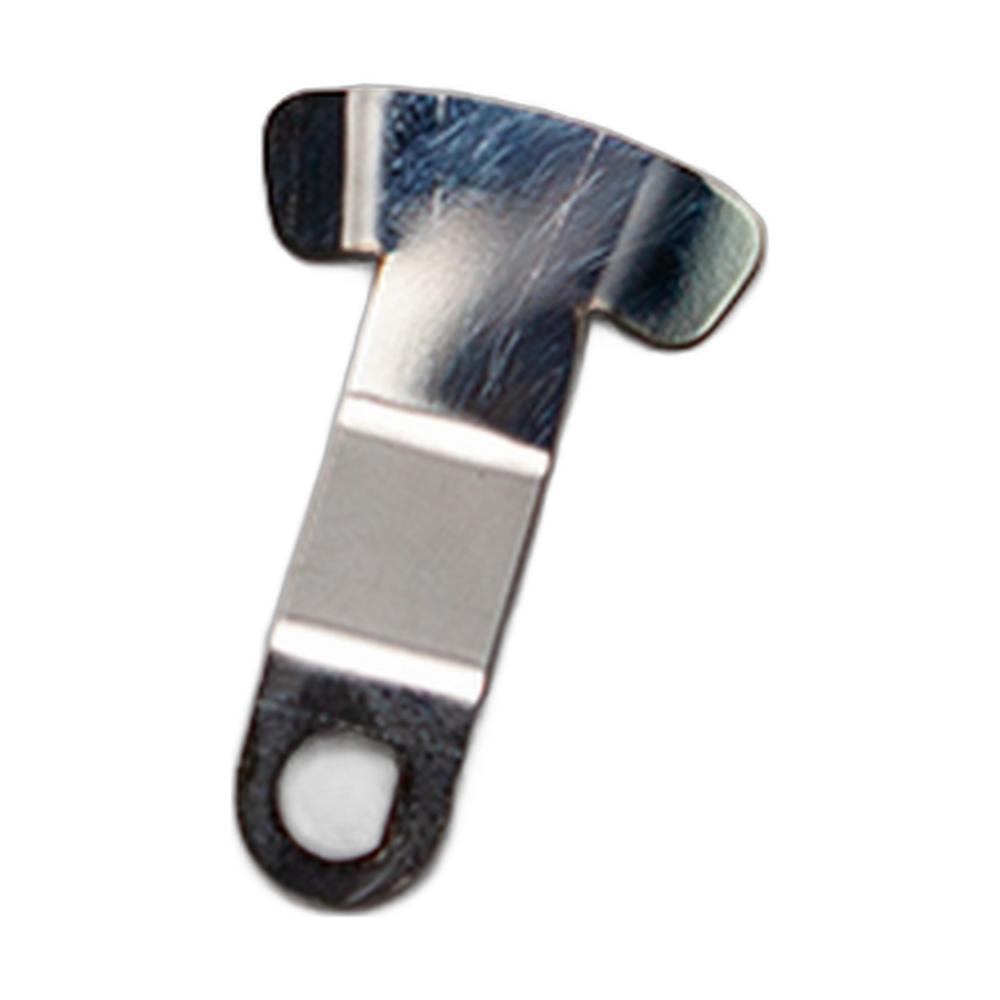

The CreatBot nozzle shutter baffle (part 124007) is an OEM toolhead part for the dual nozzle system on the CreatBot D400 HS, D600 Pro3 HS and D1000 Pro HS. As the name describes, it is a baffle that works as a shutter at the nozzle area. It is part of the hardware around the two nozzles that keeps the toolhead working as CreatBot designed it, alongside the nozzle brush and the nozzle switching parts. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Nozzle Shutter Baffle, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
When to replace the shutter baffle
The baffle is bent, cracked, warped or broken.
It no longer moves or sits the way it did when the printer was new.
It was damaged in a nozzle crash or while clearing a jam.
Built-up plastic or debris cannot be cleaned off without damaging it.
Parts close to hot nozzles see heat, plastic ooze and the occasional collision. Replacing a damaged baffle with the genuine part restores the original fit and movement.
Compatible CreatBot 3D printers
These three printers share the same toolhead parts. Other parts from the same area include the Pro-HS nozzle brush (124006) and the nozzle-switching oscillating wheel (124013).
Installation tips
Power the printer off and let both hotends cool completely before working near the nozzles. Photograph the baffle in place from more than one angle so you can match its position and orientation. Fit the new baffle, check that it moves freely and does not touch the nozzles where it should not, then run a nozzle switch and a short test print.
Not sure this is the part you need?
The toolhead on these printers has several small parts close together. Send Rev1 a photo of the damaged part and your printer model, and we will confirm the match before you order.
CreatBot Nozzle Shutter Baffle Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Nozzle Shutter Baffle — Questions
Does it fit the D600 Pro2 HS?
No. This baffle is listed for the D400 HS, D600 Pro3 HS and D1000 Pro HS only.
Can I print without the baffle?
We do not recommend it. The printer is designed to run with all its toolhead parts in place.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 124007, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
