CreatBotPro-HS HotendGenuine CreatBot Replacement Part
Pro-HS Hotend for D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra

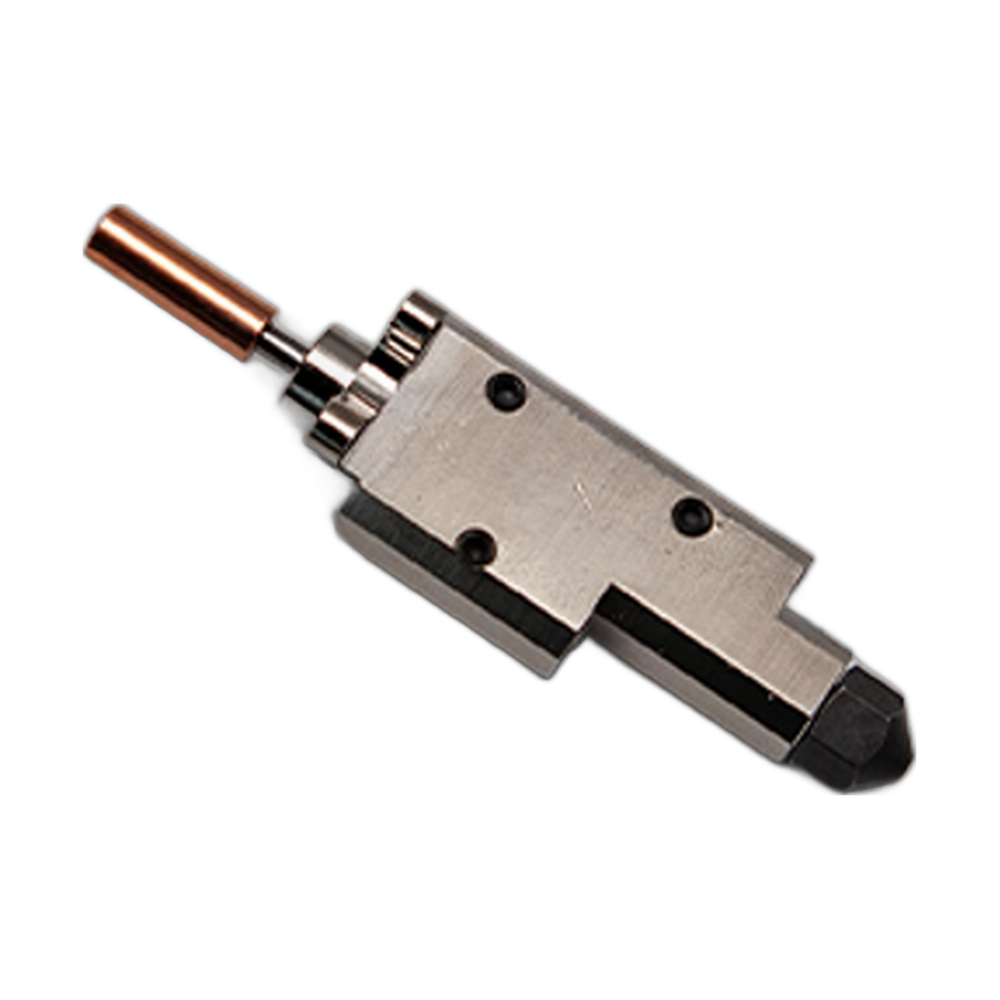

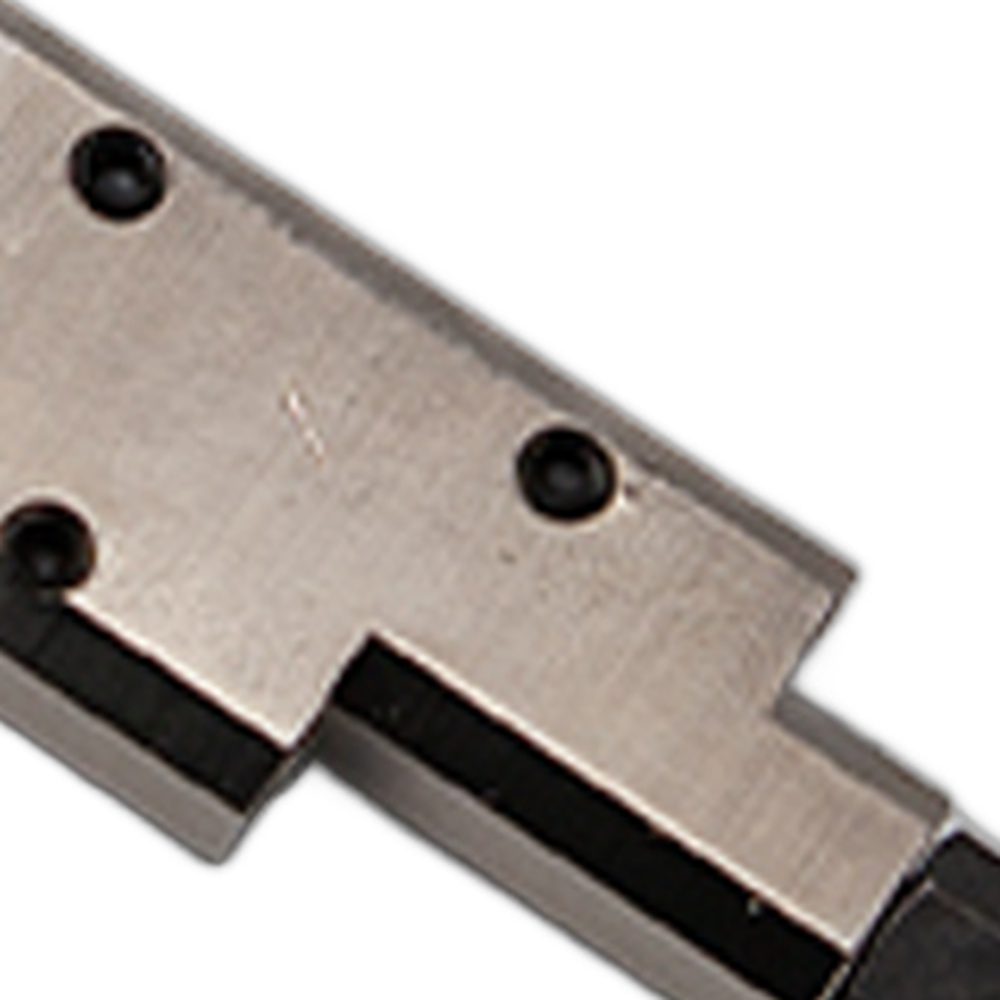

The CreatBot Pro-HS hotend is the complete OEM hotend for CreatBot's newer high speed printers: the D400 HS, D600 Pro3 HS and D1000 Pro HS, plus the D800 Ultra and D1200 Ultra. High speed printing depends on the hotend melting filament fast enough to keep up with the motion system, so a healthy hotend is central to print quality on these machines. The Pro-HS hotend comes in five nozzle sizes from 0.3 mm to 1.0 mm (parts 104020 to 104024). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Pro-HS Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why order a Pro-HS hotend
After a severe clog, a nozzle crash or leaking threads.
Rather than swapping nozzles on the printer.
So long high speed jobs are not held up by hotend service.
Matched to the Pro HS print head.
Choose your size
| Size | Part number | Fits |
|---|---|---|
| 0.3 mm | 104020 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 0.4 mm | 104021 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 0.6 mm | 104022 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 0.8 mm | 104023 | D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra, D1200 Ultra |
| 1.0 mm | 104024 | D400 HS, D600 Pro3 HS, D1000 Pro HS |
Compatible CreatBot 3D printers
The 1.0 mm size (104024) is listed for the D400 HS, D600 Pro3 HS and D1000 Pro HS only. All other sizes fit all five printers.
Picking a nozzle size for high speed printing
0.4 mm is the all-round choice for detailed functional parts. 0.3 mm is for small features and fine text, and runs slower. 0.6 mm is a strong general production size on large machines, laying down wider lines with good layer bonding. 0.8 mm and 1.0 mm move the most material per hour, which suits big parts on the D1000 Pro HS and the Ultra printers where print time matters most. Larger nozzles are also more tolerant of filled filaments.
If you prefer a hotend designed for fast removal, CreatBot also offers the quick-remove hotend for the same printers (parts 104025 to 104029).
Installation tips
Power off and let the hotend cool. Note the wiring and filament path, remove the installed hotend and fit the new one in the same orientation. Reconnect, heat up and load filament, then run the printer's nozzle height or leveling routine and a first layer test. Update the nozzle size in your slicer.
CreatBot Pro-HS Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Pro-HS Hotend — Questions
Which size do I need?
0.4 mm for general work, 0.3 mm for fine detail, and 0.6 to 1.0 mm for faster large parts. 1.0 mm is not listed for the Ultra printers.
Does it fit the D600 Pro2 HS?
No. The D600 Pro2 HS uses its own hotend (104001) or quick-remove hotend (104003, 104006).
Is this a genuine CreatBot part?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
