CreatBotPro HS Heating BlockGenuine CreatBot Replacement Part
Pro HS Heating Block for D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra

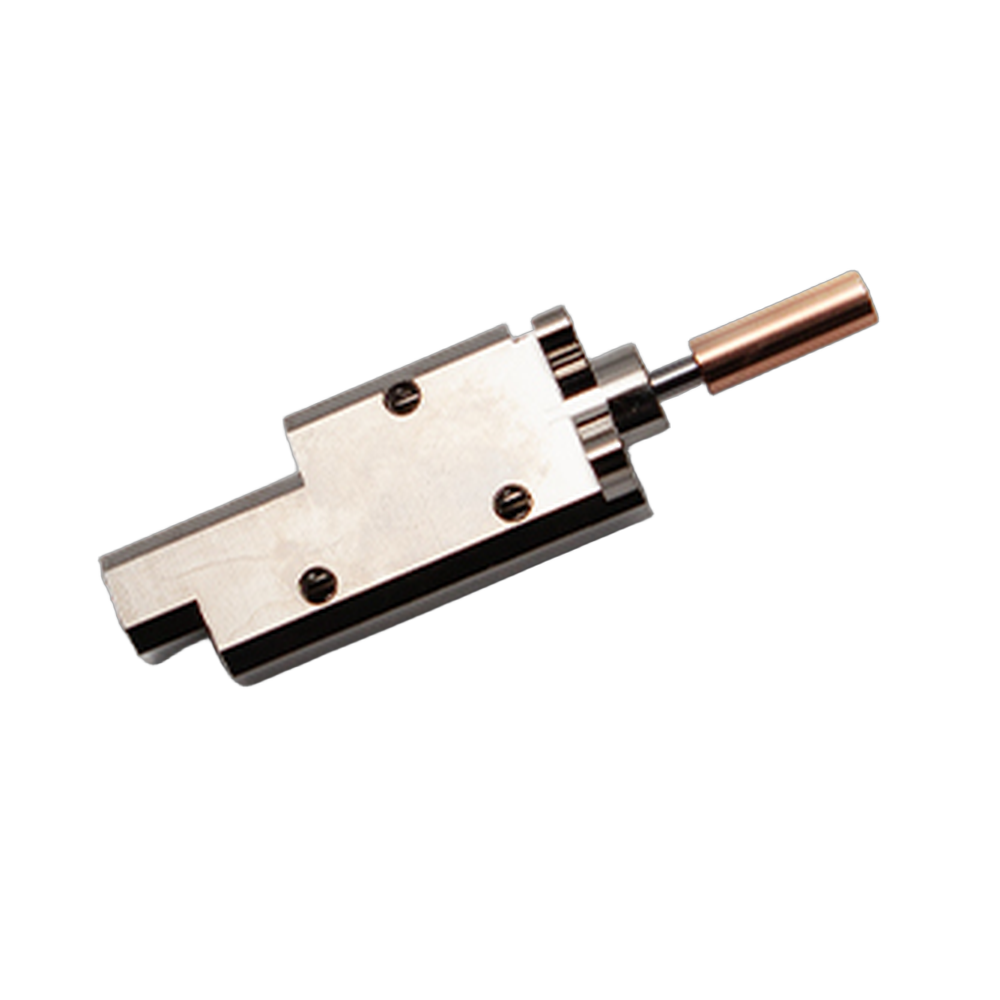

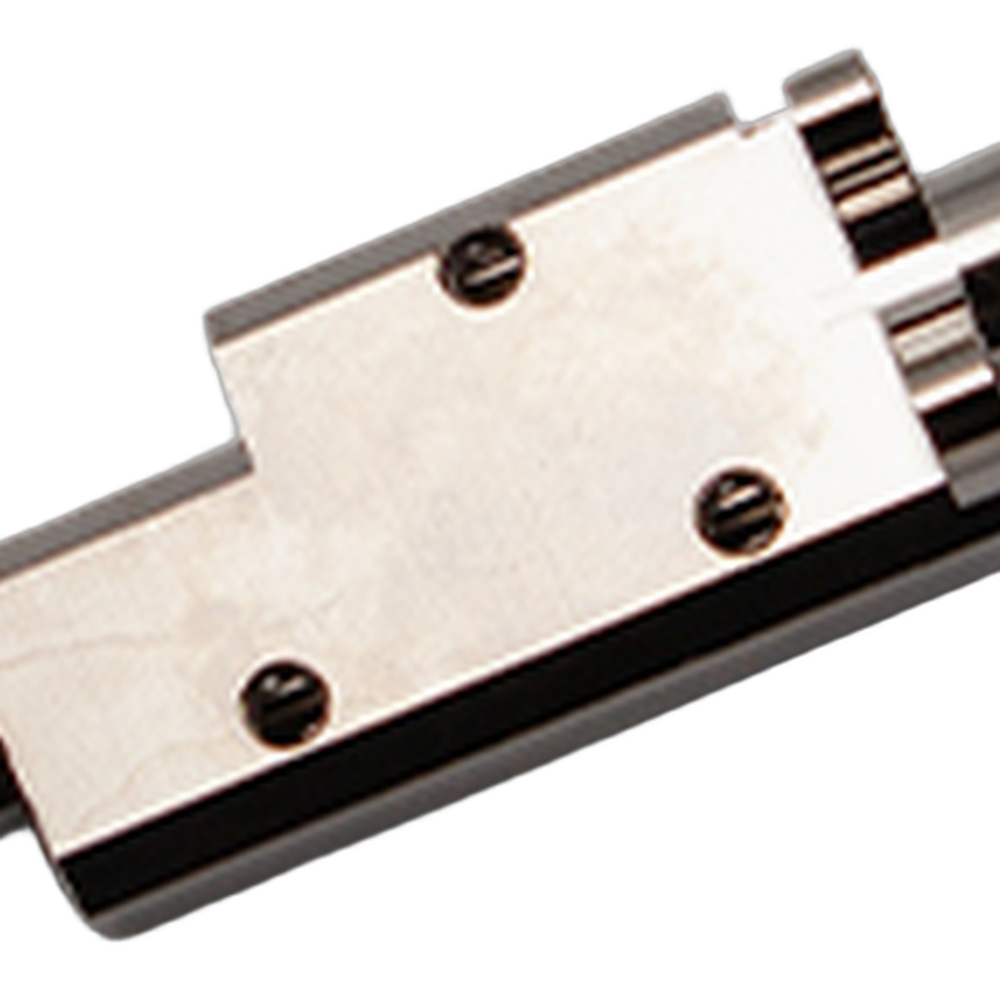

The CreatBot Pro HS heating block (part 102011) is the OEM hotend heating block for the current generation of CreatBot high speed printers: the D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra. The heating block is the center of the hotend. The nozzle threads into it, the heater and temperature sensor sit in it, and it transfers heat into the melt zone so filament flows at a steady, controlled temperature. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Pro HS Heating Block, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your heating block needs replacing
The nozzle will not tighten properly, or filament leaks around the threads.
That has hardened over the surface and cannot be cleaned off.
, which can cause temperature readings to fluctuate or the hotend to heat poorly.
On the block itself.
Temperature faults can also come from a failed heater, sensor or cable. If you are unsure which part is at fault, contact Rev1 support before ordering.
Compatible CreatBot 3D printers
Earlier HS machines use a different block. The D600 Pro2 HS and D1000 HS take the HS Heating Block V1 (part 102004), and the PEEK-250 and F430 NX take the HS Heating Block V2 (part 102005). Check your model name carefully before ordering.
Installation tips
Heat the hotend before removing the nozzle so it releases cleanly, then power the printer off, unplug it and let the hotend cool fully before you remove the heater and temperature sensor. Photograph the wiring and sensor routing before you disconnect anything. Install the nozzle into the new block, refit the heater and sensor securely, and do a final tightening of the nozzle with the hotend hot. Afterwards, recalibrate the nozzle height and run a short test print to confirm stable temperatures.
CreatBot Pro HS Heating Block Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Pro HS Heating Block — Questions
Is this a genuine CreatBot heating block?
Yes. It is CreatBot part 102011, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D1000 HS?
No. The D1000 HS and D600 Pro2 HS use the HS Heating Block V1, part 102004. This block is for the D1000 Pro HS and the other models listed above.
Do I need a new nozzle when I replace the block?
Not always. If the nozzle threads and bore are in good condition you can reuse it. If filament leaked around the old block, fitting a fresh nozzle at the same time is a sensible choice.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
