CreatBotPro HS Extruder PCBGenuine CreatBot Replacement Part
Pro HS Extruder PCB for D400 HS, D600 Pro3 HS and D1000 Pro HS 3D Printers

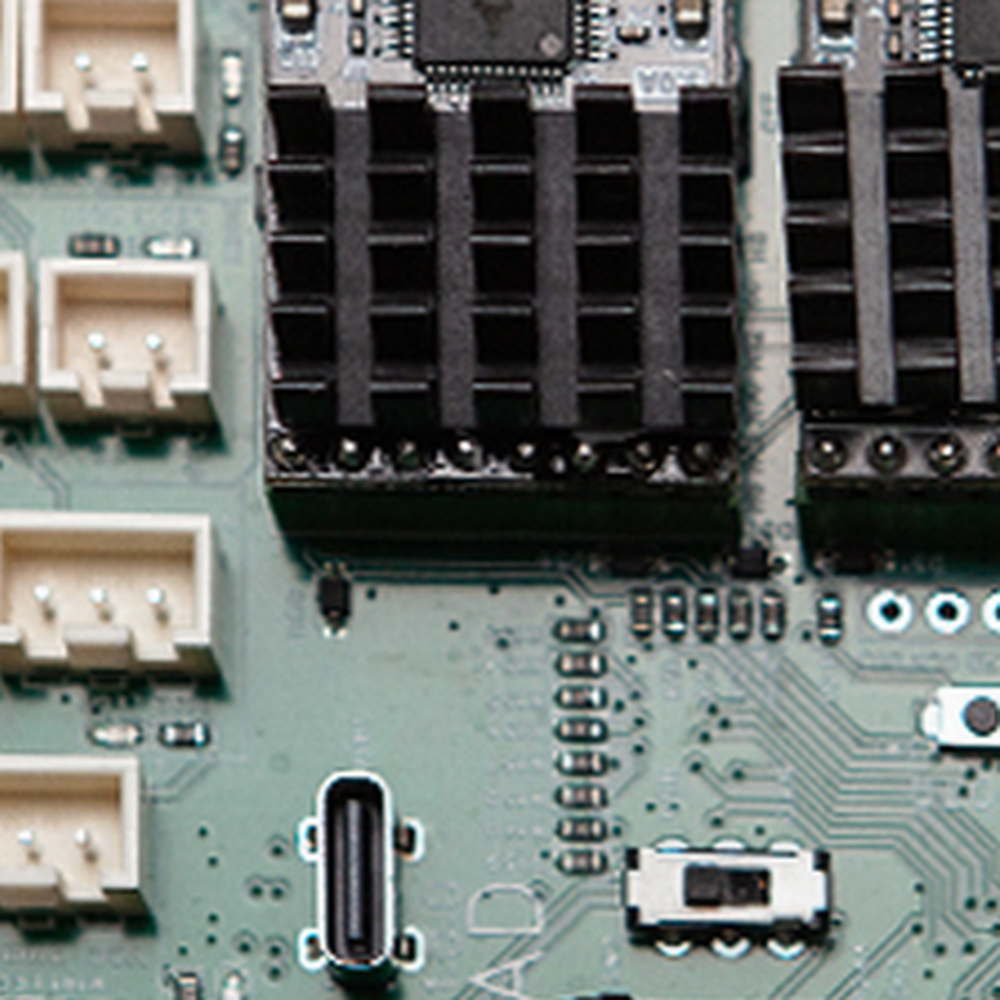

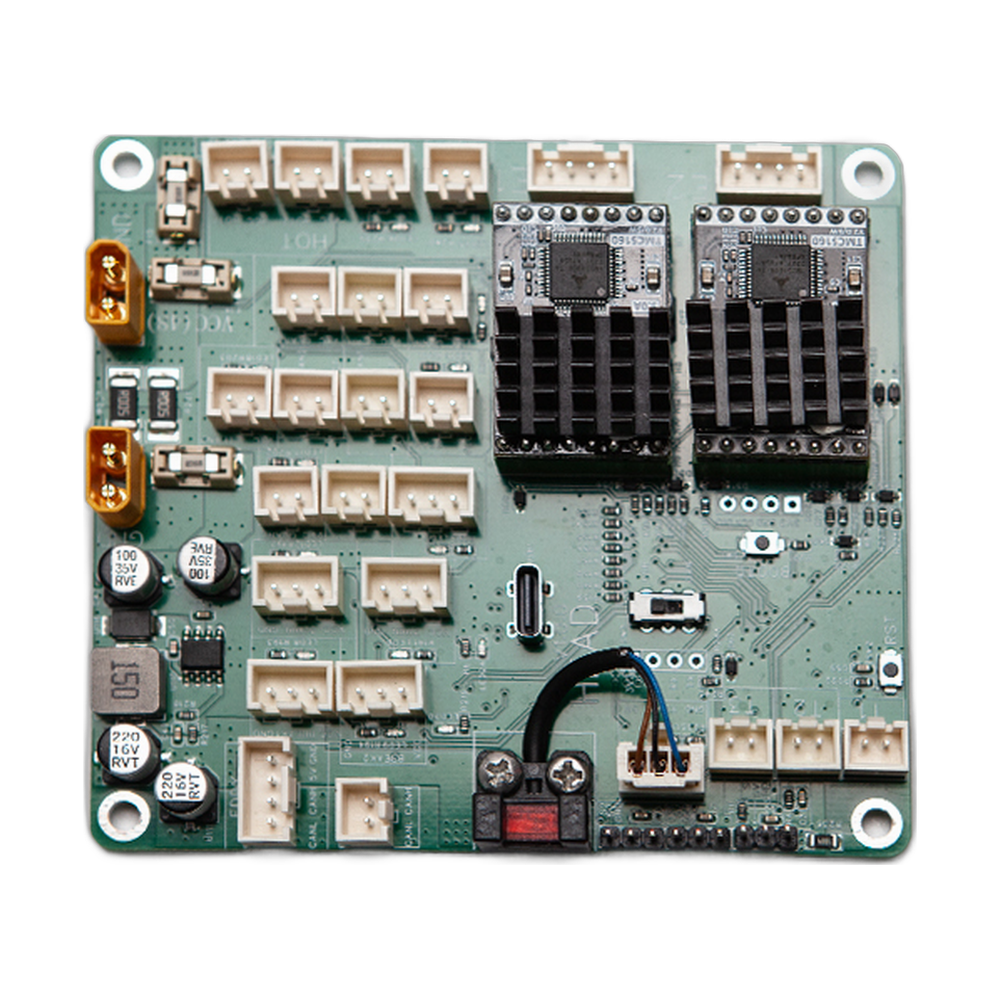

The CreatBot Pro HS extruder PCB is the circuit board on the print head of the CreatBot D400 HS, D600 Pro3 HS and D1000 Pro HS. The hotend heater, temperature sensor, fans and extruder wiring connect here and run back to the motherboard, so a fault on this board can take a working hotend offline or cause errors that look like several failed parts at once. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Pro HS Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder PCB needs replacing
Heating, temperature reading or fan errors on the print head that stay with the board when you swap cables.
Intermittent faults that come and go as the print head moves.
A burnt component, a damaged connector or a cracked board.
A worn cable or a failed heater or sensor can cause similar symptoms. Contact Rev1 support and we will help you confirm the cause before you order.
Choose your printer
| Printer option | Part number | Fits |
|---|---|---|
| D400 HS or D600 Pro3 HS | 112020 | D400 HS, D600 Pro3 HS, D1000 Pro HS |
| D1000 Pro HS | 112021 | D400 HS, D600 Pro3 HS, D1000 Pro HS |
Compatible CreatBot 3D printers
Fit is the same for both options. The D600 Pro2 HS and D1000 HS use a different extruder board, the HS board (112001 or 112002).
Which part number should I choose?
Pick the number that names your printer so the order matches your manual and service records: 112020 for a D400 HS or D600 Pro3 HS, 112021 for a D1000 Pro HS. The board is identical either way. Do not confuse it with the hotend connection boards these printers also use, the Hotend Connection Board Right (112922) and Left (112923). Those are separate parts. If you are not sure which board has failed, contact Rev1 support with a photo of the print head.
Installation tips
Power the printer off, unplug it and let the hotend cool before you open the print head. Photograph every connector on the old board, use anti-static precautions and move the cables across one at a time. Make sure each plug is fully seated and the wiring is clear of moving parts, then heat the hotend and run each fan before your first print.
CreatBot Pro HS Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Pro HS Extruder PCB — Questions
Which printer option do I need?
Choose the option that names your printer: 112020 for the D400 HS or D600 Pro3 HS, 112021 for the D1000 Pro HS. It is the same board, so either one fits all three.
Is this the same as the hotend connection board?
No. The hotend connection boards (112922 right, 112923 left) are different parts.
Is this a genuine CreatBot part?
Yes. It is the OEM CreatBot Pro HS extruder PCB, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
