CreatBotPEEK-300 Z MotorGenuine CreatBot Replacement Part

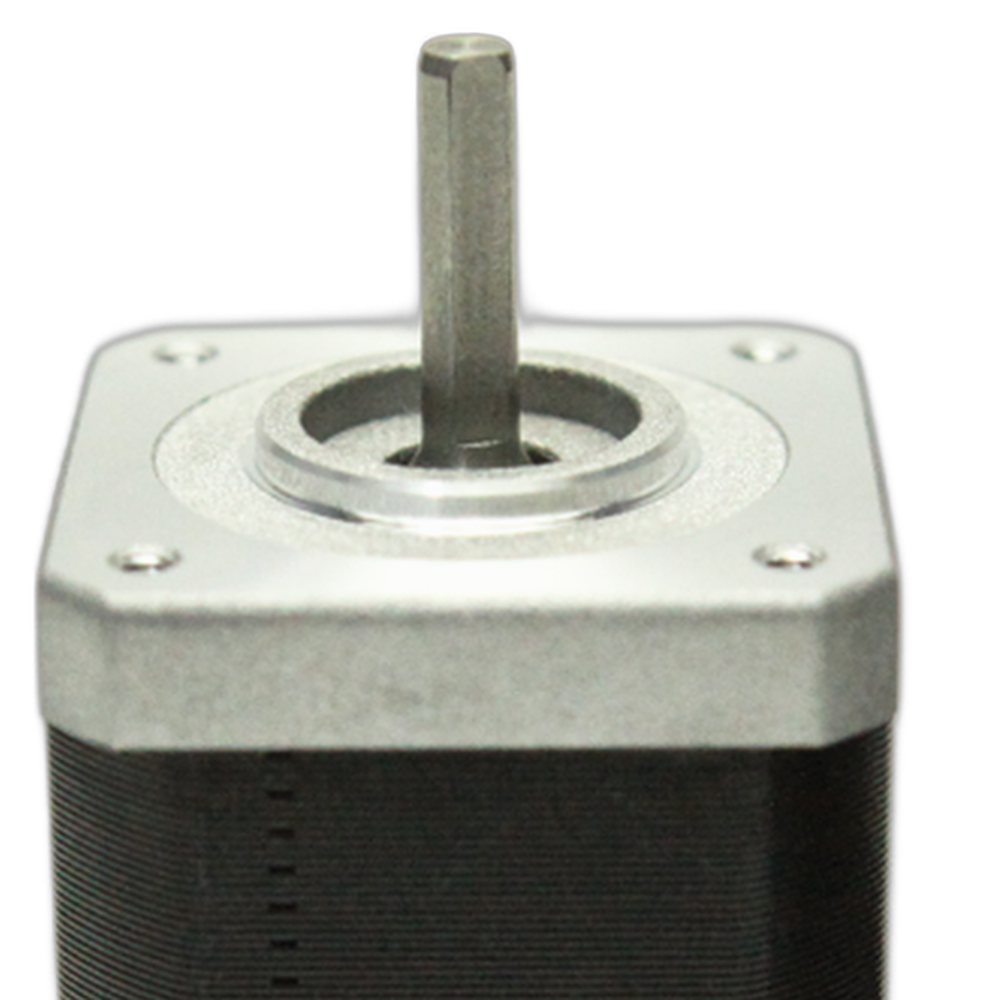

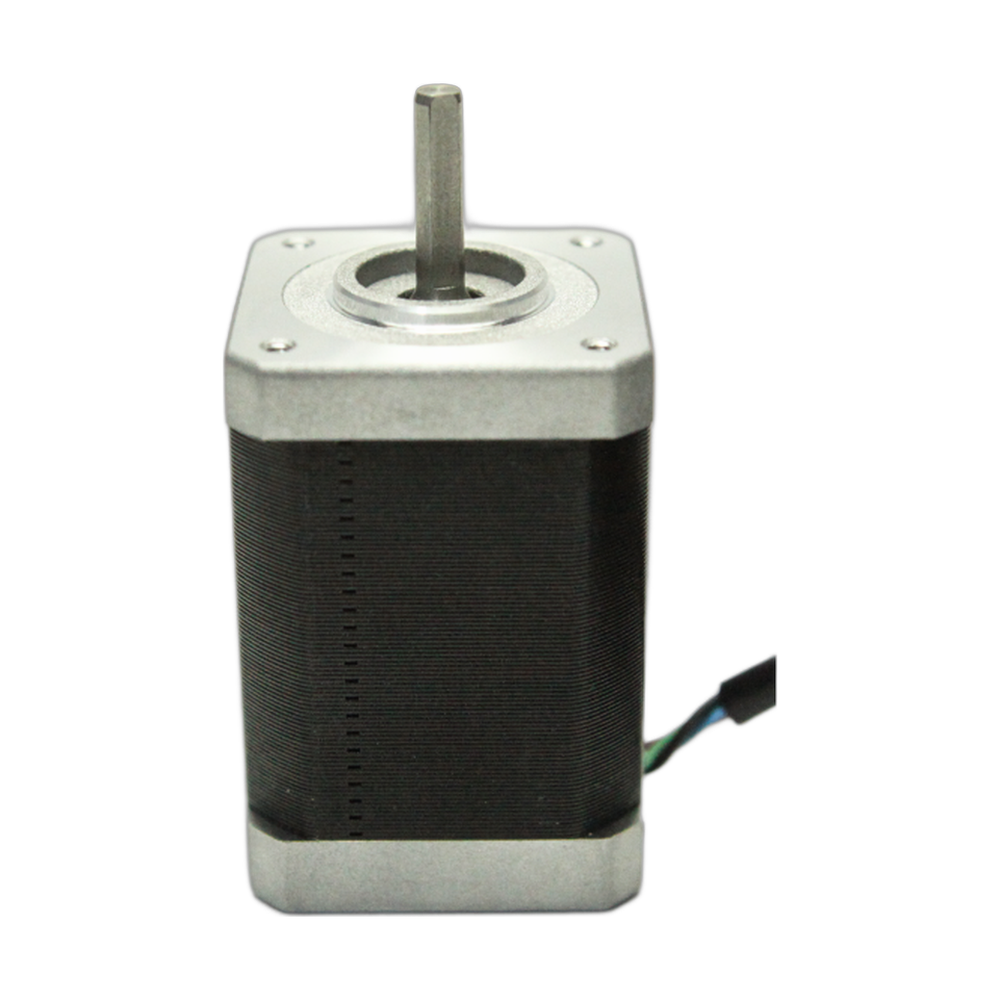

PEEK-300 Z Motor (Z-Axis Motor)
The CreatBot PEEK-300 Z motor (part 131037) is the OEM Z-axis motor for the CreatBot PEEK-300. It moves the Z axis one layer height after each layer and sets the first layer gap. The strength of a PEEK part depends on how well each layer fuses to the one below, so an even, repeatable Z step is as important as hotend temperature. A Z motor that sticks or skips leaves thin or thick layers and weak points in the finished part. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The Z axis does not home, or stalls when jogged.
Banding, uneven layer lines or a step in height partway up.
Parts measure short or tall in Z.
Grinding, knocking or rough movement from the Z drive.
Binding in the Z mechanism, a loose coupling or a cable fault can give the same signs. Rev1 support can help you narrow it down.
Compatible CreatBot 3D printer
The other PEEK-300 motors are X motor 131035, Y motor 131036 and extruder motors 131033 and 131034. The PEEK-250 uses Z motor 131014.
Installation tips
Let the printer cool fully, then switch it off and unplug it. Support the Z assembly so it cannot drop once the motor is released. Photograph the cable route and connector, fit the new motor in the same position and orientation, and confirm it is fully seated. Run the axis through its full travel, then home, re-level the bed and print a first layer test before you return to PEEK.
CreatBot PEEK-300 Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Z Motor — Questions
Will it fit the PEEK-250?
No. The PEEK-250 uses Z motor 131014.
Do I need to re-level after replacing the Z motor?
Yes. Re-level and check the first layer after any Z axis work.
Is this a genuine CreatBot part?
Yes. It is part 131037, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
