CreatBotPEEK-300 Y MotorGenuine CreatBot Replacement Part
PEEK-300 Y Motor (Y-Axis Motor)

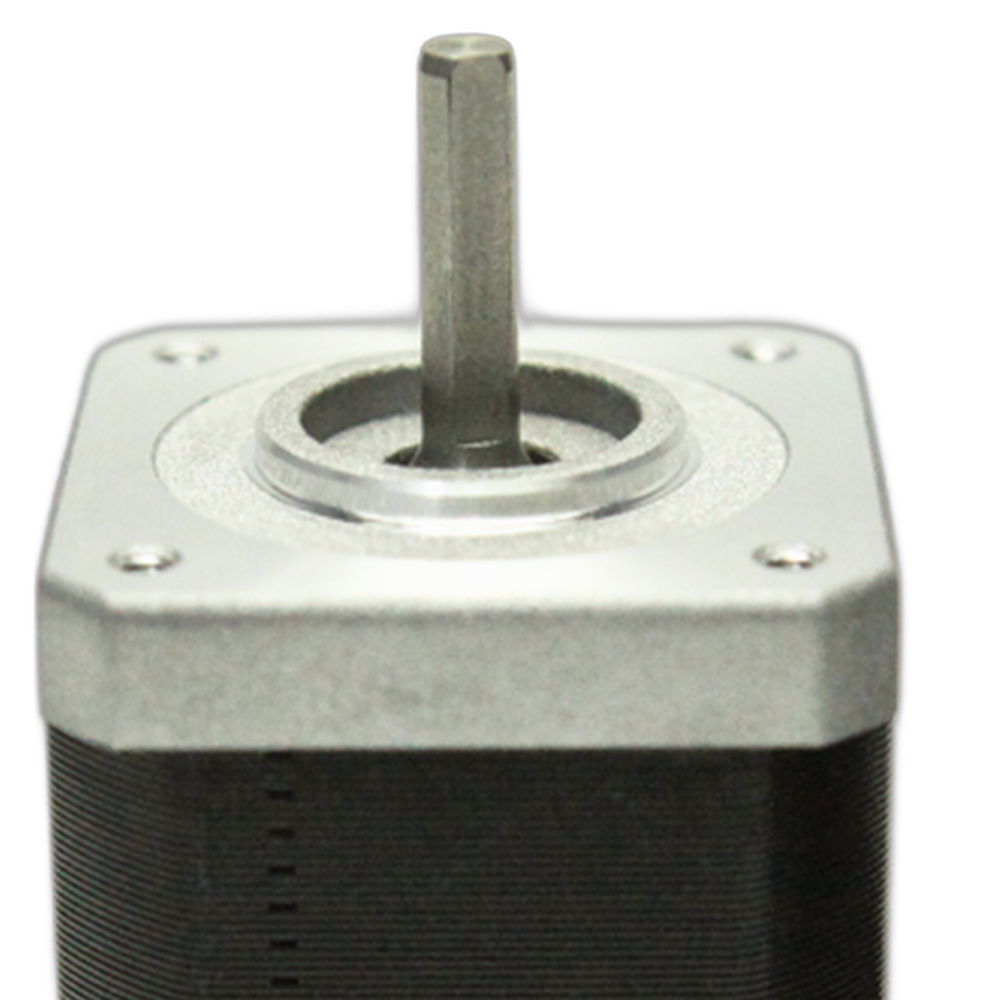

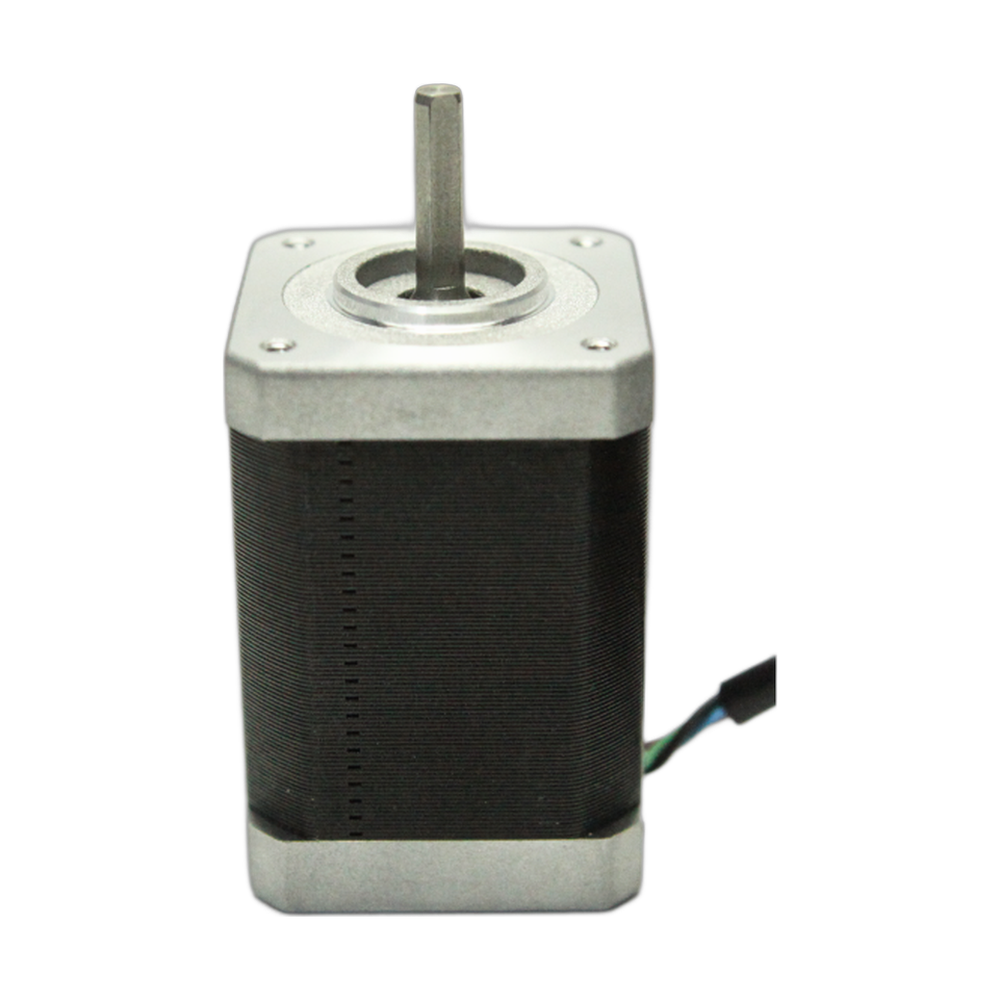

The CreatBot PEEK-300 Y motor (part 131036) is the original Y-axis motor for the CreatBot PEEK-300. It drives front to back motion and, with the X motor, traces every path of every layer. When the Y motor loses steps, the rest of the print continues from the wrong position, which leaves a visible step in the part and usually means starting again. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Y Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why fit the genuine CreatBot Y motor
Mounts in the original position and connects to the original cable.
So stock firmware settings remain correct.
For functional, tight tolerance parts in high performance materials.
Signs the Y motor is failing
Front to back layer shifts during printing.
The Y axis does not home, or stops partway through a move.
Grinding, clicking or a high pitched whine from the Y motor.
Belts, pulleys and cables cause many Y axis faults too. Check them first, or contact Rev1 support for help confirming the motor is at fault.
Compatible CreatBot 3D printer
The other PEEK-300 motors are the X motor 131035, the Z motor 131037 and the extruder motors 131033 and 131034.
Installation tips
Allow the printer to cool, then power it off and unplug it. Photograph the wiring and mark the pulley position on the shaft. Release belt tension and remove the old motor. Fit the new motor in the same orientation, set the pulley in the same position so the belt runs true, and re-tension. Move the axis by hand, home the printer and print a calibration part to confirm Y dimensions.
CreatBot PEEK-300 Y Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Y Motor — Questions
Can I use the X motor in the Y position?
Order the part for the axis you are repairing: 131036 for Y and 131035 for X.
Does it fit the PEEK-250?
No. The PEEK-250 uses the X/Y high temp motor, part 131013.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can fit and test the motor.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
