CreatBotPEEK-300 X MotorGenuine CreatBot Replacement Part

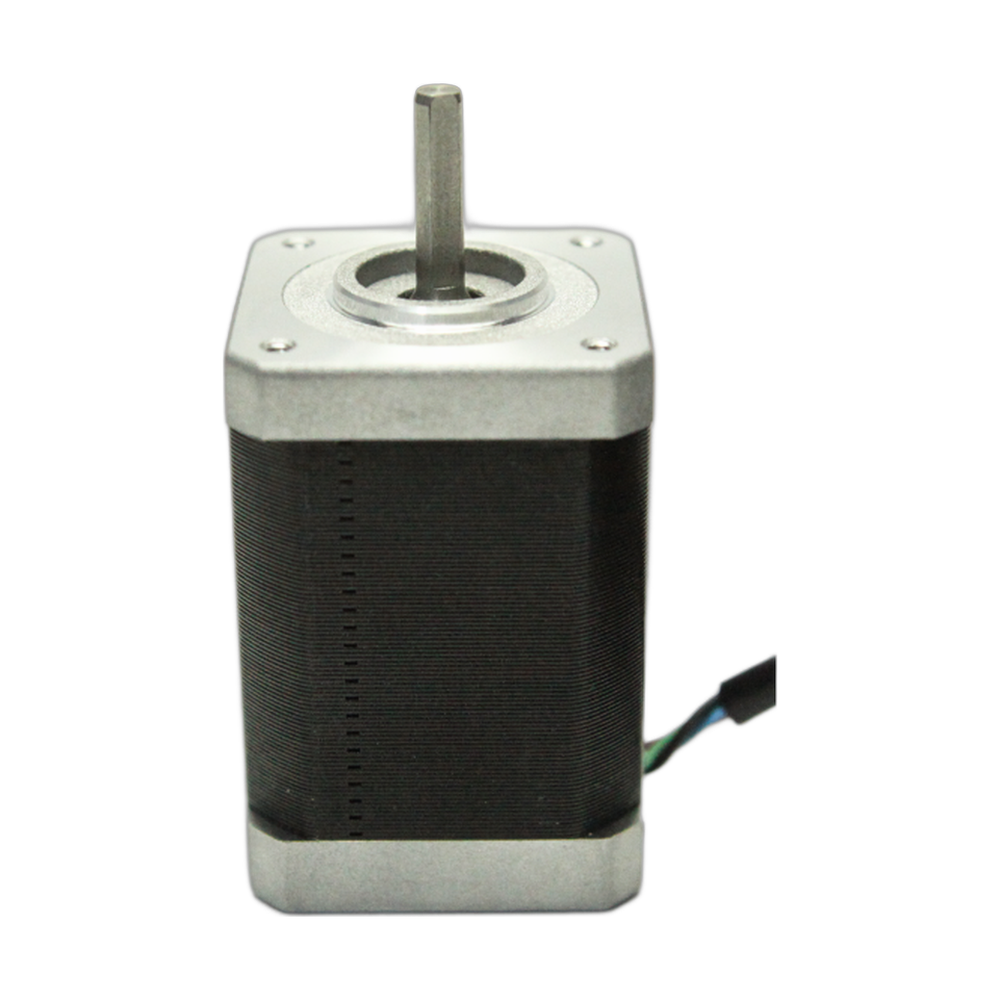

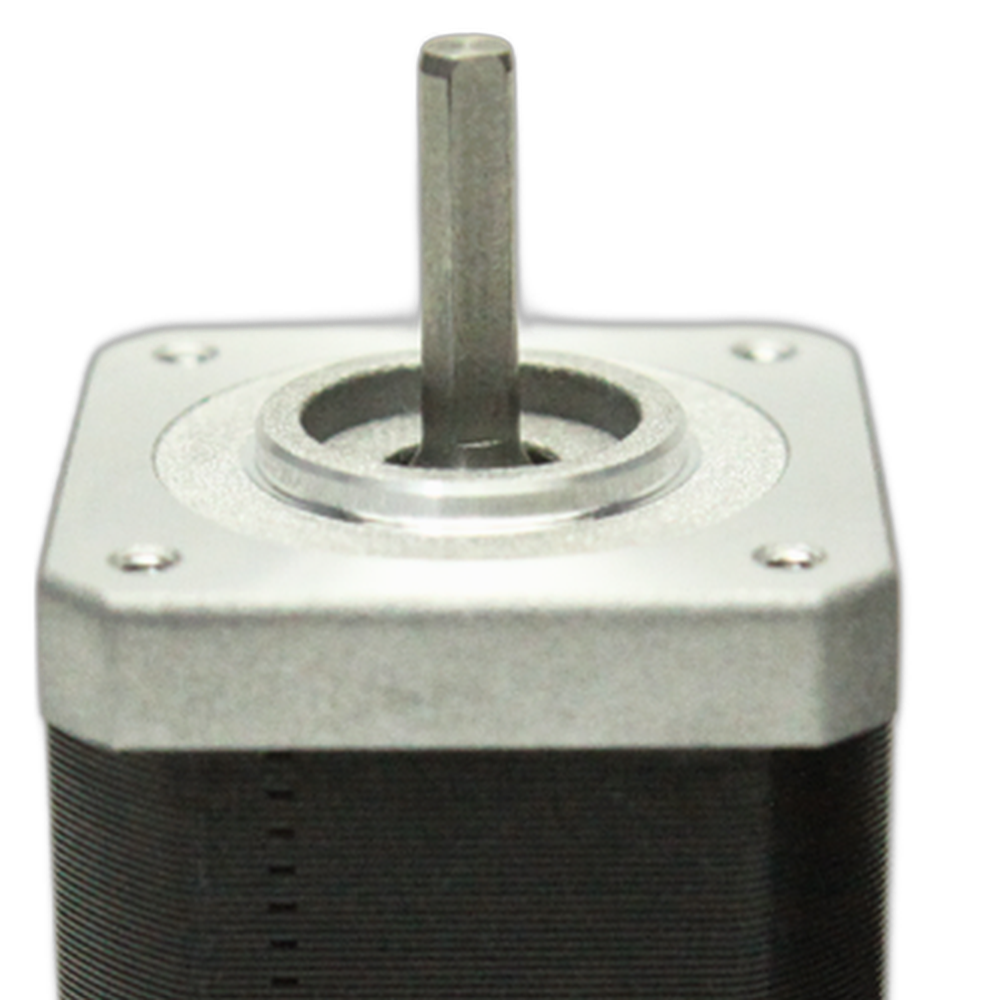

PEEK-300 X Motor (X-Axis Motor)
The CreatBot PEEK-300 X motor (part 131035) is the OEM X-axis motor for the CreatBot PEEK-300. It drives motion along the X axis and places every extrusion line along that direction. PEEK parts are usually functional components with tight tolerances, and a single X layer shift can scrap a part that has already used hours of machine time and high performance filament. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 X Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor needs replacing
Layers shift along the X axis during printing.
The X axis does not home, or homes with grinding or clicking.
The motor buzzes or vibrates without moving the axis smoothly.
X dimensions drift between prints of the same part.
Belt tension, a slipping pulley, a snagged cable or a driver fault can cause the same layer shifts. Check those first, or ask Rev1 support to help diagnose the axis.
Compatible CreatBot 3D printer
The other PEEK-300 motors are the Y motor 131036, the Z motor 131037 and the extruder motors 131033 (E1) and 131034 (E2). The PEEK-250 uses a combined X/Y high temp motor, part 131013.
Installation tips
Let the printer cool fully, then switch it off and unplug it. Photograph the wiring and mark the pulley position on the old motor shaft. Release belt tension, remove the old motor and fit the new one in the same orientation. Refit the pulley so the belt runs straight, re-tension, and move the print head by hand to confirm smooth travel. Home the printer and print a calibration part to check X accuracy before running PEEK.
CreatBot PEEK-300 X Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 X Motor — Questions
Are the PEEK-300 X and Y motors the same part?
They are listed separately: X is 131035 and Y is 131036.
Will it fit the PEEK-250?
No. The PEEK-250 uses the X/Y high temp motor, part 131013.
Is this a genuine CreatBot part?
Yes. It is part 131035, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
