CreatBotPEEK-300 Temperature SensorGenuine CreatBot Replacement Part
PEEK-300 Hotend Temperature Sensor for PEEK-300 and F430 3D Printers

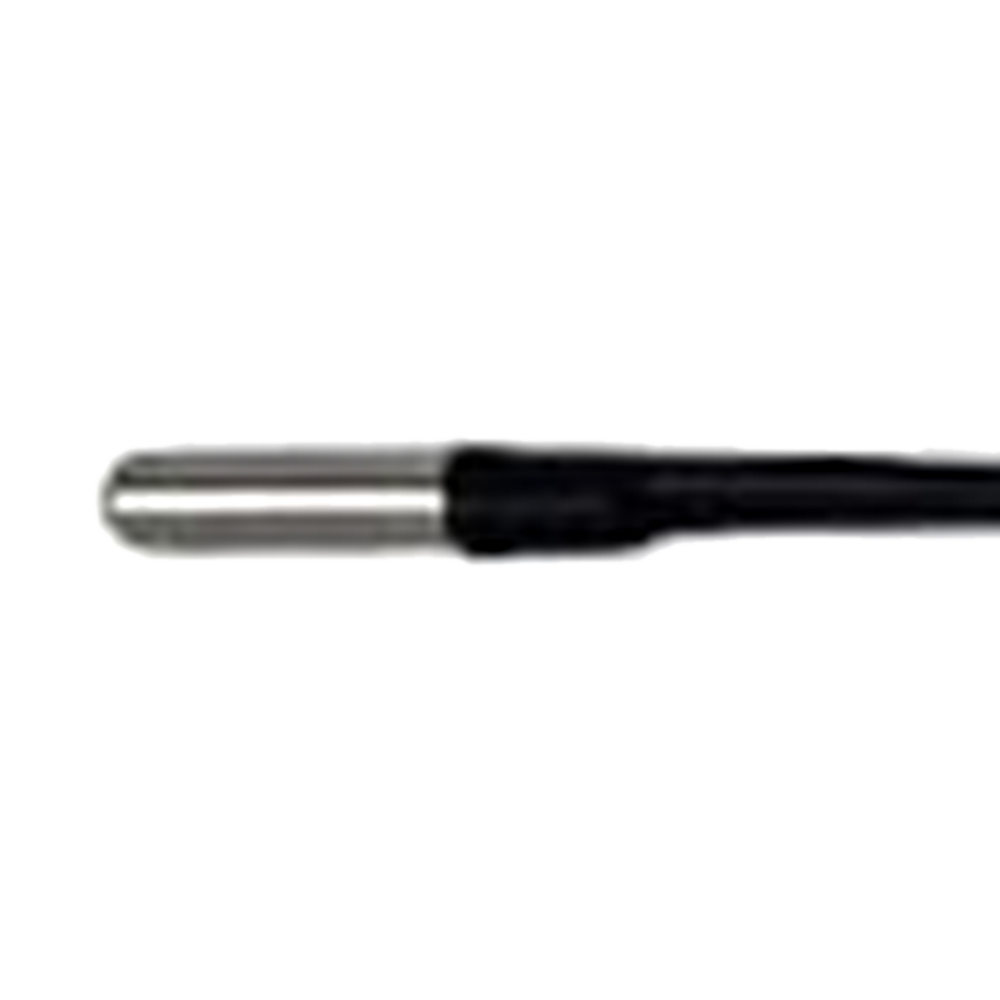

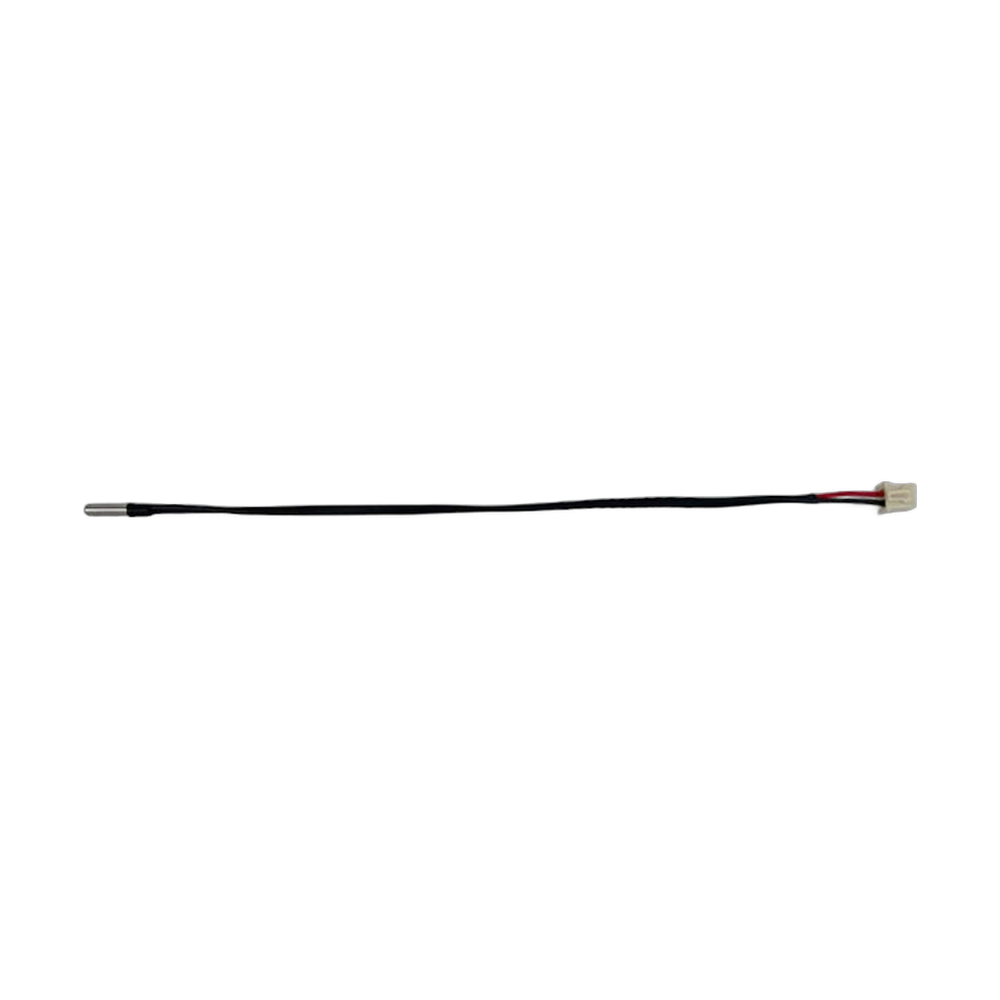

The CreatBot PEEK-300 temperature sensor (part 106009) is the OEM hotend temperature sensor listed for the CreatBot PEEK-300 and F430. High-performance materials have a narrow processing window, so the printer needs an accurate hotend reading to print them consistently. This sensor provides that reading: it sits in the heating block and tells the controller how hot the hotend is, and the controller adjusts the heating tube to match your set point. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace it with a genuine part
The printer's firmware expects the original sensor type, so a genuine part reports temperature the way the controller is set up to read it.
Sized for the PEEK-300 and F430 heating block and fitted with the matching connector.
Thermal protection relies on a good sensor reading. A worn sensor can cause false errors or let the hotend run off target.
Compatible CreatBot 3D printers
The F430 Temperature sensor (106007) is listed for the same two printers, and the PEEK300 DAS Temperature sensor (106013) is listed for the PEEK-300. Check the part number on the sensor you are replacing before you order. The PEEK-250 uses 106005 or 106006.
Installation tips
Power down, unplug the printer and wait for the hotend to cool. Photograph the sensor wiring and connector, release the retaining screw, and remove the old sensor without tugging on its leads. Fit the new sensor fully into the heating block and fasten it gently so the sensor body is not crushed. Route the wires the same way as before, then power up and check that the reading at rest matches the room before you heat the hotend.
CreatBot PEEK-300 Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Temperature Sensor — Questions
Is this the same as the PEEK300 DAS temperature sensor?
No. The DAS sensor is a separate part, 106013. Match the part number on your existing sensor.
My temperature reading is unstable. Is it the sensor?
Often, but a loose connector or damaged cable can do the same. Contact Rev1 support and we will help you find the cause.
Can Rev1 install it for me?
Yes. Rev1 Technologies is a certified CreatBot service provider and can replace and test the sensor.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
