CreatBotPEEK-300 HT HotendGenuine CreatBot Replacement Part

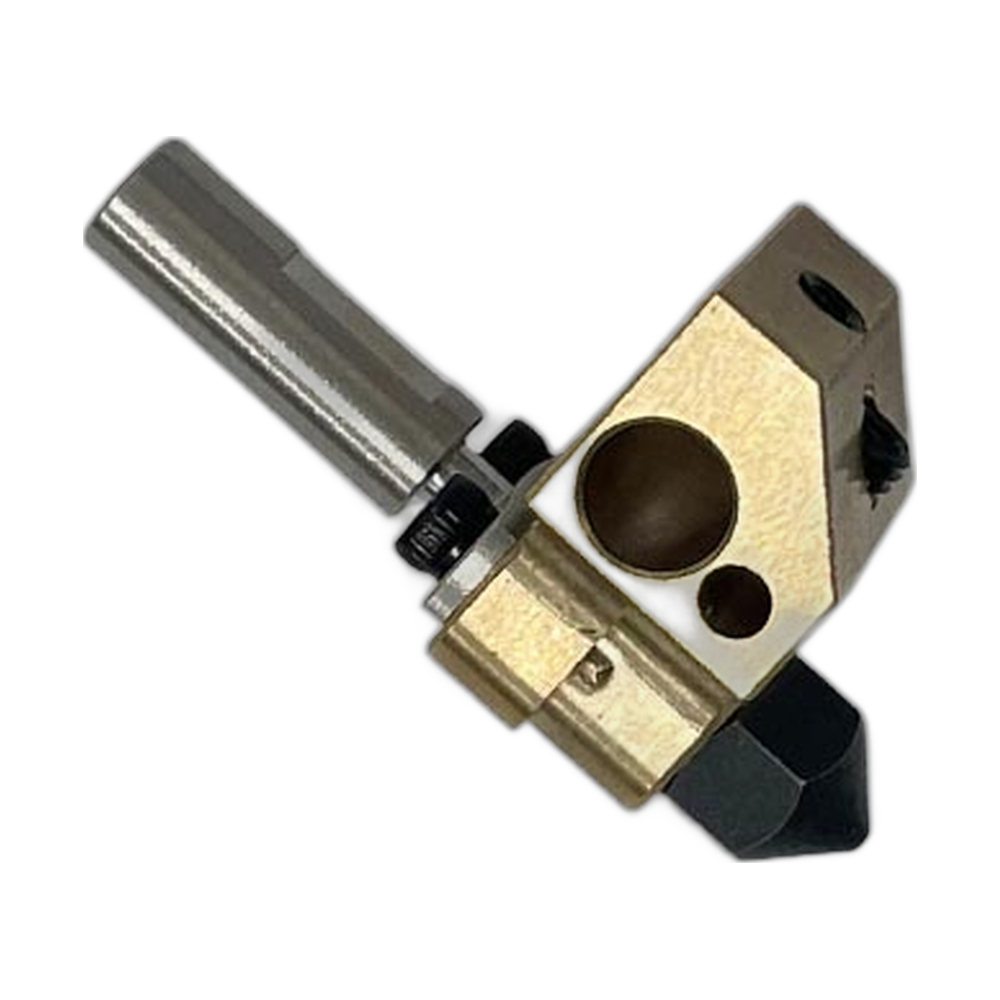

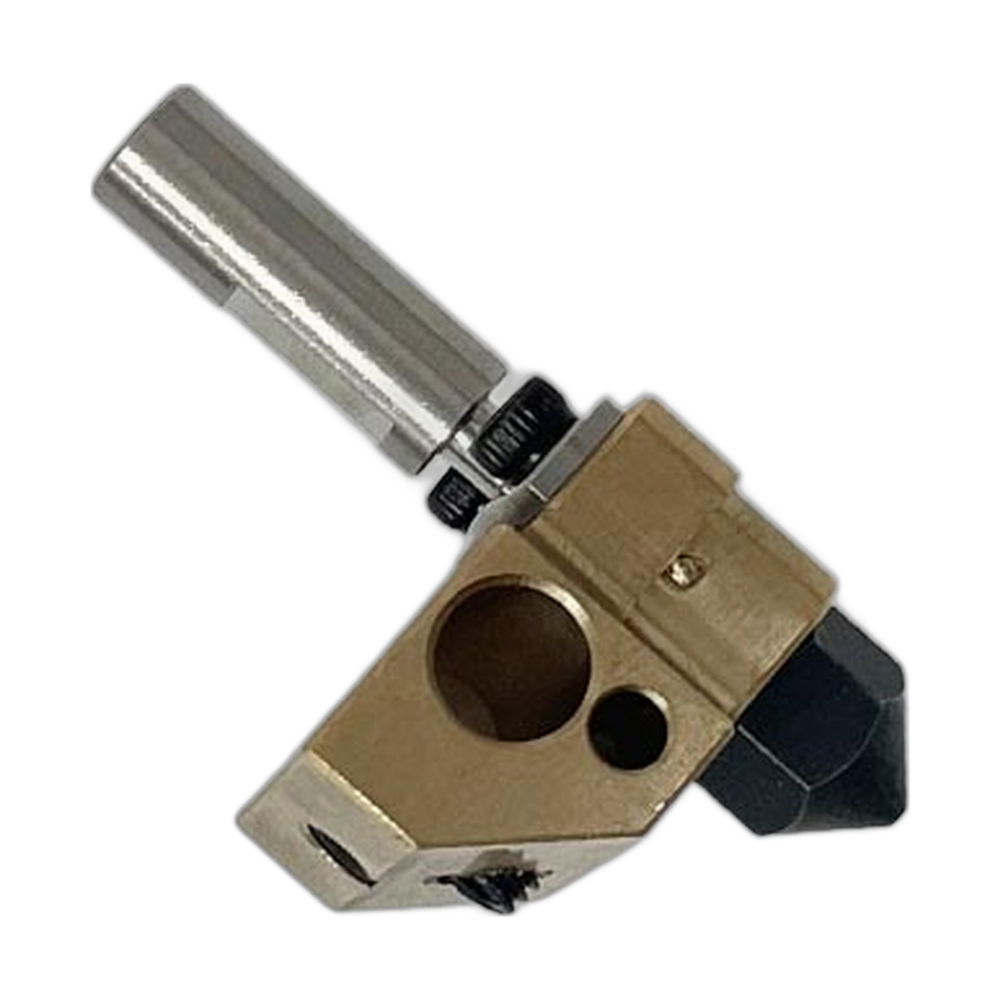

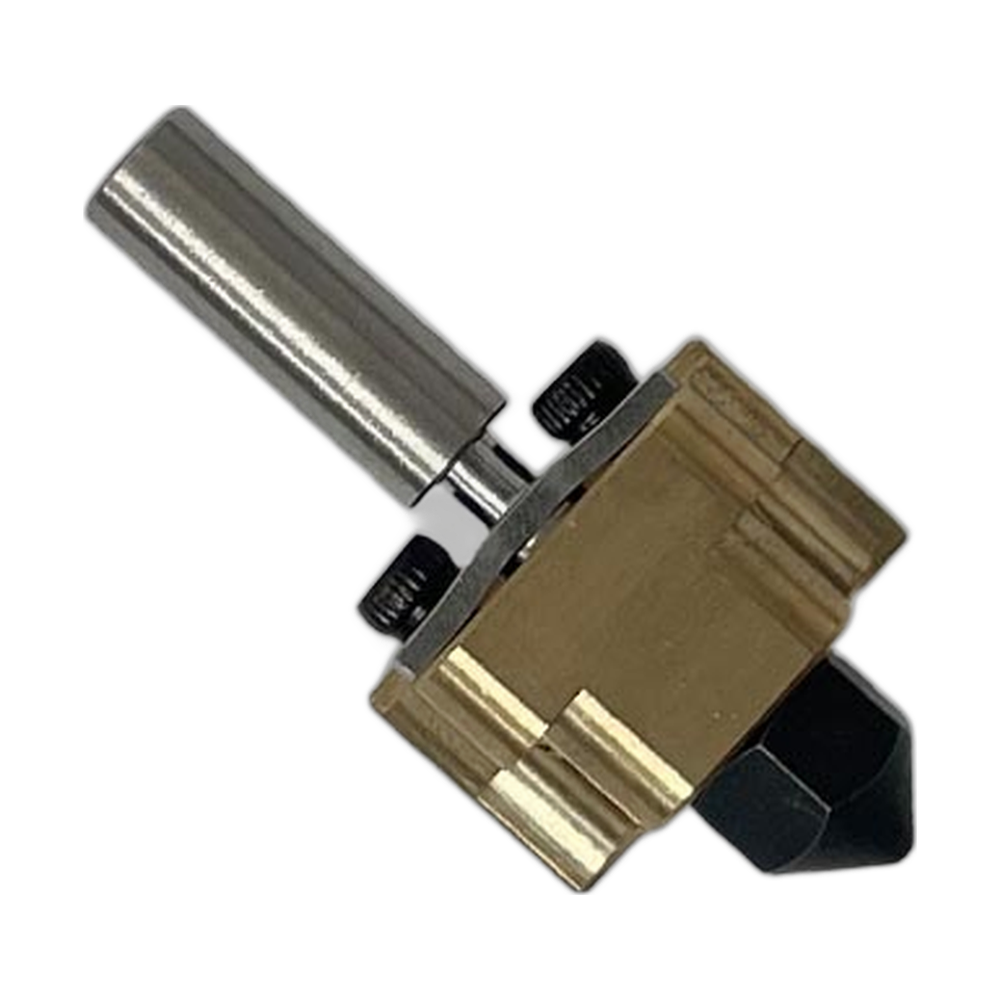

PEEK-300 HT Hotend (High Temperature)
The CreatBot PEEK-300 HT hotend (part 104017) is the OEM high temperature hotend for the CreatBot PEEK-300. The hotend is where filament is melted and pushed through the nozzle, so its condition decides how cleanly and consistently your printer lays down every line. On a machine built for demanding engineering materials, a worn or damaged hotend shows up quickly in part quality. A genuine replacement restores the printer to its factory setup without adapters or guesswork. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 HT Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your hotend needs replacing
Repeated clogs or under-extrusion that return after cleaning and nozzle changes.
The hotend heats slowly, will not hold its set temperature, or reports a temperature error.
Filament leaking around the nozzle or heating block.
Physical damage from a crash, or threads that no longer hold a nozzle securely.
A failed sensor, cable or board can produce similar symptoms. Rev1 support can help you narrow down the cause before you order.
Compatible CreatBot 3D printer
The PEEK-250 uses a different hotend: part 104005, shared with the F430 NX.
HT or LT: which hotend do I need?
CreatBot offers two hotends for the PEEK-300. This HT hotend (104017) is the high temperature version. The LT hotend (104016) is the low temperature version. Order the same version you are replacing, which you can confirm from the hotend fitted to your printer. If you are unsure which one your PEEK-300 uses, send Rev1 your serial number and we will confirm it.
Installation tips
Power the printer off, unplug it and let the hotend cool fully before you remove it. Photograph the heater and sensor connections before disconnecting them so each one goes back in the same place. After fitting the new hotend, check that the nozzle is tight, then recalibrate nozzle height and bed leveling and run a short test print. If you prefer not to do the swap yourself, Rev1 can install it as your certified CreatBot service provider.
CreatBot PEEK-300 HT Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 HT Hotend — Questions
Is this a genuine CreatBot hotend?
Yes. It is CreatBot part 104017, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my PEEK-250?
No. The PEEK-250 uses part 104005. This HT hotend is for the PEEK-300 only.
Can I replace my LT hotend with this HT version?
Contact Rev1 before switching versions. We will check your PEEK-300 configuration and tell you whether the HT hotend (104017) or the LT hotend (104016) is the right choice.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
