CreatBotPEEK-300 Heating TubeGenuine CreatBot Replacement Part

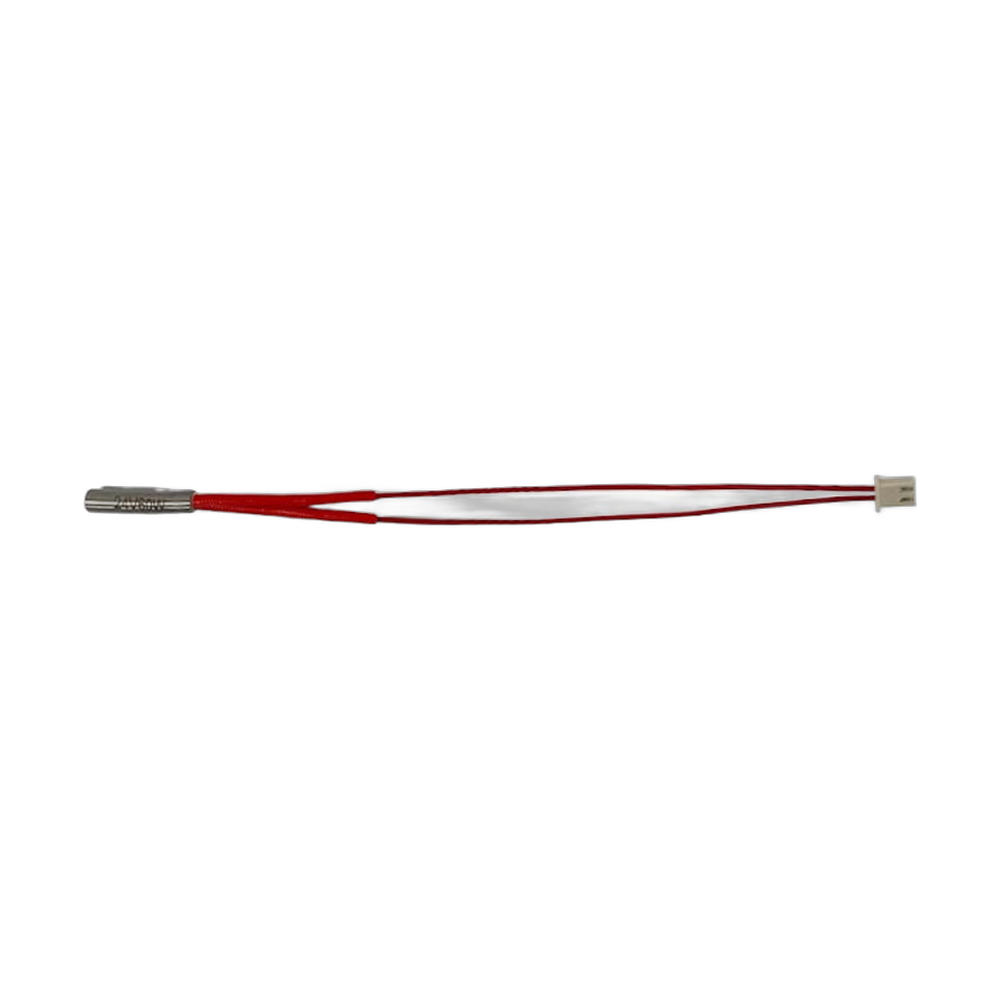

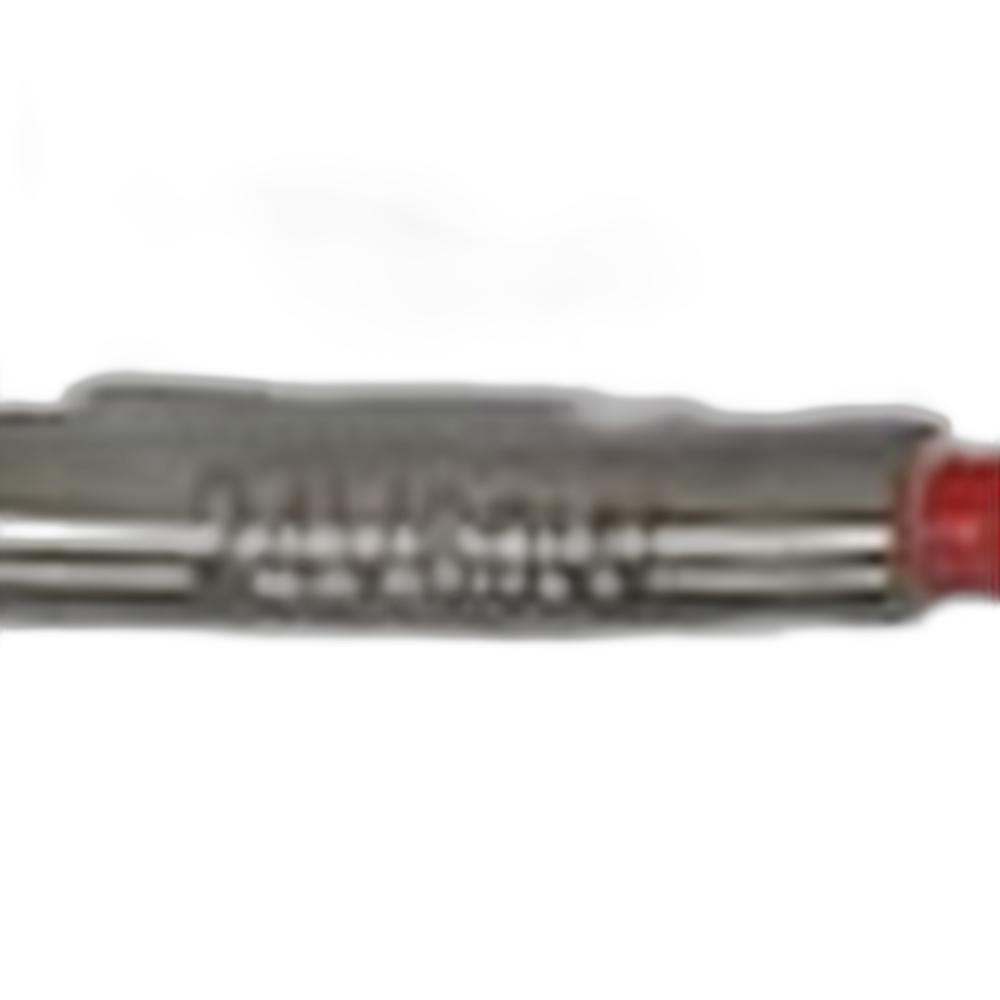

PEEK-300 Heating Tube (Hotend Heater Cartridge) for PEEK-300 and F430 3D Printers
The CreatBot PEEK-300 heating tube (part 105008) is the OEM hotend heater cartridge listed for the CreatBot PEEK-300 and F430. Printers in this class run demanding engineering materials, and those materials only print well when the hotend holds a steady temperature for hours at a time. The heating tube is the part that supplies that heat. It sits in the heating block, and the printer switches it on and off based on the reading from the temperature sensor. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Heating Tube, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace it with a genuine part
The same cartridge the PEEK-300 and F430 hotend is built around, so it fits the heating block and connector as designed.
The firmware's heating settings are tuned for the original heater, which helps the hotend reach and hold temperature without overshoot.
A worn or damaged cartridge is a common cause of slow heating and thermal runaway stops on long prints.
Compatible CreatBot 3D printers
The F430 Heating tube (105006) is listed for the same two printers, and the PEEK300 DAS Heating tube (105012) is listed for the PEEK-300. Check the part number on your existing tube, or ask Rev1 support, before you order. The PEEK-250 uses its own tube, part 105005.
Installation tips
Switch the printer off, unplug it and wait until the hotend is cold. Photograph the wiring, then loosen the heating block clamp and remove the old cartridge. Slide the new heating tube all the way into the block, tighten the clamp evenly and secure the wires so they cannot rub on moving parts. Heat the hotend while watching the temperature curve, and if your printer offers a PID tune, run it after the swap.
CreatBot PEEK-300 Heating Tube Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Heating Tube — Questions
Is this the same as the PEEK300 DAS heating tube?
No. The DAS version is a separate part, 105012. Match the part number on the tube you are replacing.
My printer shows a heating error. Is it the heating tube?
Possibly. A failed temperature sensor or a loose connector can cause the same error, so contact Rev1 support and we will help you narrow it down.
Can Rev1 install it for me?
Yes. Rev1 Technologies is a certified CreatBot service provider and can replace and test the heating tube.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
