CreatBotPEEK-300 Hotend Heating BlockGenuine CreatBot Replacement Part
For the CreatBot PEEK-300

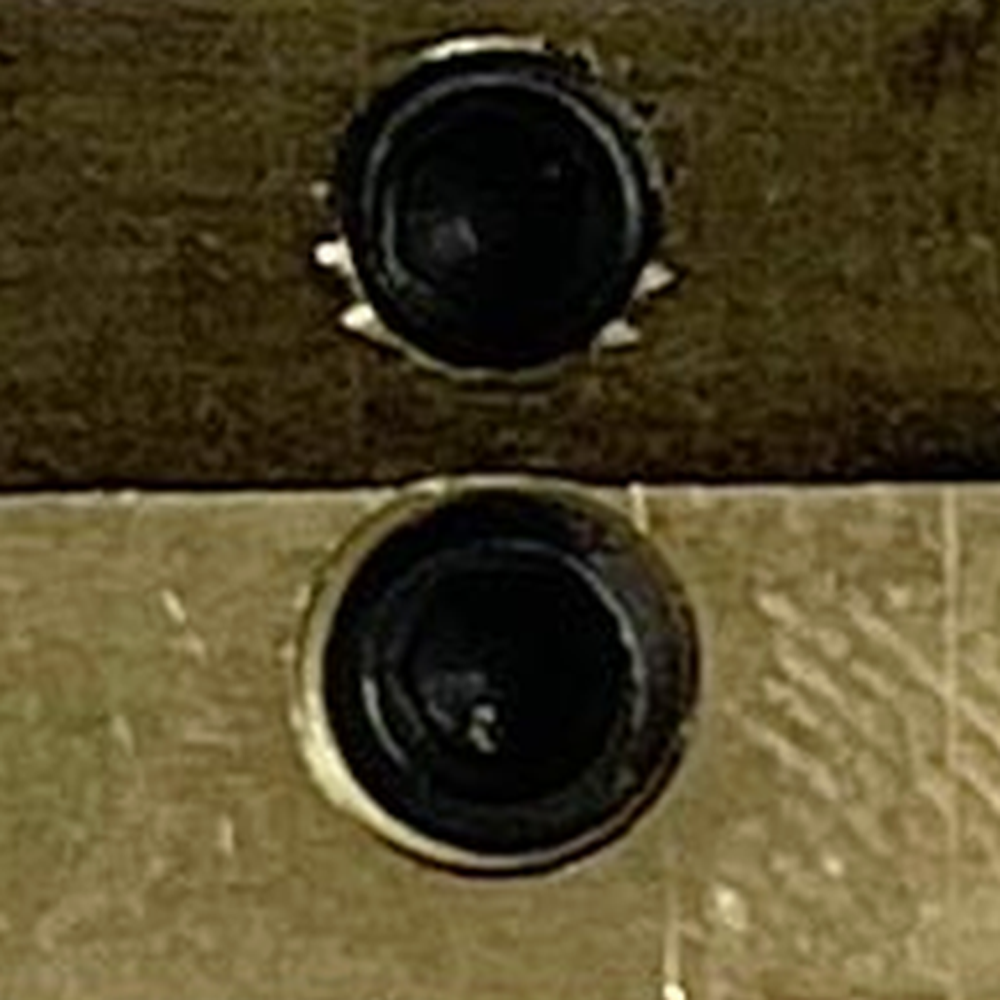

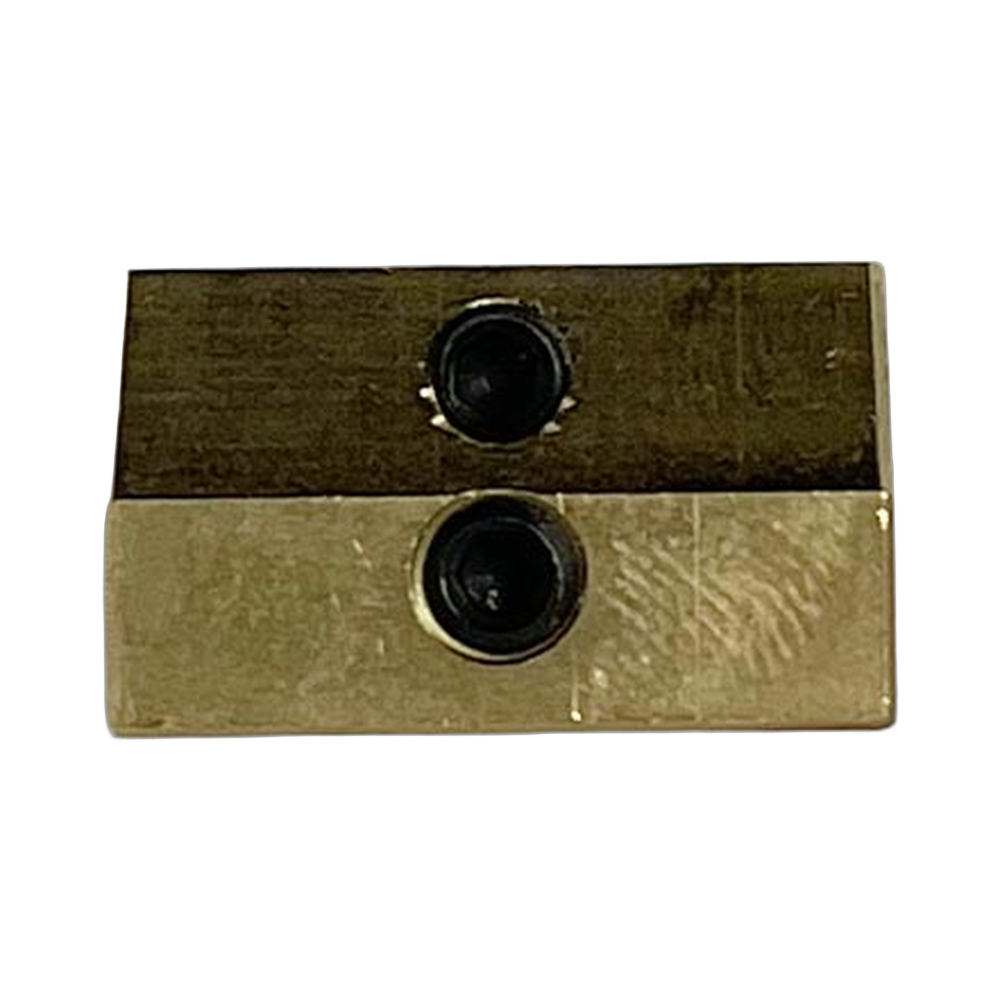

The CreatBot PEEK-300 heating block (part 102006) is the OEM hotend block for the CreatBot PEEK-300 high temperature 3D printer. The heating block sits at the bottom of the hotend: the nozzle threads into it, and it carries the heater and the temperature sensor. Its job is to transfer heat into the nozzle evenly so filament melts consistently. When the block is damaged, worn or fouled with burnt material, temperature control and extrusion both suffer. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Hotend Heating Block, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating block needs replacing
The nozzle will not tighten properly, or filament leaks around it.
That cannot be cleaned off without damaging the block.
After you have ruled out the heater and sensor, often caused by a loose fit or damaged bore.
From a crash or from a blob of plastic that encased the hotend.
Compatible CreatBot 3D printer
CreatBot also lists the DAS heating block (part 102007) for the PEEK-300. Check which block is fitted to your machine before ordering, or send Rev1 your serial number and a photo of the hotend and we will confirm the correct part. The PEEK-250 uses a different block, the HS Heating Block V2 (part 102005).
Installation tips
Power the printer off, unplug it and let the hotend cool completely before you remove the heater and temperature sensor from the old block. Photograph the wiring routing first so it goes back the same way, and handle the sensor wires gently. Fit the new block, reinstall the heater and sensor securely, then reheat the hotend and tighten the nozzle hot so it seals against the block. Afterwards, recalibrate nozzle height and run a short test print. If you would rather not work on the hotend yourself, Rev1 can do the job as your certified CreatBot service provider.
CreatBot PEEK-300 Hotend Heating Block Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Hotend Heating Block — Questions
Is this a genuine CreatBot part?
Yes. It is CreatBot part 102006, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my PEEK-250?
No. The PEEK-250 uses the HS Heating Block V2, part 102005.
Should I replace the nozzle at the same time?
It is a good opportunity to. A worn nozzle or one with damaged threads can harm the new block, so fitting a fresh genuine CreatBot nozzle along with the block is a sensible precaution.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
