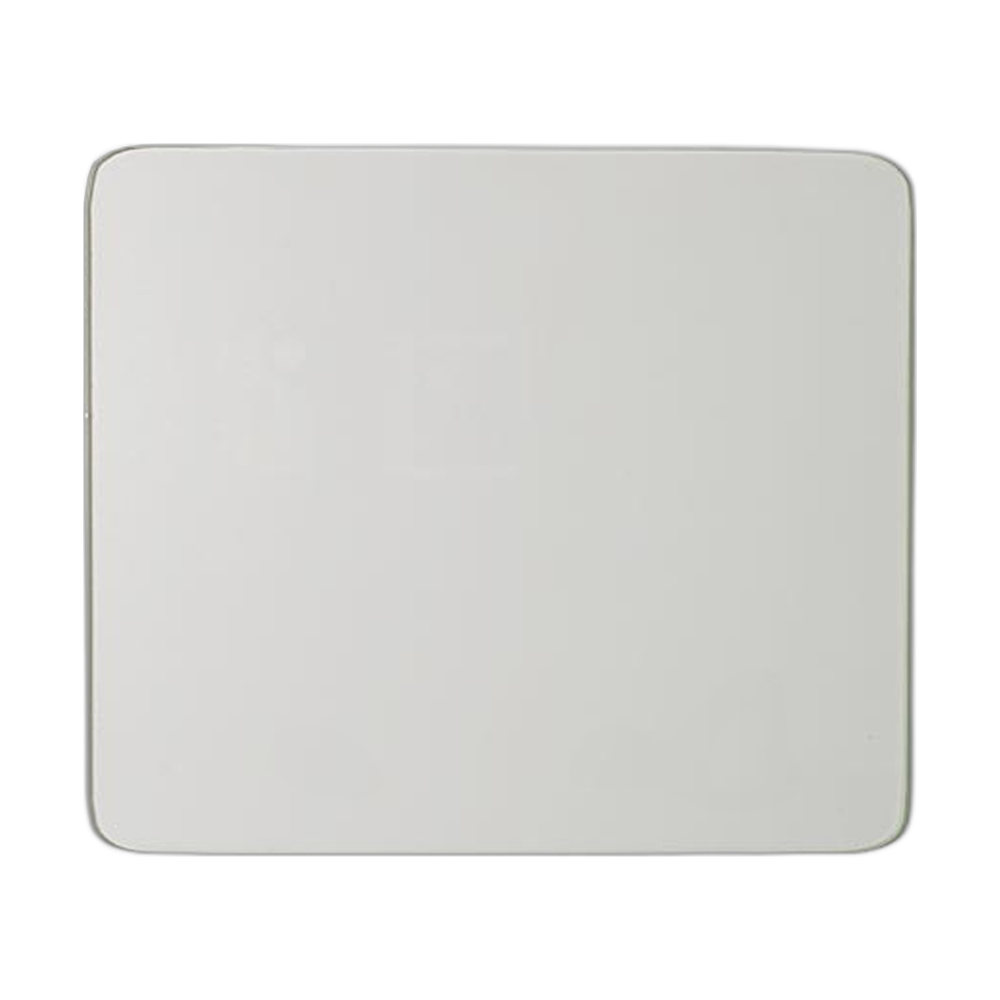

CreatBotPEEK-300 Glass PlateGenuine CreatBot Replacement Part
PEEK-300 Glass Build Plate
The CreatBot PEEK-300 glass plate (part 107015) is the OEM glass build surface for the CreatBot PEEK-300 3D printer. Glass is a popular build surface because it is flat and smooth: it gives an even first layer across the whole bed and leaves a glossy finish on the underside of the part. Glass can chip or crack, though, and a damaged plate is one of the most common reasons a large print fails in the first few minutes. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Glass Plate, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the glass plate needs replacing
A chip, crack or missing corner, even outside the area you normally print on.
Pitting or small craters where parts pulled glass away as they released.
First layers that will not stick in one spot no matter how well you clean it.
Never keep printing on a cracked glass plate. Cracks can spread during heating and cooling, and a broken plate can damage the nozzle.
Compatible CreatBot 3D printer
CreatBot also offers a carbon fiber plate for the PEEK-300 (107016). Other models use their own build surfaces, for example the F430 PEI film (107007) and the F1000 PEI film (107022).
Glass or carbon fiber?
Both plates fit the PEEK-300. Glass gives a very flat, smooth surface and a glossy bottom finish. The carbon fiber plate is an alternative surface if you prefer a different finish or adhesion behavior for a given material. Many users keep one of each so they can switch plates to suit the job, and so a spare is ready if one is damaged.
Installation tips
Let the bed cool completely before you touch the glass: hot glass is easy to crack with uneven pressure. Lift the old plate off, clean the bed underneath, then lower the new plate into the same position and secure it as the original was secured. Re-level the bed and run a first layer test. Clean glass with isopropyl alcohol and never use a metal scraper on its edges.
CreatBot PEEK-300 Glass Plate Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Glass Plate — Questions
Is this a genuine CreatBot glass plate?
Yes. It is CreatBot part 107015, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Can I use this plate on a PEEK-250?
No. It is listed for the PEEK-300 only. The PEEK-250 uses a removable magnetic sheet, part 107006.
Should I buy the glass plate or the carbon fiber plate?
Either works on the PEEK-300. If you are unsure which suits your materials, contact Rev1 and we will help you choose.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
