CreatBotPEEK-300 Extruder UnitGenuine CreatBot Replacement Part

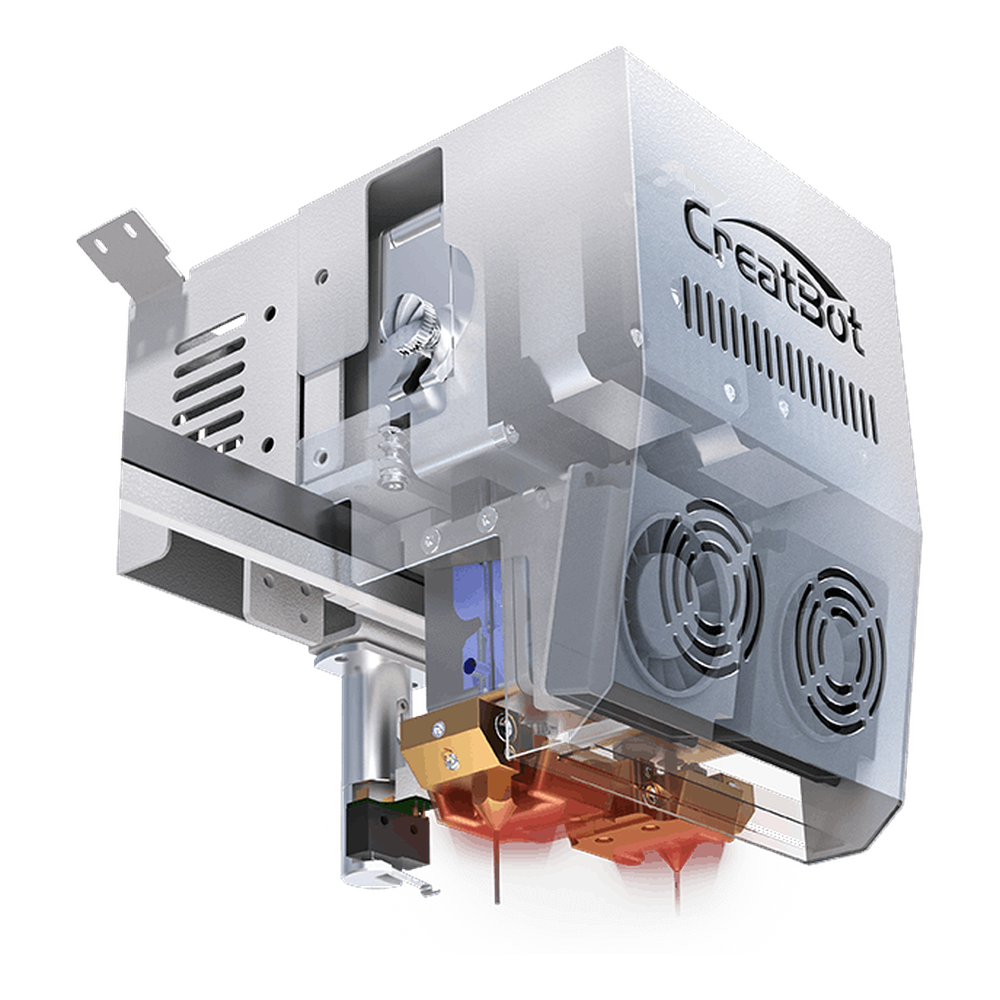

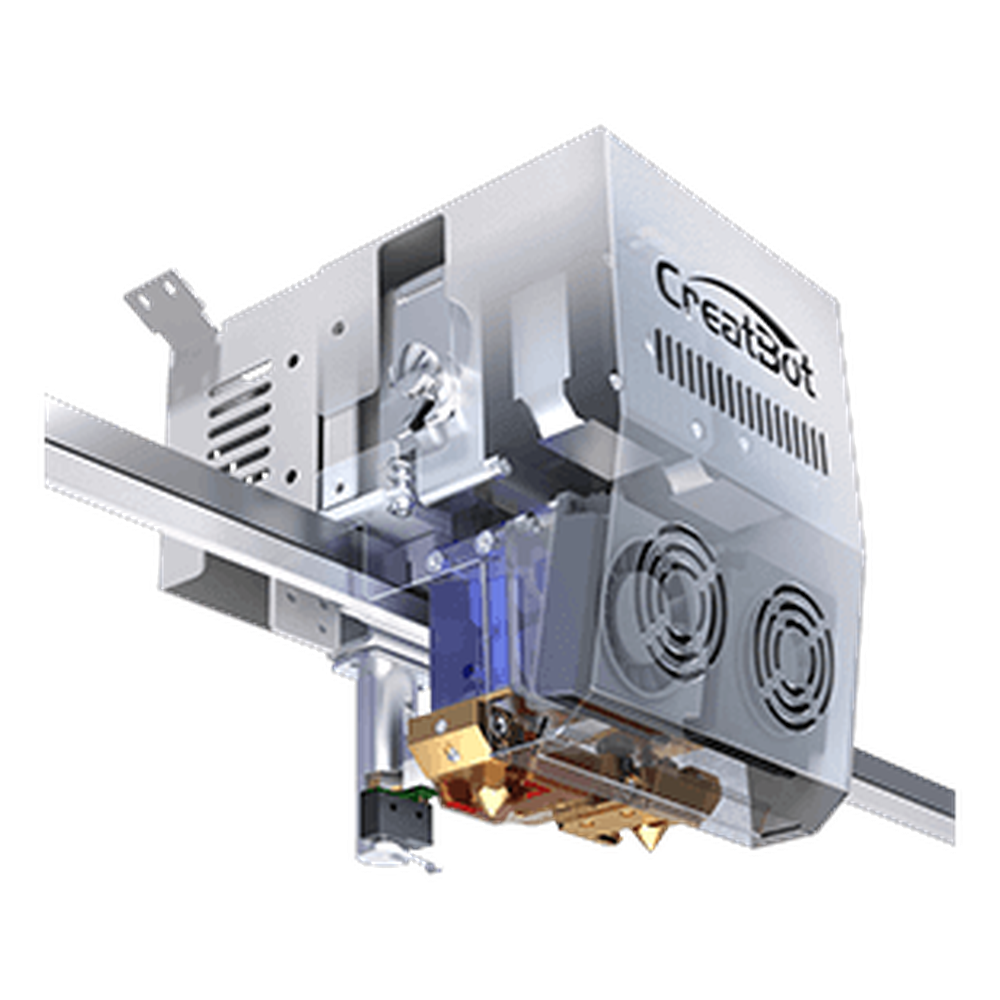

PEEK-300 Extruder Unit (Complete Extruder Assembly)
The CreatBot PEEK-300 extruder unit (part 183004) is the complete OEM extruder assembly for the CreatBot PEEK-300. It grips the filament and drives it into the hotend, and on a printer built for PEEK and PEI it does that with stiff, demanding materials over long print times. Consistent extrusion is essential for strong high performance parts. A slipping or worn extruder leaves voids and weak layers that you may not see from the outside. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Extruder Unit, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder unit needs replacing
Clicking, skipping or grinding from the extruder.
Thin walls, gaps or poor layer bonding that continue after the nozzle is cleaned.
Filament with heavy gear marks, or filament ground away at the drive gear.
A cracked or bent component after a jam, crash or rough handling.
Damp filament, a partial clog or temperature settings that do not suit the material can produce the same symptoms. Contact Rev1 support if you want help diagnosing the fault.
Compatible CreatBot 3D printer
The PEEK-250 has its own extruder unit, part 183003. D Series printers also use different units, such as the D600 Pro2 HS (183007) and D1000 HS (183009).
Installation tips
Unload filament with the hotend at temperature. Switch off and unplug the printer, then let the print head and chamber cool fully; high temperature machines stay hot for some time. Photograph the connectors and cable routing, swap the unit using the original hardware and reconnect everything as photographed. Load filament, run a manual extrusion test, re-check nozzle height and print a short calibration part before a long PEEK job. If your PEEK-300 is under warranty, contact Rev1 before starting.
CreatBot PEEK-300 Extruder Unit Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Extruder Unit — Questions
Will the PEEK-250 extruder unit fit the PEEK-300?
CreatBot lists separate units. Order 183004 for the PEEK-300.
Why do PEEK printers wear extruders?
PEEK and PEI are stiff filaments printed over long jobs, which puts steady load on the drive mechanism. Filled grades add abrasion.
Can Rev1 install it?
Yes. Rev1 Technologies is a certified CreatBot service provider and an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
