CreatBotPEEK-300 Extruder PCBGenuine CreatBot Replacement Part
PEEK-300 Extruder PCB for F430 and PEEK-300 3D Printers

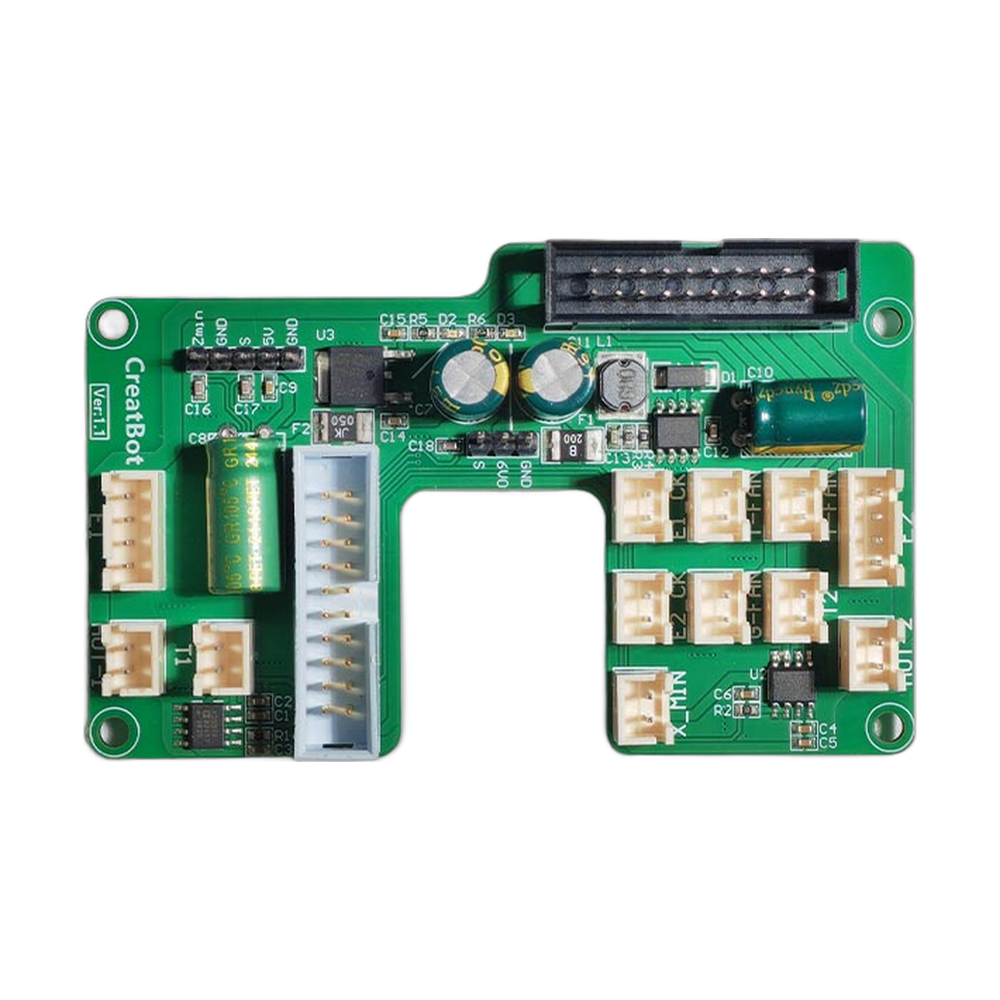

The CreatBot PEEK-300 extruder PCB (part 112017) is the OEM print head circuit board for the CreatBot PEEK-300, and CreatBot also lists it for the F430. Both printers are used for engineering and high temperature materials. On the print head, this board is the connection point for the hotend heaters, temperature sensors, fans and extruder motors, and it links them through the printhead harness to the main control board. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace it with a genuine board
For the PEEK-300 and F430 print head, so every lead goes back where it came from.
Heater power and sensor signals pass through this board, and high temperature printing depends on both.
If you run a PEEK-300 and an F430 that use this board.
Signs the extruder PCB needs replacing
Hotend temperature errors or readings that jump as the head moves.
A heater, fan or extruder motor that stops while the part itself tests good.
Heat discolored or loose connectors on the board.
Compatible CreatBot 3D printers
The F430 has also used the F430 extruder PCB in V1.1 (112008) and V2.8 (112019). Check which board is in your F430 before ordering. The PEEK-250 uses part 112007.
Installation tips
Let the printer cool completely, then power it off and unplug it. Photograph the board with every connector in place, transfer the leads one at a time and seat each plug fully. Route the harness so it flexes freely with the head, refit the cover, and confirm a stable hotend temperature on a short test before running a long job.
CreatBot PEEK-300 Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Extruder PCB — Questions
Does it fit my F430?
It is listed for the F430, but the F430 has also used boards 112008 and 112019. Match the board in your printer, or send Rev1 a photo and we will confirm.
Will it fit the PEEK-250?
No. The PEEK-250 uses part 112007.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 112017, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
