CreatBotPEEK-300 E2 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot PEEK-300

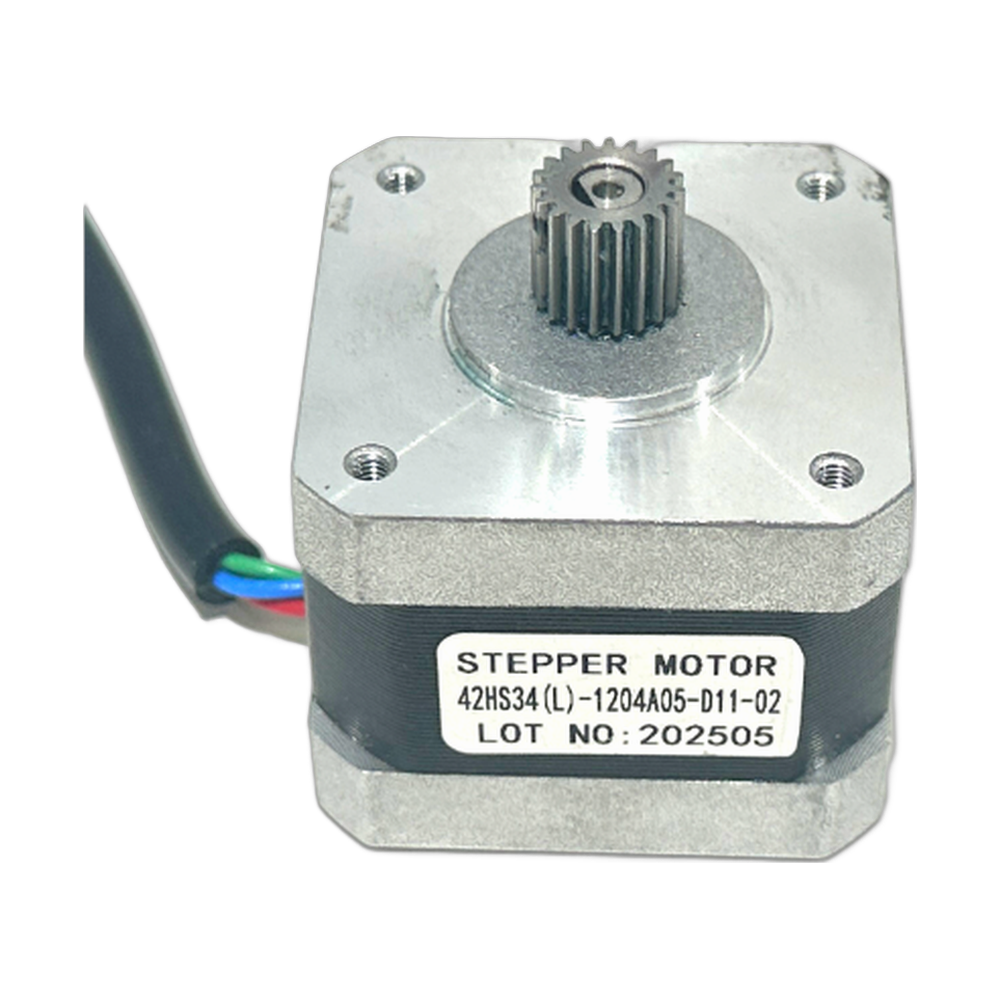

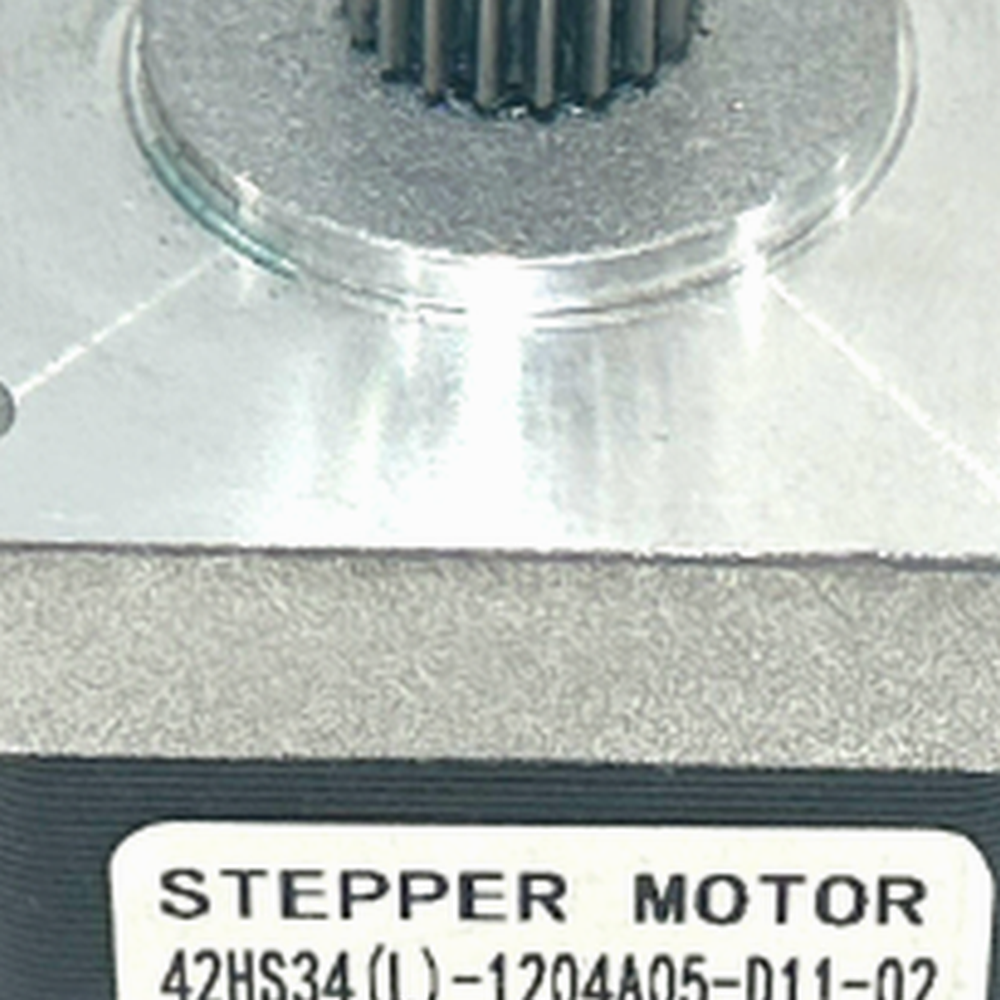

The CreatBot PEEK-300 E2 motor (part 131034) drives the second extruder (E2) on the CreatBot PEEK-300. On a high performance printer the second extruder often prints support or a second material, and complex PEEK parts can depend on that support to print at all. When the E2 motor weakens, supports print thin or fail, overhangs sag and the whole part is at risk. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 E2 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
What the genuine E2 motor gives you
The same motor the PEEK-300 ships with, for the stock mount and cable.
E2 feeds the same way as E1, so existing profiles stay valid.
For complex parts in high performance materials.
Signs the E2 motor is failing
E2 does not respond to load or extrude commands.
Clicking or skipping on E2 only, with a clear nozzle.
Supports or second material sections print thin, patchy or not at all.
Clogs, a worn drive gear or a loose cable can look the same. Rev1 support can help you confirm the motor is at fault.
Compatible CreatBot 3D printer
The PEEK-300 first extruder uses the E1 motor, part 131033. The PEEK-300 Z motor is part 131037.
Installation tips
Unload filament from E2 and let the printer cool fully, then power off and unplug it. Photograph the wiring and note the drive gear position before you remove the motor. Fit the new motor in the same orientation, align the drive gear with the filament path and reset the tension. Extrude a short length through E2 and print a small dual extrusion test before a full job.
CreatBot PEEK-300 E2 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 E2 Extruder Motor — Questions
Can I use this motor in the E1 position?
Order the part listed for the position you are repairing: 131033 for E1 and 131034 for E2.
Does it fit the PEEK-250?
No. The PEEK-250 uses extruder motor 131015.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can fit and test the motor.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
