CreatBotPEEK-300 E1 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot PEEK-300

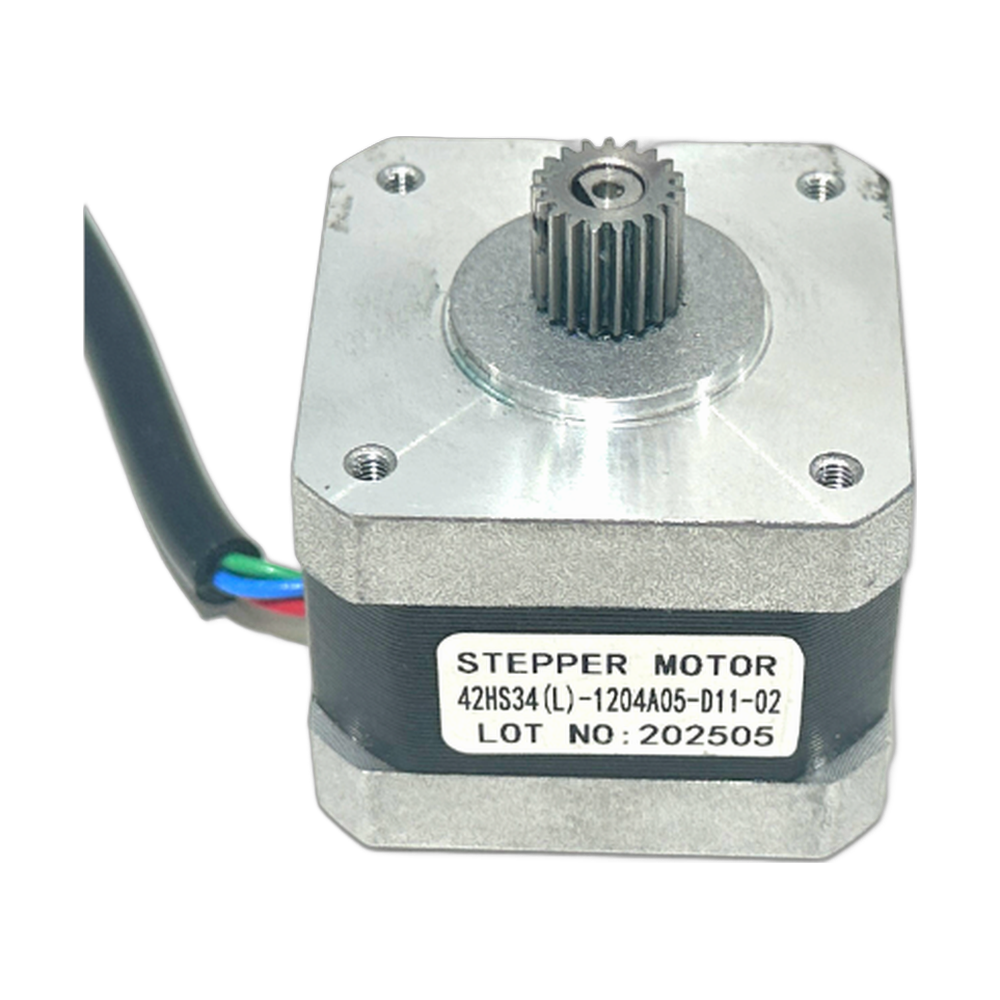

The CreatBot PEEK-300 E1 motor (part 131033) is the OEM motor for the first extruder (E1) on the CreatBot PEEK-300. It turns the drive gear that feeds filament into the hotend. The PEEK-300 is built to print PEEK and other high performance polymers, and these materials need steady, accurate feeding to bond properly layer to layer. A failing E1 motor shows up as under-extrusion, porous walls and weak parts from the first extruder. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 E1 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the E1 motor needs replacing
E1 does not turn when you load or extrude filament.
Clicking or skipping on E1 while the nozzle and filament path are clear.
Thin walls, gaps or poor layer bonding from E1 while E2 prints normally.
The motor vibrates or hums without turning, or runs much hotter than the E2 motor.
A partial clog, a worn drive gear or a cable fault can cause the same problems. Rev1 support can help you confirm the motor is the cause before you order.
Compatible CreatBot 3D printer
The PEEK-300 second extruder uses the E2 motor, part 131034. The PEEK-300 motion motors are parts 131035 (X), 131036 (Y) and 131037 (Z). The PEEK-250 uses a different extruder motor, part 131015.
Installation tips
Unload the filament from E1 and let the printer cool fully. Power off and unplug it. Photograph the extruder and wiring, and note how the drive gear sits on the shaft. Install the new motor in the same orientation, align the drive gear with the filament path and set the tension. Extrude a short test length through E1, then run a small test print before you start a full job in PEEK.
CreatBot PEEK-300 E1 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 E1 Extruder Motor — Questions
Is the E1 motor the same as the E2 motor?
They are separate parts. Order 131033 for E1 and 131034 for E2.
Will it fit the PEEK-250?
No. The PEEK-250 uses extruder motor 131015.
Is this a genuine CreatBot part?
Yes. It is part 131033, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
