CreatBotPEEK-300 DAS Temperature SensorGenuine CreatBot Replacement Part
For the CreatBot PEEK-300

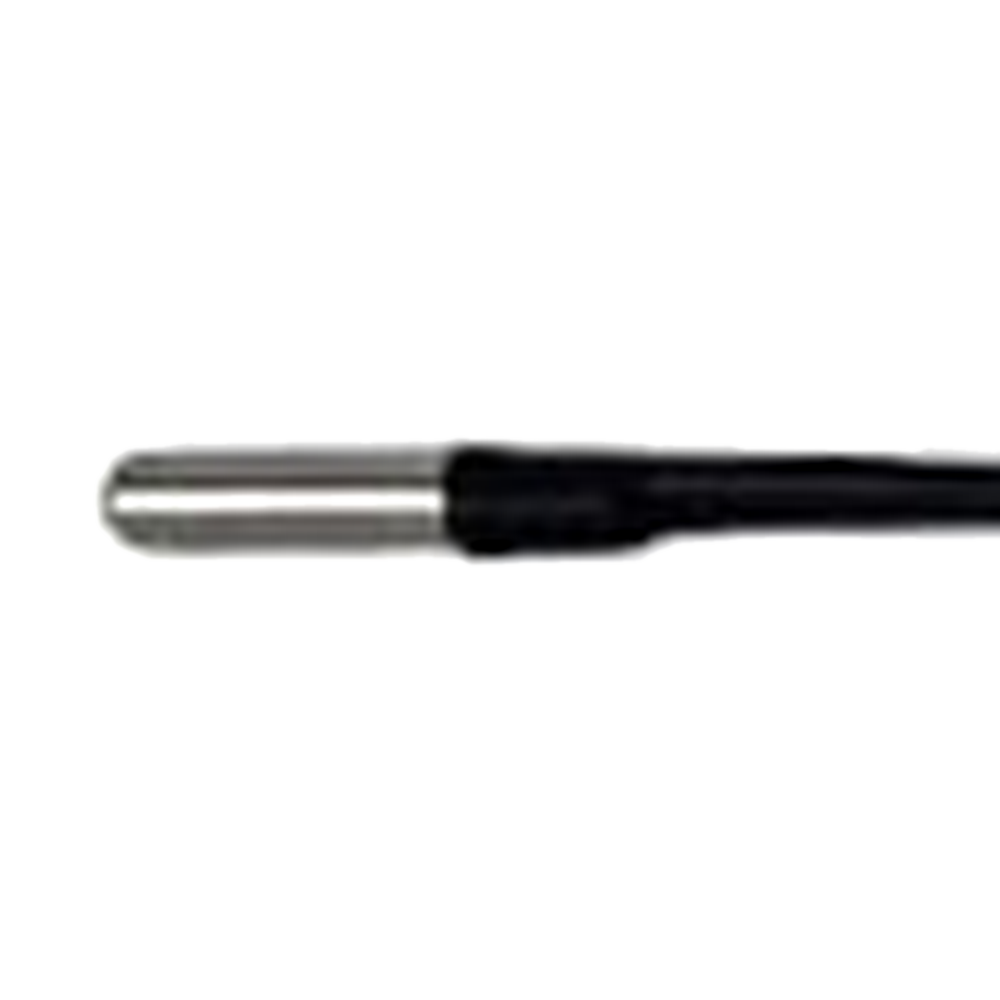

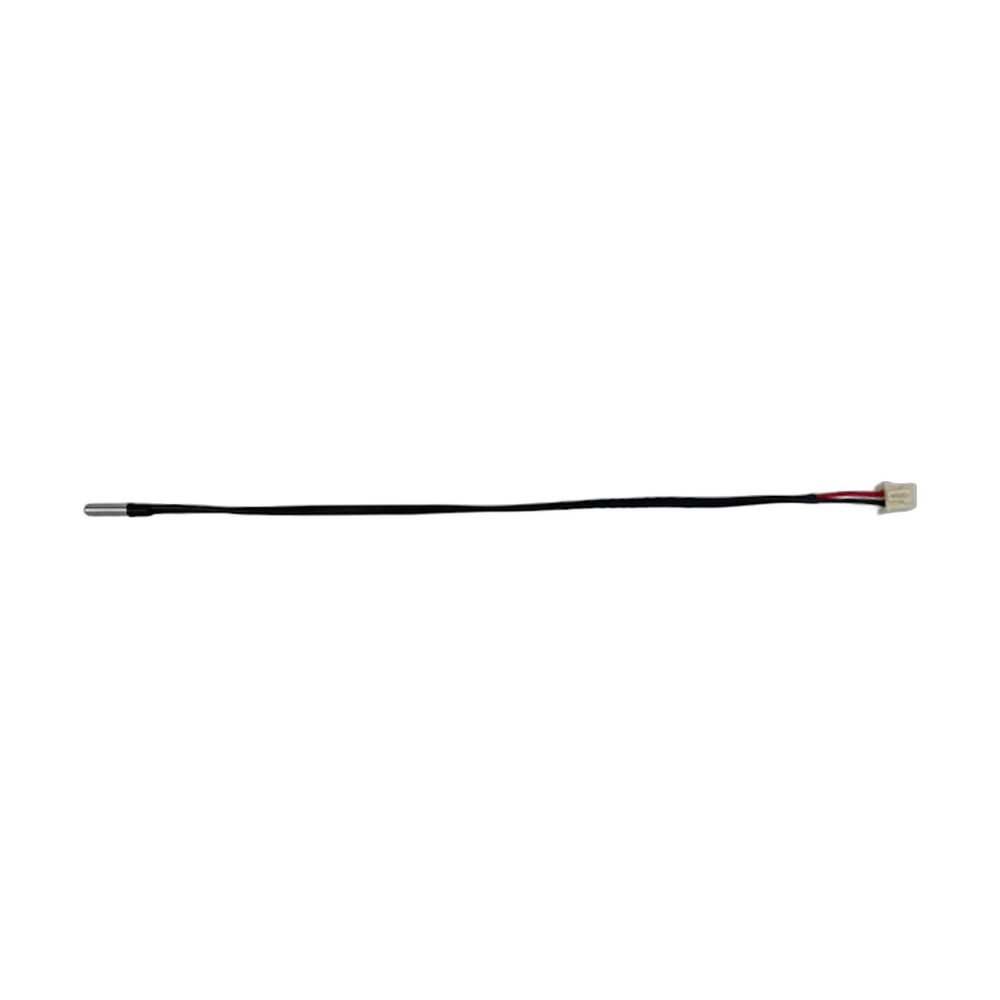

The CreatBot PEEK-300 DAS temperature sensor (part 106013) is an OEM replacement sensor for the CreatBot PEEK-300 3D printer. A temperature sensor tells the control board how hot a heated component is, and the board uses that reading to regulate heating. High performance materials depend on stable, accurate temperature control, so a faulty sensor can stop a PEEK-300 from printing reliably or from printing at all. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 DAS Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the temperature sensor needs replacing
The touchscreen shows a temperature error or an impossible reading.
The displayed temperature jumps around or drops out while the printer is heating.
Heating stops or behaves erratically even though the heater itself tests good.
Visible damage to the sensor, its leads or its connector.
A loose connector or damaged cable can cause the same symptoms. Check the wiring first, and contact Rev1 support if you want help confirming the sensor is the cause.
Compatible CreatBot 3D printer
The PEEK-300 is also listed with other CreatBot temperature sensors: the PEEK300 temperature sensor (part 106009) and the F430 temperature sensor (part 106007). Make sure you order the sensor that matches the one installed in your printer. The PEEK-250 uses different sensors, part 106005 or 106006 (V2).
Choosing the right PEEK-300 sensor
Because more than one sensor is listed for the PEEK-300, compare the name and labeling of your existing sensor with the part names above before ordering. If you cannot tell which one you have, send Rev1 a photo of the old sensor and your printer's serial number and we will confirm the correct part.
Installation tips
Power the printer off, unplug it and let all heated parts cool completely before you begin. Photograph the sensor's connection and cable routing before removing the old part. Route the new leads the same way, clear of moving parts and hot surfaces, and secure them so they cannot rub or pull. After installation, power up, watch the temperature reading as the printer heats, and run a short test print to confirm stable control.
CreatBot PEEK-300 DAS Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 DAS Temperature Sensor — Questions
Is this a genuine CreatBot sensor?
Yes. It is CreatBot part 106013, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my PEEK-250?
No. The PEEK-250 uses part 106005 or the V2 sensor, part 106006.
How do I know if my PEEK-300 needs the DAS sensor or part 106009?
Match the sensor already in your printer. If you are unsure, Rev1 support can identify it from a photo and your serial number.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
