CreatBotPEEK-300 DAS Heating TubeGenuine CreatBot Replacement Part
PEEK-300 DAS Heating Tube (Heater Cartridge)

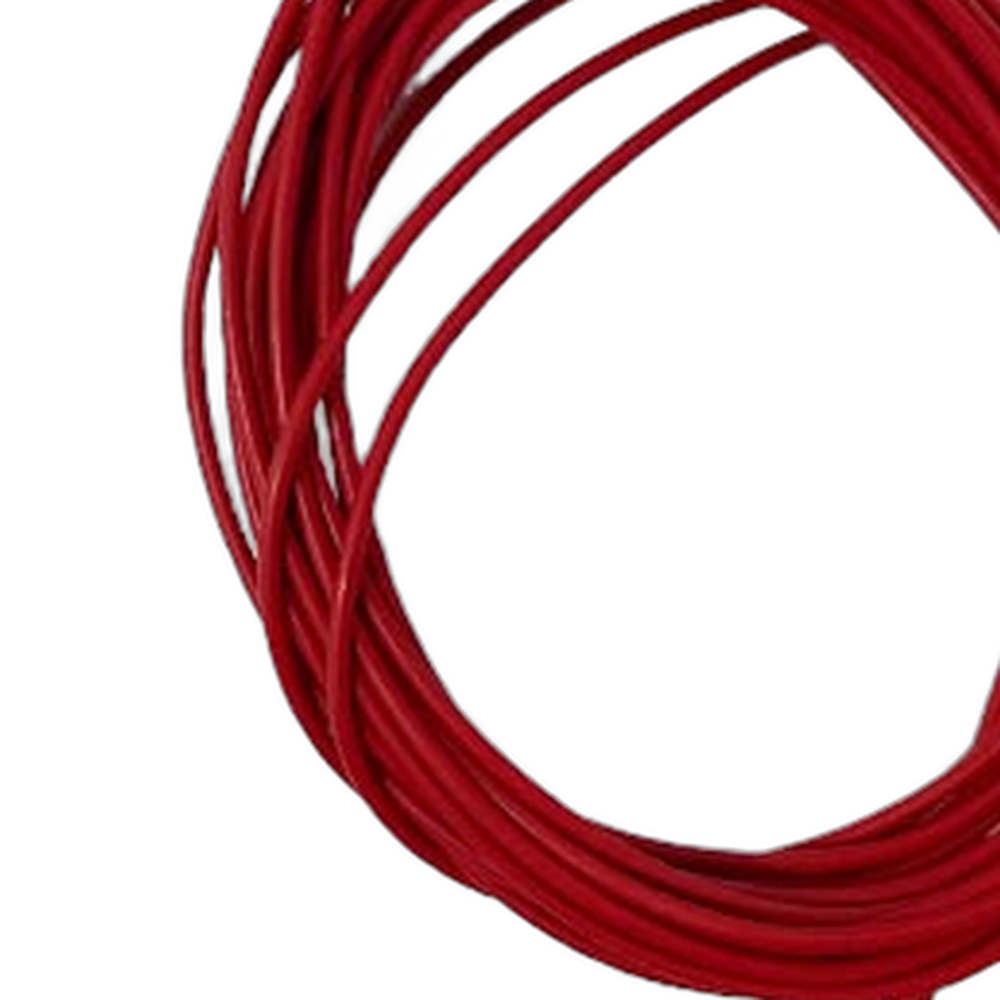

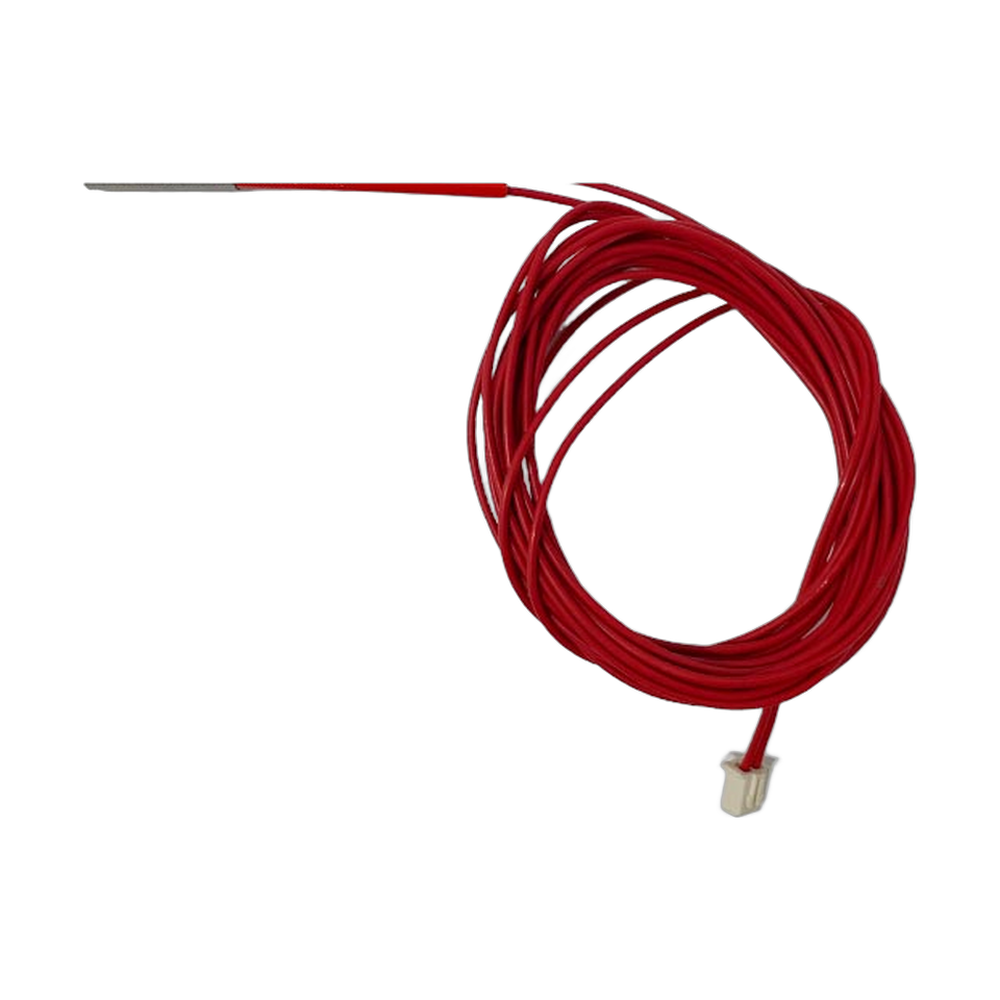

The CreatBot PEEK-300 DAS heating tube (part 105012) is the OEM heater cartridge for the DAS version of the CreatBot PEEK-300. The heating tube sits in the heating block and supplies the heat that melts filament before it leaves the nozzle. On a machine built for high temperature materials, a heater that cannot hold its set temperature quickly shows up as failed layers and stopped prints. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 DAS Heating Tube, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating tube needs replacing
The hotend heats slowly or never reaches its set temperature.
The printer reports a heating error or a heating timeout.
The temperature swings during a print, causing under-extrusion or weak layer bonding.
Damaged, pinched or burnt wiring at the cartridge.
A failed thermistor, loose connector or board fault can produce similar symptoms. Rev1 support can help you narrow it down before you order.
Compatible CreatBot 3D printer
The PEEK-300 has more than one heating tube listed. The standard PEEK300 heating tube is part 105008, and part 105006 is also listed for the PEEK-300. If you run a PEEK-250, it uses part 105005.
Choosing the right PEEK-300 heating tube
Order the DAS heating tube only if your PEEK-300 is the DAS version. The easiest check is to compare the cartridge and its connector with the one installed in your printer, or send Rev1 your serial number and we will confirm the correct part before it ships.
Installation tips
Power the printer off, unplug it and let the hotend cool completely. Photograph the wiring route and connector before you disconnect the old cartridge. Loosen the retaining screw, slide the old heating tube out of the block and seat the new one fully, then route the wires the same way so they cannot rub on moving parts. After installation, heat the hotend and watch that it reaches and holds temperature, then run a short test print. If your printer is under warranty, contact Rev1 first.
CreatBot PEEK-300 DAS Heating Tube Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 DAS Heating Tube — Questions
Is this a genuine CreatBot heating tube?
Yes. It is CreatBot part 105012, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit a standard PEEK-300?
This part is the DAS version. A standard PEEK-300 uses part 105008. Contact Rev1 if you are unsure which version you have.
Should I keep a spare on hand?
Many users do. A heater failure stops the printer, and a spare lets you swap it and get back to printing quickly.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
