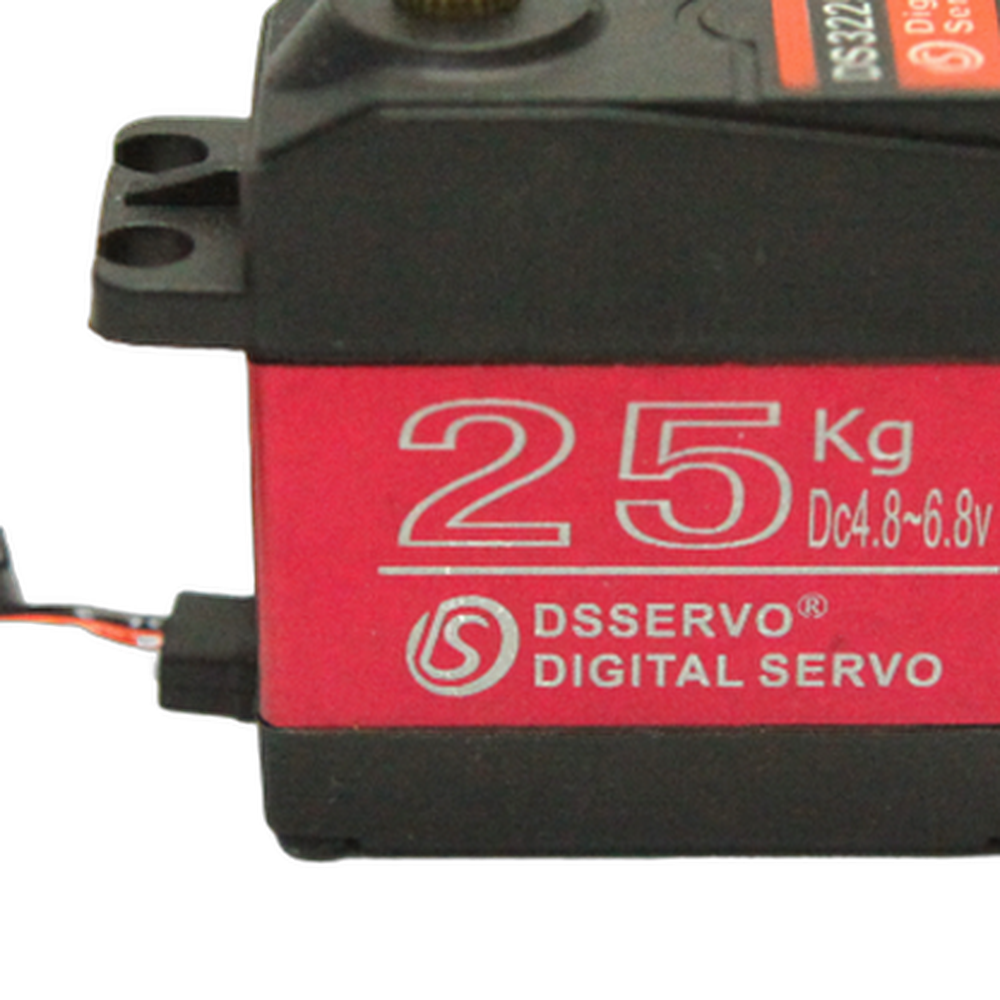

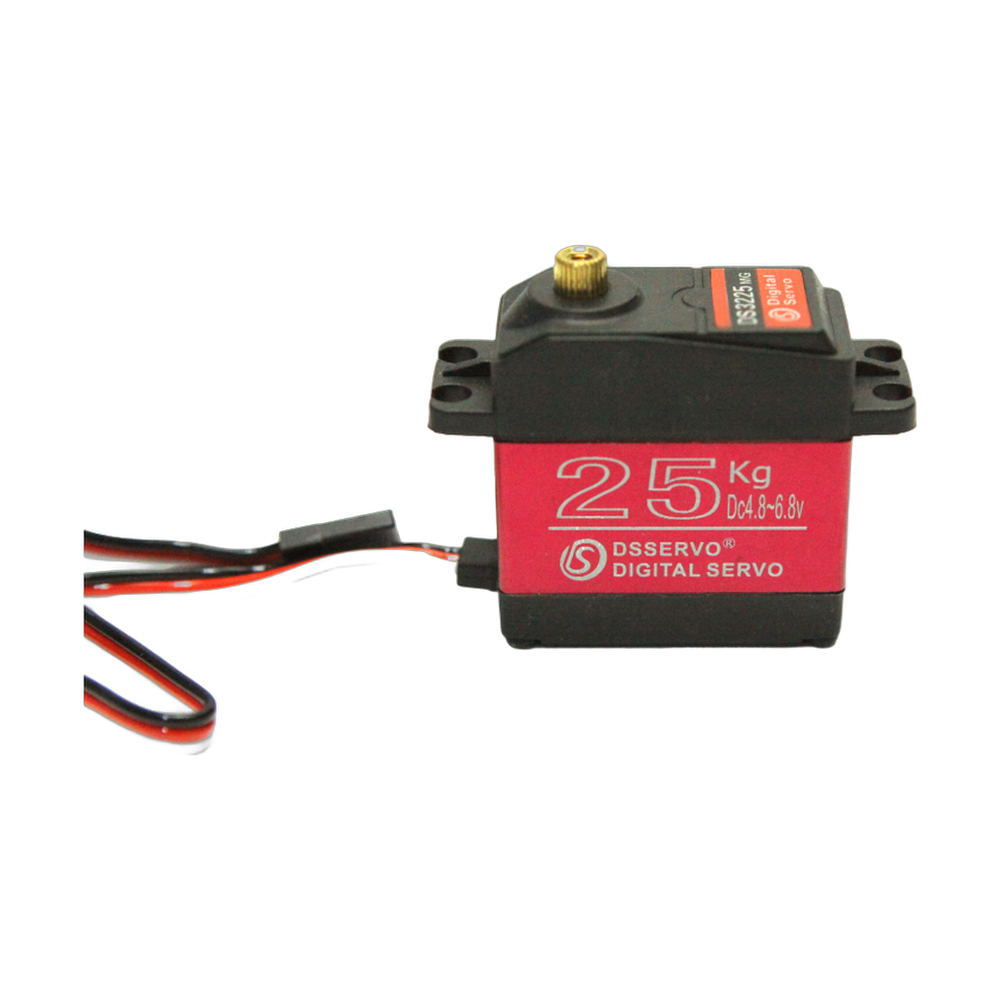

CreatBotPEEK-300 Bed Leveling ServoGenuine CreatBot Replacement Part
PEEK-300 Z Bed Leveling Servo
The CreatBot PEEK300 Z servo for bed leveling (part 133009) is the OEM servo for the automatic bed leveling system on the CreatBot PEEK-300. High performance materials need a first layer that is right everywhere on the plate, because poor adhesion leads to warping and lifting as the part grows. The leveling servo moves the probe into position so the printer can measure the plate in Z, then lifts it clear before the print begins. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Bed Leveling Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the leveling servo needs replacing
The leveling routine stops with an error or the probe never makes contact.
The probe stays deployed during printing.
The servo moves erratically, vibrates or is noisy.
Leveling results vary between runs on a bed that has not changed.
On a high temperature machine, cables and connectors near the print head can also degrade over time. Inspect the servo cable for damage before you replace the servo, or ask Rev1 support to help.
Compatible CreatBot 3D printer
The PEEK-300 also has a separate auto-rising servo for the idle nozzle, part 133012 (CreatBot also lists 133013). Other models use their own leveling servos, such as the F430 NX (133005).
Installation tips
Turn the printer off and let the whole machine cool fully. Photograph the servo, the probe linkage and the wiring. Remove the old servo, fit the new one in the same orientation and reconnect it, keeping the cable away from heated parts. Clean the probe and build plate, run the leveling routine more than once to confirm repeatable readings, and finish with a first layer test print.
CreatBot PEEK-300 Bed Leveling Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Bed Leveling Servo — Questions
Is this the same servo as the auto-rising servo?
No. This one serves the bed leveling probe. The auto-rising servo lifts the idle nozzle and is a different part.
Will it fit other CreatBot printers?
It is listed for the PEEK-300 only. Contact Rev1 for the correct servo for other models.
Can Rev1 install it?
Yes. Rev1 is a certified CreatBot service provider and can fit the servo and check leveling.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
