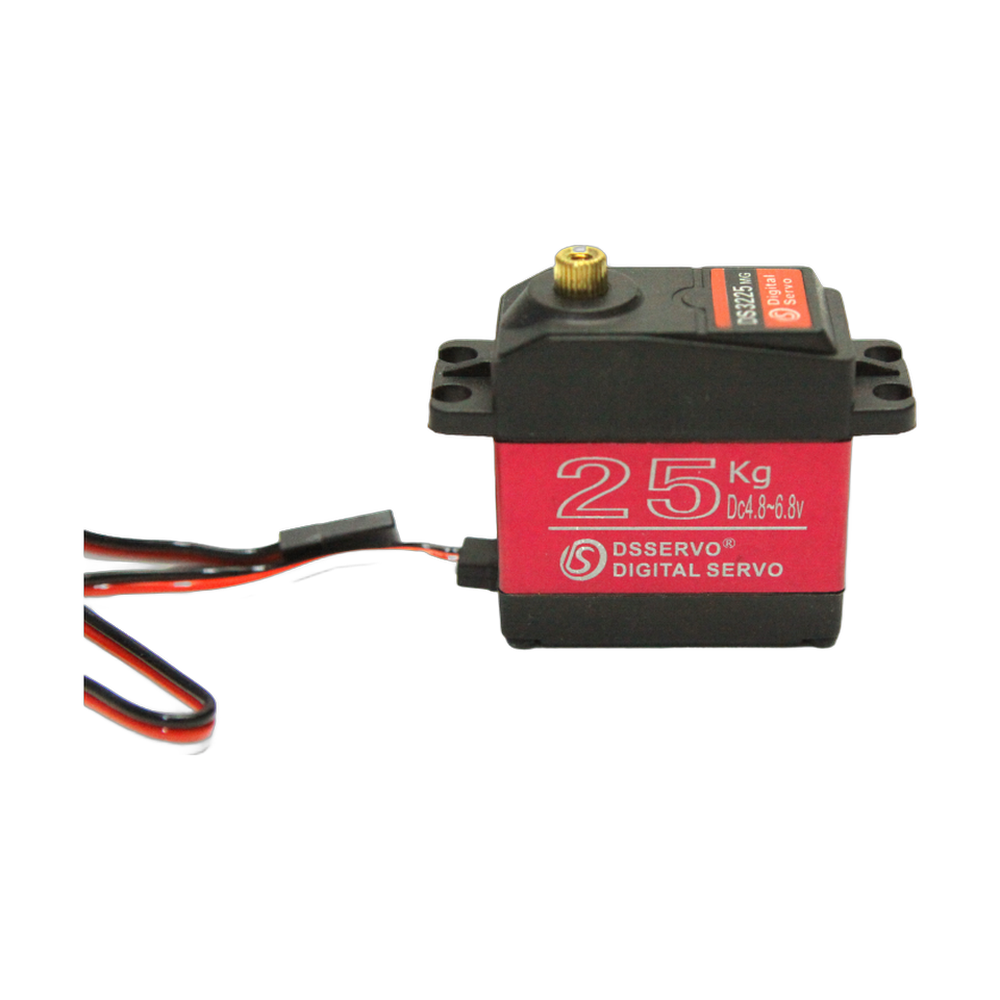

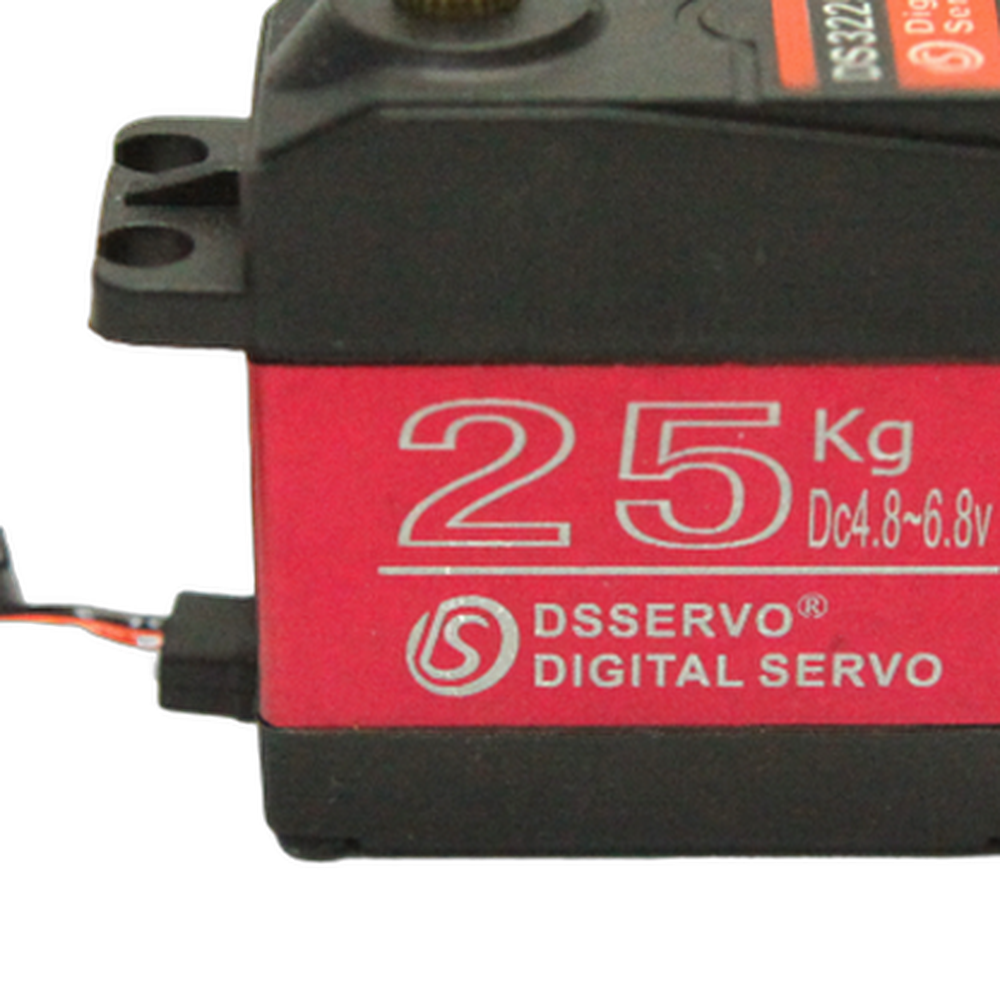

CreatBotPEEK-300 Auto-Rising ServoGenuine CreatBot Replacement Part
For the CreatBot PEEK-300
The CreatBot PEEK300 servo for auto-rising (part 133012) is the OEM servo that drives the nozzle auto-rising system on the CreatBot PEEK-300. The PEEK-300 is built for high performance materials such as PEEK, and the parts it makes are usually functional end-use parts. The auto-rising system lifts the idle nozzle away from the part while the other nozzle prints, so it cannot scrape the surface or leave deposits that weaken layer bonding. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 Auto-Rising Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why the auto-rising servo matters on the PEEK-300
High performance material prints often run for many hours, and a dragging nozzle can ruin one late in the build.
Support and model material stay where they belong.
Each time the printer switches extruders.
Signs the servo needs replacing
The idle nozzle does not lift, or lifts only partway.
The servo jitters, buzzes or fails to respond at tool changes.
Dual extrusion prints show scrape marks or material deposits from the idle nozzle.
Compatible CreatBot 3D printer
CreatBot also lists the general auto-rising servo, part 133013, for the PEEK-300. Rev1 can confirm which one is fitted to your machine. The PEEK-300 bed leveling servo is a separate part, 133009.
Installation tips
The PEEK-300 runs hot. Power it off and let the whole machine cool completely before you work on the print head. Photograph the servo mounting and linkage, swap the servo in the same orientation, and reconnect it with the cable routed clear of the heaters. Confirm that the idle nozzle lifts fully and both nozzles sit at the correct height, then run a dual extrusion test.
CreatBot PEEK-300 Auto-Rising Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 Auto-Rising Servo — Questions
Is this the bed leveling servo?
No. The PEEK-300 bed leveling servo is part 133009.
Which do I need, 133012 or 133013?
Both are listed for the PEEK-300. Send Rev1 a photo of the fitted servo or your serial number and we will confirm the match.
Is it genuine CreatBot?
Yes, part 133012, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
