CreatBotPEEK-300 32-Bit MotherboardGenuine CreatBot Replacement Part

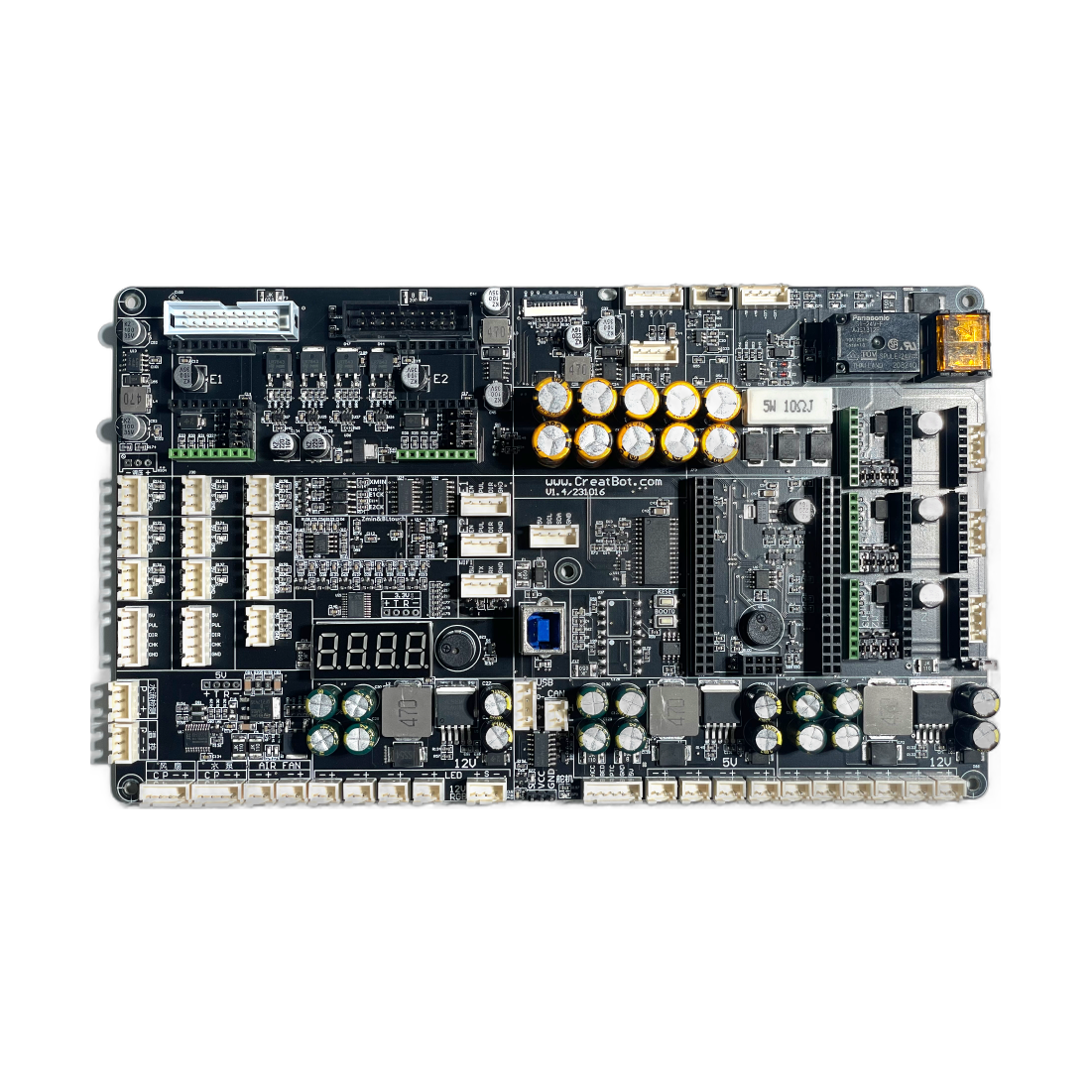

PEEK-300 32-Bit Motherboard V1.4 (Main Control Board)

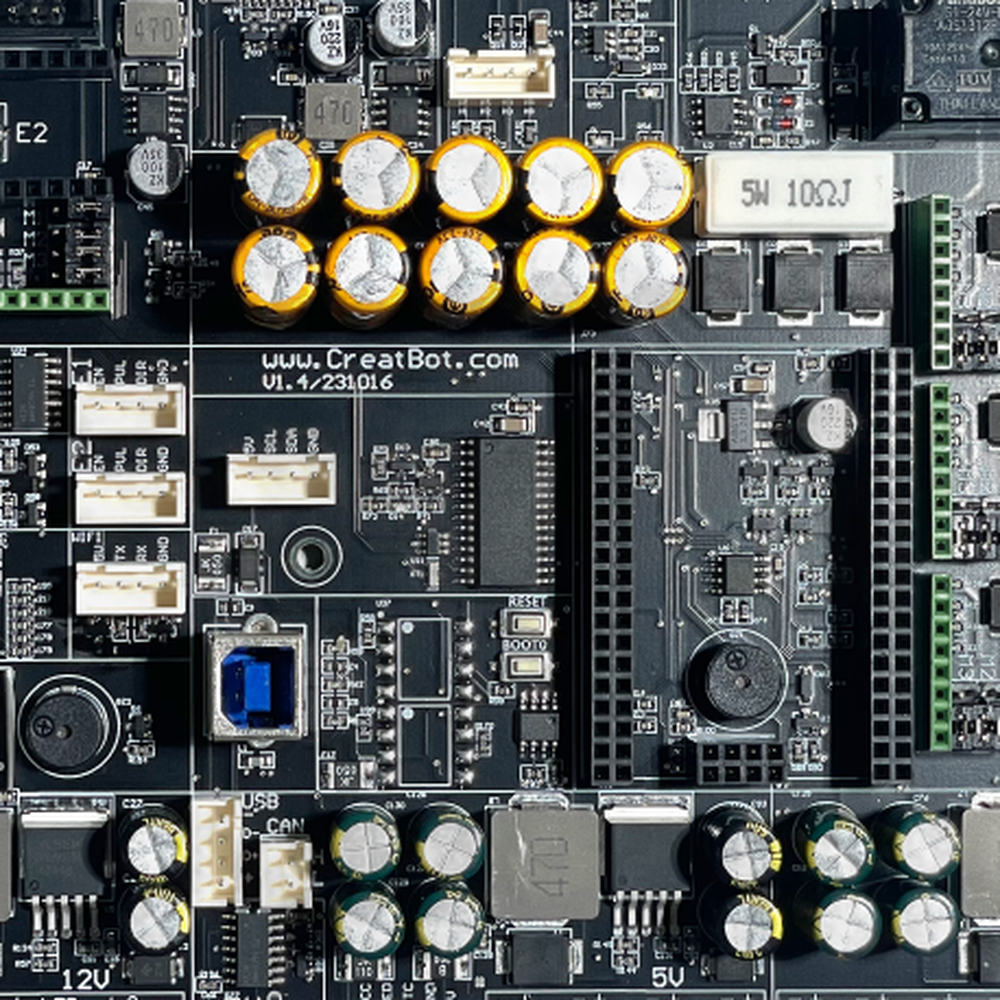

The CreatBot PEEK-300 32-bit motherboard V1.4 (part 111018) is the OEM main control board for PEEK-300 printers built with CreatBot's 32-bit electronics. It runs the printer's firmware and controls the motion system, the hotends, the heated components and the sensors. On a printer made for PEEK and other high temperature materials, stable control of those heaters is critical, and that control starts at the motherboard. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-300 32-Bit Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your motherboard may need replacing
The PEEK-300 does not boot or the screen cannot communicate with the printer.
Temperature, motion or fan faults that remain after the component itself has tested good.
Visible damage on the board, such as a burnt component or a damaged connector.
Power supply, cable and extruder board faults can look similar. Contact Rev1 support before ordering and we will help you confirm the cause.
Compatible CreatBot 3D printer
PEEK-300 printers with 8-bit electronics use the PEEK-300 8-bit motherboard, V9.6 (part 111016) or V1.2 (part 111017). The PEEK-250 uses part 111004.
Which PEEK-300 board do I have?
CreatBot has built the PEEK-300 with 8-bit and 32-bit controllers, and the two run different firmware. Unplug the printer and read the marking on the existing board. A board marked 32Bit V1.4 is replaced by this part. A board marked 8Bit needs part 111016 or 111017, matching the version on the board. If the marking is hard to read, send Rev1 a photo.
Installation
Let the printer cool, then power it off and unplug it. Photograph every connector before you disconnect anything, use anti-static precautions, and move the cables to the new board one at a time. Check the firmware with Rev1 support and confirm heating on a short test before running a long high temperature job. Under warranty? Contact Rev1 first, as your certified CreatBot service provider.
CreatBot PEEK-300 32-Bit Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-300 32-Bit Motherboard — Questions
Can I replace an 8-bit PEEK-300 board with this one?
Do not assume so. The 32-bit board uses different firmware and may need wiring changes. Ask Rev1 support first.
Does it fit the PEEK-250?
No. The PEEK-250 uses part 111004.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 111018, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
