CreatBotPEEK-250 Z MotorGenuine CreatBot Replacement Part

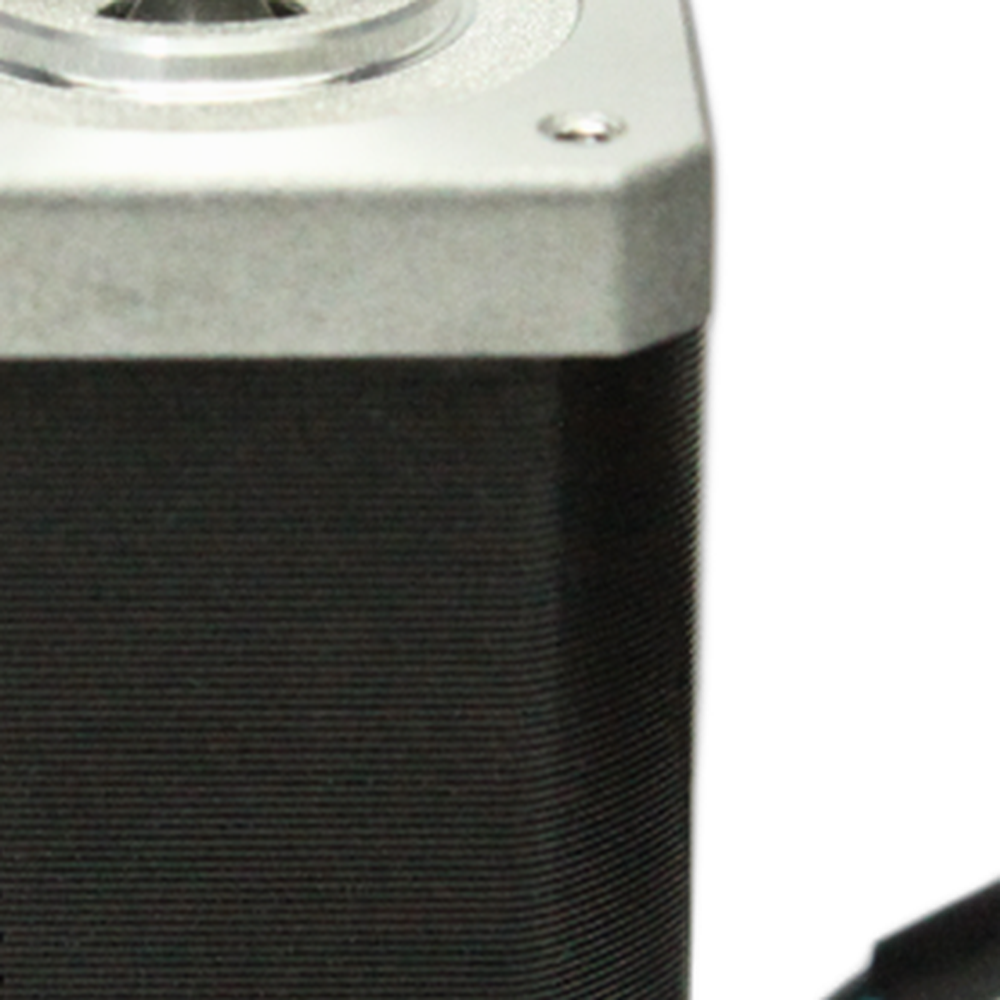

PEEK-250 Z Motor (Z-Axis Motor)
The CreatBot PEEK-250 Z motor (part 131014) is the OEM Z-axis motor for the CreatBot PEEK-250. It steps the Z axis by one layer height after each layer, so it sets layer thickness and the first layer gap. PEEK parts depend on good layer fusion for their strength, and a Z axis that moves unevenly leaves weak or inconsistent layers in parts that are often meant for demanding applications. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The Z axis does not home, or stalls when you jog it.
Uneven layer lines, banding or a step in height partway up a print.
The first layer gap changes between prints even after leveling.
Grinding, clicking or rough movement from the Z drive.
Binding in the Z mechanism, a loose coupling or a damaged cable can produce the same results. Rev1 support can help you confirm the motor is the cause before you order.
Compatible CreatBot 3D printer
The PEEK-250 also uses the X/Y high temp motor (131013) and the extruder motor (131015). The PEEK-300 Z motor is a different part, 131037.
Installation tips
Allow the printer to cool fully, then switch it off and unplug it. Support the Z assembly so it cannot drop when the motor is released. Photograph the cable routing and connector, fit the new motor in the same position and orientation, and confirm it is fully seated. Move the axis through its full travel, then home, re-level the bed and print a first layer test before running PEEK again.
CreatBot PEEK-250 Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Z Motor — Questions
Does the PEEK-250 Z motor fit the PEEK-300?
No. The PEEK-300 uses Z motor 131037.
Do I need to re-level after replacing it?
Yes. Re-level and check the first layer after any work on the Z axis.
Is this a genuine CreatBot part?
Yes. It is part 131014, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
