CreatBotPEEK-250 X/Y/Z/E DriveGenuine CreatBot Replacement Part

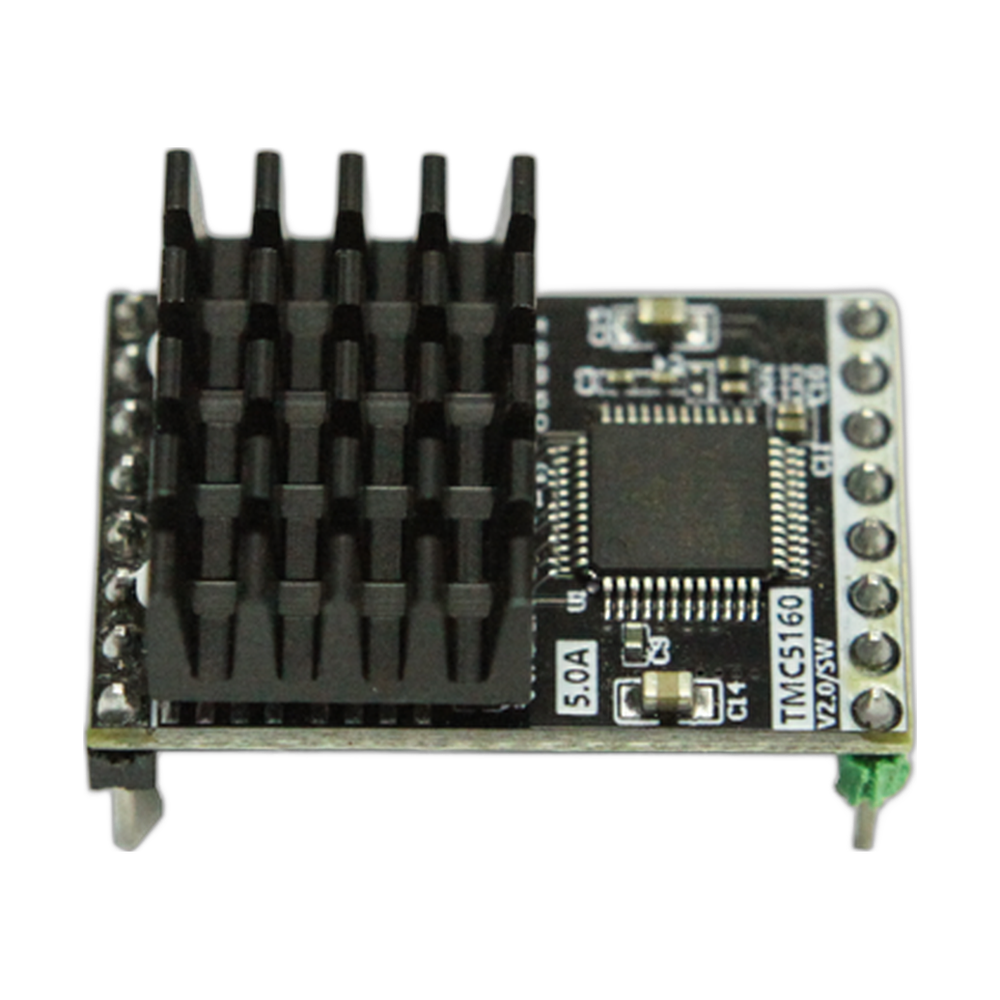

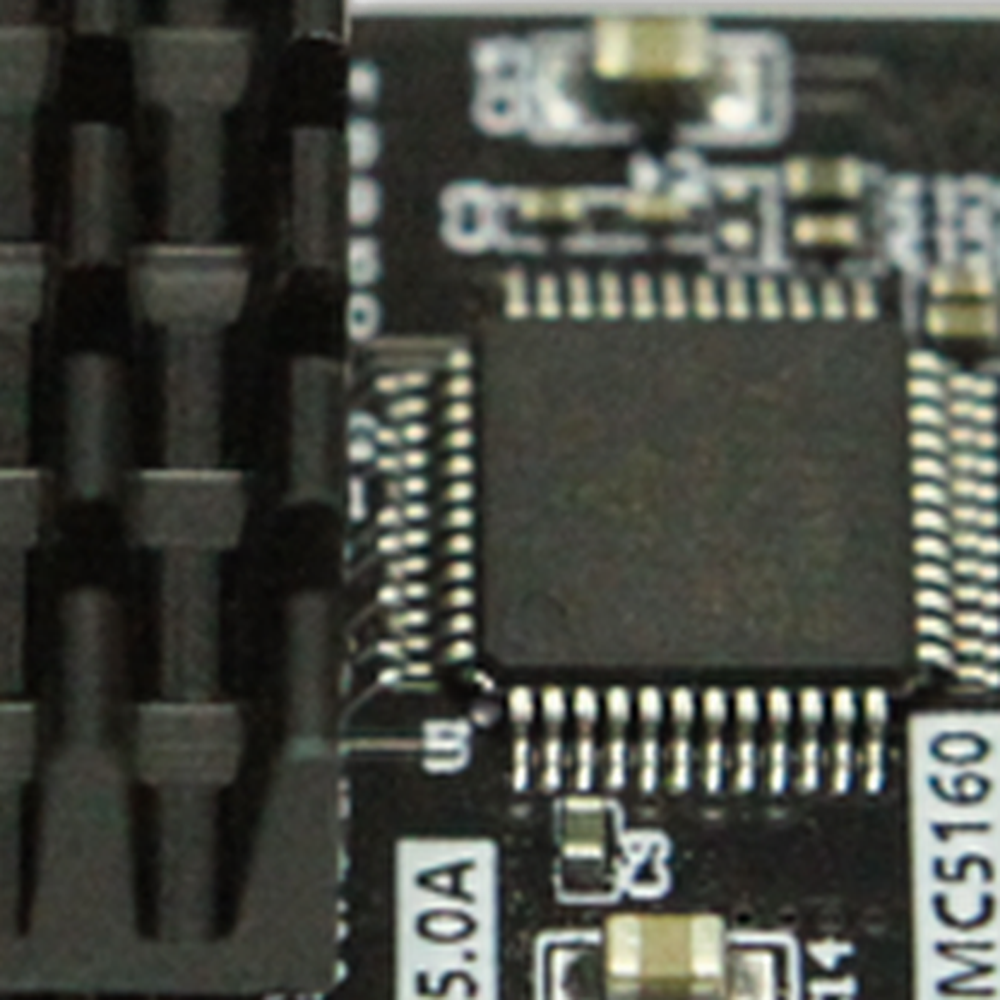

PEEK-250 X/Y/Z/E Drive (Stepper Motor Driver)
The CreatBot PEEK-250 X/Y/Z/E drive (part 115012) is the OEM stepper motor driver for the CreatBot PEEK-250. As the name says, CreatBot uses this one driver part for all four positions on the PEEK-250: the X, Y and Z motion axes and the E (extruder) axis. Each driver turns step commands from the main control board into motor current. Because the same part covers every position, one spare on the shelf can get a PEEK-250 back to work whichever axis has failed. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 X/Y/Z/E Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why keep a spare driver for the PEEK-250
The same driver serves X, Y, Z and E, so a single spare covers any of them.
PEEK parts often take many hours to print, and a driver failure late in a job wastes hours of machine time and material.
With identical drivers, swapping two positions is an easy way to see whether a fault follows the driver.
Signs a driver may need replacing
Layer shifts on X or Y, or uneven layers on Z, with the mechanics in good order.
The extruder motor stalls or under-extrudes with a clear filament path.
A motor hums or stutters instead of turning, and the fault moves when drivers are swapped.
Compatible CreatBot 3D printer
Installation tips
Let the printer cool fully, then switch it off and unplug it. Photograph the drivers in place so the orientation is clear. To test, swap the suspect driver with one from another position, with the power off each time. Fit the new driver the same way round as the old one, reconnect the motor, home the printer and run a short test.
CreatBot PEEK-250 X/Y/Z/E Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 X/Y/Z/E Drive — Questions
Do I need a different driver for each axis?
No. On the PEEK-250, CreatBot uses part 115012 for X, Y, Z and E.
Will it fit the PEEK-300?
Part 115012 is listed for the PEEK-250 only. The PEEK-300 uses other driver parts such as the TMC2209 drive (115014).
Is this a genuine CreatBot part?
Yes, CreatBot part 115012, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
