CreatBotPEEK-250 X/Y High Temp MotorGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

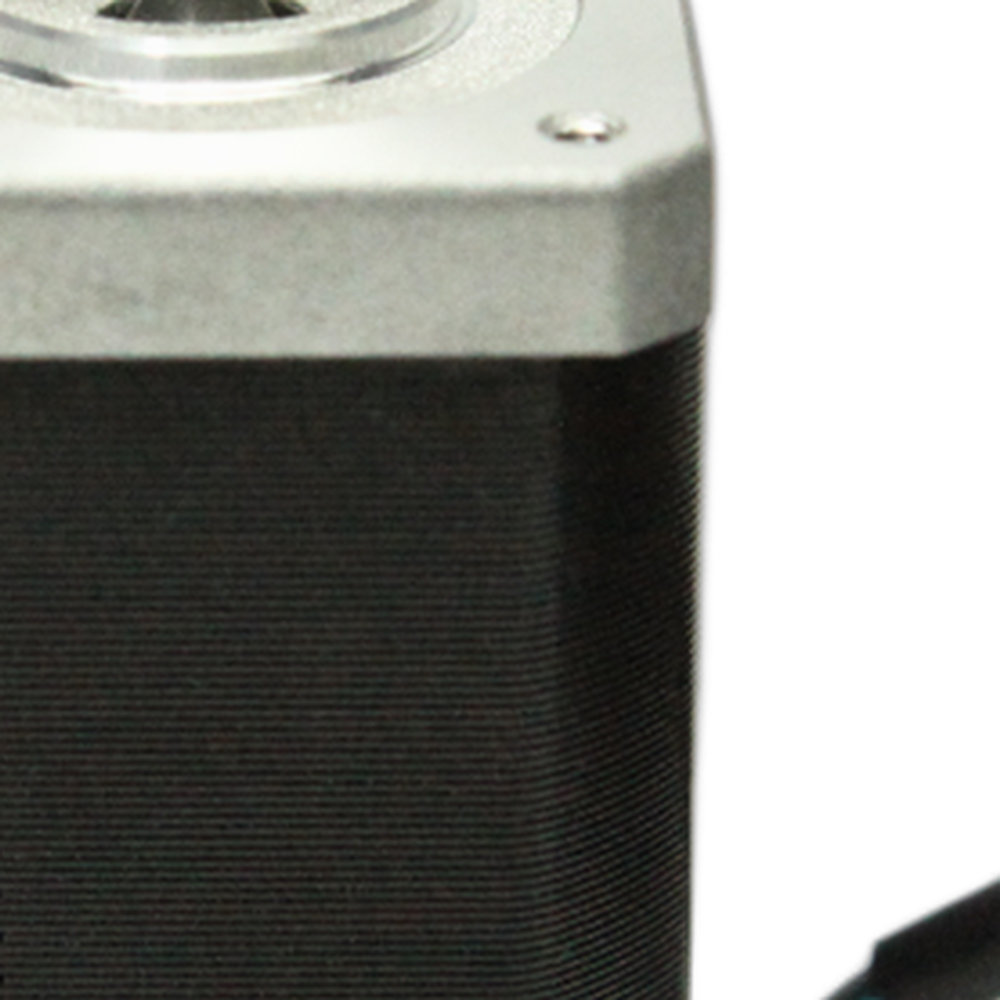

The CreatBot PEEK-250 X/Y high temp motor (part 131013) is the OEM high temperature motion motor for the X and Y axes of the CreatBot PEEK-250. Printing PEEK and similar high performance materials calls for a hot build environment, and the motion motors have to keep working accurately in it. CreatBot specifies a high temp motor for these axes for that reason, so a genuine replacement is the right choice when one fails. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 X/Y High Temp Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why use the genuine high temp motor
CreatBot lists this motor as a high temp part for the PEEK-250 X and Y axes.
It mounts in the original position and connects to the original cable.
Through the long print times typical of PEEK parts.
Signs an X/Y motor needs replacing
Layer shifts in X or Y, especially once the printer is fully up to temperature.
An axis that does not home, stalls or moves roughly.
Grinding, clicking or unusual noise from one of the motion motors.
Belt tension, pulleys and cables can cause the same faults. Rev1 support can help you identify which motor has failed.
Compatible CreatBot 3D printer
The other PEEK-250 motors are the Z motor, part 131014, and the extruder motor, part 131015. The PEEK-300 uses separate X and Y motors, parts 131035 and 131036.
Installation tips
Let the printer cool completely, then power it off and unplug it. Photograph the wiring and mark the pulley position on the old motor shaft. Release belt tension, swap the motor and refit the pulley so the belt runs straight. Re-tension the belt, move the axis by hand to check for smooth travel, then home the printer and run a calibration print once it is back at operating temperature.
CreatBot PEEK-250 X/Y High Temp Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 X/Y High Temp Motor — Questions
Does one part cover both X and Y?
Yes. Part 131013 is listed as the X/Y high temp motor for the PEEK-250. Order one for each motor you are replacing.
Can I use a standard motor instead?
We recommend the genuine high temp part, since CreatBot specifies it for the PEEK-250 build environment.
Will it fit the PEEK-300?
No. The PEEK-300 uses parts 131035 (X) and 131036 (Y).
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
