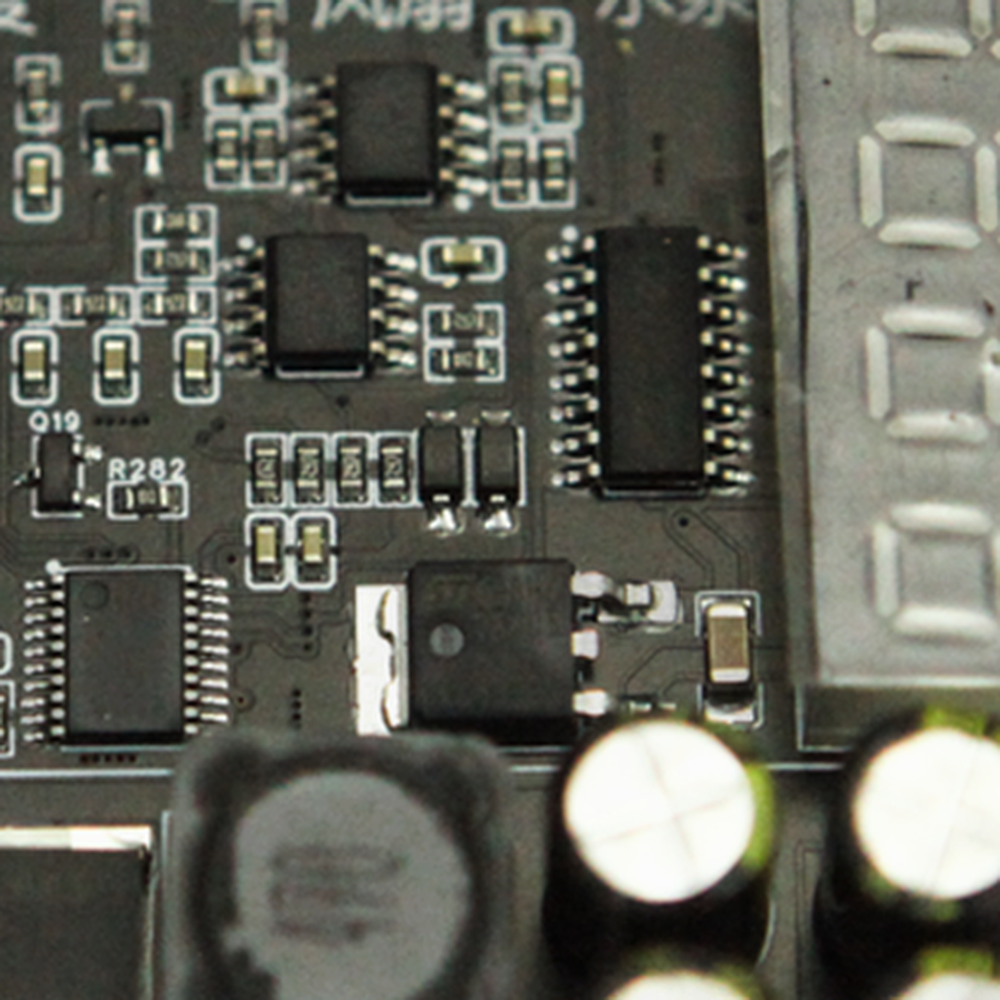

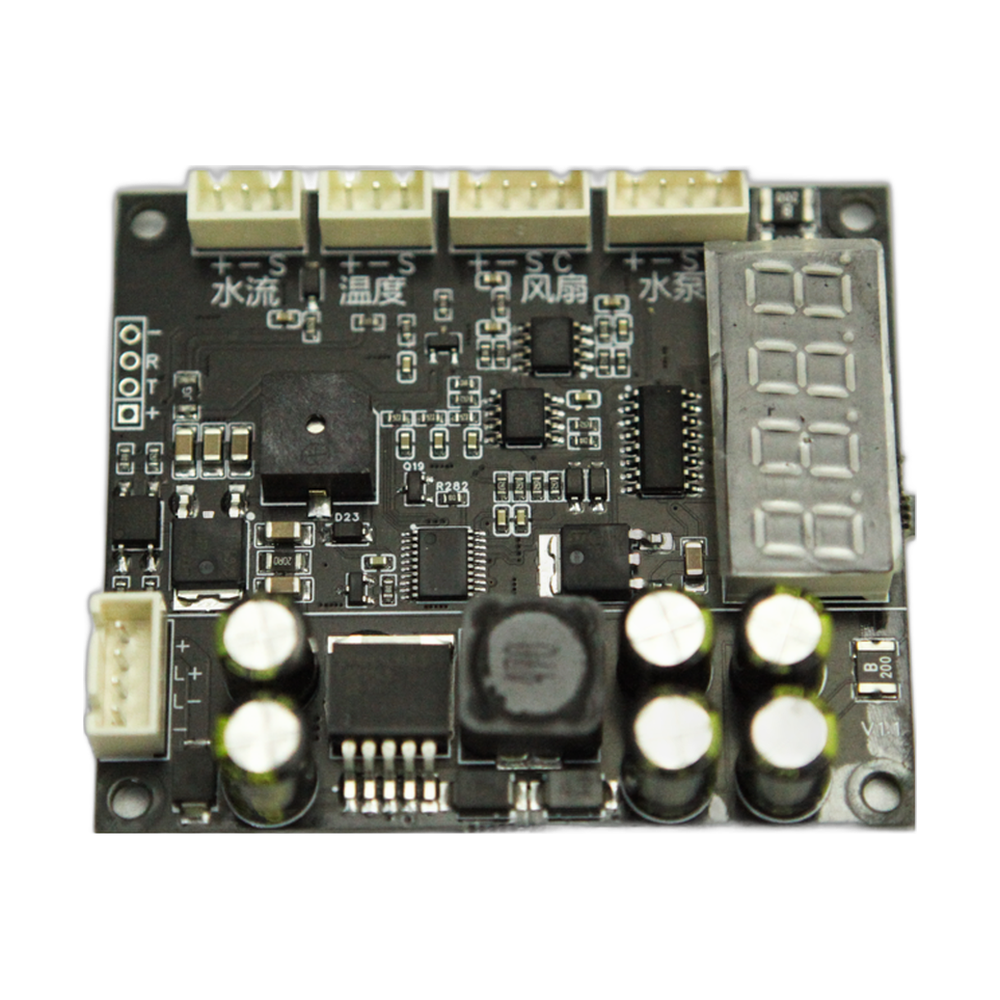

CreatBotPEEK-250 Water Cooling PCBGenuine CreatBot Replacement Part
For the CreatBot PEEK-250
The CreatBot PEEK-250 water cooling PCB (part 114002) is the OEM circuit board for the water cooling system on the CreatBot PEEK-250 3D printer. Printing PEEK and other high performance polymers puts a lot of heat into the machine, and water cooling carries heat away from the parts that need to stay cool. This board is the electronic side of that system, so if it fails the cooling loop cannot do its job and the printer may stop or refuse to heat up to protect itself. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Water Cooling PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why cooling matters on the PEEK-250
Close to the very hot zones of the printer.
A printer that cannot confirm its cooling is working will often stop a job to protect itself.
Engineering parts in PEEK often run for many hours, and the cooling has to keep up the whole time.
Signs the water cooling PCB may need replacing
The printer reports a cooling fault while the coolant, hoses and pump check out.
The cooling system does not start, or stops partway through a print.
Visible damage on the board, such as corrosion, a burnt component or a loose connector.
Compatible CreatBot 3D printer
The PEEK-250 also uses an AC power check PCB (part 114001) and an adapter board (part 114003).
Installation tips
Let the printer cool, then power it off and unplug it. Check for any coolant leaks near the board before you work, and dry the area if needed. Photograph and label every connector, fit the new board in the same position and reconnect each cable. Power up, confirm the cooling system starts and runs normally, then run a short test print.
CreatBot PEEK-250 Water Cooling PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Water Cooling PCB — Questions
Does this board fit the PEEK-300?
No. Part 114002 is listed for the PEEK-250 only.
My cooling stopped. Is it always the board?
No. Low coolant, a kinked hose or a failed pump can cause the same fault. Rev1 support can help you check.
Is this a genuine CreatBot part?
Yes, CreatBot part 114002, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
