CreatBotPEEK-250 Top Chamber Cooling FanGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

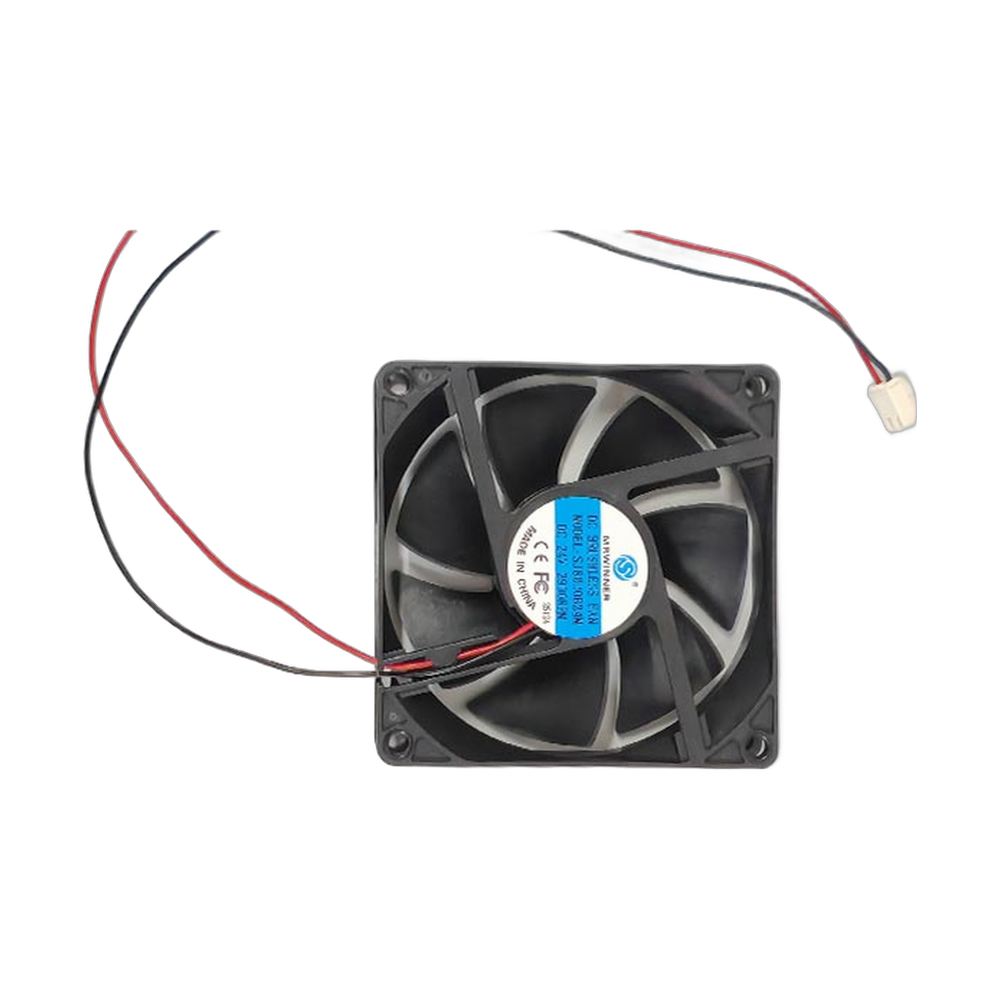

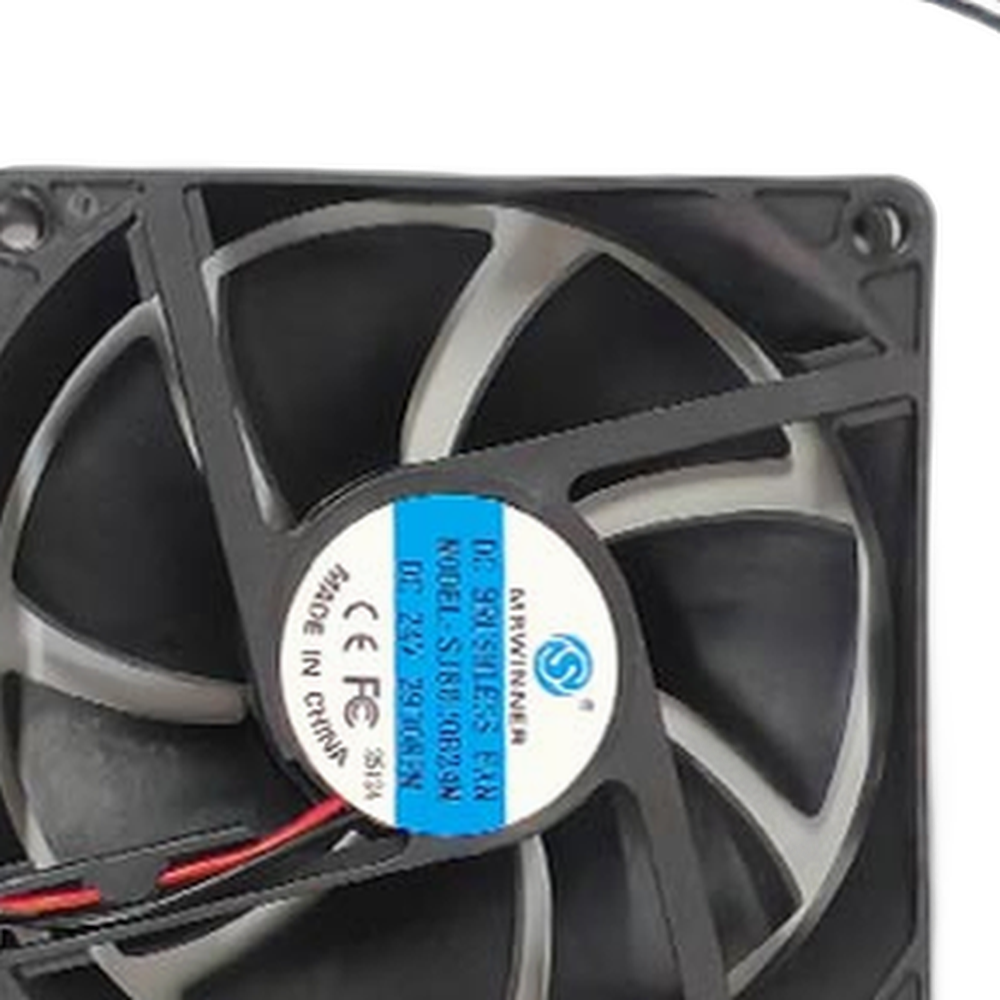

The CreatBot PEEK-250 top chamber cooling fan (part 150011) is the OEM fan fitted at the top of the chamber on the CreatBot PEEK-250. The PEEK-250 is built to print high performance polymers such as PEEK inside a heated enclosure, and that heat has to be managed. This fan moves air at the top of the chamber area so the components mounted there stay within their working range through long prints. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Top Chamber Cooling Fan, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the top chamber cooling fan needs replacing
The fan does not spin while the printer is running, or it starts and stops.
Grinding, rattling or a rising whine that points to worn bearings.
The printer reports a fan or overheating fault, or the top of the machine runs warmer than it used to.
Visible damage to the blades, frame or cable.
A fan that will not run can also be caused by a loose connector or a damaged cable. Check the connection first, and contact Rev1 support if you want help confirming the fault.
Compatible CreatBot 3D printer
The PEEK-250 uses several different fans, and they are not interchangeable. The other PEEK-250 fans are the cooling fan (150009), the water cooling system fan (150010) and the air filter fan (150043). The PEEK-300 uses its own fans, such as the PEEK-300 cooling fan (150037).
Installation tips
Power the printer off, unplug it and let the chamber cool completely before you open anything. Photograph the fan's position, airflow direction and cable routing before removal, then fit the new fan the same way round. Airflow direction matters: a fan mounted backwards pushes air the wrong way. After installation, power up and confirm the fan spins before you start a print.
CreatBot PEEK-250 Top Chamber Cooling Fan Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Top Chamber Cooling Fan — Questions
Is this the same as the PEEK-250 cooling fan?
No. The PEEK-250 cooling fan is a separate part, 150009. This listing is the top chamber cooling fan, part 150011.
Will it fit my PEEK-300?
No. This fan is listed for the PEEK-250 only. The PEEK-300 uses its own set of fans.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 150011, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
