CreatBotPEEK-250 Temperature SensorGenuine CreatBot Replacement Part

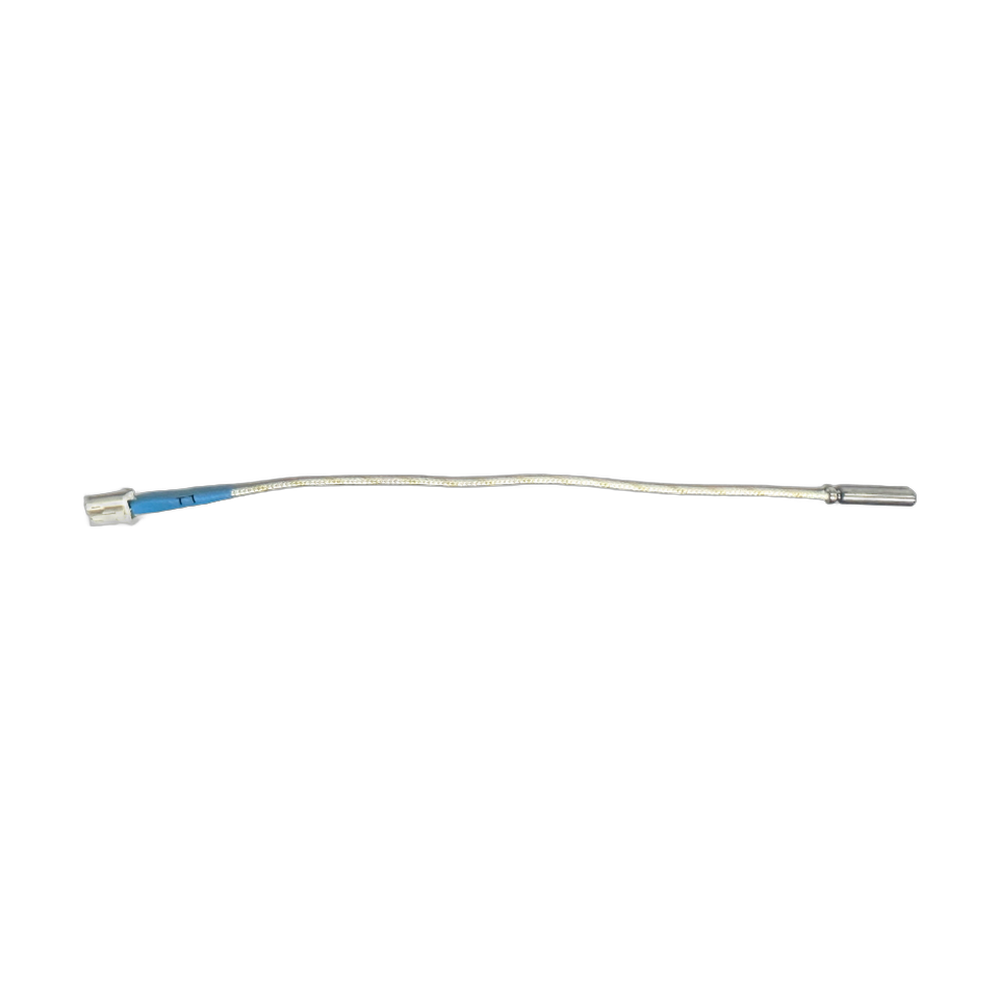

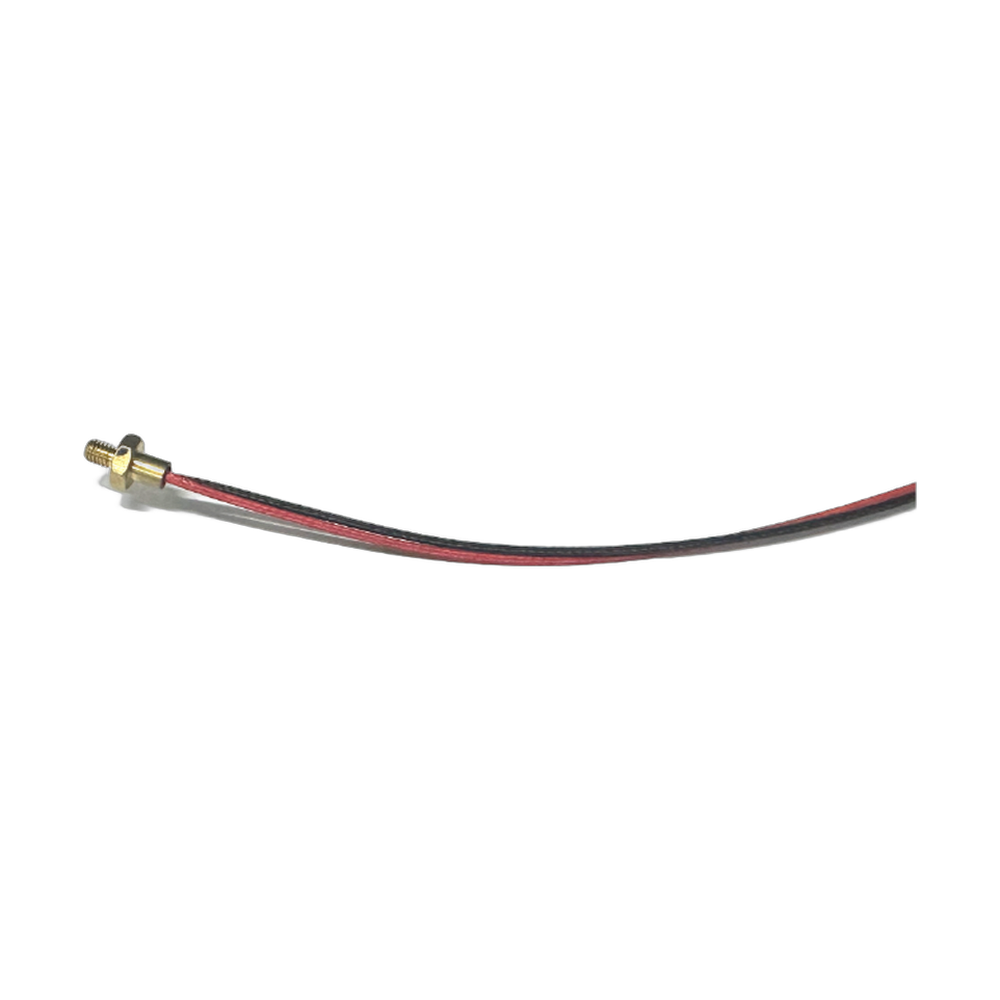

PEEK-250 Hotend Temperature Sensor
The CreatBot PEEK-250 temperature sensor is the OEM hotend temperature sensor for the CreatBot PEEK-250 3D printer. The PEEK-250 is built for high performance polymers such as PEEK, which are sensitive to processing temperature: too cool and layers bond poorly, too hot and the material can degrade. The sensor gives the controller the reading it needs to hold the hotend on target. Two versions are available: the original sensor (part 106005) and V2 (part 106006). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
When to replace the sensor
Temperature readings that fluctuate, freeze or do not match the hotend's behavior.
Sensor, minimum temperature or maximum temperature errors on the display.
PEEK parts with weak layer bonding or discoloration that appear without any profile change.
Visible damage to the sensor lead or its insulation.
Before replacing the sensor, check the connector and the cable run for damage, since those faults look similar.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| Original | 106005 | PEEK-250 |
| V2 | 106006 | PEEK-250 |
Compatible CreatBot 3D printer
Both versions are for the PEEK-250 only. The PEEK-300 uses different sensors (106009, plus the PEEK300 DAS temperature sensor 106013), and the F430 NX has its own Original and V2 sensors (106003, 106004).
Original or V2?
Order the version that is installed in your PEEK-250 today. The controller is set up for a specific sensor, and a mismatch can produce readings that look plausible but are off, which is a real problem when printing PEEK. If the sensor has been replaced before, your service records should show which version went in. Otherwise, contact Rev1 with the printer serial number and we will identify it for you.
Installation tips
Allow the hotend to cool completely and disconnect power. Remove any hotend cover, note the routing of the sensor lead, and release the sensor from the heating block. Seat the new sensor fully, secure it without over-tightening, and reconnect it at the original connector. Heat up in steps and confirm a stable reading before running a PEEK print.
CreatBot PEEK-250 Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Temperature Sensor — Questions
Which version do I need?
The one that matches the sensor in your PEEK-250. Rev1 can confirm it from the serial number.
Does it fit the PEEK-300?
No. The PEEK-300 uses its own sensors, including part 106009.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
