CreatBotPEEK-250 HEPA FilterGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

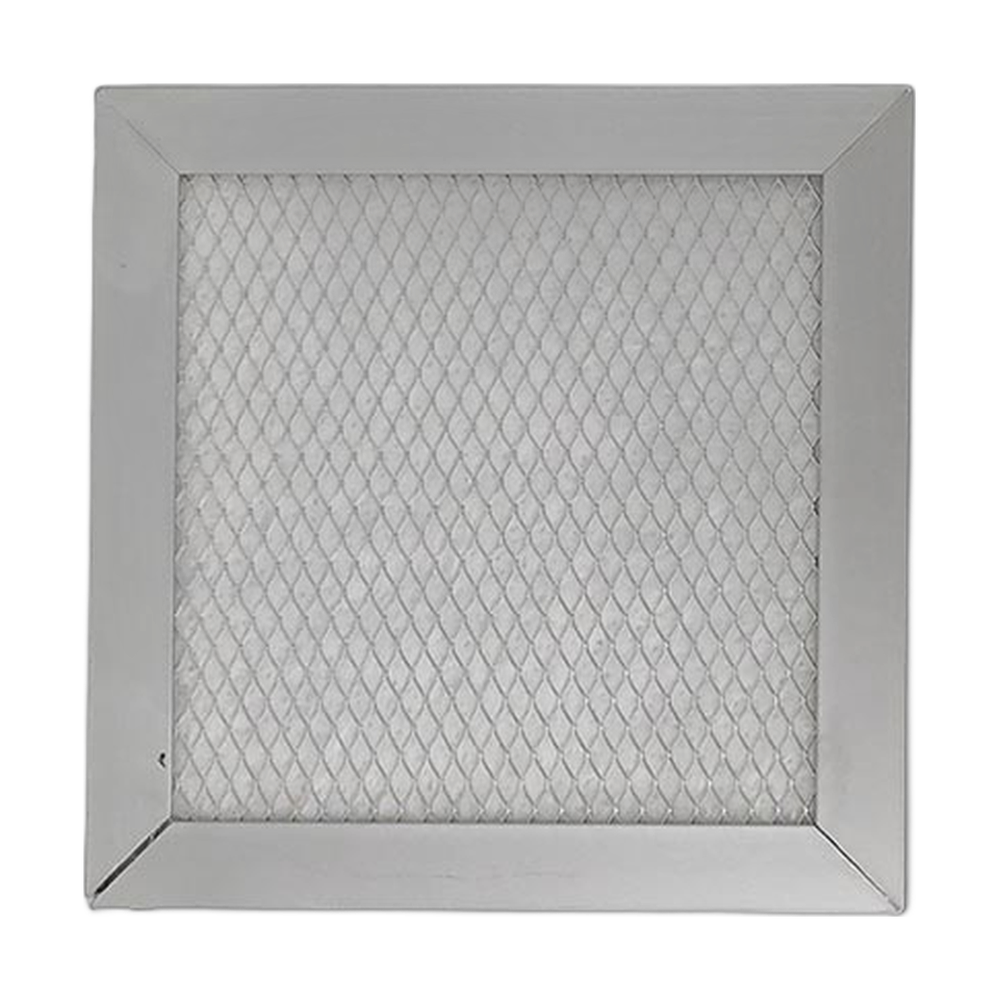

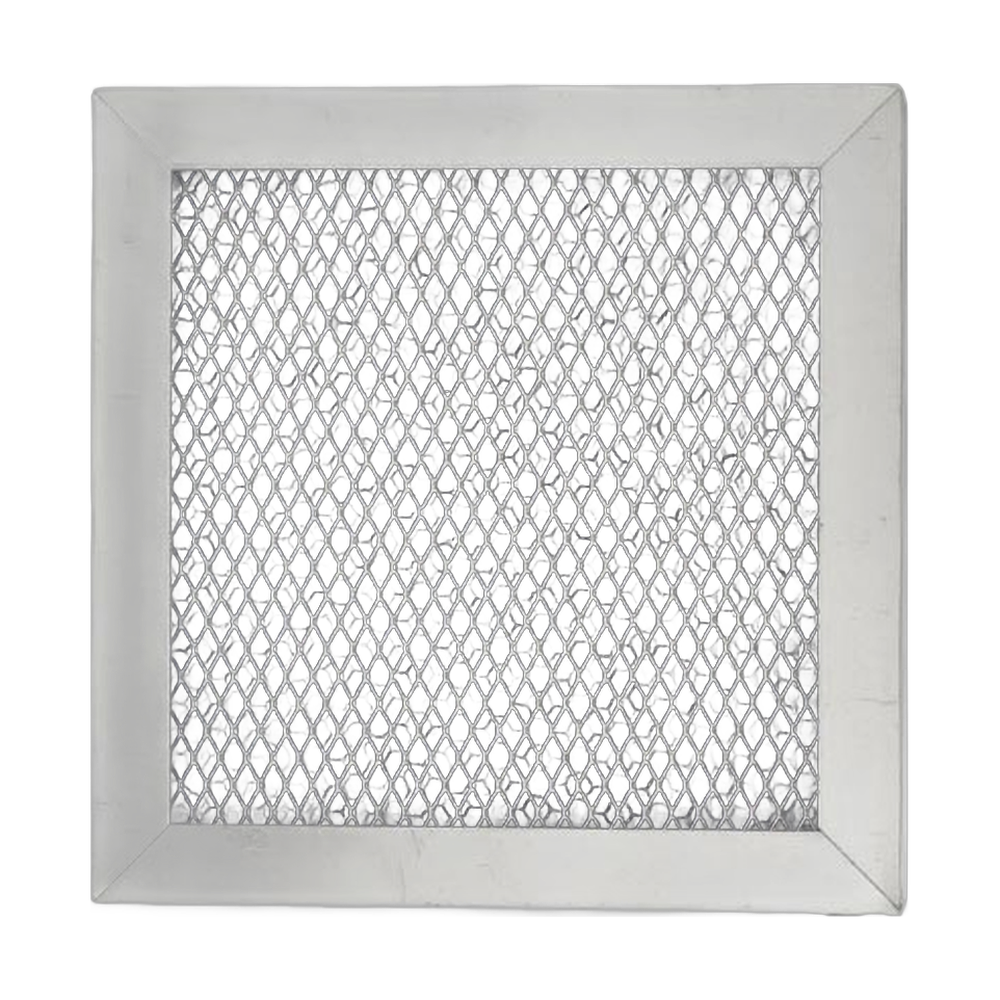

The CreatBot PEEK-250 HEPA filter (part 109011) is the OEM replacement air filter for the CreatBot PEEK-250. The PEEK-250 is built for high performance polymers such as PEEK, the kind of work that tends to happen in labs, engineering departments and production cells. Its air filtration system passes chamber air through the HEPA filter to trap fine particles released during printing. As the filter loads up, filtration and airflow drop, so the filter is replaced as part of normal upkeep. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 HEPA Filter, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the filter needs replacing
The intake face of the filter is discolored or visibly coated.
Airflow through the filtration system is weaker than it was.
Odor around the printer is more noticeable during or after prints.
The filter has been in service for a long run of jobs and has never been changed.
Compatible CreatBot 3D printer
The PEEK-300 takes a different filter, part 109010. Check your model before ordering.
Planning filter changes around PEEK jobs
Prints in high performance materials are often long, and the material on the spool is valuable. The last thing you want is to stop a job to deal with maintenance. Inspect the filter between prints, and fit a new one before a long job if the old one is showing its age. Keeping one spare filter on the shelf turns a replacement into a short task. HEPA filters cannot be cleaned: washing, vacuuming or compressed air damages the media, so always replace rather than refresh.
Installation tips
Turn the printer off and allow it to cool before opening the filter housing. Note how the old filter sits, then remove it. Fit the new filter in the same orientation, make sure it is fully seated with no gaps around the edges, and close the housing. Seal the old filter in a bag before disposal.
CreatBot PEEK-250 HEPA Filter Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 HEPA Filter — Questions
Will the PEEK-300 filter fit my PEEK-250?
No. The PEEK-300 uses part 109010. The PEEK-250 needs this filter, part 109011.
How often should I replace it?
It depends on print hours and materials. Check it monthly and replace it when it is visibly loaded or odor becomes noticeable.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 109011, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
