CreatBotPEEK-250 Extruder PCBGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

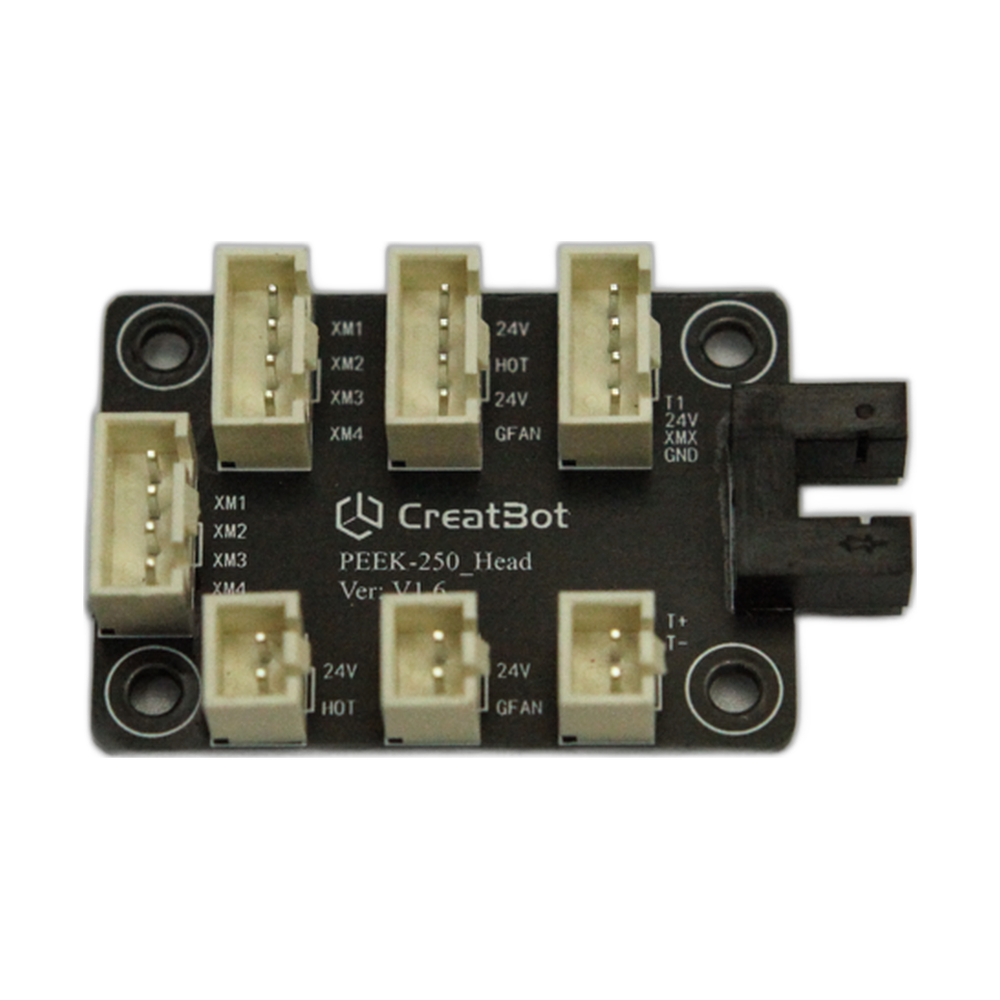

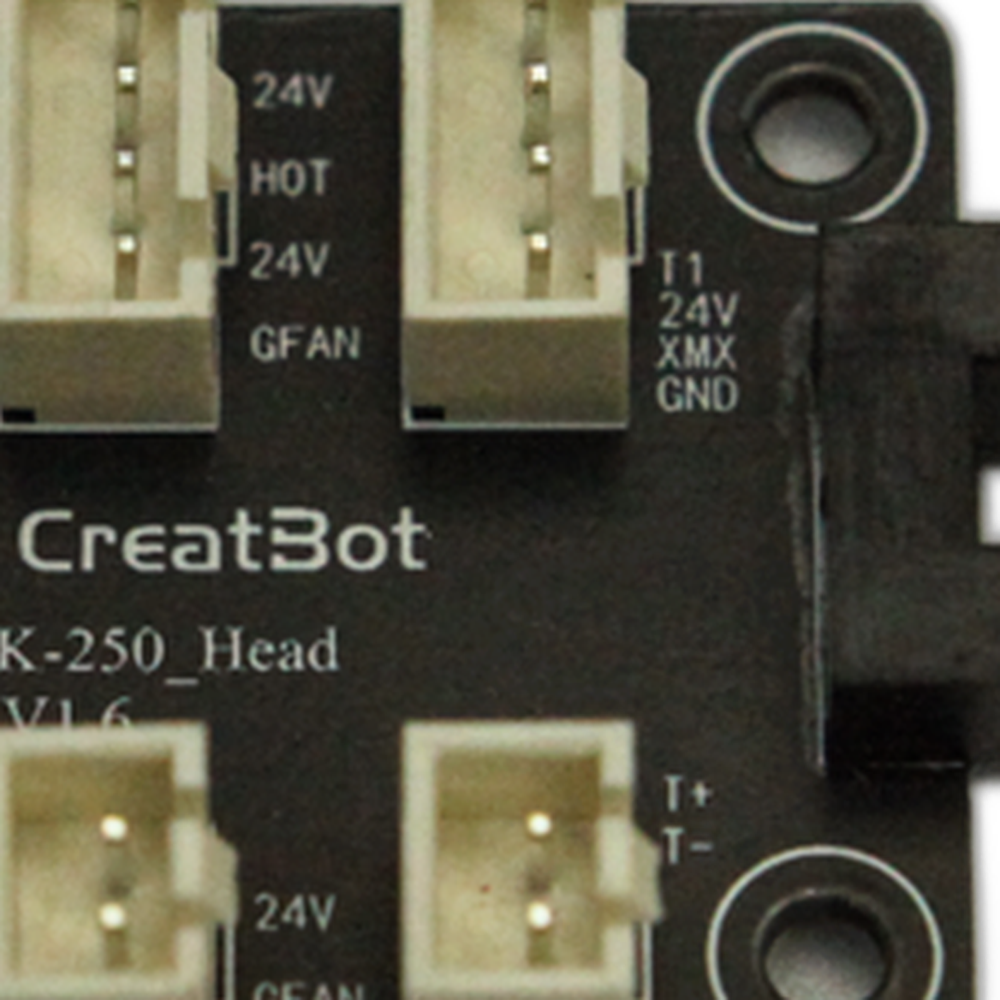

The CreatBot PEEK-250 extruder PCB (part 112007) is the OEM print head circuit board for the CreatBot PEEK-250. The PEEK-250 is built to print PEEK and other high temperature polymers, which puts a hot environment around the print head and its electronics. The extruder board is the junction on the head for the hotend heater, temperature sensor, fans and extruder motor, and it carries their connections back to the main control board. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder PCB needs replacing
Hotend temperature errors, or a reading that drifts or drops out during a print.
The hotend will not heat, or a head fan or the extruder motor stops, although the part tests good.
Discolored, brittle or loose connectors on the board, which can follow long periods of high temperature printing.
A damaged cable or sensor can cause the same symptoms. Contact Rev1 support before ordering and we will help you confirm the cause.
Compatible CreatBot 3D printer
The PEEK-300 uses a different extruder board, the PEEK-300 extruder PCB (part 112017).
Why the extruder board matters on a PEEK printer
Printing PEEK well depends on stable hotend temperature. The temperature reading and the heater power both pass through this board, so a weak connection here can show up as temperature swings, poor layer bonding or failed prints long before the board fails outright. Replacing a suspect board with the genuine part restores a clean signal path and avoids chasing intermittent faults.
Installation tips
Let the printer cool completely, including the chamber, then power it off and unplug it. Photograph the board with every connector in place, transfer the leads one at a time, and make sure each plug is fully seated. Route the harness as it was originally, refit the cover, then confirm a stable hotend temperature on a short test before a full PEEK job.
CreatBot PEEK-250 Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Extruder PCB — Questions
Will it fit a PEEK-300?
No. The PEEK-300 uses part 112017.
Is this the same board my PEEK-250 shipped with?
Yes. It is the genuine CreatBot PEEK-250 extruder PCB, part 112007.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose and replace print head electronics.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
