CreatBotPEEK-250 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

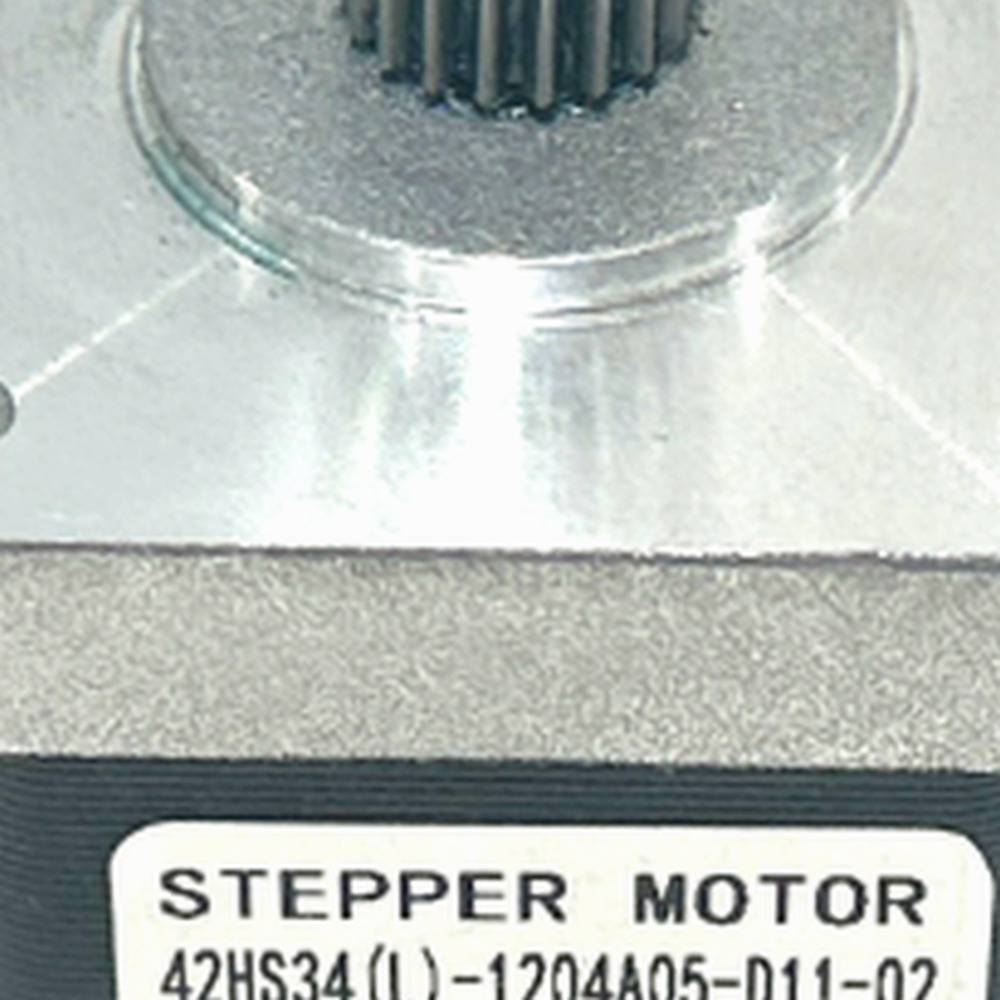

The CreatBot PEEK-250 extruder motor (part 131015) is the OEM extruder motor for the CreatBot PEEK-250. It turns the drive gear that grips the filament and pushes it into the hotend. High performance materials such as PEEK are demanding to print and leave little margin for inconsistent feeding. A motor that is losing torque or missing steps shows up as under-extrusion, weak layer bonding and failed prints in exactly the materials the PEEK-250 was bought to run. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder motor needs replacing
The extruder does not turn during load or extrude commands.
Clicking or skipping with a clear nozzle and a free filament path.
Thin walls, gaps or weak layers that do not improve after cleaning the nozzle.
Buzzing, vibration or excess heat from the motor with little filament movement.
A partial clog, a worn drive gear, wrong tension or a cable fault can look the same. With high performance filament it is worth confirming the cause first, and Rev1 support can help.
Compatible CreatBot 3D printer
The other PEEK-250 motors are the X/Y high temp motor, part 131013, and the Z motor, part 131014. The PEEK-300 uses different extruder motors, parts 131033 (E1) and 131034 (E2).
Installation tips
Unload the filament and let the printer cool fully before you start. Power off and unplug the printer. Photograph the extruder and wiring, and note how the drive gear sits on the motor shaft. Fit the new motor in the same orientation, align the drive gear with the filament path and set the tension. Extrude a short test length, then run a small test print before you commit to a full PEEK job.
CreatBot PEEK-250 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Extruder Motor — Questions
Does this fit the PEEK-300?
No. The PEEK-300 uses extruder motors 131033 and 131034.
Is the extruder motor the same as the X/Y high temp motor?
No. They are different parts. The PEEK-250 X/Y high temp motor is part 131013.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose the extruder, fit the genuine motor and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
