CreatBotPEEK-250 Cooling FanGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

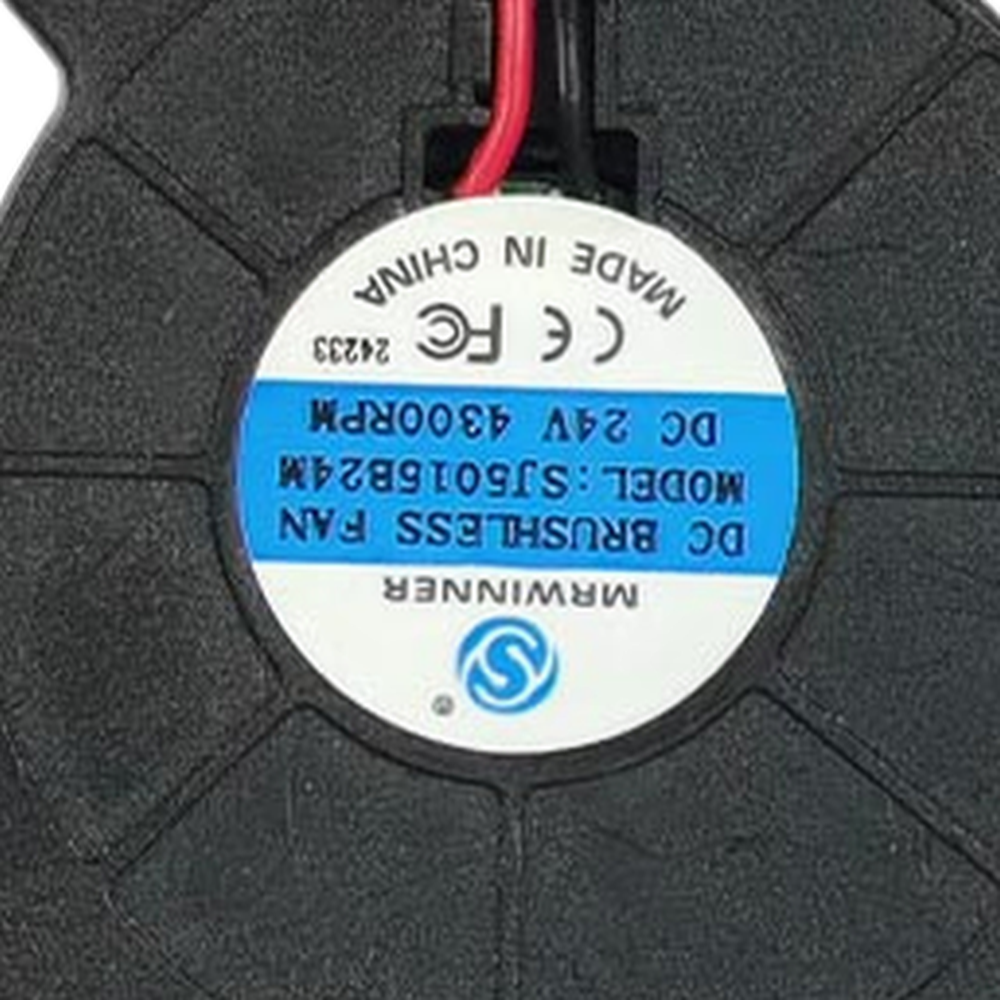

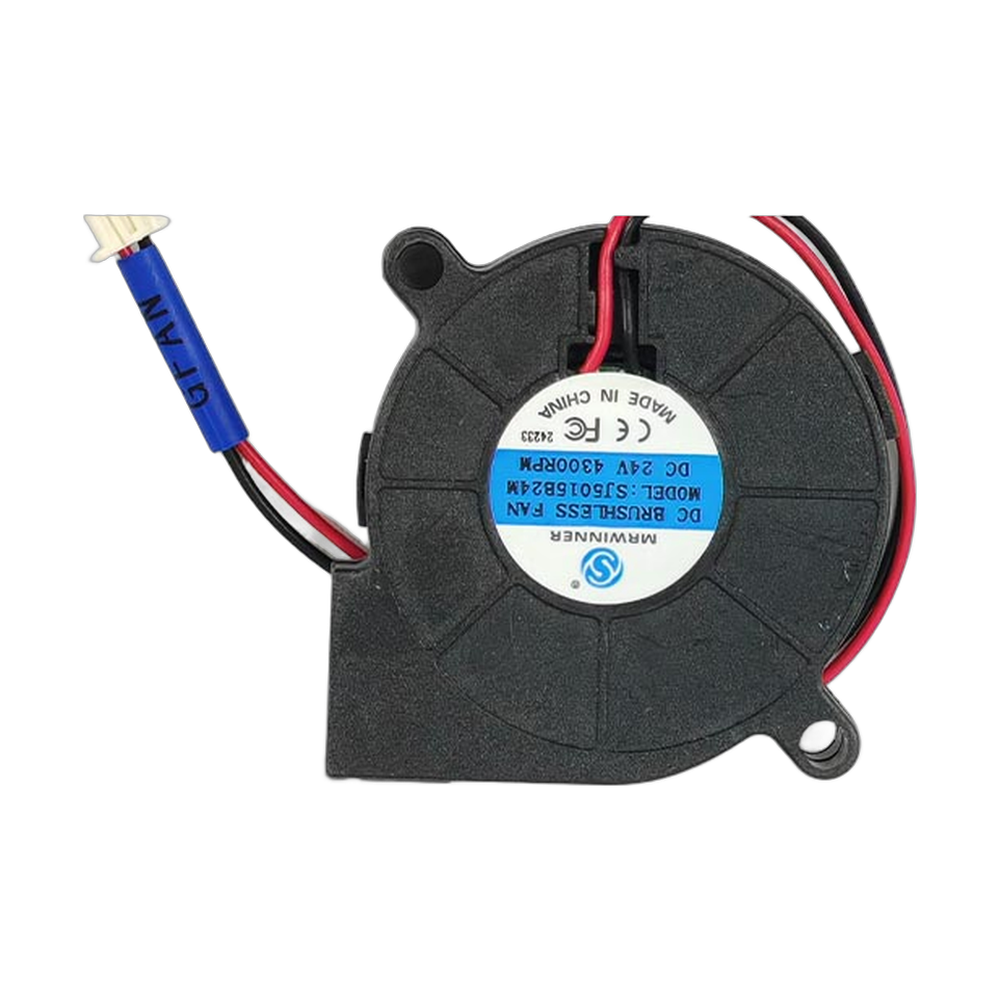

The CreatBot PEEK-250 cooling fan (part 150009) is the OEM print cooling fan for the CreatBot PEEK-250 high temperature 3D printer. It directs air at freshly extruded material so features set in shape. High performance polymers are sensitive to how fast they cool, so on the PEEK-250 the cooling fan is a tool your slicer profile uses with care, often at low speed or only for certain features. For that control to work, the fan has to deliver the airflow your profile expects. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Cooling Fan, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the cooling fan needs replacing
The fan no longer responds when the slicer or touchscreen sets a fan speed.
Features that relied on cooling, such as overhangs or small details, print worse with an unchanged profile.
Rattling, grinding or a fan that starts and stops on its own.
Visible damage to the blades or fan frame.
Compatible CreatBot 3D printer
The PEEK-250 uses several fans with separate part numbers: this cooling fan, the water cooling system fan (150010), the top chamber cooling fan (150011) and the air filter fan (150043). The PEEK-300 uses its own cooling fan, part 150037.
Which PEEK-250 fan do I need?
Because the PEEK-250 has four different fans, identify the failed one before you order. This cooling fan acts on the printed part at the print head. The water cooling system fan serves the printer's water cooling circuit, the top chamber cooling fan is listed for the top of the chamber, and the air filter fan drives filtration. If you are not sure which one has stopped, send Rev1 support a photo or a short video and we will match it to the right part number.
Installation tips
Power the printer off and let the hotend and chamber cool completely before you reach inside; a high temperature machine stays hot for some time after a print. Note the fan orientation and cable route, fit the new fan the same way round, and keep the cable away from heated parts. Test with a short print using part cooling.
CreatBot PEEK-250 Cooling Fan Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Cooling Fan — Questions
Will it fit a PEEK-300?
No. The PEEK-300 uses cooling fan 150037.
Is this the top chamber cooling fan?
No. The top chamber cooling fan is part 150011.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 150009, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
