CreatBotPEEK-250 Adapter BoardGenuine CreatBot Replacement Part
For the CreatBot PEEK-250

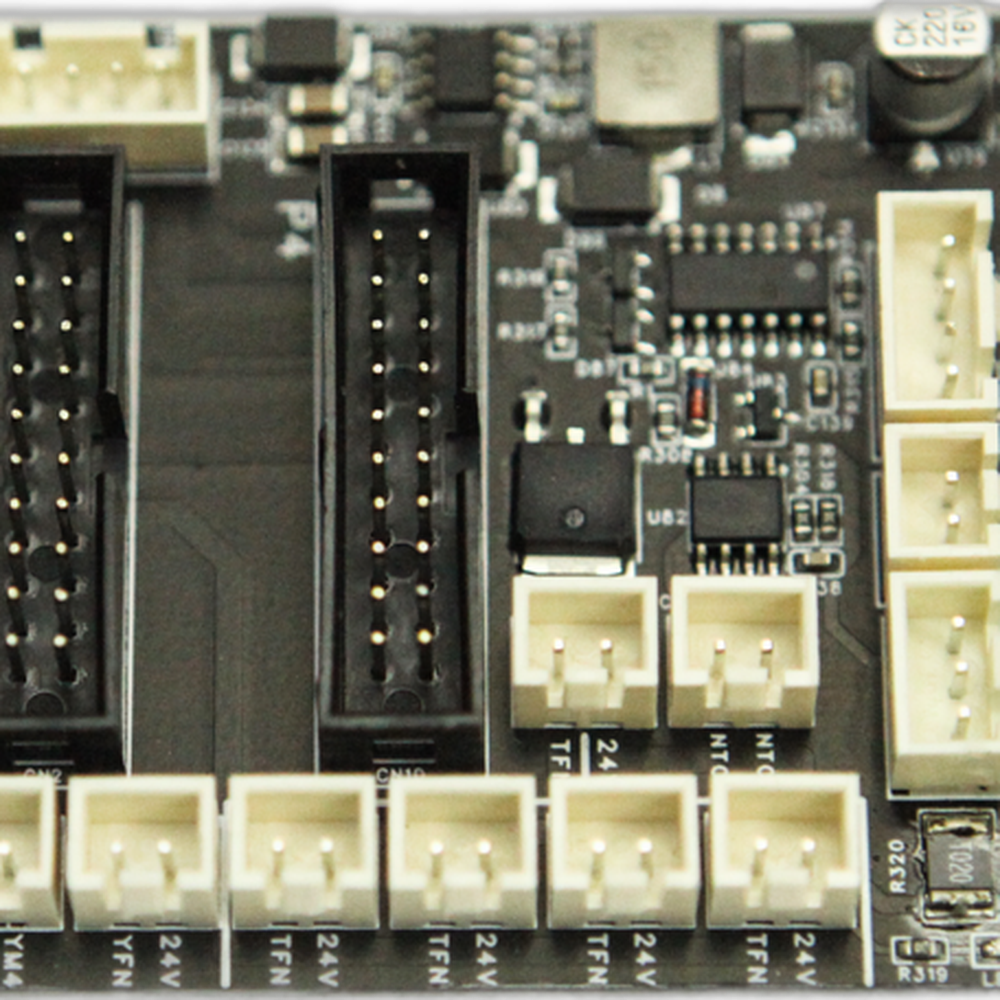

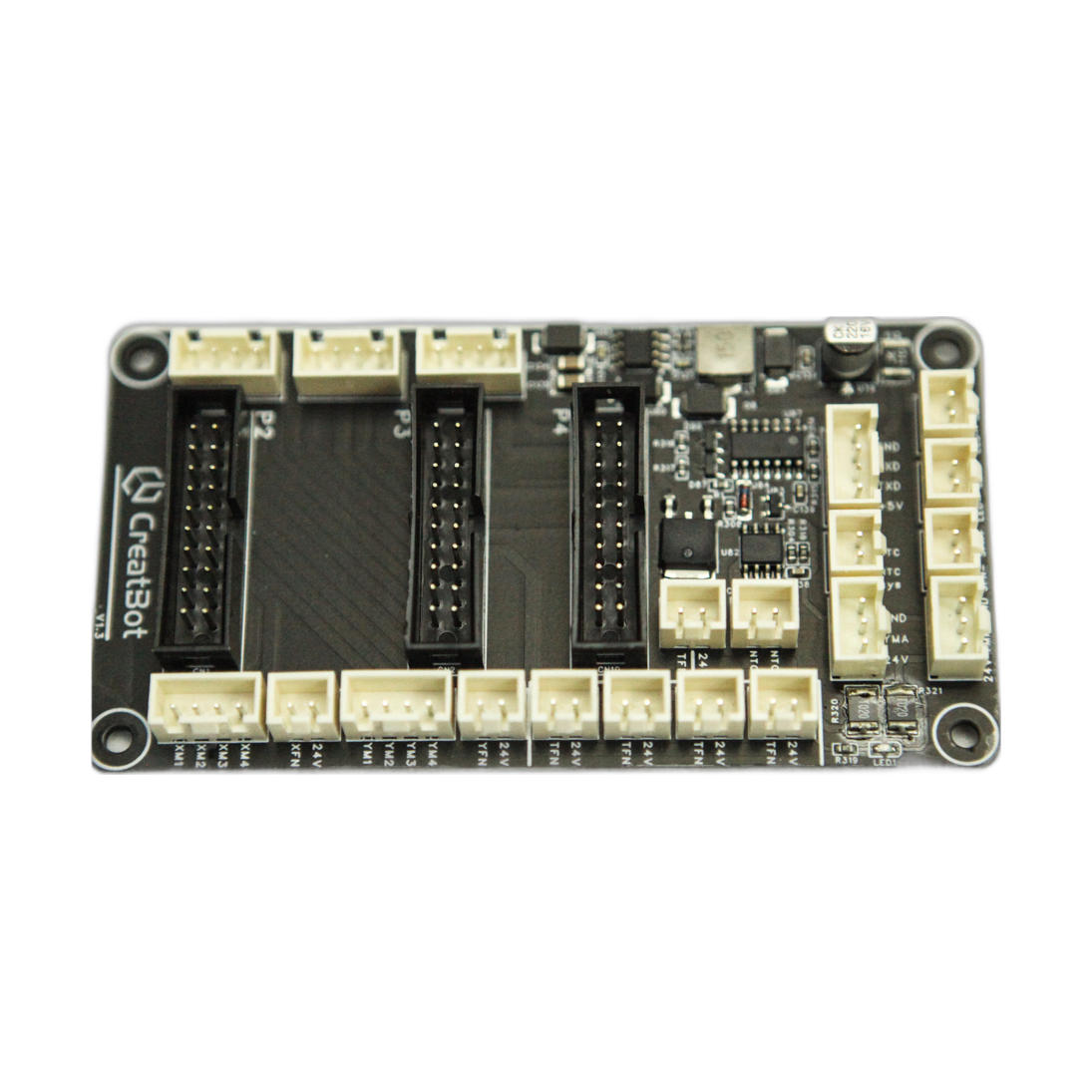

The CreatBot PEEK-250 adapter board (part 114003) is the OEM interface board for the CreatBot PEEK-250 high temperature 3D printer. Adapter boards are the connection points in a printer's wiring. Cables from heaters, fans, sensors and other components plug into the board, which passes power and signals on toward the main control electronics. On a machine that prints PEEK and similar polymers, the electronics work hard over long jobs, and a reliable adapter board keeps every circuit connected the way CreatBot designed it. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot PEEK-250 Adapter Board, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the adapter board may need replacing
Several components lose function together, which points to a shared connection rather than one failed part.
Temperature or sensor readings drop out or jump when the wiring near the board is moved.
Visible damage: heat discoloration, a cracked solder joint or a broken connector housing.
Compatible CreatBot 3D printer
The PEEK-250 has two other dedicated boards in this family: the AC power check PCB (part 114001) and the water cooling PCB (part 114002). Other models use their own adapter boards, for example the F430 (114005), the F430 NX (114004) and the D600 and D600 Pro (114008).
Installation tips
Let the printer cool completely, then switch it off and unplug it. Photograph the board with all cables connected and label each plug. Use anti-static precautions when you handle the new board, reconnect every cable to the same position and dress the wiring away from hot surfaces and moving parts. Power on and check heaters, fans and sensor readings before you start a print.
CreatBot PEEK-250 Adapter Board Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot PEEK-250 Adapter Board — Questions
Which PEEK-250 board do I need?
It depends on the fault. This is the adapter board, part 114003. Power monitoring faults point to part 114001 and cooling faults to part 114002. Rev1 support can help you decide.
Will it fit the PEEK-300?
No. Part 114003 is listed for the PEEK-250 only.
Is this a genuine CreatBot part?
Yes, CreatBot part 114003, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
